Pictures of 928Turbosports turbo kit installation
Hi Guys,
I'm installing a 928Turbosports multi-stage kit on my '86.5 5-speed currently, taking pictures as I go, here's a few for you. Email me if you want specific information.

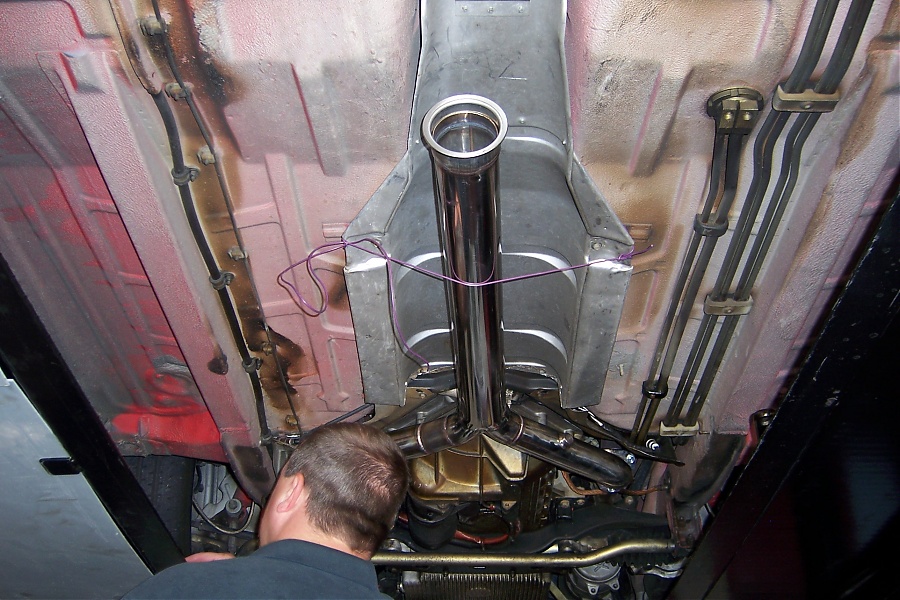

Y-pipe going on (9 pounds total):

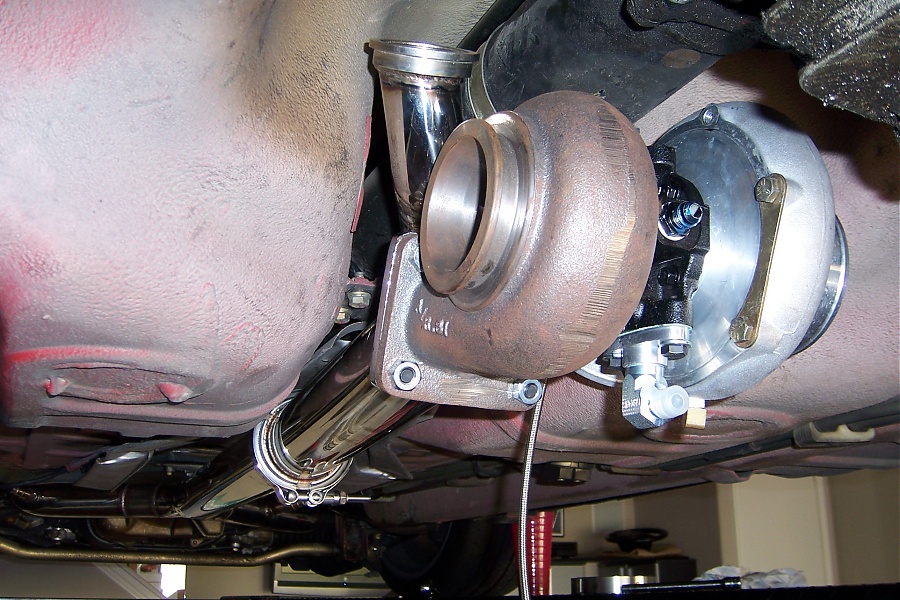

Hanging the water-cooled T67 P-trim Dual Ballbearing turbocharger with oil line attached:

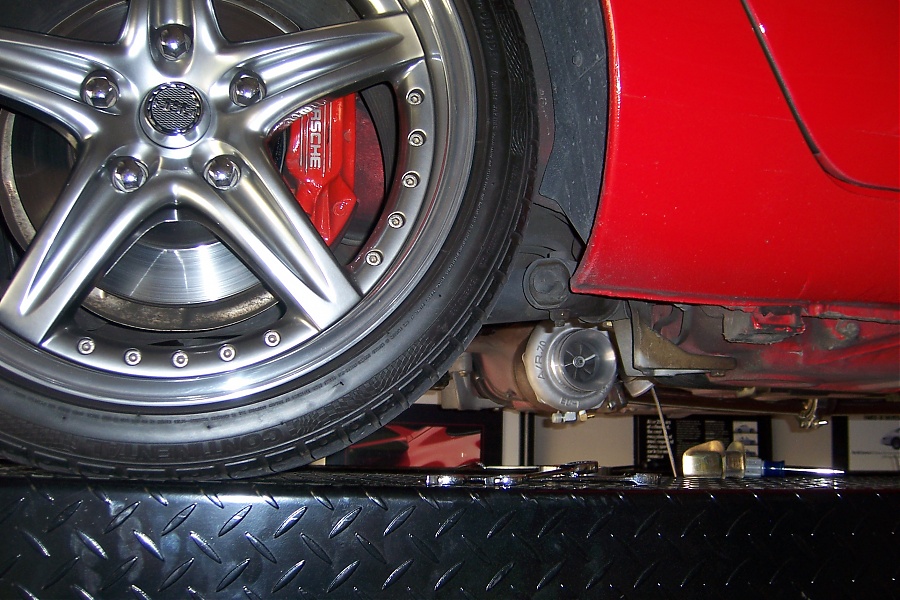

Hanging turbocharger: still has ~5" clearance from ground on 2" lowered 928S
Hooking up the 3.5" cold-air intake plumbing & relocated MAF

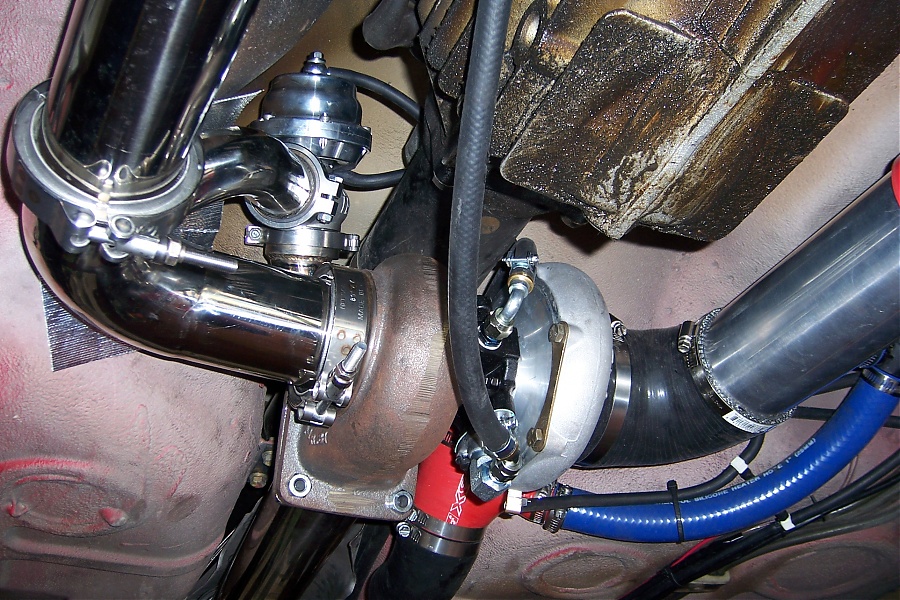

Hooking up the Tial 44mm wastegate to the Stainless downpipe (v-bands)
showing the mostly-installed set-up, with oil scavenge lines, water lines, catalytic test-pipe (you can run a proper emissions compliant cat w/air pump too).
Mark
I'm installing a 928Turbosports multi-stage kit on my '86.5 5-speed currently, taking pictures as I go, here's a few for you. Email me if you want specific information.
Y-pipe going on (9 pounds total):
Hanging the water-cooled T67 P-trim Dual Ballbearing turbocharger with oil line attached:
Hanging turbocharger: still has ~5" clearance from ground on 2" lowered 928S
Hooking up the 3.5" cold-air intake plumbing & relocated MAF
Hooking up the Tial 44mm wastegate to the Stainless downpipe (v-bands)
showing the mostly-installed set-up, with oil scavenge lines, water lines, catalytic test-pipe (you can run a proper emissions compliant cat w/air pump too).
Mark
#3
10-13-2008, 08:09 AM
Join Date: Dec 2007
Location: Austin, Texas
Posts: 132
Rep Power: 22
Like a champ: haven't touched it since the installation in May, except for fine tuning of the fuel maps. No traction until about 80mph @ 5.5psi.
Mark
Mark
#5
10-13-2008, 01:43 PM
Did you put any kind of skid plate over that thing?
I'd hate to hit all that fine craftsmanship on a speed bump or have a stray stick rip out the vacuum hoses...
I'd hate to hit all that fine craftsmanship on a speed bump or have a stray stick rip out the vacuum hoses...
#7
10-27-2008, 08:13 AM
Join Date: Dec 2007
Location: Austin, Texas
Posts: 132
Rep Power: 22
Opposite of heat issues: it runs cooler, so did my last turbo 928. I'm putting down about 440rwhp currently at 6.5psi.
My car is very low, I've bumped the system one time (small scrape), but other wise it's fine. All the wiring & vacuum & oil/water lines are routed up high.
My car is very low, I've bumped the system one time (small scrape), but other wise it's fine. All the wiring & vacuum & oil/water lines are routed up high.
Trending Topics
#9
10-27-2008, 01:55 PM
Join Date: Dec 2007
Location: Austin, Texas
Posts: 132
Rep Power: 22
About 3 hours under the hood, about 5 hours under the car: your time may vary, though keep in mind it replaces 90% of your exhaust system too! Only your manifolds remain.
If you go with an optional Dual ballbearing turbocharger, add about 1.5 more hours for the water lines & connections.
Mark.
If you go with an optional Dual ballbearing turbocharger, add about 1.5 more hours for the water lines & connections.
Mark.
#11
12-02-2008, 05:00 PM
Hi Guys,
I'm installing a 928Turbosports multi-stage kit on my '86.5 5-speed currently, taking pictures as I go, here's a few for you. Email me if you want specific information.
Y-pipe going on (9 pounds total):
Hanging the water-cooled T67 P-trim Dual Ballbearing turbocharger with oil line attached:
Hanging turbocharger: still has ~5" clearance from ground on 2" lowered 928S
Hooking up the 3.5" cold-air intake plumbing & relocated MAF
Hooking up the Tial 44mm wastegate to the Stainless downpipe (v-bands)
showing the mostly-installed set-up, with oil scavenge lines, water lines, catalytic test-pipe (you can run a proper emissions compliant cat w/air pump too).
Mark
I'm installing a 928Turbosports multi-stage kit on my '86.5 5-speed currently, taking pictures as I go, here's a few for you. Email me if you want specific information.
Y-pipe going on (9 pounds total):
Hanging the water-cooled T67 P-trim Dual Ballbearing turbocharger with oil line attached:
Hanging turbocharger: still has ~5" clearance from ground on 2" lowered 928S
Hooking up the 3.5" cold-air intake plumbing & relocated MAF
Hooking up the Tial 44mm wastegate to the Stainless downpipe (v-bands)
showing the mostly-installed set-up, with oil scavenge lines, water lines, catalytic test-pipe (you can run a proper emissions compliant cat w/air pump too).
Mark
#12
01-09-2009, 12:55 PM
Join Date: Dec 2007
Location: Austin, Texas
Posts: 132
Rep Power: 22
Designed to be user-installed in a day or so, $5200 starting price (there are options that can be added like boost controllers, larger turbocharger options, etc)
#13
01-15-2009, 10:38 AM
Join Date: Dec 2007
Location: Austin, Texas
Posts: 132
Rep Power: 22
We had a regional 928 gathering this last weekend: I gave about 10 rides up & down the highway: my brakes were smoldering by the time I was done...funny to see people reach to grab things to hang onto. Lots of fun.
I'll get back on the dyno in a month or so: my fuel presssure regulator had some debris in it that prevented a flat fuel map & appropriate rising-rate under boost.
Mark
Lots of fun.I'll get back on the dyno in a month or so: my fuel presssure regulator had some debris in it that prevented a flat fuel map & appropriate rising-rate under boost.
