Base 3.4 Engine Vibration at 3300 RPM
#31
rnl, can you tell us what options you have? SC, PSE?
#32
No performance options
Agate gray
PDK
PSE
full leather interior black gray
Heated steering wheel
Retractable mirrors
20 inch wheels
Tracking headlights
Vented and heated seats
Front and rear sensors for parking
Built in radar detectors and "laser" jammer
Keyless entry
Sure there were software updates and an occasional rattle that was fixed.
My only complaint is that the temp gauge shows 194 ALL THE TIME when operating. And that can't be correct
Agate gray
PDK
PSE
full leather interior black gray
Heated steering wheel
Retractable mirrors
20 inch wheels
Tracking headlights
Vented and heated seats
Front and rear sensors for parking
Built in radar detectors and "laser" jammer
Keyless entry
Sure there were software updates and an occasional rattle that was fixed.
My only complaint is that the temp gauge shows 194 ALL THE TIME when operating. And that can't be correct
#33
Frank C.
#34
Why would you think that it "can't be correct"? I am assuming that when you start your car from cold that it is not indicating 194. My car reads 194 at virtually all driving conditions, including track. Oil temp on the other hand varies from the high 190's to low 220's, except on the track where it is usually pegged at 250.
Frank C.
Frank C.
Porsche probably fixed the temperature reading at 194 to stop the questions...like, why is my temp at 219F?
#35
What convinced me that the 194 is essentially a digital "idiot light" were readings taken off the OBDI port. Think about it, do you believe that any engine is capable of maintaining a constant engine temperature? By design, when coolant temperature rises above the set point the thermostat opens allowing coolant to flow at higher rates through the radiators allowing it to be cooled.
Porsche probably fixed the temperature reading at 194 to stop the questions...like, why is my temp at 219F?
Porsche probably fixed the temperature reading at 194 to stop the questions...like, why is my temp at 219F?
#36
What convinced me that the 194 is essentially a digital "idiot light" were readings taken off the OBDI port. Think about it, do you believe that any engine is capable of maintaining a constant engine temperature? By design, when coolant temperature rises above the set point the thermostat opens allowing coolant to flow at higher rates through the radiators allowing it to be cooled.
Porsche probably fixed the temperature reading at 194 to stop the questions...like, why is my temp at 219F?
Porsche probably fixed the temperature reading at 194 to stop the questions...like, why is my temp at 219F?
#37
Ok guys, I *may* be making some progress here. Perhaps some of you could try to reproduce the little experiment I ran today. First, here's my logic about the vibration:

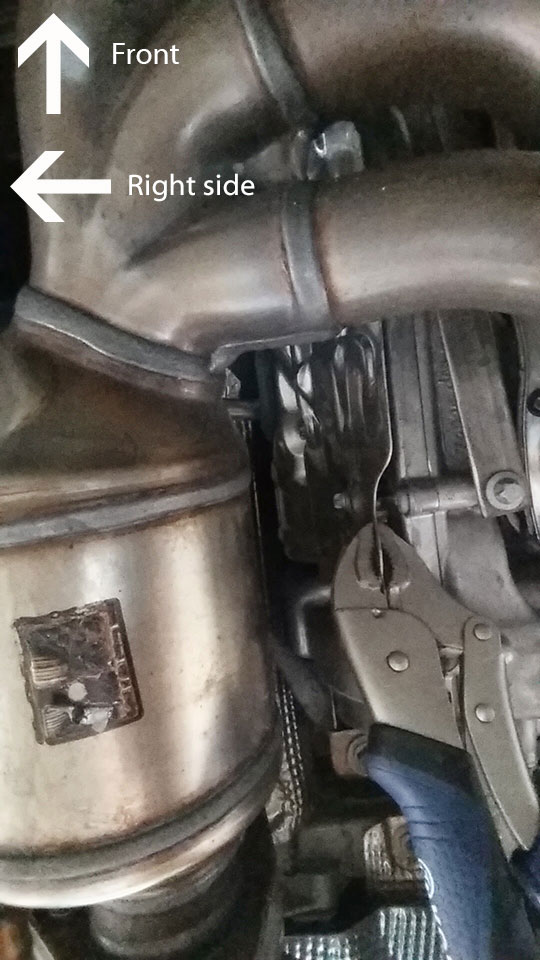

So going with these assumptions, I got under the car to see if I could find anything that might be prone to vibration. The first thing that caught my eye was the heatshield next to the side muffler. Just for kicks I clamped a vice grip onto it (pic) to change its mass and went out for a drive. There was some traffic so I couldn't test it extensively, but I could not get the vibration to occur! Usually its very easy to reproduce the vibration.
At this point I'm still skeptical of my experiment because of the lack of testing, but I'm hoping some of you could maybe try this as well. I probably won't get another chance until tomorrow at least.
- Doesn't occur in Neutral = rules out pure rotational frequency issues, ie. the engine
- Occurs within a very tight RPM range (3000-3300) = rules out cam timing components
- Happens with and without SC = rules out motor mounts
- Happens with base exhaust, PSE, and aftermarket pipes = vibration is probably upstream of the center muffler
- Seems to happen only with specific throttle input = probably exhaust-related
So going with these assumptions, I got under the car to see if I could find anything that might be prone to vibration. The first thing that caught my eye was the heatshield next to the side muffler. Just for kicks I clamped a vice grip onto it (pic) to change its mass and went out for a drive. There was some traffic so I couldn't test it extensively, but I could not get the vibration to occur! Usually its very easy to reproduce the vibration.
At this point I'm still skeptical of my experiment because of the lack of testing, but I'm hoping some of you could maybe try this as well. I probably won't get another chance until tomorrow at least.
#38
Founder's post:
This is some good work here. When I examined the heat shields I just checked for looseness and metal contact. I never considered changing its mass. It could be that it is just vibrating at a certain RPM and torque load. I will try to get my car on a lift this weekend and try to reproduce your results. Can you tell me which shield is the one that you played with? I think the sound is coming from the rear right side, but its tough to be sure.
This is some good work here. When I examined the heat shields I just checked for looseness and metal contact. I never considered changing its mass. It could be that it is just vibrating at a certain RPM and torque load. I will try to get my car on a lift this weekend and try to reproduce your results. Can you tell me which shield is the one that you played with? I think the sound is coming from the rear right side, but its tough to be sure.
#39
Founder's post:
This is some good work here. When I examined the heat shields I just checked for looseness and metal contact. I never considered changing its mass. It could be that it is just vibrating at a certain RPM and torque load. I will try to get my car on a lift this weekend and try to reproduce your results. Can you tell me which shield is the one that you played with? I think the sound is coming from the rear right side, but its tough to be sure.
This is some good work here. When I examined the heat shields I just checked for looseness and metal contact. I never considered changing its mass. It could be that it is just vibrating at a certain RPM and torque load. I will try to get my car on a lift this weekend and try to reproduce your results. Can you tell me which shield is the one that you played with? I think the sound is coming from the rear right side, but its tough to be sure.
#40
Frank C.
#41
Very interesting developments.
Has anybody else confirmed this heat shield experiment? Any more news?
This issue is really starting to get on my nerves. Makes the engine feel really unrefined.
Glad to hear the problem might be as simple as the the heat shield and not something internal to the engine.
Has anybody else confirmed this heat shield experiment? Any more news?
This issue is really starting to get on my nerves. Makes the engine feel really unrefined.
Glad to hear the problem might be as simple as the the heat shield and not something internal to the engine.
#42
Very interesting developments.
Has anybody else confirmed this heat shield experiment? Any more news?
This issue is really starting to get on my nerves. Makes the engine feel really unrefined.
Glad to hear the problem might be as simple as the the heat shield and not something internal to the engine.
Has anybody else confirmed this heat shield experiment? Any more news?
This issue is really starting to get on my nerves. Makes the engine feel really unrefined.
Glad to hear the problem might be as simple as the the heat shield and not something internal to the engine.
#44
Frank C.
#45
Hey guys, just wanted to reiterate that this is still a work in progress, so don't go making any fancy permanent shims/clamps yet I haven't been able to experiment further since I last posted on 10/29, but hope to get to try again within the next 10 days.
If you can or can't reproduce my trial fix, please share your results here in the name of science.
If you can or can't reproduce my trial fix, please share your results here in the name of science.
