Solution for those with a sagging rear-end!
#1
Solution for those with a sagging rear-end!
Like many others here, my car suffered from a sagging rear end. After I installed my H&R springs, the rear sat about 1/2 inch lower than the front and I couldn't stand it. I searched the various forums for a solution, and it appeared the only answer was "install coilovers".

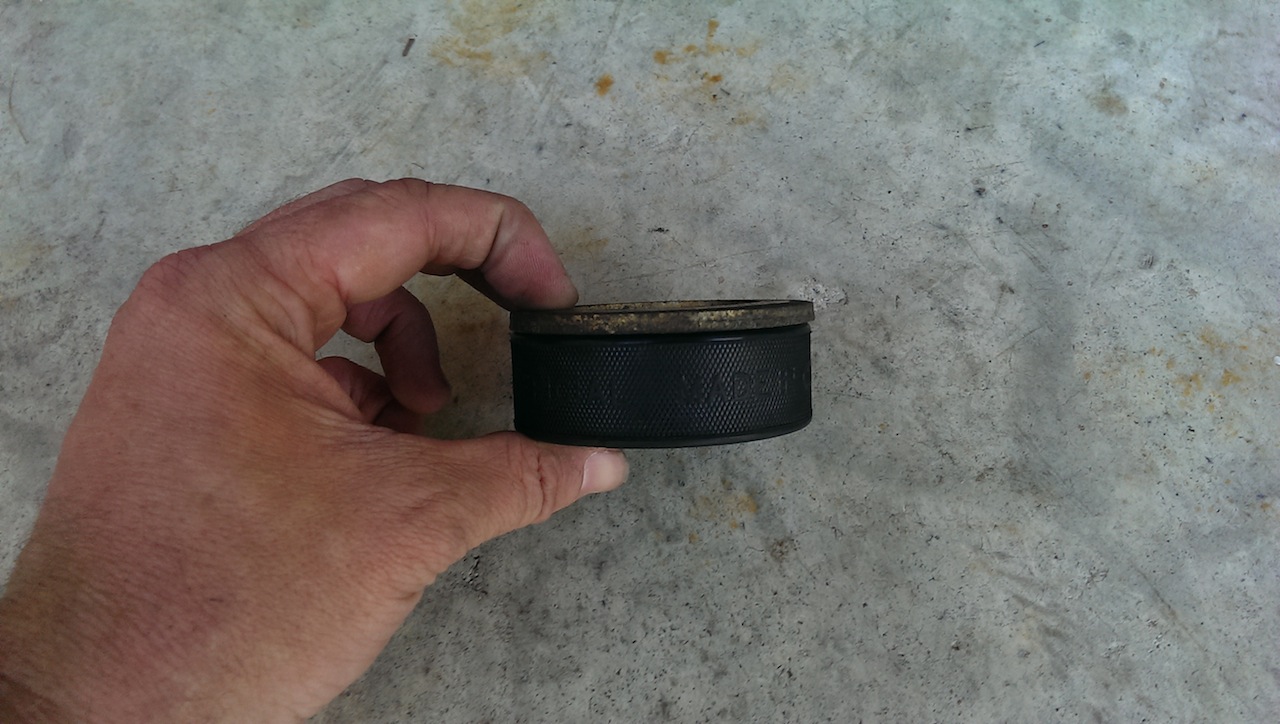

I wasn't satisfied with the consensus answer of "install coilovers" since I have no intentions of tracking the car and I didn't want to spend $3000. So as I was standing in my garage after my spring install, pondering this problem, I looked down and saw one of the hockey pucks I use as pads for my lift. Right then, a light went off! Hockey pucks are extremely dense rubber that hold up to quite a bit of abuse with little damage. I have used them for years on my lift and floor jack and other than a few scraps and scratches, they're all in perfect shape with no compression or deformation damage.

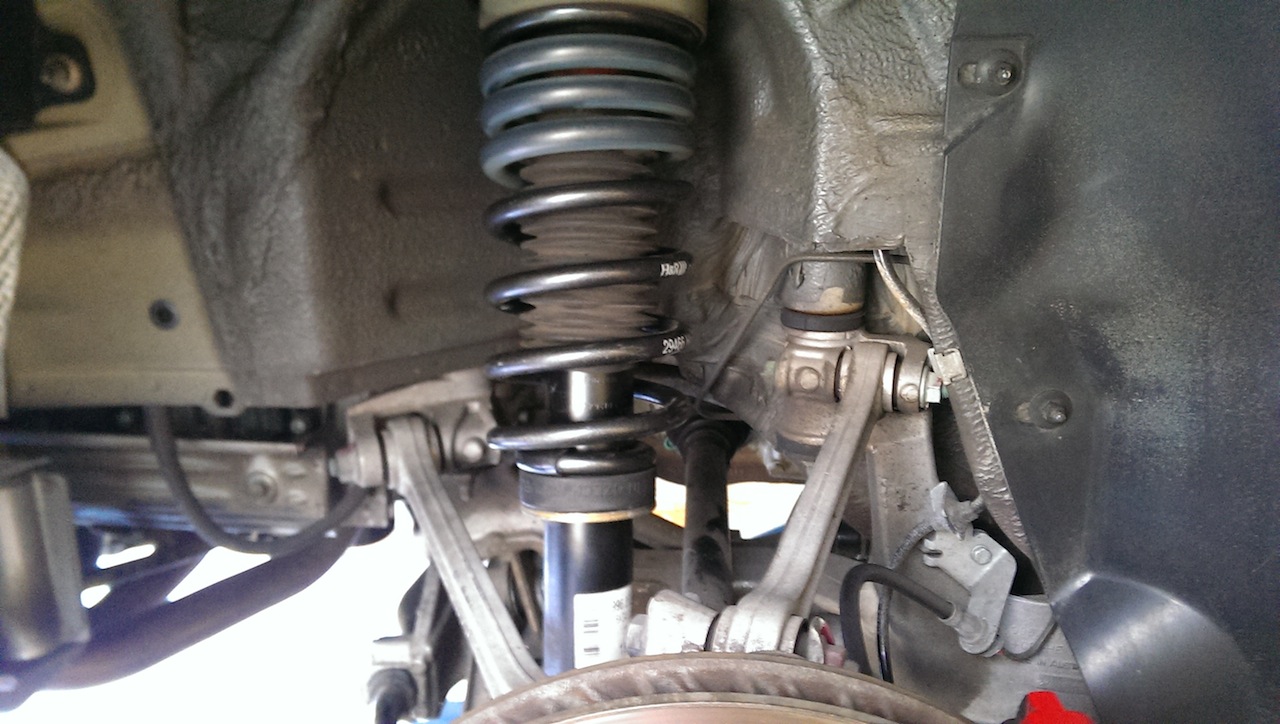

I took apart my rear suspension and compared the lower spring perch to the hockey puck… It's practically the same diameter!
So, I cut one to my desired thickness using a bandsaw and drilled out the center to the same inner diameter of the spring perch.
I reassembled everything with my new spacer in place.

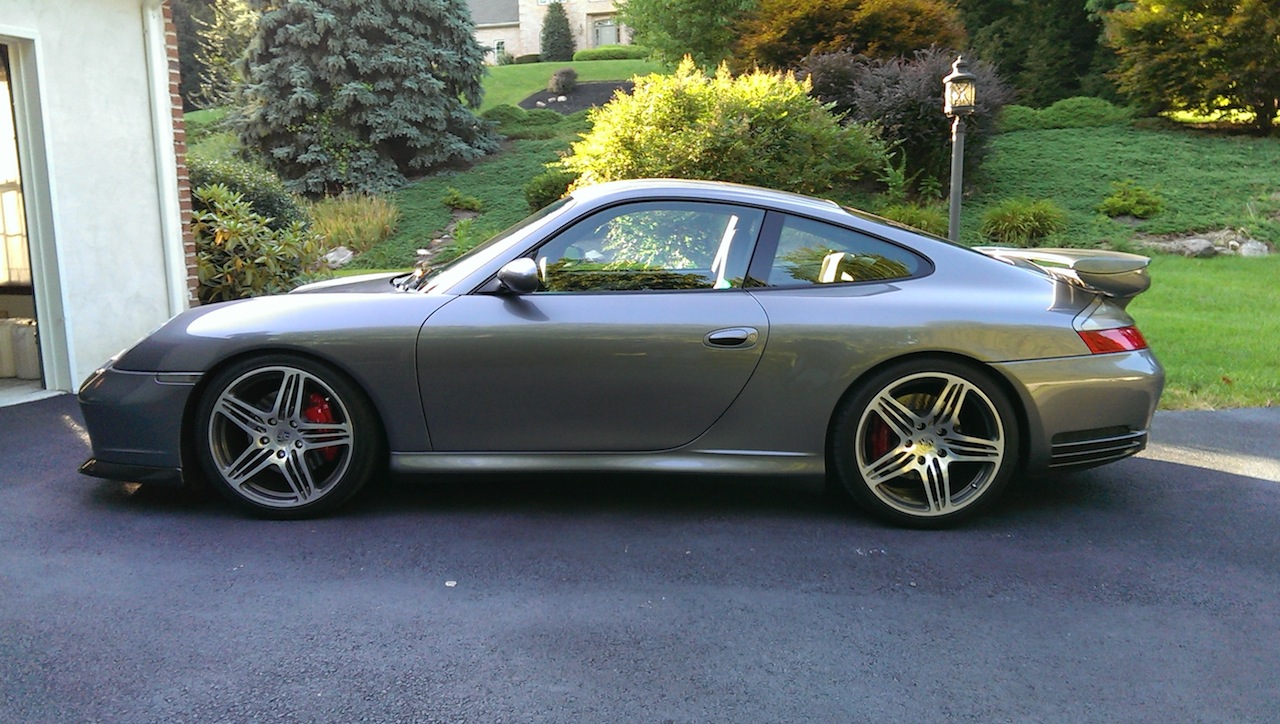

And the final results are perfect!
I drove around with these in place for a couple days to let them settle in, then had my alignment done. So far after about a month of driving (1,200 miles), they are still perfect. The car drives and handles great. I took them apart again to examine, and other than a very small amount of compression (maybe 1-1.5mm), there are no signs of deformation or splitting.
I'm curious what everyone thinks, is it mad genius or blasphemy!
I wasn't satisfied with the consensus answer of "install coilovers" since I have no intentions of tracking the car and I didn't want to spend $3000. So as I was standing in my garage after my spring install, pondering this problem, I looked down and saw one of the hockey pucks I use as pads for my lift. Right then, a light went off! Hockey pucks are extremely dense rubber that hold up to quite a bit of abuse with little damage. I have used them for years on my lift and floor jack and other than a few scraps and scratches, they're all in perfect shape with no compression or deformation damage.
I took apart my rear suspension and compared the lower spring perch to the hockey puck… It's practically the same diameter!
So, I cut one to my desired thickness using a bandsaw and drilled out the center to the same inner diameter of the spring perch.
I reassembled everything with my new spacer in place.
And the final results are perfect!
I drove around with these in place for a couple days to let them settle in, then had my alignment done. So far after about a month of driving (1,200 miles), they are still perfect. The car drives and handles great. I took them apart again to examine, and other than a very small amount of compression (maybe 1-1.5mm), there are no signs of deformation or splitting.
I'm curious what everyone thinks, is it mad genius or blasphemy!
Last edited by oldsock; 08-01-2013 at 12:08 PM.
#6
Did you consider an additional spring perch for the top side where the spring makes contact?
I think a metal ring on top of the spacer would be the perfect setup to prevent wear and tear on the spacer.
Last edited by oldsock; 08-01-2013 at 12:11 PM.
#7
Excellent idea! Having just come from the Jeep world, we use hockey pucks for bump stop spacers all the time...great job! I think I might do that too. I don't like the rear end squat either...
Trending Topics
#10
i have called a few CNC shops around and left messages for an estimate this morning. Also called some suspension guys that do 4wd, i mentioned Porsche and they said they couldn't help me.
I got ECS tuning wheel spacers 17/23mm. i tried the 17 on the back and still wanted more. i tested them on the front and that were they stayed. i bought the 23's the same day and fitted them the next. i have a little rubbing over bumps. yesterday i rolled the inside of my fender a little. someone said that it had already been done a little before.
I got ECS tuning wheel spacers 17/23mm. i tried the 17 on the back and still wanted more. i tested them on the front and that were they stayed. i bought the 23's the same day and fitted them the next. i have a little rubbing over bumps. yesterday i rolled the inside of my fender a little. someone said that it had already been done a little before.
#13
Thanks Eddy for the right direction. I found a couple of online metal places and ordered them cut to size instead of going the CNC route. Re CNC, no one called me back, i guess too small job??
The pieces ended up costing me $18 for both and $20 for shipping. The one CNC place i contacted and got through wanted $125 minimum.
I am going to have to wait another couple of weeks because of backlog at the plant and for it to be shipped ground.
THANKS AGAIN!
The pieces ended up costing me $18 for both and $20 for shipping. The one CNC place i contacted and got through wanted $125 minimum.
I am going to have to wait another couple of weeks because of backlog at the plant and for it to be shipped ground.
THANKS AGAIN!
