Installing side skirts on 2001, C2 need advice

  #1
Old 04-24-2014, 12:46 PM
nanoc15's Avatar
Registered User
Thread Starter
Join Date: Jan 2014
Location: Reykjavik, Iceland
Posts: 106
Rep Power: 15
nanoc15 is on a distinguished road
Installing side skirts on 2001, C2 need advice

So - just purchased GT3 mk1 side skirts. Just fitted them today and there is a gap rear of the panel. Just wondering if i should use polymer paste to fasten or ?
Also, does anyone have the part number for the clip set ?
Thanks in advance, Dadi

  #2
Old 04-24-2014, 06:02 PM
alpine003's Avatar
Registered User
Join Date: Mar 2010
Location: Chicago
Posts: 2,004
Rep Power: 120
alpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond reputealpine003 has a reputation beyond repute
If you're not using the metal clip rails, you can use 3m auto body tape to achieve the same thing.

Mine came with the metal clip rails but decided not to use them.

  #3
Old 04-25-2014, 11:44 AM
nanoc15's Avatar
Registered User
Thread Starter
Join Date: Jan 2014
Location: Reykjavik, Iceland
Posts: 106
Rep Power: 15
nanoc15 is on a distinguished road
Hi Alpine 003 and thanks for the reply. Ok, i guess you are talking about the sides not underneath. Do you have any pics of the setup, etc. ? Im wondering about the underneath setup . . . .

  #4
Old 04-25-2014, 12:36 PM
silverfizz's Avatar
Registered User
Join Date: Aug 2013
Location: Europe
Posts: 300
Rep Power: 34
silverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud of
Hi,


Are the skirts OEM?


The partnumber for the kit you are looking for is 000 044 000 37


Here are som pics from when I mounted mine.


If you need any more help, let me know.

Attached Thumbnails Click image for larger version

Name:	002.JPG
Views:	103
Size:	213.0 KB
ID:	365735   Click image for larger version

Name:	012.JPG
Views:	103
Size:	137.1 KB
ID:	365736   Click image for larger version

Name:	015.JPG
Views:	99
Size:	174.2 KB
ID:	365737   Click image for larger version

Name:	017.JPG
Views:	110
Size:	145.8 KB
ID:	365738
  #5
Old 04-25-2014, 02:08 PM
nanoc15's Avatar
Registered User
Thread Starter
Join Date: Jan 2014
Location: Reykjavik, Iceland
Posts: 106
Rep Power: 15
nanoc15 is on a distinguished road
Hi silverfizz and thanks for the pics.
Unfortunately the skirt are not OEM but very nicely crafted. But i should be able to use the clips on that ?

  #6
Old 04-25-2014, 02:12 PM
silverfizz's Avatar
Registered User
Join Date: Aug 2013
Location: Europe
Posts: 300
Rep Power: 34
silverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud of
Originally Posted by nanoc15
Hi silverfizz and thanks for the pics.
Unfortunately the skirt are not OEM but very nicely crafted. But i should be able to use the clips on that ?


Yeah, that shouldnt be a problem. Do you have the holes, shown in pic number one? Otherwise just drill some holes, and screw them in

  #7
Old 04-25-2014, 02:13 PM
nanoc15's Avatar
Registered User
Thread Starter
Join Date: Jan 2014
Location: Reykjavik, Iceland
Posts: 106
Rep Power: 15
nanoc15 is on a distinguished road

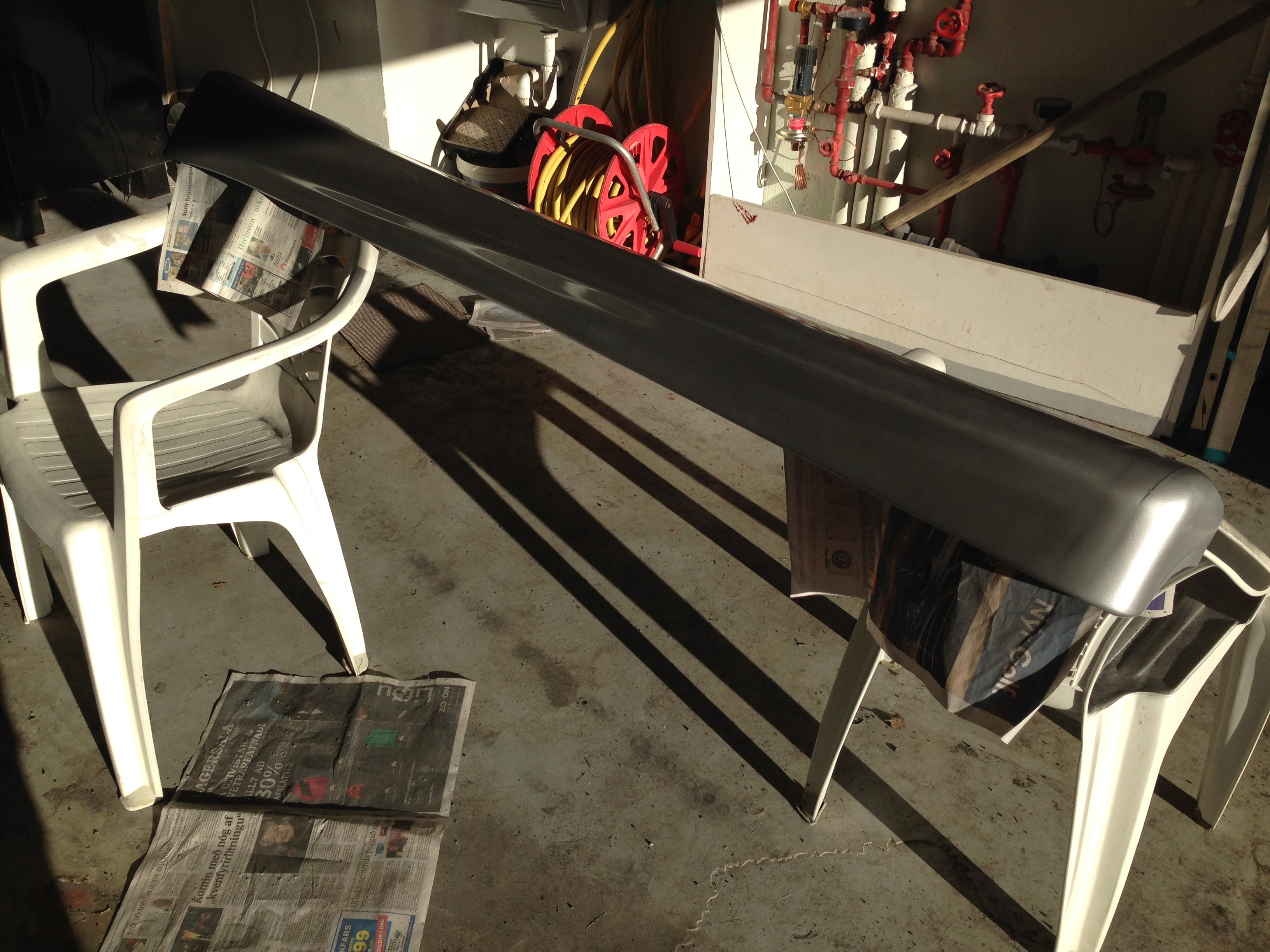

Here are some pics - not sure if you see it but i trial fitted the skirt and there is this small gap on rear.

Attached Thumbnails Click image for larger version

Name:	IMG_3304.JPG
Views:	83
Size:	2.21 MB
ID:	365801   Click image for larger version

Name:	IMG_3309.JPG
Views:	113
Size:	2.96 MB
ID:	365802
  #8
Old 04-25-2014, 02:19 PM
silverfizz's Avatar
Registered User
Join Date: Aug 2013
Location: Europe
Posts: 300
Rep Power: 34
silverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud of
Originally Posted by nanoc15
Here are some pics - not sure if you see it but i trial fitted the skirt and there is this small gap on rear.

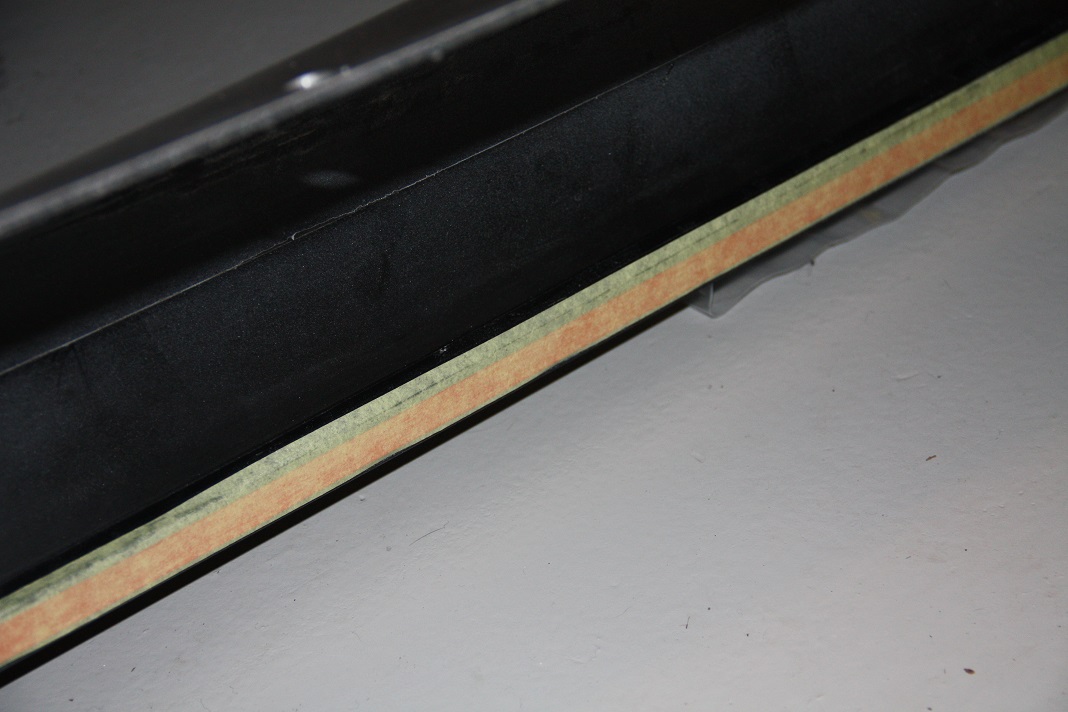

Now I c what you mean. Well use some 3M tape as shown on pic number 3. That should solve the problem!

  #9
Old 04-25-2014, 02:46 PM
nanoc15's Avatar
Registered User
Thread Starter
Join Date: Jan 2014
Location: Reykjavik, Iceland
Posts: 106
Rep Power: 15
nanoc15 is on a distinguished road
Originally Posted by silverfizz
Now I c what you mean. Well use some 3M tape as shown on pic number 3. That should solve the problem!
Ok that sounds good. Any suggested shopping place for the clips ?

  #10
Old 04-25-2014, 02:54 PM
silverfizz's Avatar
Registered User
Join Date: Aug 2013
Location: Europe
Posts: 300
Rep Power: 34
silverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud ofsilverfizz has much to be proud of
Originally Posted by nanoc15
Ok that sounds good. Any suggested shopping place for the clips ?


If you just want the clips, I would go to the local porsche dealer, that is where I got mine from, dont Think they cost so much

  #11
Old 04-27-2014, 03:22 AM
nanoc15's Avatar
Registered User
Thread Starter
Join Date: Jan 2014
Location: Reykjavik, Iceland
Posts: 106
Rep Power: 15
nanoc15 is on a distinguished road
Ok, ill check that out tomorrow - thanks

  #12
Old 04-27-2014, 12:13 PM
denversteve's Avatar
Registered User
Join Date: Jun 2008
Location: Colorado / L.A.
Posts: 1,962
Rep Power: 114
denversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond repute
My advice would be to find a great body shop (everyone should have one) to do a professional install OR return them (which you can't do once you've don any DIY work to it). The way it is, I would never put it on my car. It either hasn't been properly adjusted or manufactured.

  #13
Old 04-27-2014, 01:09 PM
nanoc15's Avatar
Registered User
Thread Starter
Join Date: Jan 2014
Location: Reykjavik, Iceland
Posts: 106
Rep Power: 15
nanoc15 is on a distinguished road
Hi denversteve, thanks for the advice. I know what you mean and i do respect that.
I love doing some work on my 911. I previously updated the stereo system to the ipad mini install, yellow brake calipers, tinted windows, water pump, carbon wrap etc. so im pretty excited about doing the side skirts to be honest.
I have the time to do it and with the right work and fitment i think it will look great. Anyway will post some pics if i get the clips from the dealer

  #14
Old 04-27-2014, 04:51 PM
denversteve's Avatar
Registered User
Join Date: Jun 2008
Location: Colorado / L.A.
Posts: 1,962
Rep Power: 114
denversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond reputedenversteve has a reputation beyond repute
You are very correct. With the proper fit/trimming it should be fine. You'll probably have to reduce the high (front) half to allow the rear half to sit flush. I wouldn't use any type of filler.

  #15
Old 04-29-2014, 03:08 AM
gurukid's Avatar
Registered User
Join Date: Mar 2013
Location: Atlanta, Ga
Posts: 51
Rep Power: 14
gurukid is on a distinguished road
nanoc, I have the exact same issue, perhaps we bought from the same company? Either way, I'm also working on a solution, I'll post back if I find anything out....
