Where's the coolant leak?? with pics

  #1
Old 07-16-2014, 09:50 PM
dw820's Avatar
Registered User
Thread Starter
Join Date: Apr 2012
Posts: 11
Rep Power: 0
dw820 is on a distinguished road
Where's the coolant leak?? with pics

Hi Everyone,

I'm assuming this is a coolant leak in my 99 C4.

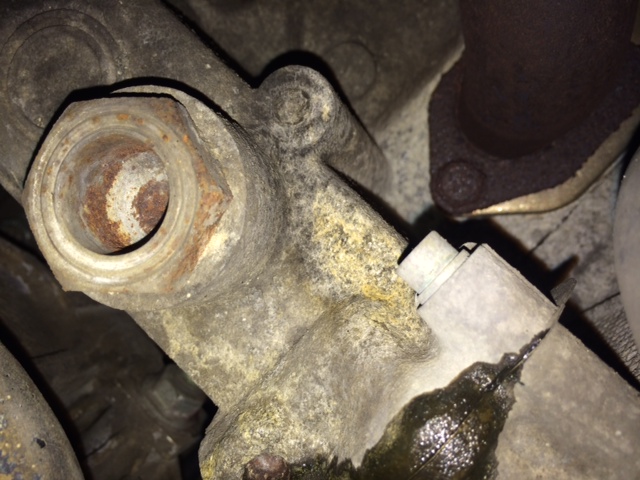

I took these pics just now under the engine.
Anyone have some insight on this? or can tell me what part the leak is coming from?

any help would be appreciated.

Thanks

Derrick

Attached Thumbnails Click image for larger version

Name:	photo 1(1).JPG
Views:	119
Size:	141.2 KB
ID:	396719   Click image for larger version

Name:	photo 2(1).JPG
Views:	97
Size:	129.2 KB
ID:	396720   Click image for larger version

Name:	photo 3.PNG
Views:	109
Size:	330.4 KB
ID:	396721
  #2
Old 07-17-2014, 06:02 AM
FLA996TT's Avatar
Registered User
Join Date: Apr 2012
Location: Brandon, Florida
Posts: 1,850
Rep Power: 181
FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !FLA996TT Is a GOD !
To me it looks like the gasket is worn, but for grins check your coolant tank.

  #3
Old 07-23-2014, 11:46 AM
Benni's Avatar
Registered User
Join Date: Oct 2012
Location: Minneapolis, MN
Age: 43
Posts: 33
Rep Power: 13
Benni is on a distinguished road
+1 on the coolant expansion tank. I can't tell from the pics but if it's on the left side of the car I'd bet that's it. Mine went but didn't drip consistently, in fact I never identified a time it would drip and wouldn't - cold, warm, after driving hard, sometimes it would drip and sometimes not. If the tank is yellow it's a good bet it has micro cracks. Also check your coolant tank cap and be sure it's the latest version. That's a very inexpensive part and the seal can go bad.
Good luck!

  #4
Old 07-24-2014, 02:43 PM
p556guy's Avatar
Registered User
Join Date: Dec 2013
Posts: 259
Rep Power: 33
p556guy has much to be proud ofp556guy has much to be proud ofp556guy has much to be proud ofp556guy has much to be proud ofp556guy has much to be proud ofp556guy has much to be proud ofp556guy has much to be proud ofp556guy has much to be proud ofp556guy has much to be proud of
Yup....prob the coolant tank. Mine has been leaving a lovely white residue all over the back end of the car somehow.

ECS has the tank for about $130
