Any rear drop links pix?

Reply




Thread Tools Search this Thread Rate Thread Display Modes
  #1
Old 06-30-2013, 01:39 AM
Steve_TT's Avatar
Registered User

Join Date: Apr 2013
Location: Vancouver, B.C.
Posts: 81
Rep Power: 5
Steve_TT will become famous soon enough
Any rear drop links pix?

I just had Gmg springs/sways installed at a reputable high end indie. Since the shop was doing the work anyways I gave them the new tarret rear drop links I got (which I otherwise would have DIY). Well they must have had an off day as one of the links wasn't even connected (explains some clunking sounds I had). I finished up the link connection from the orientation they had, but now I've seen a couple pix with spacers in different spots. I didnt see how the stock links connected. Anyone with pix on how the rear tarrett drop links should look connected up? Thanks
__________________
997.1 TT, EP2, Softronic 93, GMG Springs/Sways, Tarett Drop Links, MPSS 245/30 & 325/25 x 20 - Zone 3pc Wheels, R888 255/35 & 335/30 x 18 - Forgestar F14
Reply With Quote
  #2
Old 06-30-2013, 04:56 PM
cannga's Avatar
Registered User

Join Date: Dec 2006
Location: Sunny Southern Cal
Posts: 2,851
Rep Power: 224
cannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond repute
Hi Steve,

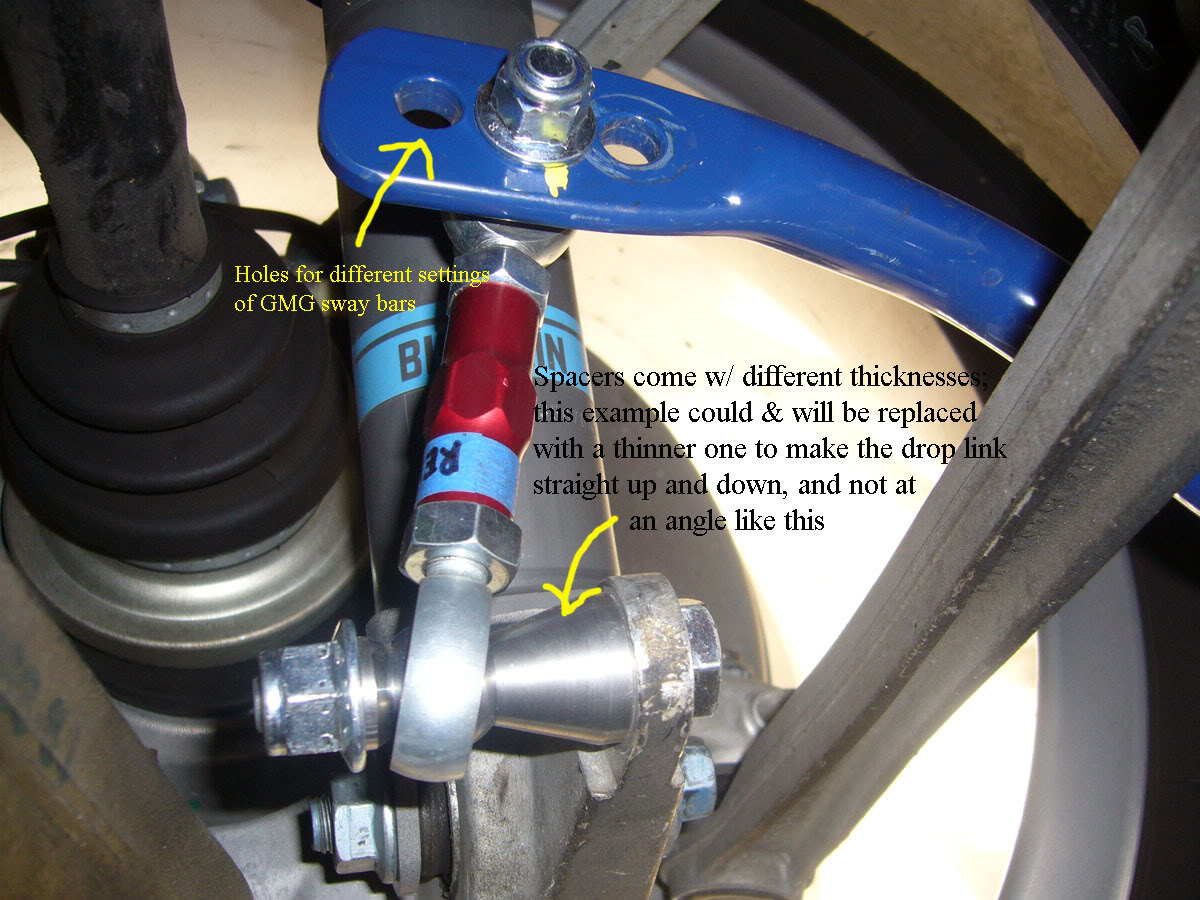

See pics below. First pic is the rear drop link, second pic is the front drop link.
I am not entirely clear on your questions but 5 main points I could think of, hope this helps:

1. Heim joints MUST have a cone washer (aka spacer in pic below) on either side.
2. Cone washers come in different thickness. In first picture below you see a thin one on one side, and a thick one on the other side. Ira will send you whatever you need.
3. You would like the force vector to be straight, not at angle. See pic of the rear drop link below. The angle was too much and that thick cone washer was later replaced.
4. If there is a choice of either, the in-between cases, use the thinner cone washer (versus thicker). You would like point that the force acts on to be as close to the sway bar as possible (ie thinner cone allows the point of force exerting to be closer to either mounting point, on sway bar or on the coilover).

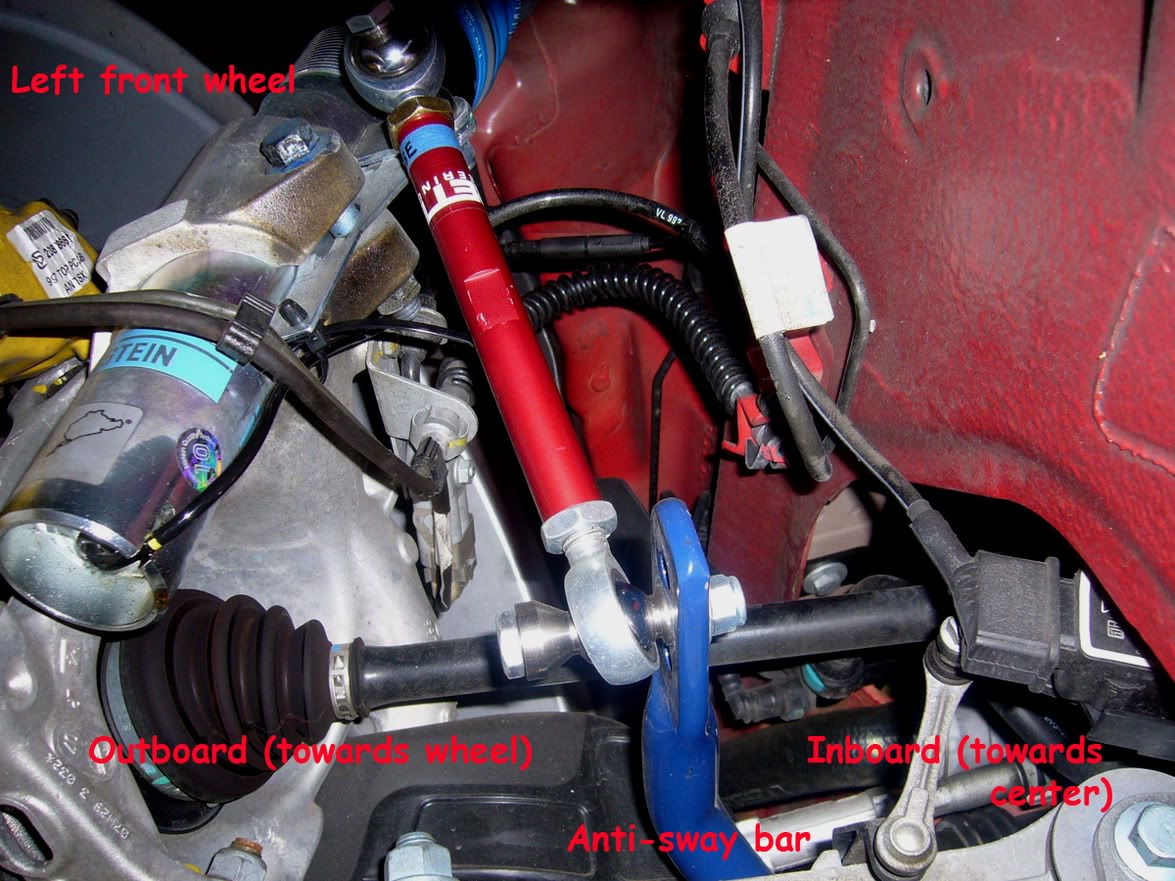

5. The front drop link, whether stock or Tarett, must be in the outboard position or it's going to pop out of its socket.




REAR




FRONT

Attached Thumbnails
Click image for larger version

Name:	swaybardroplink.jpg
Views:	285
Size:	186.2 KB
ID:	256449   Click image for larger version

Name:	DroplinkinstallationP1020200-1.jpg
Views:	256
Size:	220.0 KB
ID:	256450
__________________
Regards,
Can
Bilstein Damptronic Coilover (*6 years* & still perfect): Handle like a GT3 : tight, precise, THRILLING :-). Suspension Overview - Click HERE!
GIAC Custom Tune - Fast as a torpedo & reversible to stock: ECU Tune Recommendations
Cargraphic Exhaust - Deep THROATY V8 rumble & SCREAMS like a race car- OMG !!!

Last edited by cannga; 06-30-2013 at 05:37 PM.
Reply With Quote
  #3
Old 07-01-2013, 11:24 AM
Steve_TT's Avatar
Registered User

Join Date: Apr 2013
Location: Vancouver, B.C.
Posts: 81
Rep Power: 5
Steve_TT will become famous soon enough
Thanks Can,

I thought I saw pics of the rear with the big cone washer on the other side, but it matches what you show for the rear so I guess It's ok. Your description of forces and the pic is helpful. Staring up from under the car with the boots on the joints and the funny angle due to the big cone washer must have disoriented me.

A new question. Are there any tricks for getting the rear links the right length for dialing out preload? After you get the right length, do you need to slightly jack up one side to get the bolt holes to align?

I don't have a proper impression of the springs and sways yet.....i'm driving on my stock rims/snowwies. The indie shop put on new mpss on my 3pc rims and two rims are leaking air like crazy!! Cheers
__________________
997.1 TT, EP2, Softronic 93, GMG Springs/Sways, Tarett Drop Links, MPSS 245/30 & 325/25 x 20 - Zone 3pc Wheels, R888 255/35 & 335/30 x 18 - Forgestar F14
Reply With Quote
  #4
Old 07-01-2013, 09:20 PM
cannga's Avatar
Registered User

Join Date: Dec 2006
Location: Sunny Southern Cal
Posts: 2,851
Rep Power: 224
cannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond repute
Quote:
Originally Posted by Steve_TT View Post
Thanks Can,

1. I thought I saw pics of the rear with the big cone washer on the other side, but it matches what you show for the rear so I guess It's ok. Your description of forces and the pic is helpful. Staring up from under the car with the boots on the joints and the funny angle due to the big cone washer must have disoriented me.

2. A new question. Are there any tricks for getting the rear links the right length for dialing out preload? After you get the right length, do you need to slightly jack up one side to get the bolt holes to align?

I don't have a proper impression of the springs and sways yet.....i'm driving on my stock rims/snowwies. The indie shop put on new mpss on my 3pc rims and two rims are leaking air like crazy!! Cheers
1. Another point is that if you look at the first picture above, in fact what I did is simply to switch places of the thin spacer with the thick spacer.

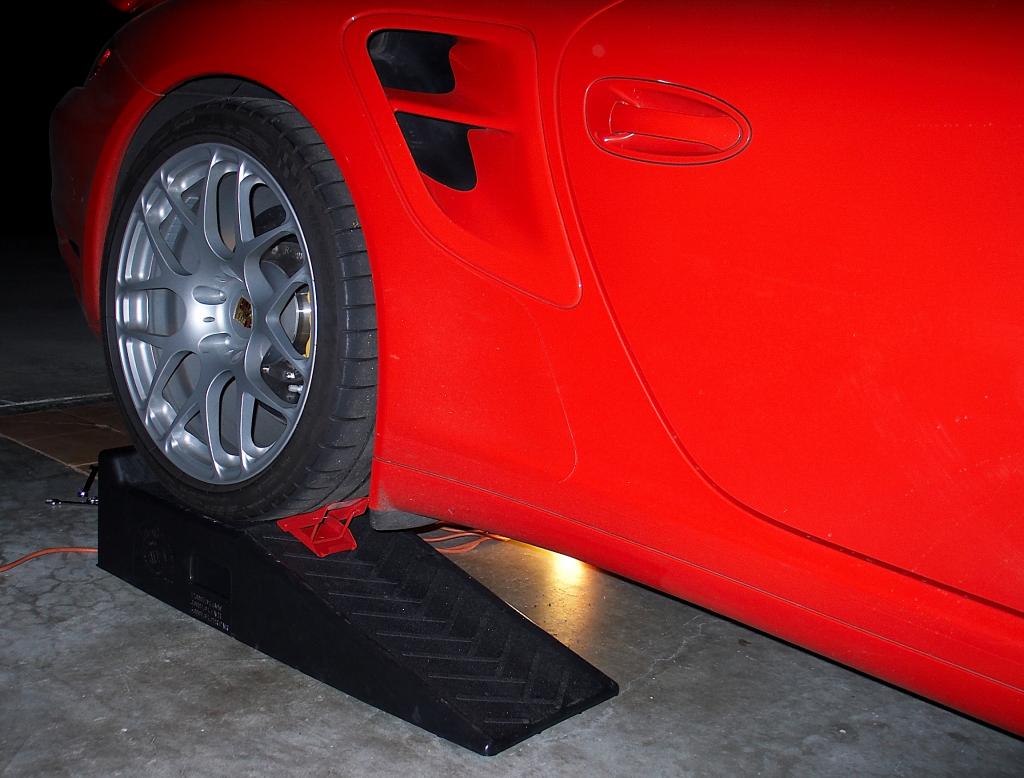

2. The trick is that you have to have the car loaded - the wheels have to be touching ground, not up on a jack. I use the RhinoGear Ramp from Pep Boys as pictured below. With the car loaded on the ramp, you remove all drop link, then you adjust the drop link length on either side so that it fits perfectly. Then it is a simple matter of connecting them up. (I bought the RhinoGear ramp because I am so afraid of the car dropping on me with a jack, turned out it *is* better for reason above. http://www.pepboys.com/product/detai...ps/?quantity=1)

BTW this is why adjustable length drop links are required for corner balancing (not that I necessarily recommend corner balancing for everyone). They corner balance so that left rear + right front = right rear + left front; the car will actually be uneven at the end of the corner balance. Then they connect the drop links.


Attached Thumbnails
Click image for larger version

Name:	CRW_1268_zps5bda9f68.jpg
Views:	194
Size:	84.1 KB
ID:	256833
__________________
Regards,
Can
Bilstein Damptronic Coilover (*6 years* & still perfect): Handle like a GT3 : tight, precise, THRILLING :-). Suspension Overview - Click HERE!
GIAC Custom Tune - Fast as a torpedo & reversible to stock: ECU Tune Recommendations
Cargraphic Exhaust - Deep THROATY V8 rumble & SCREAMS like a race car- OMG !!!

Last edited by cannga; 07-01-2013 at 09:33 PM.
Reply With Quote
  #5
Old 07-08-2013, 02:15 PM
Steve_TT's Avatar
Registered User

Join Date: Apr 2013
Location: Vancouver, B.C.
Posts: 81
Rep Power: 5
Steve_TT will become famous soon enough
Thanks Can,

I re-did the rear links and it was very straight forward. What threw me off was that the indie job had one side pre-loaded and the bolt wouldn't back out easily. The key appeared to be getting the links to the right length where the bolt would just slide in easily before attaching and tightening.

I'm still breaking in my new tires, but it drives pretty sweet. It corners FLAT. I'm doing an autox next w/e so I'll get to exercise the new suspension. Cheers
Attached Thumbnails
Click image for larger version

Name:	20130707.jpg
Views:	34
Size:	196.8 KB
ID:	258287
__________________
997.1 TT, EP2, Softronic 93, GMG Springs/Sways, Tarett Drop Links, MPSS 245/30 & 325/25 x 20 - Zone 3pc Wheels, R888 255/35 & 335/30 x 18 - Forgestar F14
Reply With Quote
  #6
Old 07-10-2013, 12:23 PM
cannga's Avatar
Registered User

Join Date: Dec 2006
Location: Sunny Southern Cal
Posts: 2,851
Rep Power: 224
cannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond reputecannga has a reputation beyond repute
Quote:
Originally Posted by Steve_TT View Post
Thanks Can,

I re-did the rear links and it was very straight forward. What threw me off was that the indie job had one side pre-loaded and the bolt wouldn't back out easily. The key appeared to be getting the links to the right length where the bolt would just slide in easily before attaching and tightening.

I'm still breaking in my new tires, but it drives pretty sweet. It corners FLAT. I'm doing an autox next w/e so I'll get to exercise the new suspension. Cheers
Steve you're welcome. In your picture, there *is* a small cone washer on other side of the heim joint, opposite the big cone washer right? The rubber "boot" blocks the view so I can't see it - just want to make sure you have it there.

A flat cornering car is a wonderful sensation because subjectively it's a major factor in making a sports car feels "sporty" IMHO. Congrats on the new suspension and have fun at autox!
__________________
Regards,
Can
Bilstein Damptronic Coilover (*6 years* & still perfect): Handle like a GT3 : tight, precise, THRILLING :-). Suspension Overview - Click HERE!
GIAC Custom Tune - Fast as a torpedo & reversible to stock: ECU Tune Recommendations
Cargraphic Exhaust - Deep THROATY V8 rumble & SCREAMS like a race car- OMG !!!
Reply With Quote
  #7
Old 07-10-2013, 02:13 PM
Steve_TT's Avatar
Registered User

Join Date: Apr 2013
Location: Vancouver, B.C.
Posts: 81
Rep Power: 5
Steve_TT will become famous soon enough
Yes, the small cone washer is there. Thanks
