Exhaust gasket question
#1
Exhaust gasket question
I just bought a used Fabspeed exhaust from a 6speed member and am getting prepared for the install.
I have read many of the DIY horror stories, and in preparation ordered the swivel sockets, the nut splitter, turbo to cat studs and new nuts just in case, but I have seen no mention of exhaust gaskets.
I see the OEM diagrams show a donut style gasket for each side, I am not sure what I am in for. Any help would be appreciated, I am trying to be as prepared as possible.
Thank you,
X...
I have read many of the DIY horror stories, and in preparation ordered the swivel sockets, the nut splitter, turbo to cat studs and new nuts just in case, but I have seen no mention of exhaust gaskets.
I see the OEM diagrams show a donut style gasket for each side, I am not sure what I am in for. Any help would be appreciated, I am trying to be as prepared as possible.
Thank you,
X...
#3
Agree that above is optimal. However the gaskets are high quality and definitely reusable. I have done so on several occassions with no issues. Do whatever you are comfortable with.
Good luck,
DC
Good luck,
DC
#5
No Problem....Here is a picture of what they look like when you get the OEM Cat off (soaked a little from the PB Blaster (USE PLENTY OF THAT AND LET IT SOAK). I just took them off, cleaned them with solvent, and wiped them with a scuff pad so they were clean and smooth...then re-installed.
And the other picture is after HJS Cat is installed using same gasket. Has been on there for almost 2 years and no leaks or issues.
Good luck,
DC
And the other picture is after HJS Cat is installed using same gasket. Has been on there for almost 2 years and no leaks or issues.
Good luck,
DC
#7

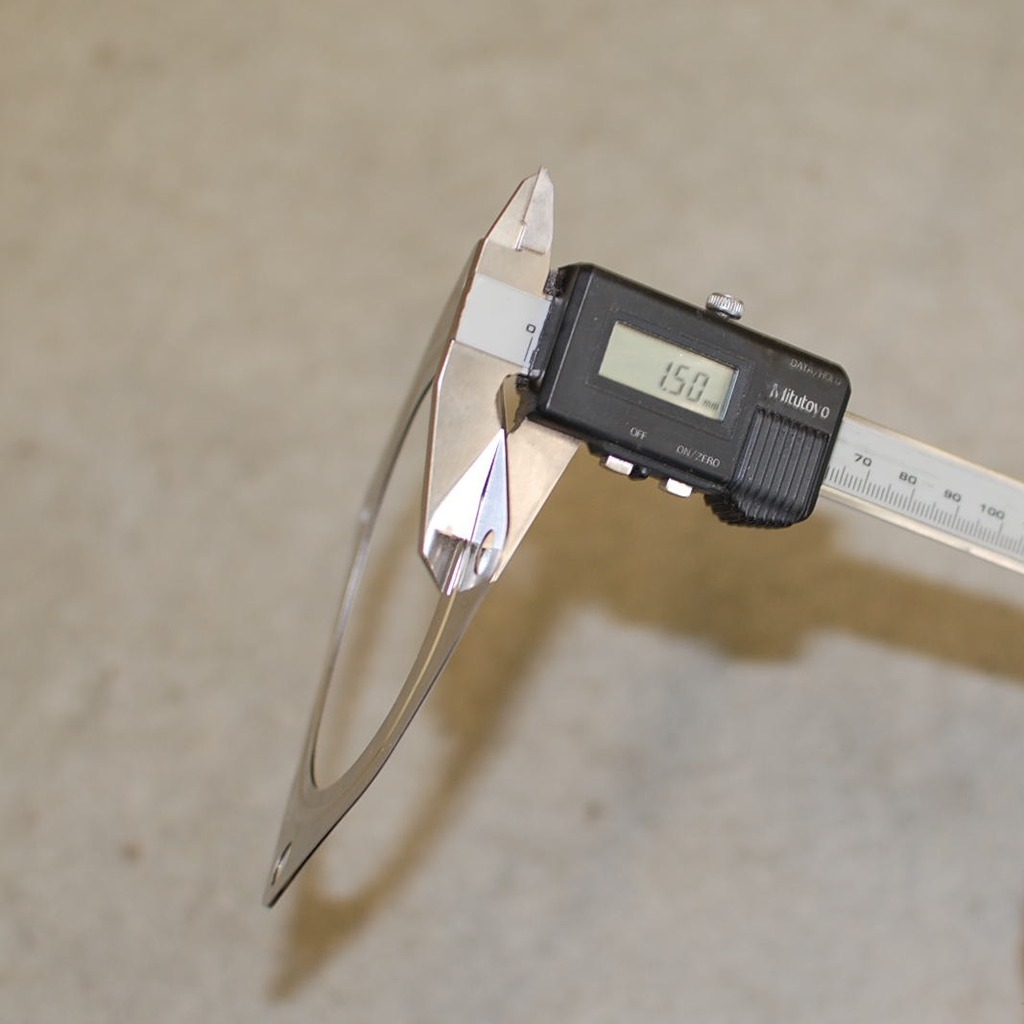

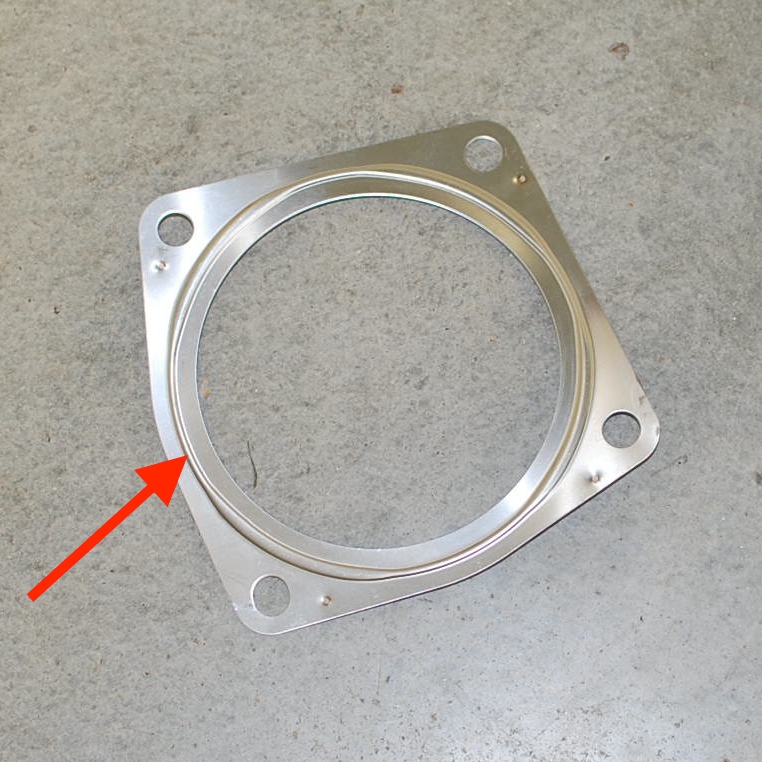

New gaskets have a raised portion that gets crunched when you tighten the nuts at the turbochargers.

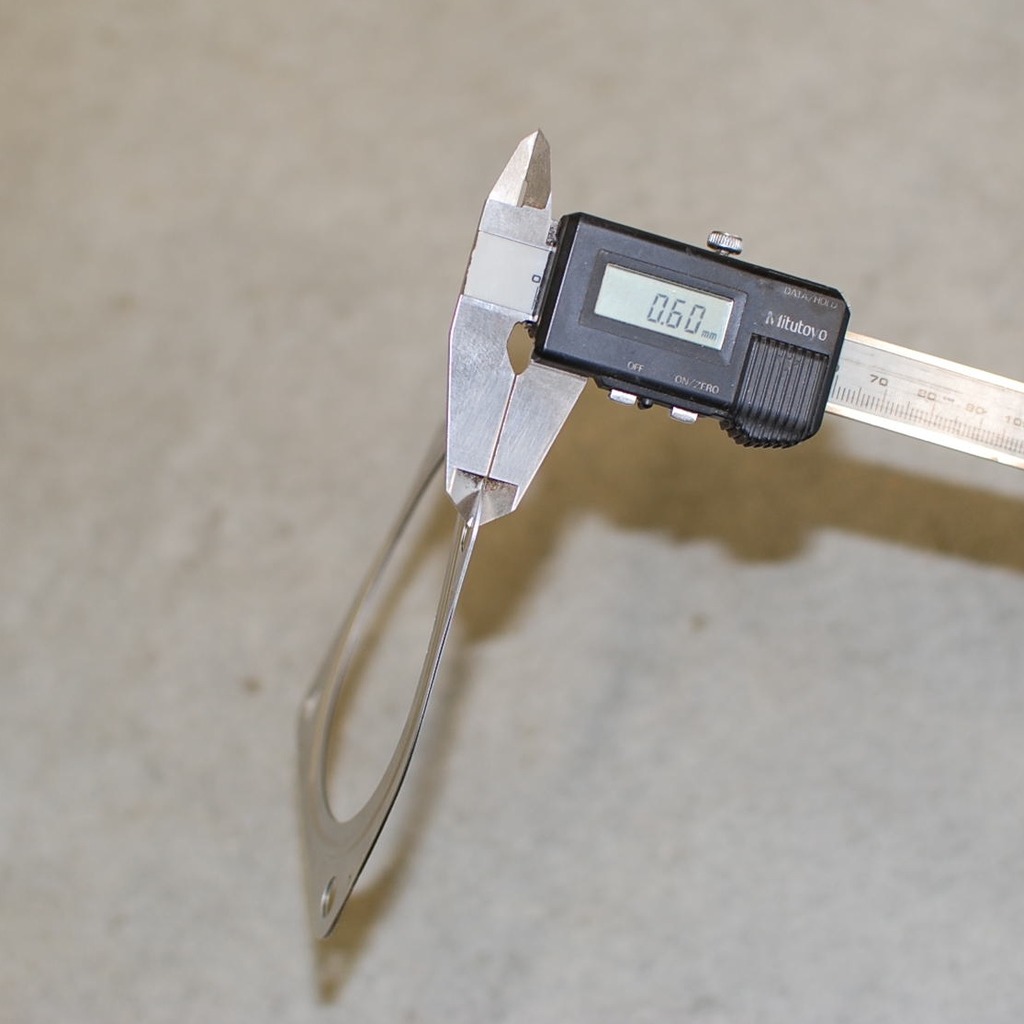

Seals much better than a used flat gasket.
Seals much better than a used flat gasket.
Trending Topics
#8
#9
As I mentioned, I have reused them on several occasions and they are fine.
Agree that if you want the optimal solution, with minimum chance of issues replace everything, every time you work on the car with new OEM parts....Most choose somewhere in between...
For these gaskets, if you choose to replace with new ones, here is the info:
Porsche Genuine Factory Part
Part Number: 99711121770
Muffler gasket 3.6 LITER Left/Right
MSRP $17.22 GET THEM HERE for $13.26
Good luck,
DC
Agree that if you want the optimal solution, with minimum chance of issues replace everything, every time you work on the car with new OEM parts....Most choose somewhere in between...
For these gaskets, if you choose to replace with new ones, here is the info:
Porsche Genuine Factory Part
Part Number: 99711121770
Muffler gasket 3.6 LITER Left/Right
MSRP $17.22 GET THEM HERE for $13.26
Good luck,
DC
#10

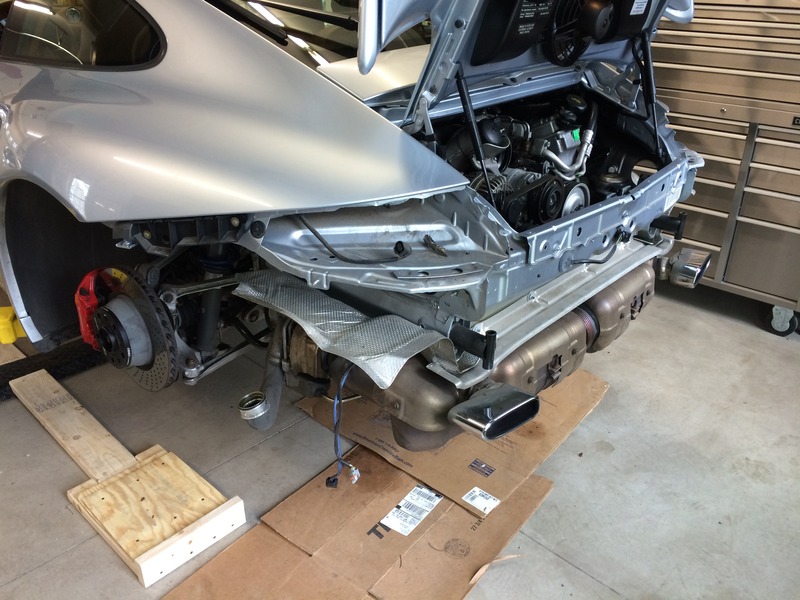

I got the exhaust installed this weekend. Oddly it took me the 6 hours everyone said it would, but for different reasons.
My main 2 issues were the bolts that held the exhaust tips on were really rough, almost like they were cross threaded. One side broke off, and so I put a stainless nut and bolt combo on there after I drilled it out. The other I was real carefull with, and still am afraid to touch it to adjust it
The other thing I was not as prepared for was taking the heat shields off the OEM muffler to get the straps off that hold the muffler to the car. There were about 8 allen bolts per side, and each one was a 8!tch to get off without stripping or breaking them off. I probably tied up an hour or more taking the muffler tips and the heatshields off.
At the end of the day it was all worth it. Improved pedal response, and of course a lot nicer sound coming from the back of the car.
Thanks theRock88 for your help and the intercooler DIY, it helped make this go smoother.

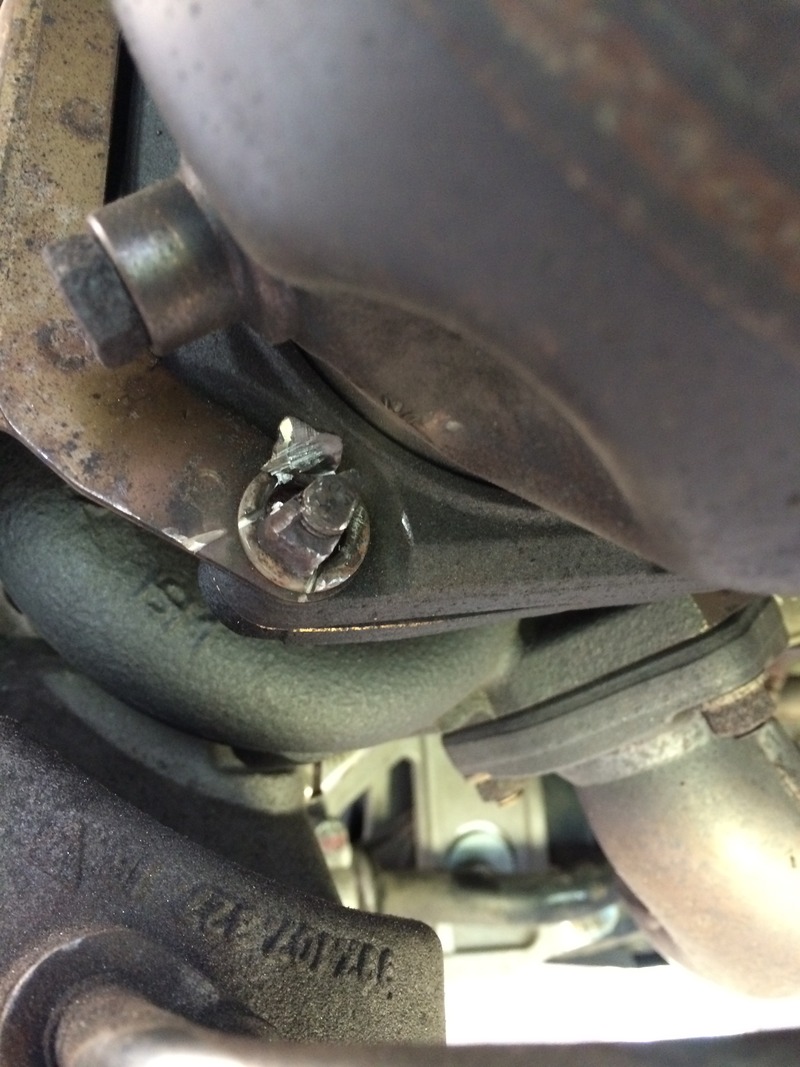

One of the 2 outer bolts that gave me an issue. Like 93LS1RX7 mentioned they seemed to have eroded to a smaller than 13mm size. I cut them off

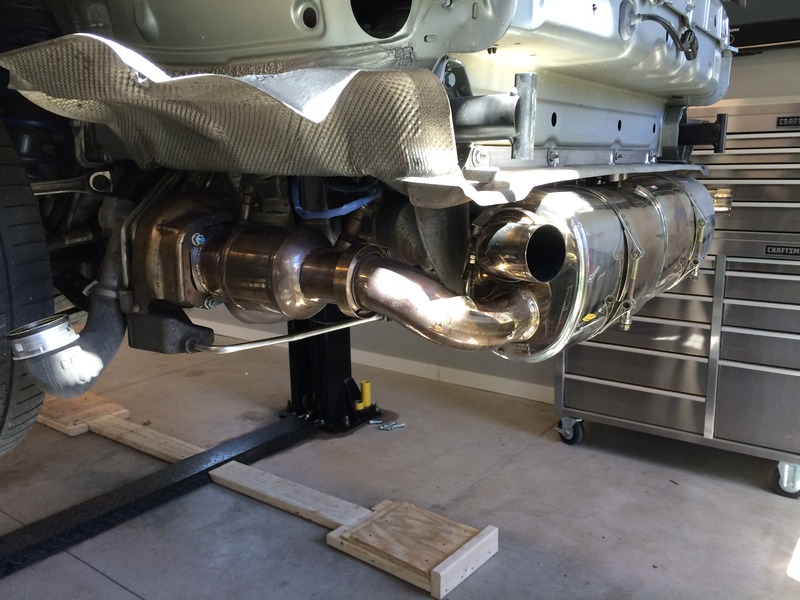

Before I hide this piece of art.
X...
My main 2 issues were the bolts that held the exhaust tips on were really rough, almost like they were cross threaded. One side broke off, and so I put a stainless nut and bolt combo on there after I drilled it out. The other I was real carefull with, and still am afraid to touch it to adjust it
The other thing I was not as prepared for was taking the heat shields off the OEM muffler to get the straps off that hold the muffler to the car. There were about 8 allen bolts per side, and each one was a 8!tch to get off without stripping or breaking them off. I probably tied up an hour or more taking the muffler tips and the heatshields off.
At the end of the day it was all worth it. Improved pedal response, and of course a lot nicer sound coming from the back of the car.
Thanks theRock88 for your help and the intercooler DIY, it helped make this go smoother.
One of the 2 outer bolts that gave me an issue. Like 93LS1RX7 mentioned they seemed to have eroded to a smaller than 13mm size. I cut them off
Before I hide this piece of art.
X...
#11
I just bought a used Fabspeed exhaust from a 6speed member and am getting prepared for the install.
I have read many of the DIY horror stories, and in preparation ordered the swivel sockets, the nut splitter, turbo to cat studs and new nuts just in case, but I have seen no mention of exhaust gaskets.
I see the OEM diagrams show a donut style gasket for each side, I am not sure what I am in for. Any help would be appreciated, I am trying to be as prepared as possible.
Thank you,
X...
I have read many of the DIY horror stories, and in preparation ordered the swivel sockets, the nut splitter, turbo to cat studs and new nuts just in case, but I have seen no mention of exhaust gaskets.
I see the OEM diagrams show a donut style gasket for each side, I am not sure what I am in for. Any help would be appreciated, I am trying to be as prepared as possible.
Thank you,
X...
#12
The other thing I was not as prepared for was taking the heat shields off the OEM muffler to get the straps off that hold the muffler to the car. There were about 8 allen bolts per side, and each one was a 8!tch to get off without stripping or breaking them off. I probably tied up an hour or more taking the muffler tips and the heatshields off.
Good job!
DC
#13
Nice work! Looks great. One note for you FYI ( a little late) You should be able to loosen the band clamps for the OEM mufflers and slide them each to the outside edge and remove them without actually taking the heat shield off (unless you need the bands off to re-use?).
Good job!
DC
Good job!
DC
X...
#14
[QUOTE=therock88;4326563]No Problem....Here is a picture of what they look like when you get the OEM Cat off (soaked a little from the PB Blaster (USE PLENTY OF THAT AND LET IT SOAK). I just took them off, cleaned them with solvent, and wiped them with a scuff pad so they were clean and smooth...then re-installed.
And the other picture is after HJS Cat is installed using same gasket. Has been on there for almost 2 years and no leaks or issues.
Good luck,
DC
Aha! So I see that it's normal for the stud to also come off! Mine did as well :-)
And the other picture is after HJS Cat is installed using same gasket. Has been on there for almost 2 years and no leaks or issues.
Good luck,
DC
Aha! So I see that it's normal for the stud to also come off! Mine did as well :-)
#15
Does the little ridge go against the turbo or the exhaust? How about the ridge on the gasket between head and manifold....which one does it face?
New gaskets have a raised portion that gets crunched when you tighten the nuts at the turbochargers.
Seals much better than a used flat gasket.
