997 Turbo with 20" 991 Turbo Centerlock Wheels?

  #1
Old 11-16-2015, 11:29 AM
longboarder's Avatar
Registered User
Thread Starter
Join Date: Apr 2013
Location: SoCal
Posts: 2,440
Rep Power: 270
longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !

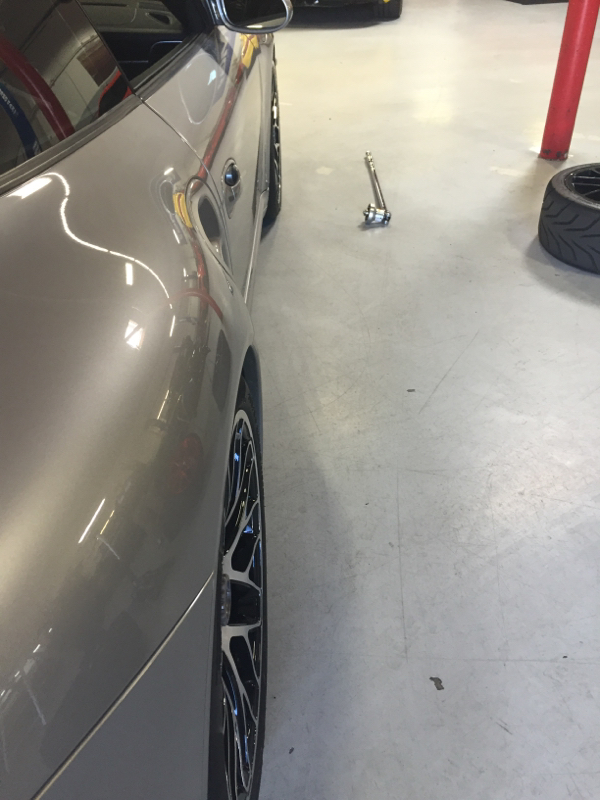

My stock 19" centerlocks have R888's for racing so I'm thinking about another wheel/tire combo to put on just for driving around town. Can the centerlocks from the 991 Turbo or 991 GTS fit the 997 Turbo? I would definitely have them painted black as I'm not thrilled about the chrome/black look. Thanks! EDIT: GMG had an extra set lying around and installed them for me this morning. They fit almost EXACTLY the same as the stock 997.2 centerlocks. The front wheel was nearly flush with the fender but the rear was set in about an inch, which I do not like. Here's pics:

Attached Images

Last edited by longboarder; 11-18-2015 at 01:18 PM.
  #2
Old 11-16-2015, 06:33 PM
32krazy!'s Avatar
Banned
Join Date: Dec 2008
Location: tn
Age: 62
Posts: 5,551
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !

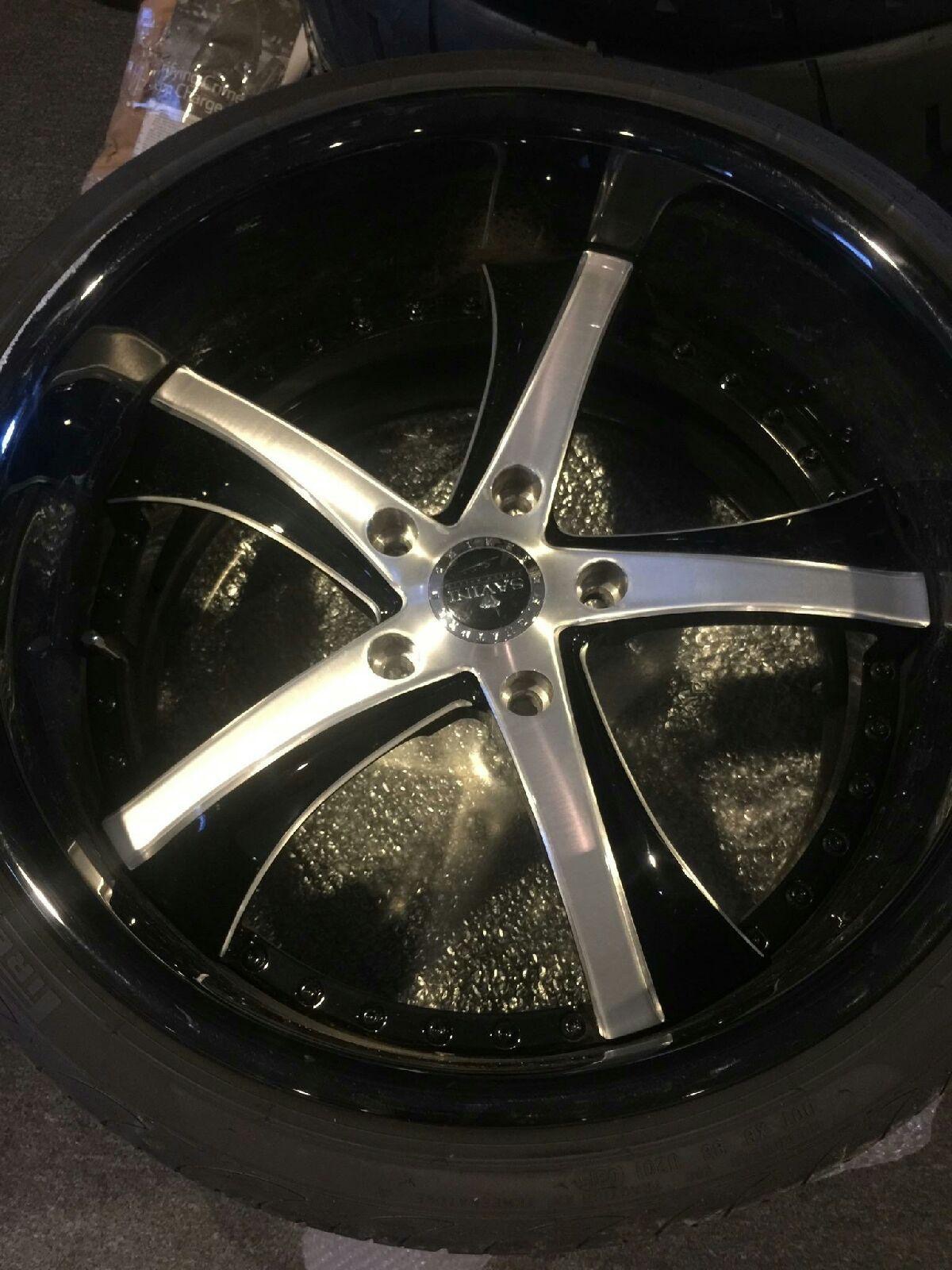

can you run lug bolts? i have a friend with a set of 20" savini wheels with brand new tires he is selling less than 100 miles 245 front 305 rears.

Attached Thumbnails Click image for larger version

Name:	IMG_0869.jpg
Views:	128
Size:	316.2 KB
ID:	432898
  #3
Old 11-16-2015, 07:20 PM
longboarder's Avatar
Registered User
Thread Starter
Join Date: Apr 2013
Location: SoCal
Posts: 2,440
Rep Power: 270
longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !
Originally Posted by 32krazy!
can you run lug bolts? i have a friend with a set of 20" savini wheels with brand new tires he is selling less than 100 miles 245 front 305 rears.
Nah can only run centerlocks. If the 991 Turbo centerlocks don't fit I've been set on HRE P101's for a while.

  #4
Old 11-16-2015, 07:38 PM
32krazy!'s Avatar
Banned
Join Date: Dec 2008
Location: tn
Age: 62
Posts: 5,551
Rep Power: 626
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
worth a shot

  #5
Old 11-16-2015, 07:45 PM
ryem3's Avatar
Registered User
Join Date: May 2009
Location: Rye, NY
Posts: 3,335
Rep Power: 199
ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !
Don't think it will work for you because you can't use spacers. I think the rear offsets are too large, i.e. too far in. Double check.

  #6
Old 11-16-2015, 07:48 PM
longboarder's Avatar
Registered User
Thread Starter
Join Date: Apr 2013
Location: SoCal
Posts: 2,440
Rep Power: 270
longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !
Originally Posted by ryem3
Don't think it will work for you because you can't use spacers. I think the rear offsets are too large, i.e. too far in. Double check.

So does that mean the 991 wheels will not sit flush? Instead they will be set in too far? You are right, we cannot use spacers.

  #7
Old 11-17-2015, 08:48 AM
ryem3's Avatar
Registered User
Join Date: May 2009
Location: Rye, NY
Posts: 3,335
Rep Power: 199
ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !
Yep, they will be in too far. Out of my own curiosity I checked. Weird, but the turbo wheels have offsets of 56 and the GTS wheels have offsets of 52. So the GTS wheels should work, but won't be very aggressive and the turbo wheels could work if they don't create inboard clearance issues. Neither will have a very aggressive look and you can't fix it with spacers.

  #8
Old 11-17-2015, 09:20 AM
808c2s's Avatar
Registered User
Join Date: Aug 2007
Location: Hawaii
Posts: 1,364
Rep Power: 114
808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !
If the GTS or 991 Turbo fits the 997TT, then you can space it out with a combination of upper and lower adjustable control arms, along with Tarett's 15mm axle spacers for the rears.

Originally Posted by ryem3
Yep, they will be in too far. Out of my own curiosity I checked. Weird, but the turbo wheels have offsets of 56 and the GTS wheels have offsets of 52. So the GTS wheels should work, but won't be very aggressive and the turbo wheels could work if they don't create inboard clearance issues. Neither will have a very aggressive look and you can't fix it with spacers.

  #9
Old 11-17-2015, 11:45 AM
longboarder's Avatar
Registered User
Thread Starter
Join Date: Apr 2013
Location: SoCal
Posts: 2,440
Rep Power: 270
longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !
Originally Posted by 808c2s
If the GTS or 991 Turbo fits the 997TT, then you can space it out with a combination of upper and lower adjustable control arms, along with Tarett's 15mm axle spacers for the rears.
I do have the rear end links and I guess they could be pushed out but that would negatively impair the handling of the car, according to GMG.

  #10
Old 11-17-2015, 11:50 AM
longboarder's Avatar
Registered User
Thread Starter
Join Date: Apr 2013
Location: SoCal
Posts: 2,440
Rep Power: 270
longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !
Originally Posted by ryem3
Yep, they will be in too far. Out of my own curiosity I checked. Weird, but the turbo wheels have offsets of 56 and the GTS wheels have offsets of 52. So the GTS wheels should work, but won't be very aggressive and the turbo wheels could work if they don't create inboard clearance issues. Neither will have a very aggressive look and you can't fix it with spacers.
Thanks so much for checking. So what is the offset of our stock centerlock 997 wheels?

  #11
Old 11-17-2015, 11:56 AM
808c2s's Avatar
Registered User
Join Date: Aug 2007
Location: Hawaii
Posts: 1,364
Rep Power: 114
808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !
It should not, according to Tarret and Elephant Racing, as you are effectively spacing out the offsets just like any other aftermarket rims, but in a different way with the addition of 15mm axle spacers, in conjunction with the adjustable arms, which will correct cambers and casters.

Originally Posted by longboarder
I do have the rear end links and I guess they could be pushed out but that would negatively impair the handling of the car, according to GMG.

  #12
Old 11-17-2015, 11:59 AM
808c2s's Avatar
Registered User
Join Date: Aug 2007
Location: Hawaii
Posts: 1,364
Rep Power: 114
808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !
Originally Posted by longboarder
I do have the rear end links and I guess they could be pushed out but that would negatively impair the handling of the car, according to GMG.
Also, your end links will be able to push it out 10 mm, which I believe was what you had done before? It is probably the extent of which your axle can handle without breaking. That's why the 15mm axle spacers are safer bet.

  #13
Old 11-17-2015, 12:20 PM
longboarder's Avatar
Registered User
Thread Starter
Join Date: Apr 2013
Location: SoCal
Posts: 2,440
Rep Power: 270
longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !longboarder Is a GOD !
Originally Posted by 808c2s
It should not, according to Tarret and Elephant Racing, as you are effectively spacing out the offsets just like any other aftermarket rims, but in a different way with the addition of 15mm axle spacers, in conjunction with the adjustable arms, which will correct cambers and casters.
Originally Posted by 808c2s
Also, your end links will be able to push it out 10 mm, which I believe was what you had done before? It is probably the extent of which your axle can handle without breaking. That's why the 15mm axle spacers are safer bet.
You are correct my end links were extended by 10mm. However I was having some handling issues and went to GMG for help. Their recommendation was to reset the end link length to stock and align properly. It made a nice difference. Mostly because my alignment and steering wheel weren't set right (my suspension setup also includes Ohlins R&T, GMG front and rear sways, tarett drop links and GMG front bump/toe steer). The suspension feels incredible to me now and really don't want to do any further changes. If I have to push out the rear wheel to sit flush by extending the end links and/or axle spacers I will probably pass and pick another wheel since I'm so happy with the suspension right now. If the 991 centerlocks don't fit I'm gonna go all out with some 20" P101s yummy.

  #14
Old 11-17-2015, 12:38 PM
808c2s's Avatar
Registered User
Join Date: Aug 2007
Location: Hawaii
Posts: 1,364
Rep Power: 114
808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !808c2s Is a GOD !
Understood, but could the handling issues be due to incorrect alignment and steering wheel centering, rather than offsets?

Originally Posted by longboarder
You are correct my end links were extended by 10mm. However I was having some handling issues and went to GMG for help. Their recommendation was to reset the end link length to stock and align properly. It made a nice difference. Mostly because my alignment and steering wheel weren't set right (my suspension setup also includes Ohlins R&T, GMG front and rear sways, tarett drop links and GMG front bump/toe steer). The suspension feels incredible to me now and really don't want to do any further changes. If I have to push out the rear wheel to sit flush by extending the end links and/or axle spacers I will probably pass and pick another wheel since I'm so happy with the suspension right now. If the 991 centerlocks don't fit I'm gonna go all out with some 20" P101s yummy.

  #15
Old 11-17-2015, 12:44 PM
ryem3's Avatar
Registered User
Join Date: May 2009
Location: Rye, NY
Posts: 3,335
Rep Power: 199
ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !ryem3 Is a GOD !
Stock rear offsets are 51mm, but everyone always wants to go more aggressive ;-) .
