New Product, Valentine One Mounting Bracket (G Bracket) for Porsche 997 by G Rides

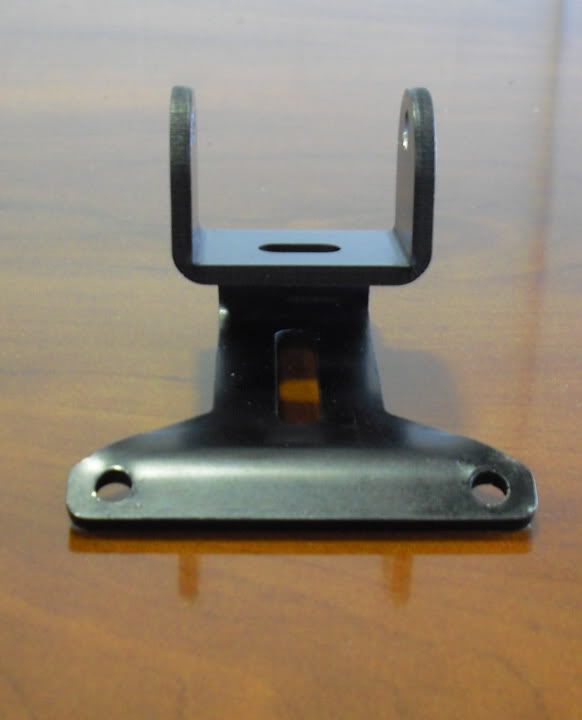

G Rides has finished development, testing and manufacturing of these Valentine One Mounting Brackets for the Porsche 997 with Auto Dimming Mirror (Should fit Cayman with Power Dimming Mirror too). They will be called "G Brackets" and locate the Valentine One below the rear view mirror. They are made in California, USA from Aluminum, Anodized Black and include Mounting Hardware. This G Bracket combined with Hardwiring of your Valentine One makes for a clean and functional installation of your Valentine One. We're finishing details such as putting them on an on-line store, but they are in-stock ready to ship now.



Click the image to open in full size.


Click the image to open in full size.


Click the image to open in full size.


Click the image to open in full size.


Click the image to open in full size.

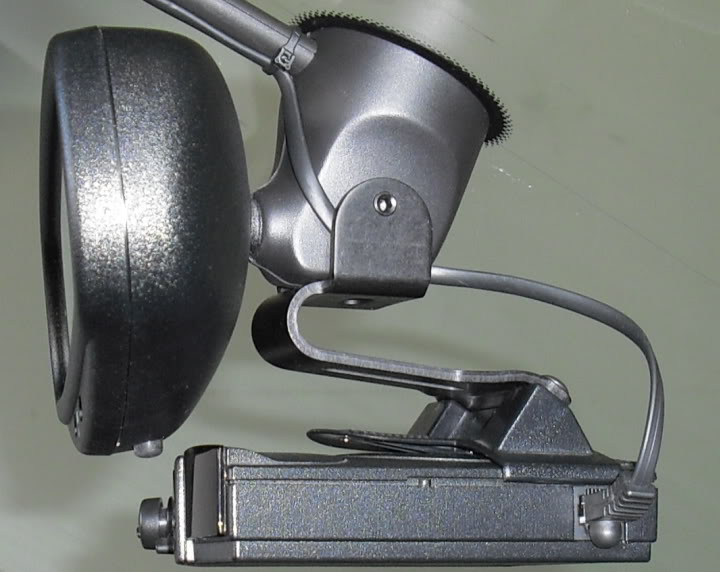

These pictures may help convey how the G Bracket is installed. Full instructions to come.

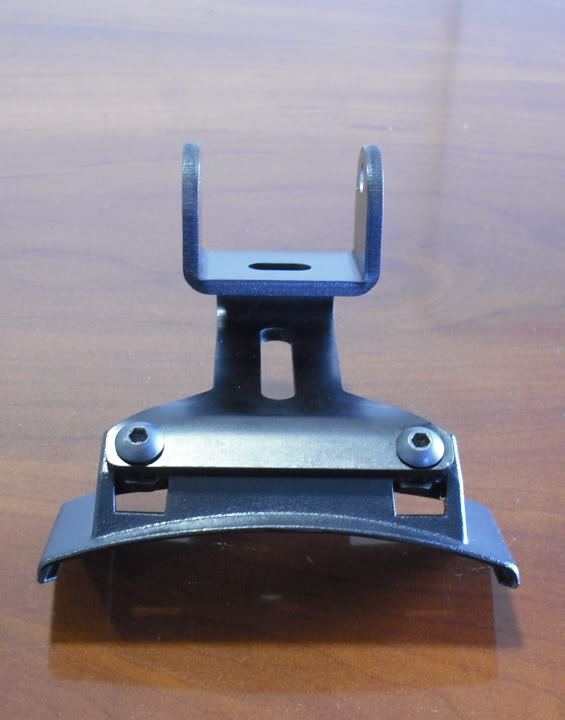

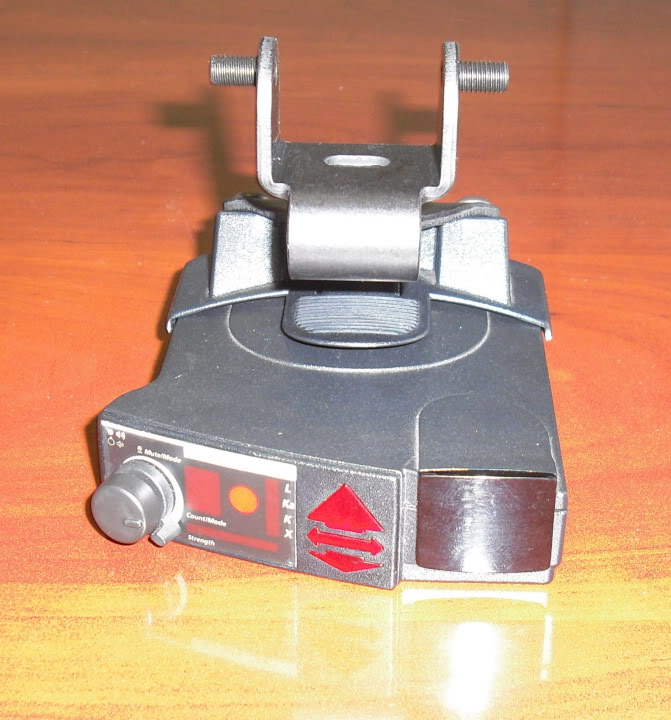

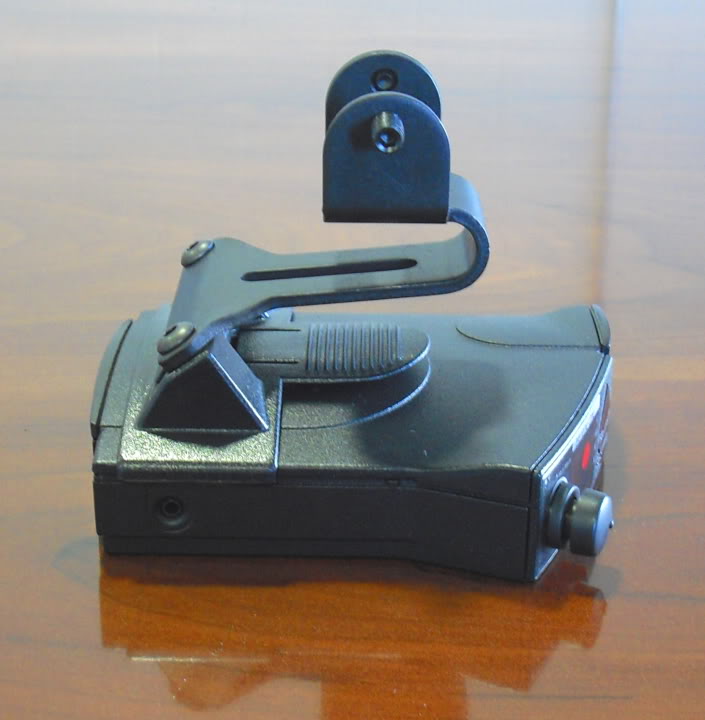

The G Bracket mounts to the V1 by removing the suction cup from the V1 mount. Attach the G Bracket to the V1 mount with supplied fasteners as seen in these pictures.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

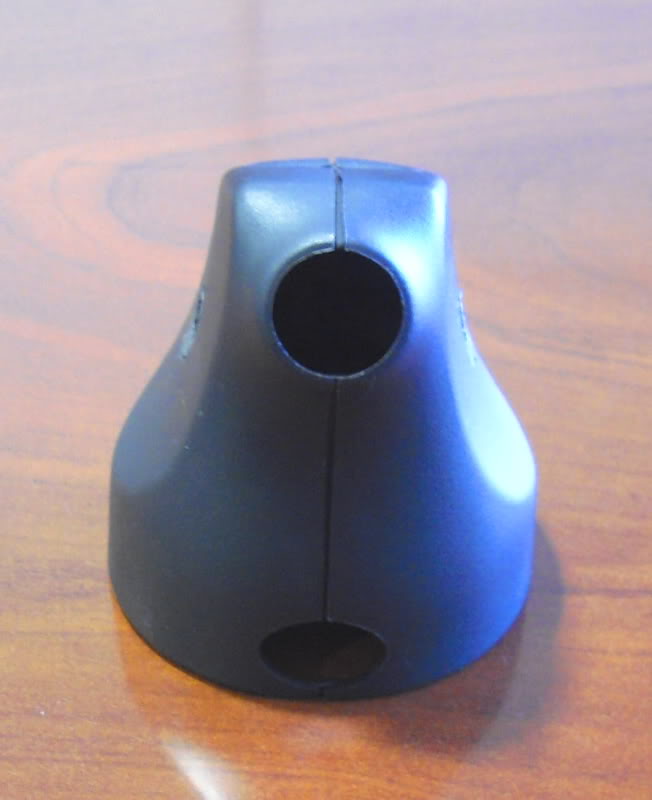

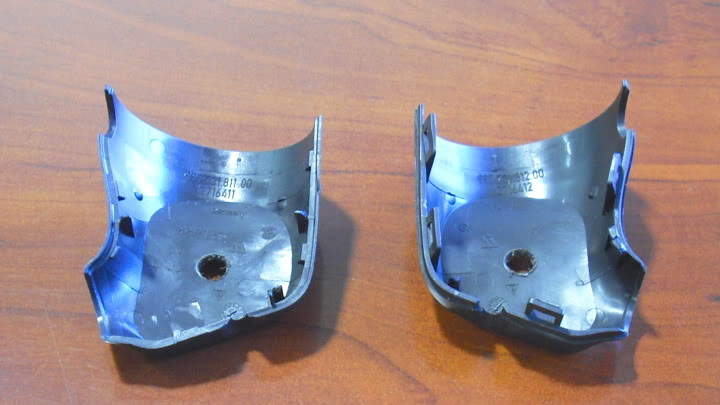

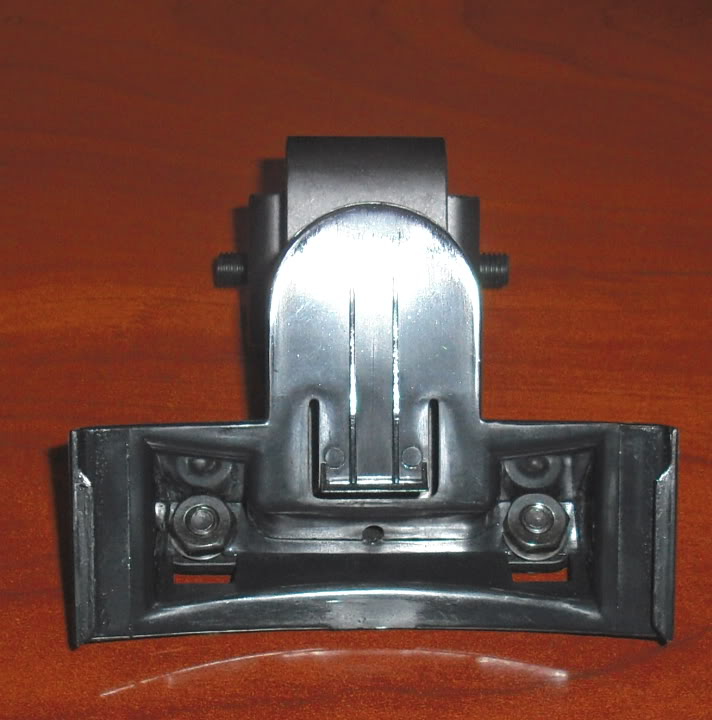

This is the 2-Piece Plastic Housing that covers the Metal Mirror Post, which needs to be removed. This Plastic Housing is snapped in place and needs to be pryed off. We use one of those flat plastic blades and place it towards the top back seem and it will snap apart.

Click the image to open in full size.


This piece is already drilled but, before drilling there is basically a little plastic nub on each side that indexes where the holes need to be made. Those little plastic nubs went into the pockets of the Metal Mirror Post which the G Bracket Set Screws will go into. Once the holes are drilled, re-install the Plastic Housing by snapping it back together in place.

Click the image to open in full size.

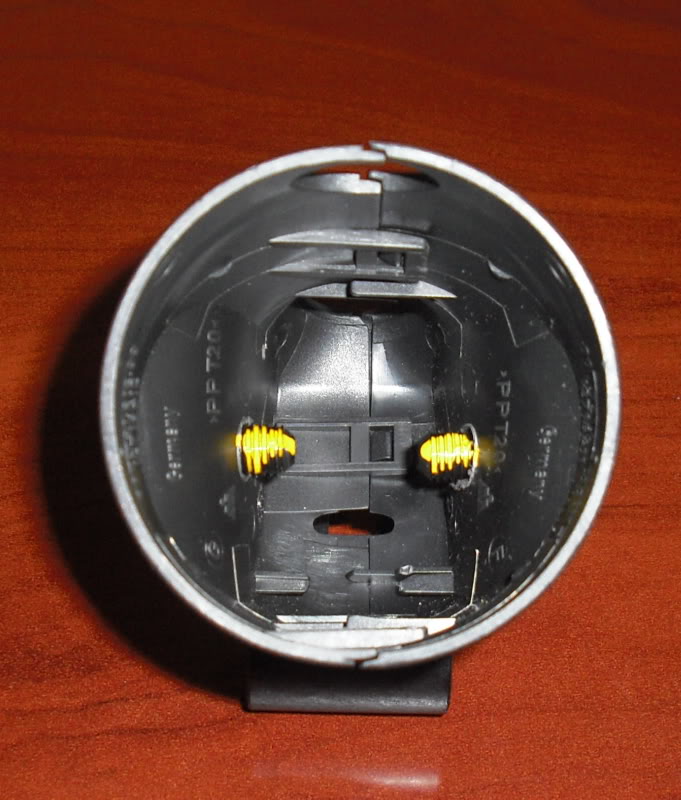

I colored the set screws yellow so you may see where the set screws go.

Click the image to open in full size.

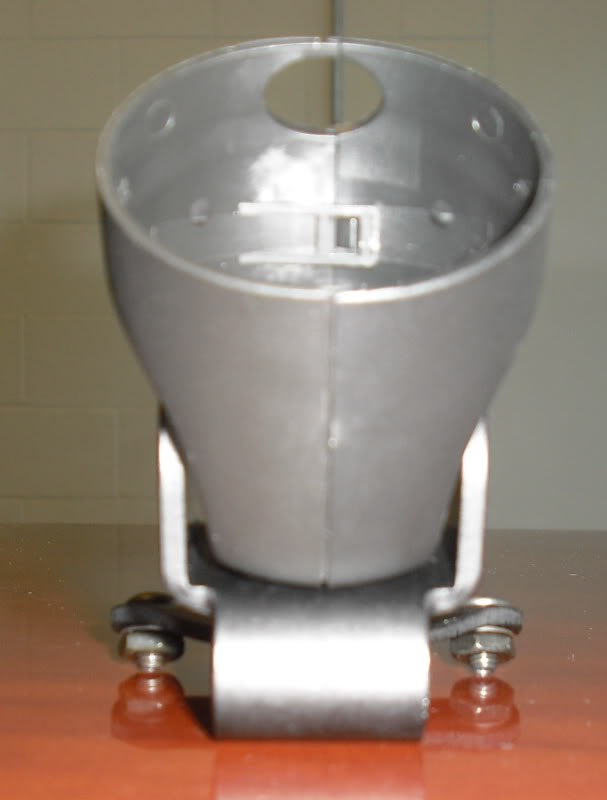

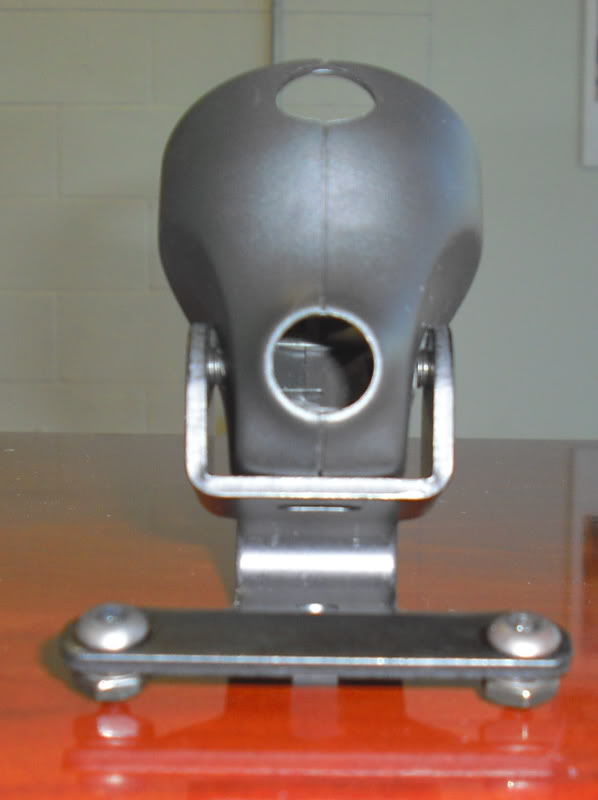

With the plastic housings reinstalled, slide the G Bracket into place. It is a tight fit, but the tight fit helps it mount securely. With the G Bracket in place, thread in the set screws which should just about bottom out making them flush with the G Bracket.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
Reply With Quote
  #2
Old 12-09-2009, 06:20 PM
Former Vendor

Join Date: Aug 2006
Location: San Luis Obispo, CA
Posts: 335
Rep Power: 0
Gary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond repute
Price available in 997 Vendor Classifieds. Any questions please ask.
Reply With Quote
  #3
Old 12-09-2009, 08:49 PM
mdrums's Avatar
Registered User

Join Date: Jul 2006
Location: Tampa
Posts: 3,885
Rep Power: 226
mdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond reputemdrums has a reputation beyond repute
Gary, WOW that is very slick...a neat and tidy install. My 2009 Carrera S does not have auto dimming mirrors so will you have a set up for me? Also will I be able to get power to my V1 like you have done?
__________________

National PCA Instructor, Chin Motorsports and PBOC Instructor
2012 Carrera GTS
Reply With Quote
  #4
Old 12-09-2009, 08:52 PM
euro_king's Avatar
Registered User

Join Date: Jul 2008
Posts: 246
Rep Power: 16
euro_king is on a distinguished road
nice and slick
Reply With Quote
  #5
Old 12-10-2009, 05:25 AM
utkinpol's Avatar
Registered User

Join Date: Jul 2007
Location: Natick, MA
Age: 41
Posts: 3,143
Rep Power: 153
utkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond reputeutkinpol has a reputation beyond repute
Quote:
Originally Posted by mdrums View Post
Gary, WOW that is very slick...a neat and tidy install. My 2009 Carrera S does not have auto dimming mirrors so will you have a set up for me? Also will I be able to get power to my V1 like you have done?
Not so sure - I afraid it will block too much of the view this way if mounted below mirror, I would prefer not to have anything there.
IMHO optimal spot for V1 is right above mirror on its left side. It fits there perfectly using its original big suction clip.

Click the image to open in full size.
__________________
'06 997 C2 Arctic Silver - Valentine1, MoBridge, Fabspeed x-pipe, Softronic ECU, IPD Plenum, Mods4cars, 996 X51 oil pan, GT3 mounts, GT3 swaybars, JRZ RS with 600#/700# Eibach, ERP arms, 18" CCW C14
Reply With Quote
  #6
Old 12-10-2009, 06:58 AM
insp185's Avatar
Registered User

Join Date: Feb 2007
Location: central california
Posts: 27
Rep Power: 9
insp185 is on a distinguished road
I have this bracket mounted in my car and there is minimal impact on the view to the right. The V-1 sits just below the mirror in the perfect position for monitoring while driving. Thanks to Gary and G-Rides for developing such a functional and well designed product.

Ken
__________________
Ken
08 997TT Meteor Gray Cab
HRE P40s, Tubi, EVOMSit, IPD Plunum, EVOMs BRVs,Short Shifter, Bilstein PSS10 Coilovers, H&R Swaybars
Reply With Quote
  #7
Old 12-10-2009, 07:28 AM
CMOS's Avatar
Registered User

Join Date: Jan 2009
Location: Maryland
Posts: 457
Rep Power: 27
CMOS is just really niceCMOS is just really niceCMOS is just really niceCMOS is just really nice
Quote:
Originally Posted by utkinpol View Post
Not so sure - I afraid it will block too much of the view this way if mounted below mirror, I would prefer not to have anything there.
IMHO optimal spot for V1 is right above mirror on its left side. It fits there perfectly using its original big suction clip.
You are correct, sir!
Even Valentine agrees with you on your placement above the mirror. ("Detector performance is enhanced by a high mounting position. Two reasons. For radar, a longer sight line to the horizon always helps. For laser, moving away from the hood and its sun reflections helps a lot." (http://www.valentine1.com/moreinfo/p...ng_pg17-18.pdf)). I'm sure this is expecially true on a Porsche as you are very low to the ground already. A few inches higher matters.
__________________
2007 C4S Black/Black
2004 BMW 330Cic
Reply With Quote
  #8
Old 12-10-2009, 07:44 AM
talkinghead's Avatar
Registered User

Join Date: Sep 2009
Location: ATX
Posts: 107
Rep Power: 9
talkinghead is on a distinguished road
Quote:
Originally Posted by utkinpol View Post
IMHO optimal spot for V1 is right above mirror on its left side. It fits there perfectly using its original big suction clip.
Not to hijack the thread, but I fully agree with the location. I looked at the "below mirror location and didn't like the result.
FWIW, I use a Passport and get a lot of bounce and rattle from the rough ride of the 997, even in non-sport mode.
What I have done is add a small cushion (ear plug) bridging the gap between the end of the Passport and the upper mirror housing. It really helps the bounce.
Reply With Quote
  #9
Old 12-10-2009, 08:55 AM
Registered User

Join Date: Aug 2009
Location: Dallas & Laguna Beach
Age: 36
Posts: 143
Rep Power: 11
LagunaDallas is on a distinguished road
I'm with 'Utkinpol' on preferring the placement higher up next to the mirror, but this is really well done!
__________________
2009 Porsche Carrera S Cabrio
2012 Mercedes CLS550 Launch Ed.
1994 Land Rover Defender 90
2006 Porsche Carrera S Coupe (SOLD)
2013 Tesla Model S (February Delivery)
Reply With Quote
  #10
Old 12-10-2009, 04:39 PM
Former Vendor

Join Date: Aug 2006
Location: San Luis Obispo, CA
Posts: 335
Rep Power: 0
Gary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond repute
Installed another G Bracket today and took a few pictures.

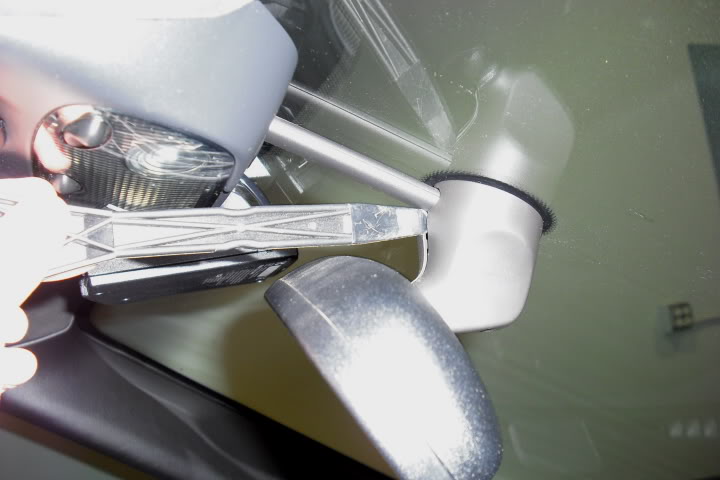

Pry apart the 2-piece plastic mirror housing cover. It's best to pry from the front as seen here because there are no wires in this area. Pry with a tool, just enough to get some separation, then carefully pull apart by hand.

Click the image to open in full size.

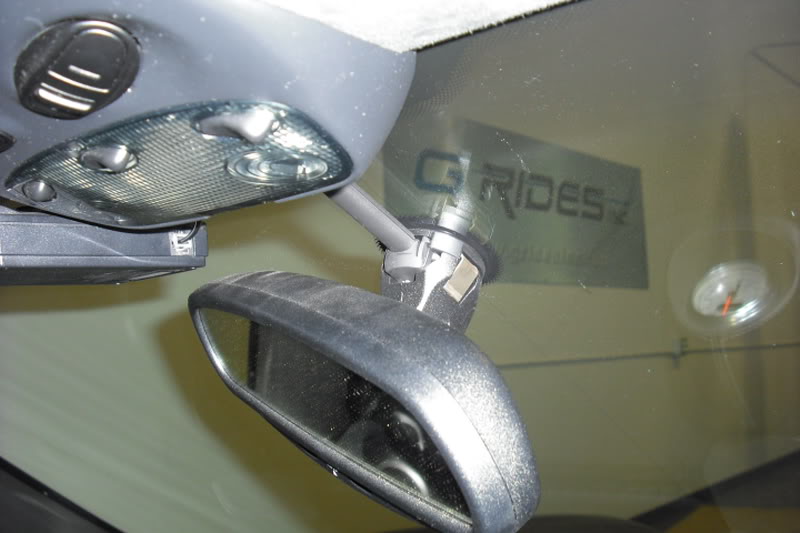

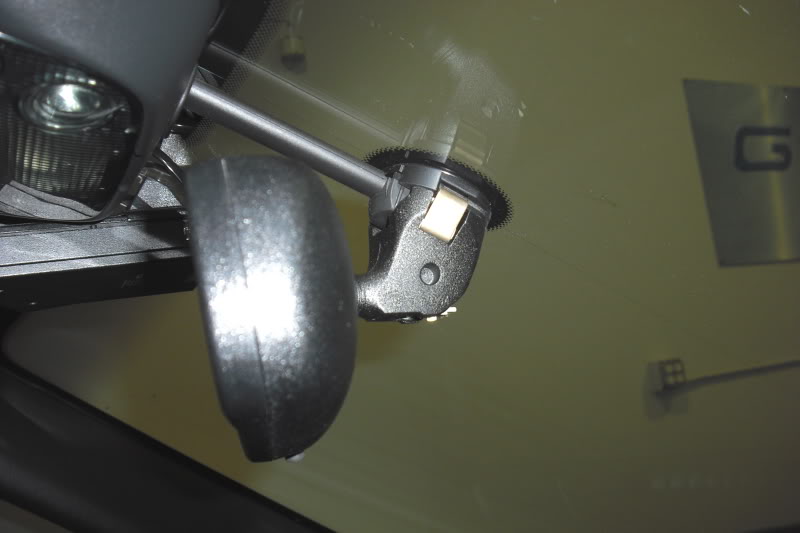

You can see the metal mirror post now with the plastic removed.

Click the image to open in full size.

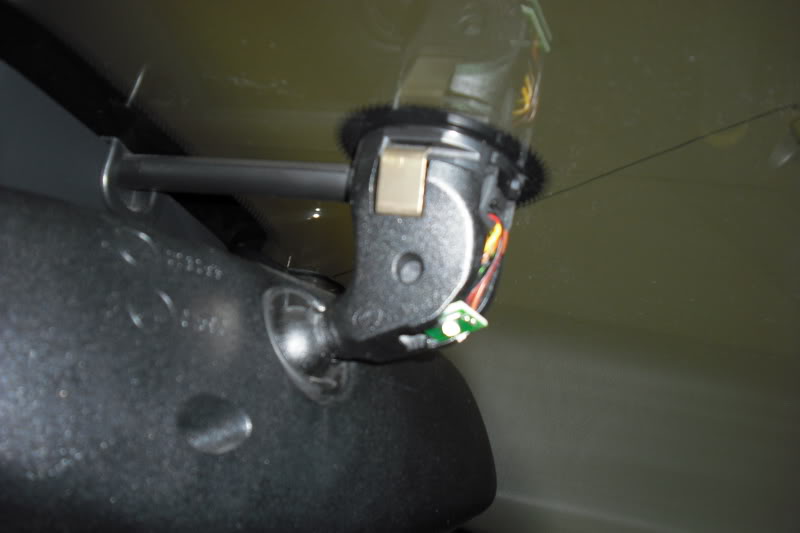

In these pictures please notice the pocket on the side of the mirror post (It's the same on both sides, the post comes like this from Porsche and you do not need to drill on the mirror post), this is where the G Bracket Set Screws inserts and creates a very sturdy mount.

Click the image to open in full size.

Click the image to open in full size.

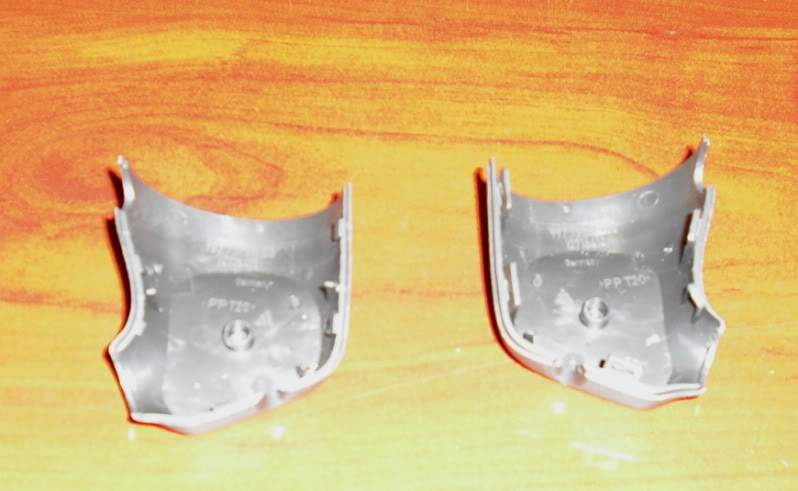

Here is the plastic housing before drilling. Please notice the little nubs, they are where you need to drill.

Click the image to open in full size.


After holes have been drilled.

Click the image to open in full size.

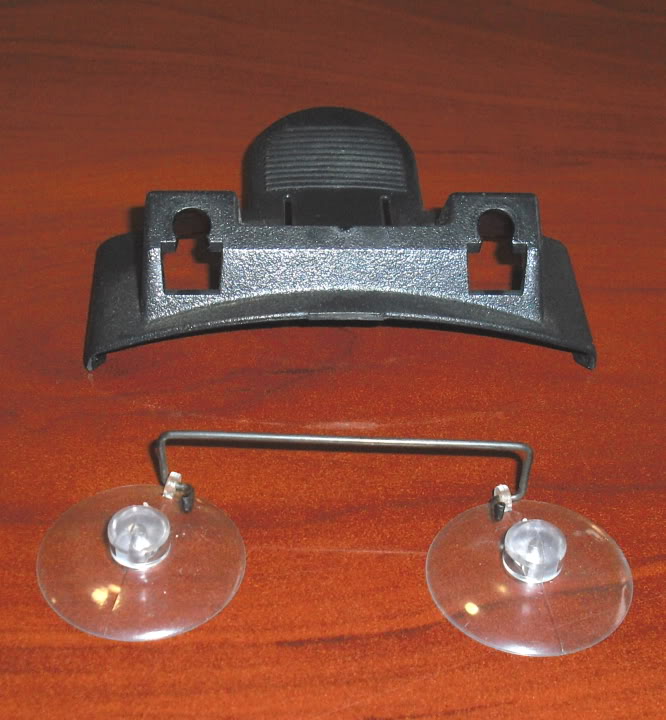

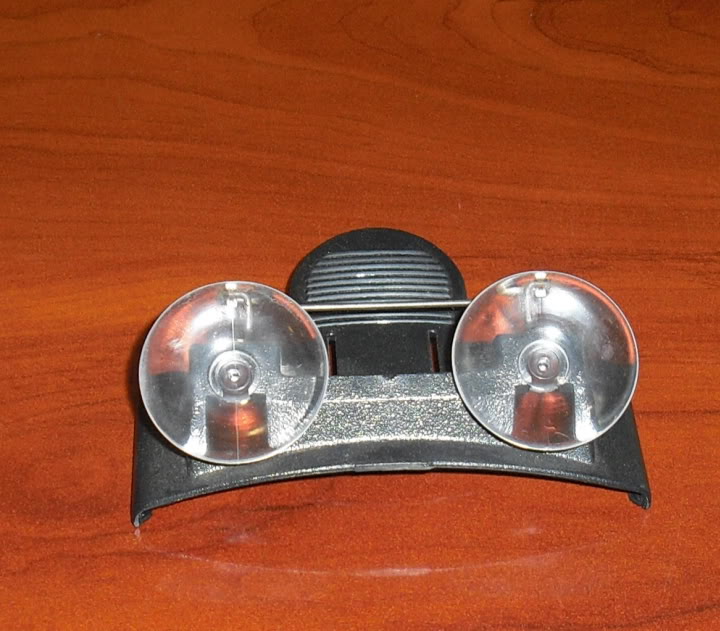

Take your bracket from your V1 and remove the suction cups.

Click the image to open in full size.

Click the image to open in full size.

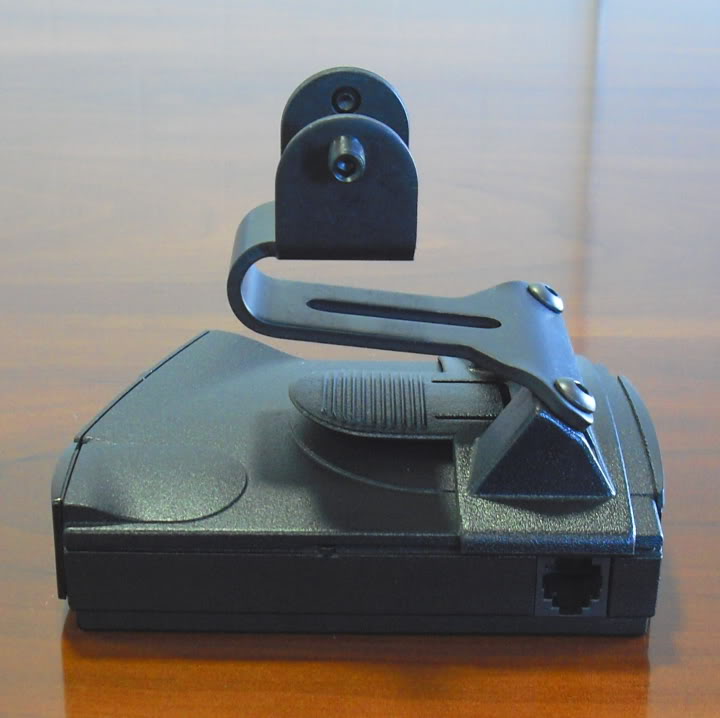

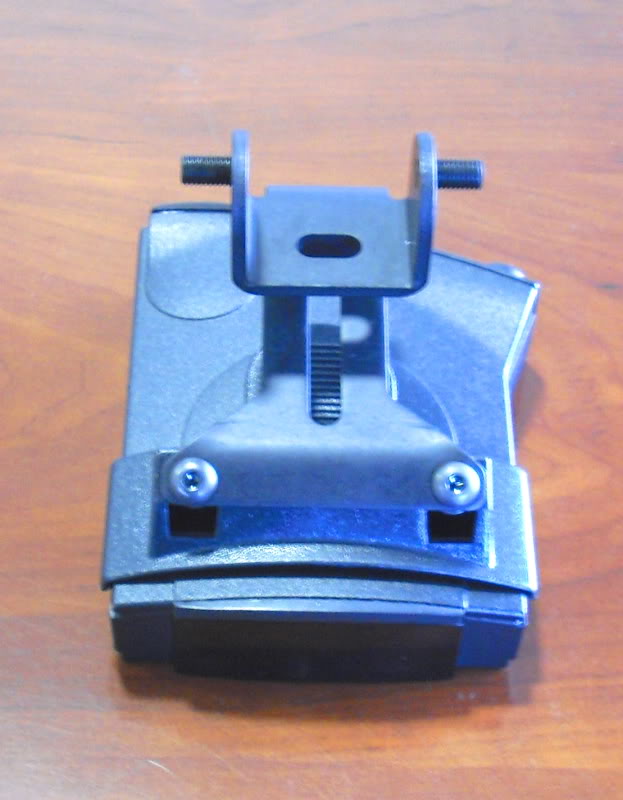

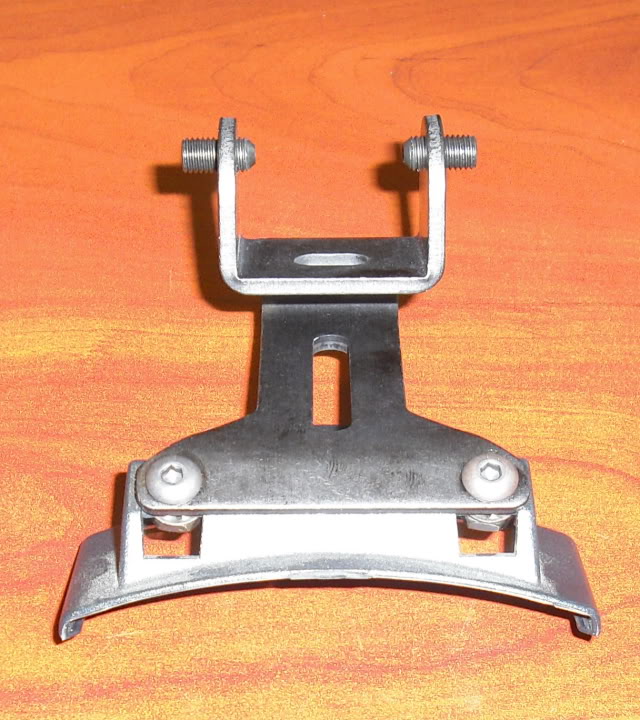

Bolt the G Bracket to the V1 Bracket with supplied hardware.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.


Reinstall the drilled plastic housings.

Click the image to open in full size.

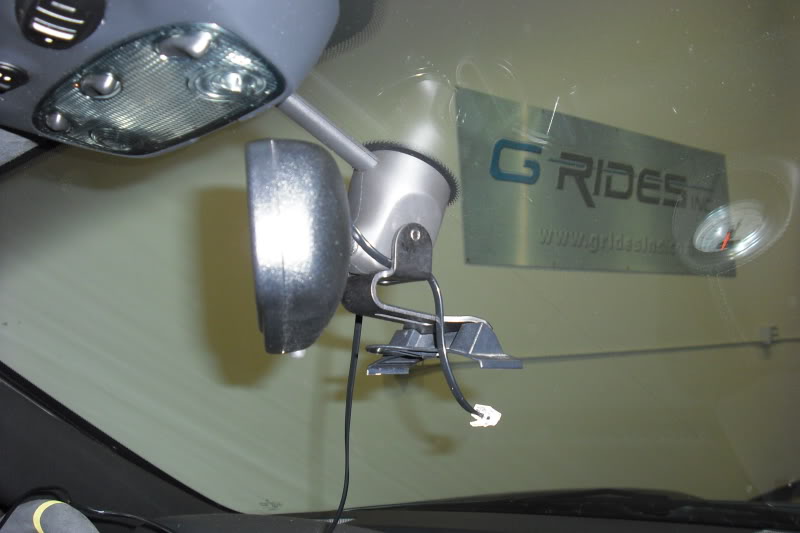

If installing with a hardwire, place your wire in between the G Bracket and the plastic housing, there is space for this and the wire will not get pinched. Screw in the set screws through the holes of the plastic housing and into the pockets of the metal mirror post. Do not torque real hard, the set screws should bottom out into the pockets of the mirror post and sit pretty flush with the G Bracket.

Click the image to open in full size.


Slide your V1 onto the V1 Bracket all the way towards the windshield and take the slack out of the hardwire cord.

Click the image to open in full size.

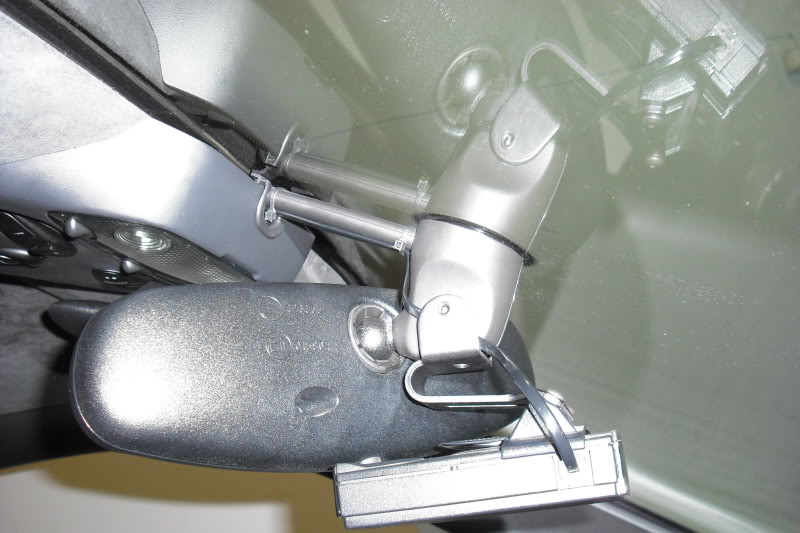

Route the hardwire as seen and 2-small black zip ties tiddy the hardwire cord well as seen and are fairly descreet.

Click the image to open in full size.

Click the image to open in full size.

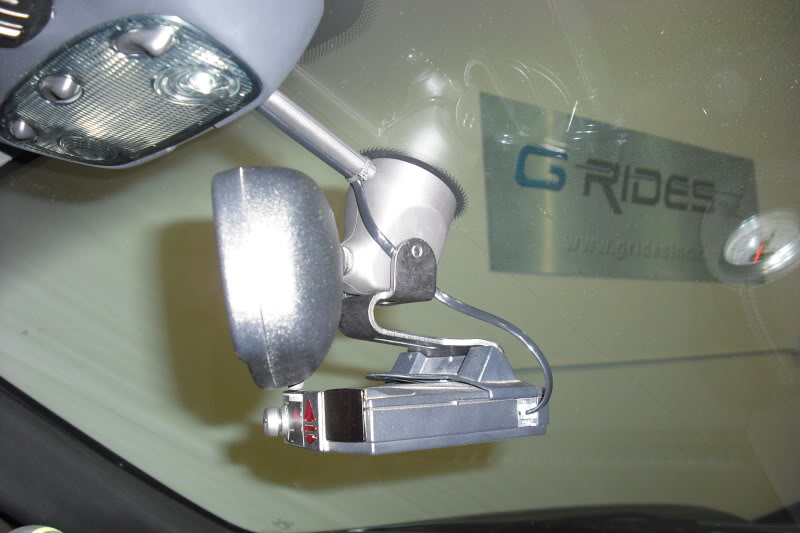

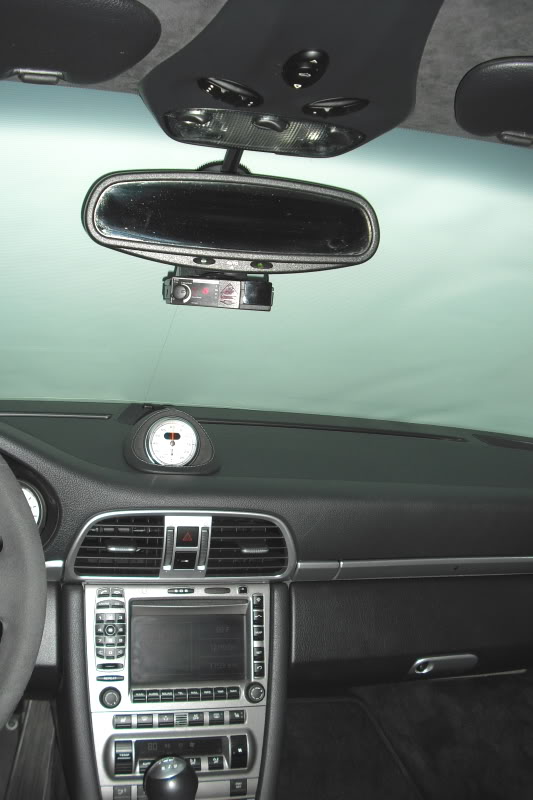

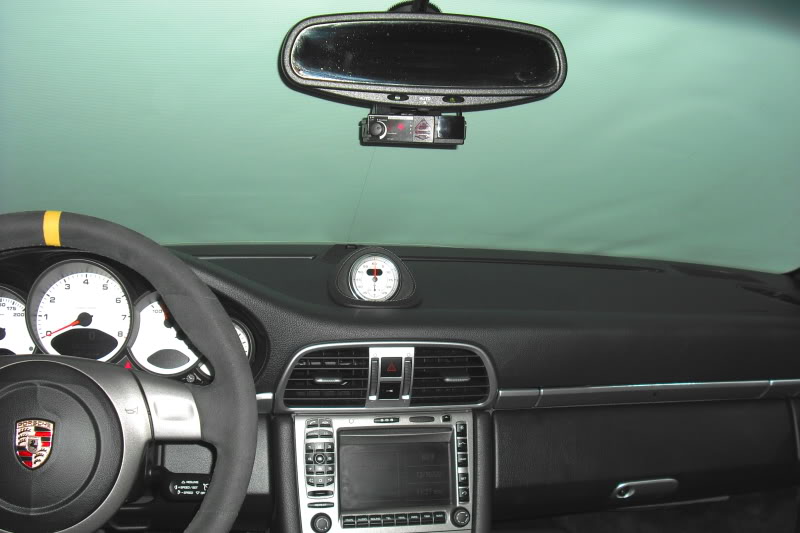

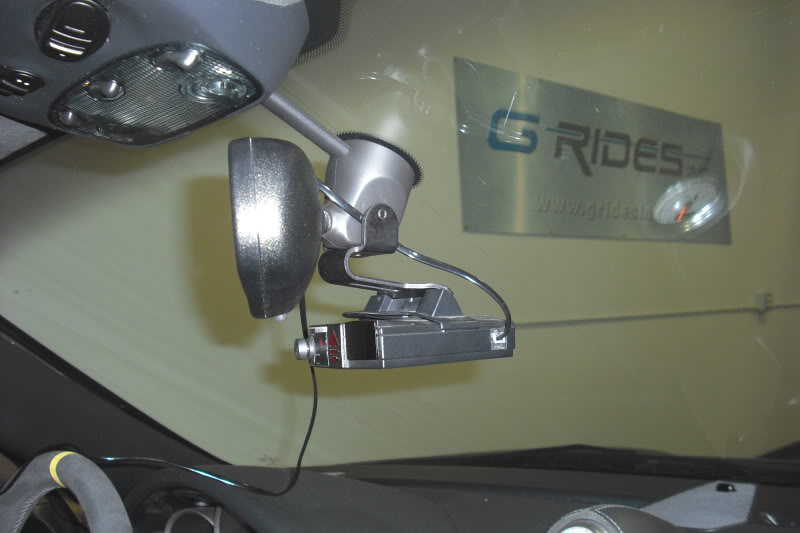

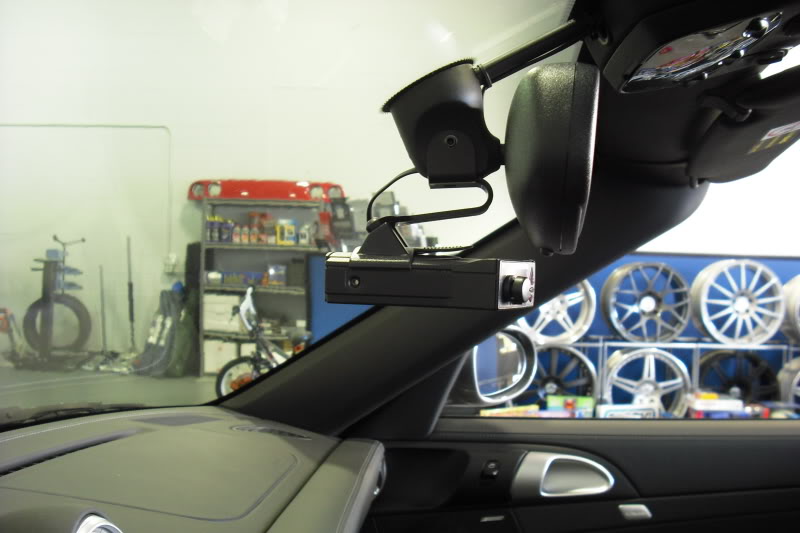

Here are a couple finished shots, the V1 sits just below the rearview mirror.

Click the image to open in full size.

Click the image to open in full size.


We realized going into this that this location would not be for everyone. We know there are people that prefer their radar detector elsewhere. We just set out to make a great solution for folks who would like their Radar Detector located below their rear view mirror, those folks seem to really appreciate that we have developed a quality, well designed product and brought it to market.
Reply With Quote
  #11
Old 12-10-2009, 04:51 PM
drkside's Avatar
Registered User

Join Date: Dec 2009
Location: San Francisco, CA
Posts: 100
Rep Power: 15
drkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to all
Love that look! Now I just need to get a Valentine....
__________________
2006 Porsche 997 Carrera S - Guards Red
Black Rennsport-One RS1 Wheels, Gundo Hack Mufflers, Front End Clear Bra, BMC Air Filter, Fabspeed Air Intake, Softronic ECU Flash & Dension 500
Reply With Quote
  #12
Old 12-10-2009, 05:37 PM
Former Vendor

Join Date: Aug 2006
Location: San Luis Obispo, CA
Posts: 335
Rep Power: 0
Gary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond reputeGary@G Rides has a reputation beyond repute
Quote:
Originally Posted by mdrums View Post
Gary, WOW that is very slick...a neat and tidy install. My 2009 Carrera S does not have auto dimming mirrors so will you have a set up for me? Also will I be able to get power to my V1 like you have done?
Does your mirror have the handle on the back to manually dim your mirror?

Here's a hardwire write-up I've done that worked on both 997 Turbo Cab. and 997 C2S. Please note that these Fuse Taps are great and we are putting together some hardwire kits so everything is all put together and you just route the wire and install it, no cutting or splicing.:


We've done this on a couple of 997's. What's great about this is you're able to have the Radar Detector be switched on and off with the ignition and you don't have a cord hanging down from the Radar Detector and plugged into a cigarette lighter.

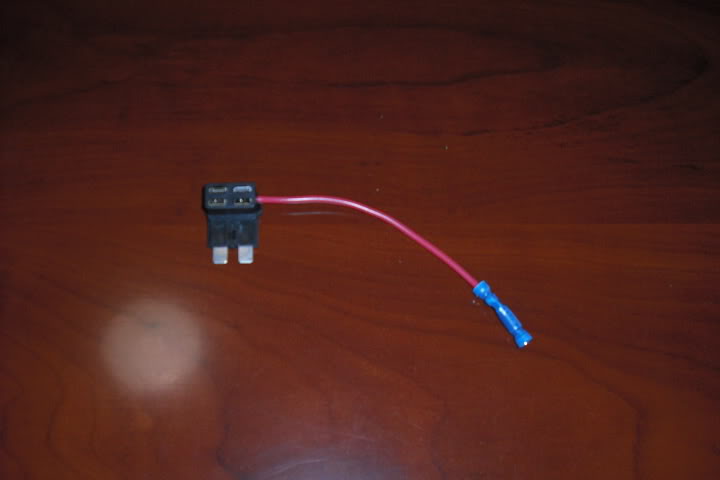

Using one of these Add-A-Fuse deals is a great way to grab an ignition on 12-Volt source with out having to cut/splice on factory wiring.


Click the image to open in full size.

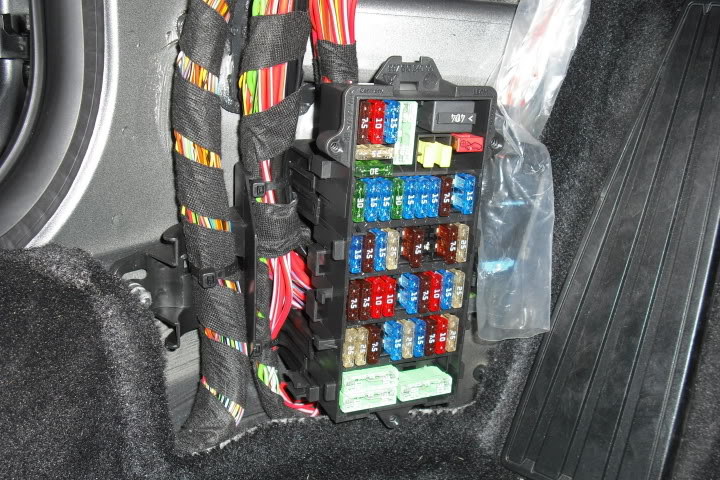

The Add-A-Fuse goes right into a fuse block. For this install there was an unused fuse location that was a switched on 12-Volt source so we used that. With the Add-A-Fuse you may also use it with a pre-existing fuse, replace that fuse with the Add-A-Fuse, put the removed fuse into the Add-A-Fuse then place a second fuse into the Add-A-Fuse so the Radar Detector has a inline fuse (we used a 5 Amp fuse going to the Radar Detector).


Click the image to open in full size.

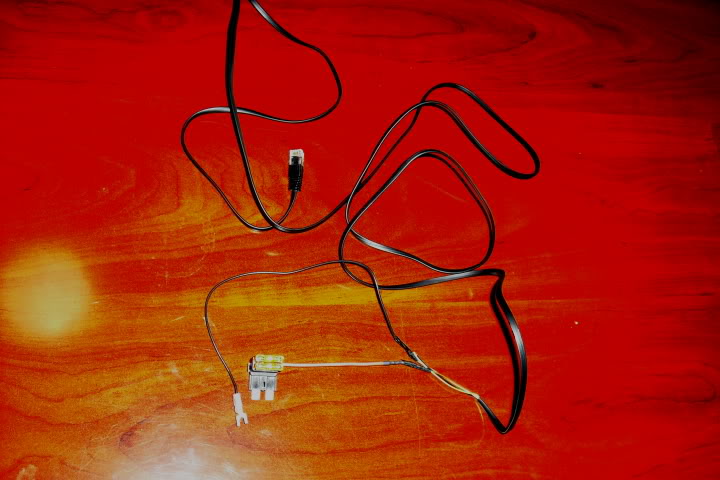

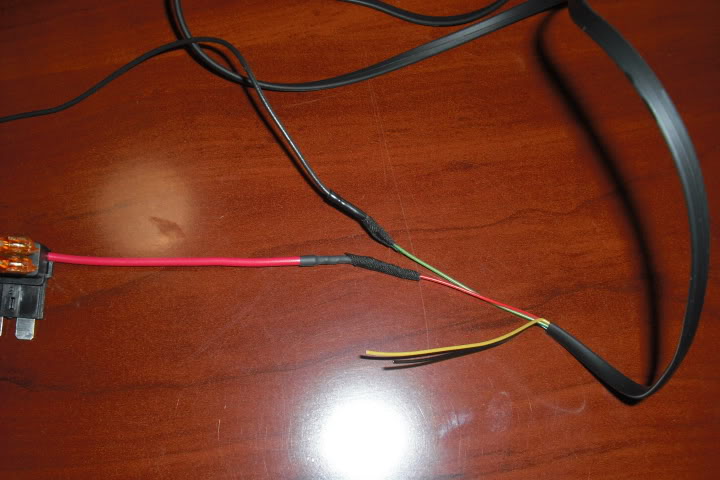

We used basically a phone cable as a wire to the Radar Detector. Find out which wire needs to be Hot (12-Volt Source), then Solder and shrink wrap the Add-A-Fuse to that.

Find out which wire needs to be Ground, then solder and shrink wrap a connector that suits your install to complete a good ground.


Click the image to open in full size.

Click the image to open in full size.


Here we used a pre-existing nut on a stud for our ground close to the fuse block, we put a stainless steel washer behind that nut so the ground connector gets sandwiched between to pieces of steel to make a good ground.

Click the image to open in full size.

Click the image to open in full size.

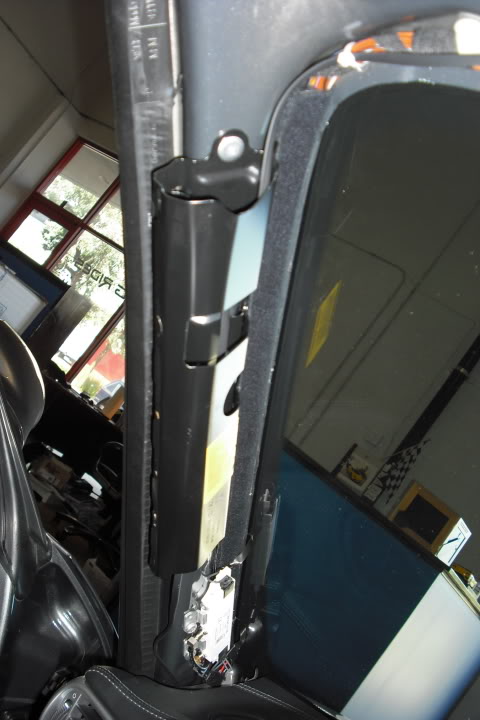

Remove the A-Pillar Cover so you can route the wire and secure it with some zip ties. Route the wire to where you want the Radar Detector and your about done already and the wire is hidden.


Click the image to open in full size.

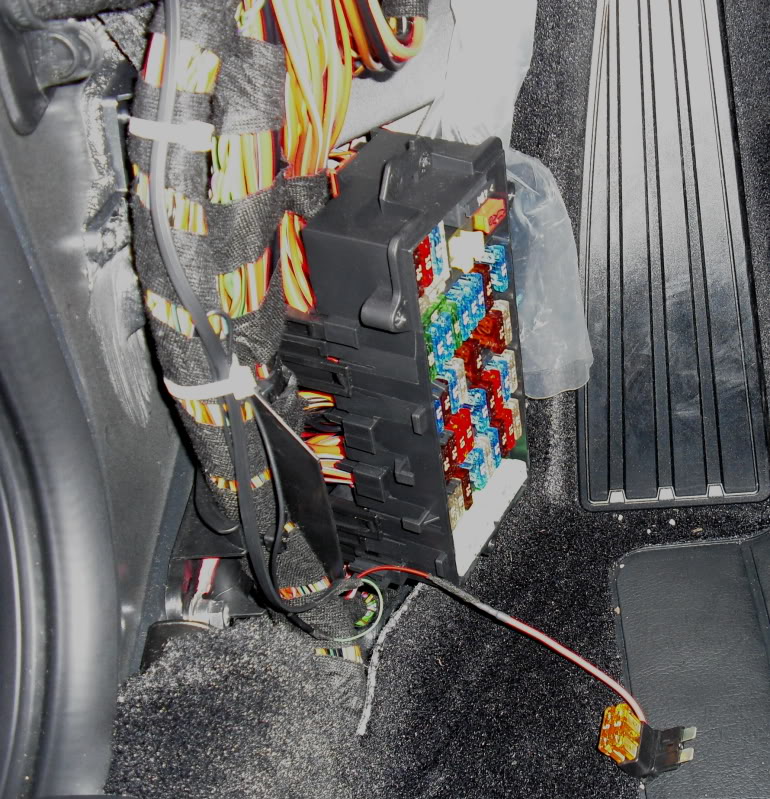

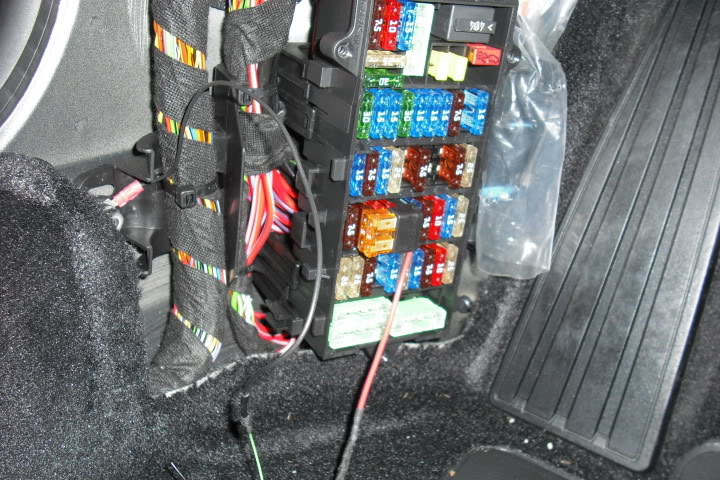

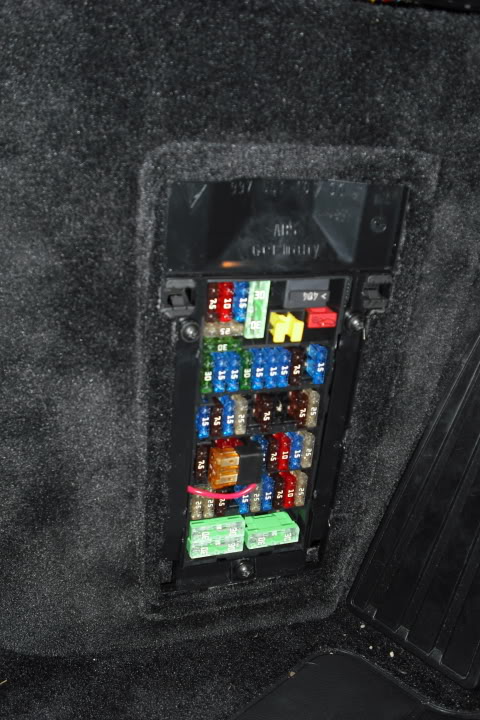

Here's how this Fuse Block looked when done with the cover off. The Add-A-Fuse is easily accessible and removed for any maintenance and nothing from the factory has been cut up. Having fun and keeping it clean. Any question please ask.


Click the image to open in full size.
Reply With Quote
  #13
Old 12-10-2009, 06:22 PM
drkside's Avatar
Registered User

Join Date: Dec 2009
Location: San Francisco, CA
Posts: 100
Rep Power: 15
drkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to all
perfecto, nice and simple. On ebay now looking at Valentines!
__________________
2006 Porsche 997 Carrera S - Guards Red
Black Rennsport-One RS1 Wheels, Gundo Hack Mufflers, Front End Clear Bra, BMC Air Filter, Fabspeed Air Intake, Softronic ECU Flash & Dension 500
Reply With Quote
  #14
Old 12-10-2009, 06:43 PM
avmike's Avatar
Registered User

Join Date: Apr 2009
Location: South Florida
Posts: 192
Rep Power: 19
avmike is a name known to allavmike is a name known to allavmike is a name known to allavmike is a name known to allavmike is a name known to allavmike is a name known to all
Quote:
Originally Posted by Gary@G Rides View Post
We realized going into this that this location would not be for everyone. .
I like it! I hate suction cups!

I'd order one, but I think I'm leaning toward an installed radar for my Porsche (since it's a cab) and leave the Valentine in the daily driver. Still on the fence.

Great job!
__________________
Mike

C2S Cab
Midnight Blue / Sand Beige Full Leather
6 speed, Bose, NAV, some other bits...
Mods: SmartTOP, that's it!
Reply With Quote
  #15
Old 12-11-2009, 07:03 PM
drkside's Avatar
Registered User

Join Date: Dec 2009
Location: San Francisco, CA
Posts: 100
Rep Power: 15
drkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to alldrkside is a name known to all
would this work with any other radar detector, like the Escort 9500xi? I have been reading where many prefer this new Escort to the Valentine one. Anyone have an opinion?
__________________
2006 Porsche 997 Carrera S - Guards Red
Black Rennsport-One RS1 Wheels, Gundo Hack Mufflers, Front End Clear Bra, BMC Air Filter, Fabspeed Air Intake, Softronic ECU Flash & Dension 500
