Instrument Cluster display problem
#1
Instrument Cluster display problem
Hi all,
I'm currently experiencing a bad issue with my 997.1 instrument cluster.
it started of a few week ago where a small amount of pixels seems to be stuck. Today the problem got worse and the "stuck"/"dead pixels" are all above the speed counter. very disturbing.
Anybody else experience this ?
I've read a post on another forum (only 4-5 posts) where someone was saying that he had the issue when it was cold outside and when hot weather arrived it disappeared..
Well it has been very warm these days here and no change...
Thanks for any suggestions.
Dmz.
I'm currently experiencing a bad issue with my 997.1 instrument cluster.
it started of a few week ago where a small amount of pixels seems to be stuck. Today the problem got worse and the "stuck"/"dead pixels" are all above the speed counter. very disturbing.
Anybody else experience this ?
I've read a post on another forum (only 4-5 posts) where someone was saying that he had the issue when it was cold outside and when hot weather arrived it disappeared..
Well it has been very warm these days here and no change...
Thanks for any suggestions.
Dmz.
#2
I believe you are going to need a new instrument cluster. In the US these have a list price of nearly $3000 USD. Used clusters are also available, and the DIY is not difficult.
Resetting the mileage will be your challenge. I don't know what Porsche's policy is on this, or whether this is allowed by Swiss law.
Resetting the mileage will be your challenge. I don't know what Porsche's policy is on this, or whether this is allowed by Swiss law.
#3
I believe you are going to need a new instrument cluster. In the US these have a list price of nearly $3000 USD. Used clusters are also available, and the DIY is not difficult.
Resetting the mileage will be your challenge. I don't know what Porsche's policy is on this, or whether this is allowed by Swiss law.
Resetting the mileage will be your challenge. I don't know what Porsche's policy is on this, or whether this is allowed by Swiss law.
No?
#4
Mileage resides on the cluster. Yes a replacement used one can be cloned to match your original one. This is the wrong forum to explain how.
Another option is swapping boards inside your cluster with a used replacement. Open the cluster from the rear and you will see a daughter board on the back. Move that to your new cluster and your mileage will be retained.
Another option is swapping boards inside your cluster with a used replacement. Open the cluster from the rear and you will see a daughter board on the back. Move that to your new cluster and your mileage will be retained.
#6
Hi Jance,
would you have further recommendations about heating the lcd ?
What should be heated exatlca the front screen, back screen, connector ribbon ? does it need to be rubbed ?
has anyone tried this fix ?
Yes the cluster is over 3000$ so a fix would be nice.
thanks
would you have further recommendations about heating the lcd ?
What should be heated exatlca the front screen, back screen, connector ribbon ? does it need to be rubbed ?
has anyone tried this fix ?
Yes the cluster is over 3000$ so a fix would be nice.
thanks
#7
Ok I may have found a second hand instrument cluster.
Is it possible to swap just the lcd screen, can it be removed easily ?
I heard also that we can swap the memory card but I would prefer to keep the original cluster with the replaced lcd.
Thanks for any info.
Is it possible to swap just the lcd screen, can it be removed easily ?
I heard also that we can swap the memory card but I would prefer to keep the original cluster with the replaced lcd.
Thanks for any info.
Trending Topics
#8
I have the same problem. How did you managed to fix this?
Thanks!
#9
ptsmonteiro
When I changed my gauges to red I messed up and had to buy a new cluster from DC Auto and have them mail it to BBA Remanufacturing. BBA swapped out the bad part of the cluster and got my car back in the game.
When I changed my gauges to red I messed up and had to buy a new cluster from DC Auto and have them mail it to BBA Remanufacturing. BBA swapped out the bad part of the cluster and got my car back in the game.
#10
Thanks for answering.
I managed to replace the faulty LCD with a new one but I think I’ve ruined the fuel gauge servo (it doesn’t move anymore). I guess the servos are too sensitive for having the needles pulled out and put in again...
I managed to replace the faulty LCD with a new one but I think I’ve ruined the fuel gauge servo (it doesn’t move anymore). I guess the servos are too sensitive for having the needles pulled out and put in again...
#11

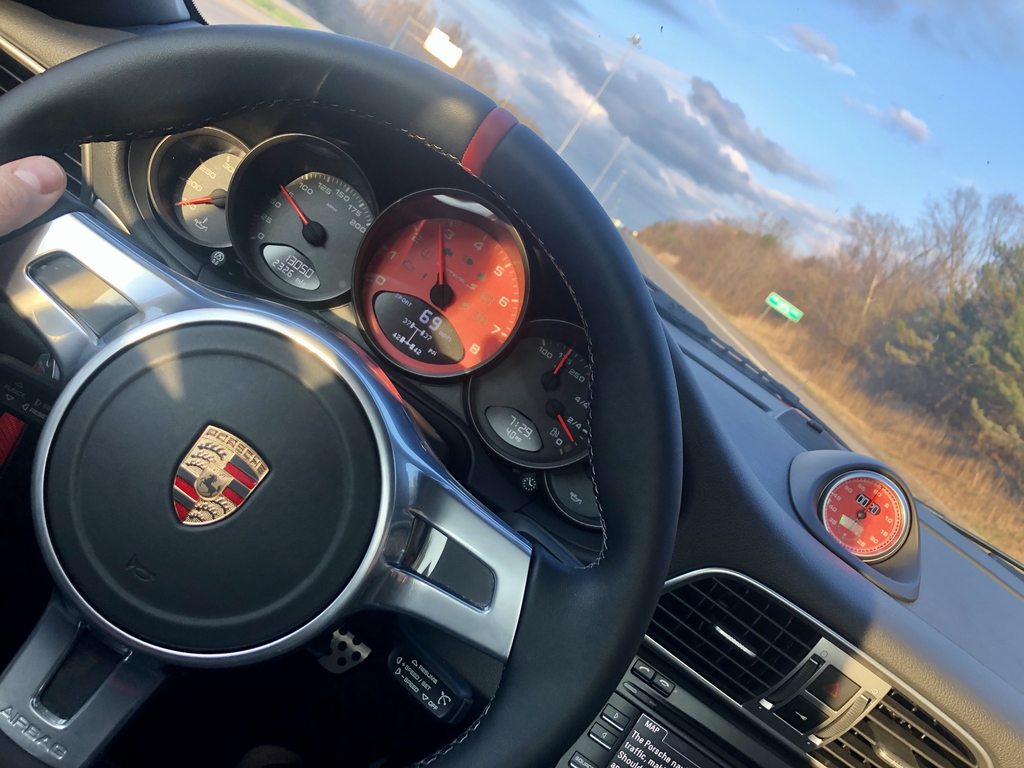

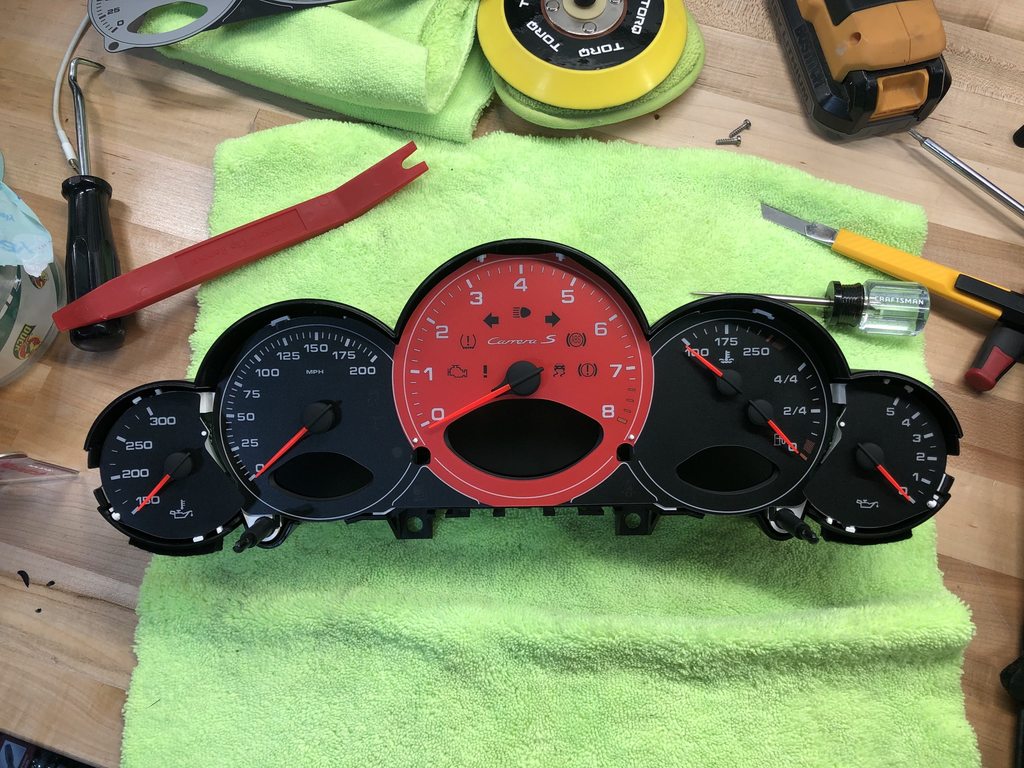

You can probably have a competent gauge shop do the repair and replace just the lcd from another working 997/987 cluster. The center display is the same and 987 Boxster/Cayman used clusted can be purchased for only a few hundred bucks unlike 997 units. Otherwise you would need a brand new cluster from Porsche which I believe will automatically update your correct mileage stored in the DME. Once the cluster hits 500 miles the odometer reading is burned into the cluster itself which renders used clusters useless for anything other then parts. I did the gauge face conversion on mine which was pretty nerve wrecking knowing the price of replacement in case I screw up.
Last edited by EG997C2S; 05-18-2020 at 03:14 PM.
#12
great job
You can probably have a competent gauge shop do the repair and replace just the lcd from another working 997/987 cluster. The center display is the same and 987 Boxster/Cayman used clusted can be purchased for only a few hundred bucks unlike 997 units. Otherwise you would need a brand new cluster from Porsche which I believe will automatically update your correct mileage stored in the DME. Once the cluster hits 500 miles the odometer reading is burned into the cluster itself which renders used clusters useless for anything other then parts. I did the gauge face conversion on mine which was pretty nerve wrecking knowing the price of replacement in case I screw up.
