997 coilovers

Already searched this 1000 times no answer

Would a 997.1 rwd coilovers system fit on a 997.1 Awd?

I'm not concerned about spring rates


Last edited by M3lrm; 05-06-2016 at 01:46 PM.
  #2
Old 05-06-2016, 08:35 PM
semicycler's Avatar
Banned
Join Date: Jun 2012
Location: Chicago
Posts: 686
Rep Power: 67
semicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond repute
I think rears fit. Fronts are definitely different. Tarret Engineering has different strut top camber plates for the front, but one style for the rears.

  #3
Old 05-06-2016, 09:54 PM
M3lrm's Avatar
Registered User
Thread Starter
Join Date: May 2016
Age: 30
Posts: 2
Rep Power: 0
M3lrm is an unknown quantity at this point
Originally Posted by semicycler
I think rears fit. Fronts are definitely different. Tarret Engineering has different strut top camber plates for the front, but one style for the rears.
I was thinking possibly the only differences is spring rate. Since it's the same chassis, sleeve ect from rwd to awd

  #4
Old 05-07-2016, 10:38 AM
semicycler's Avatar
Banned
Join Date: Jun 2012
Location: Chicago
Posts: 686
Rep Power: 67
semicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond repute
Just check the PET manuals briefly. In stock form the fronts are very different between 2S and 4S, with not a lot of common components. But the rears share a bunch of parts coupe to coupe, cab to cab, including the rear shocks 997.333.053.25 and top mounts 997.333.061.01. Rear springs are different though.

Based on this I would expect 2WD coilovers to fit a 4WD in the rear only, ignoring spring rate differences.

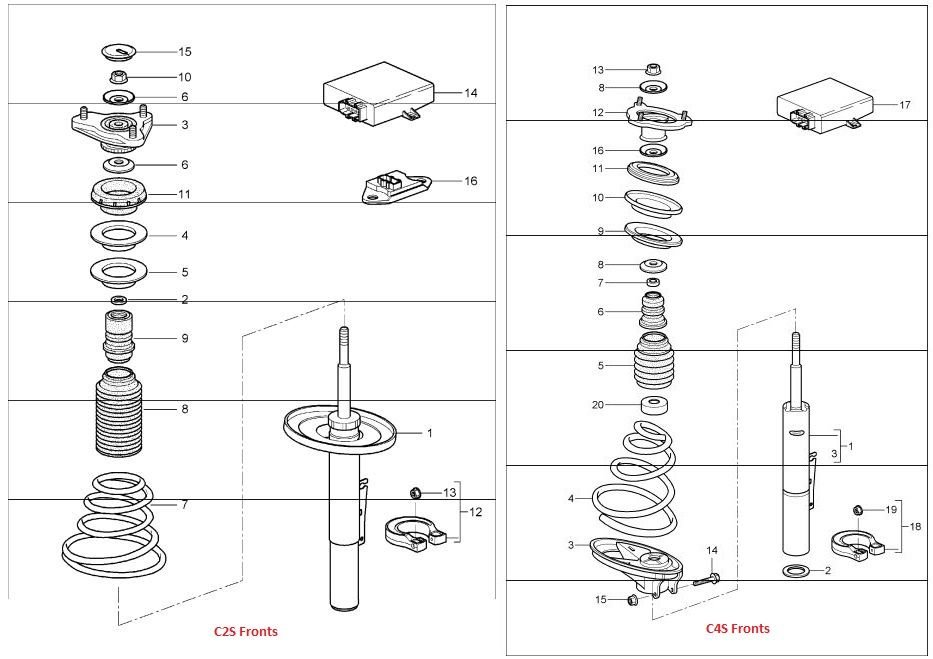

Fronts diagram below (left is 2WD, right is 4WD)


  #5
Old 05-07-2016, 12:59 PM
Dan GSR's Avatar
Registered User
Join Date: Nov 2015
Location: NY
Posts: 25
Rep Power: 10
Dan GSR is on a distinguished road
the rear is the same, the front on the other hand

the 4wd drop links connect to the strut
the 2wd drop links connect to the knuckle

it is very different
