Aston Martin DB7, DB9, DBS, Vantage V8, Vanquish, and Classic models

Upgrading standard door speakers

Reply




Thread Tools Search this Thread Rate Thread Display Modes
  #1
Old 09-28-2012, 03:27 PM
Vergis's Avatar
Registered User

Join Date: Sep 2011
Location: UK
Posts: 427
Rep Power: 21
Vergis has a spectacular aura aboutVergis has a spectacular aura about
Upgrading standard door speakers

My Aston has the standard Hifi. In my experience the speakers are the first place to upgrade after the sub.

Sub frequencies are good so I am going to change the door speakers to some top of range focals... Hopefully this will improve the sound - not expecting amazing results but if its an improvement all the better.

PS. Thanks irish for the door card removal instructions in a previous post - did not break the window switch either
__________________
Aston Martin Vantage 4.3 (46th produced)
High Flow Air Filters and RSC Exhaust Headers
200 cell cats + Miltek Large pipe exhaust + H Pipe
Eurocharge Remap
Vorland Technik Carbon Fiber + Alcantara Steering Wheel / Gear Knob
Reply With Quote
  #2
Old 09-28-2012, 03:38 PM
yvr's Avatar
yvr yvr is offline
Registered User

Join Date: Jan 2012
Location: Vancouver
Posts: 483
Rep Power: 31
yvr is a splendid one to beholdyvr is a splendid one to beholdyvr is a splendid one to beholdyvr is a splendid one to beholdyvr is a splendid one to beholdyvr is a splendid one to beholdyvr is a splendid one to beholdyvr is a splendid one to behold
What did you choose for replacement speakers? Did you find something that fits the existing mounts, or is this a more involved project?
Reply With Quote
  #3
Old 09-29-2012, 07:22 AM
Vergis's Avatar
Registered User

Join Date: Sep 2011
Location: UK
Posts: 427
Rep Power: 21
Vergis has a spectacular aura aboutVergis has a spectacular aura about
I think I have sourced some highly regarded focal speakers that are midrange and tweeter. I need to check the depth of the space available since these ones have comparitively big magnets.

The fitment screws seem to be spot on. Wont know till I get the speakers.
__________________
Aston Martin Vantage 4.3 (46th produced)
High Flow Air Filters and RSC Exhaust Headers
200 cell cats + Miltek Large pipe exhaust + H Pipe
Eurocharge Remap
Vorland Technik Carbon Fiber + Alcantara Steering Wheel / Gear Knob
Reply With Quote
  #4
Old 10-01-2012, 08:26 AM
Registered User

Join Date: Oct 2011
Location: San Ramon CA
Posts: 144
Rep Power: 8
mikes300 is on a distinguished road
They fit I hav them in my DB9, though I added an amp too, they sound amazing much better than stock, I put them in the rear too and swapped the woofer out as well
__________________
2006 Aston-Martin DB9
Reply With Quote
  #5
Old 10-01-2012, 09:40 AM
Registered User

Join Date: Mar 2012
Location: Minnesota
Posts: 85
Rep Power: 6
Benjamin09 is on a distinguished road
What do I need to replace the woofer? That thing is terrible.
Reply With Quote
  #6
Old 10-01-2012, 10:52 AM
Registered User

Join Date: Oct 2011
Location: San Ramon CA
Posts: 144
Rep Power: 8
mikes300 is on a distinguished road
Not much I replaced mine, the one between the seats, with an 8" JL audio, note the stocker is a dual voice coil, it really needs an amp though, there is another place for another 8" woofer facing up, if you really want the thump! The entire system really needs to be reworked, the fibre optic and the stock integrated amp is a pain IMO, my installer by passed all that, my system is so much better than stock now, but looks completely stock, I spend about 4k on the entire thing, installed, my car is an 06 bit different than the newer ones, he also added IPod integration too
__________________
2006 Aston-Martin DB9
Reply With Quote
  #7
Old 10-06-2012, 01:19 PM
Vergis's Avatar
Registered User

Join Date: Sep 2011
Location: UK
Posts: 427
Rep Power: 21
Vergis has a spectacular aura aboutVergis has a spectacular aura about

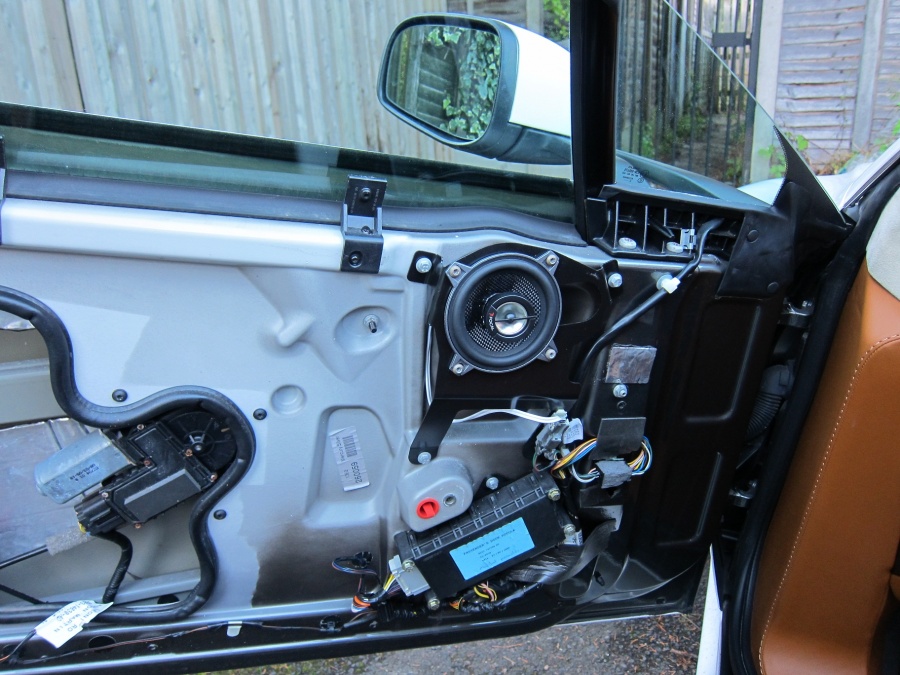

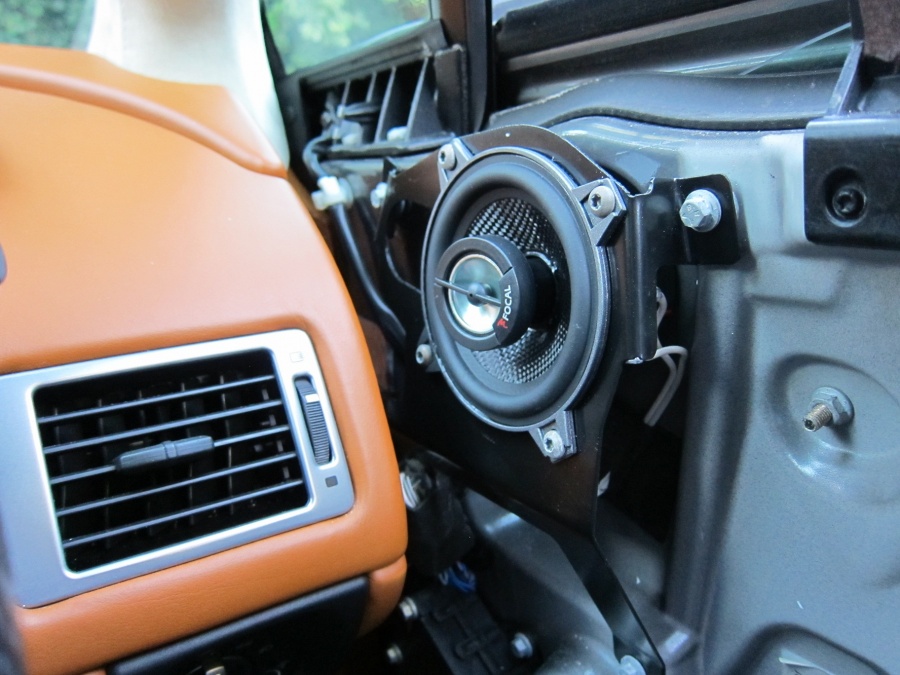

Just finished installing some nice focal speakers with directional tweeters into the door frames. They just about fit but I also used 2 washers each side so that it sat right. There was not issue with putting the door cards back on.

Sound is now much improved. An easy modifiction - 2 hours and maybe $100 on speakers.

Tempted to see what the center speaker size is like since I think thats the dedicated bass unit. There is nothing in the rear anywhere.

Before and after pics ... (feel free to add a reputation to this post by clicking the star )
Attached Thumbnails
Click image for larger version

Name:	IMG_1836.jpg
Views:	283
Size:	234.9 KB
ID:	188919   Click image for larger version

Name:	IMG_1834.jpg
Views:	263
Size:	225.9 KB
ID:	188920   Click image for larger version

Name:	IMG_1837.jpg
Views:	277
Size:	191.9 KB
ID:	188921
__________________
Aston Martin Vantage 4.3 (46th produced)
High Flow Air Filters and RSC Exhaust Headers
200 cell cats + Miltek Large pipe exhaust + H Pipe
Eurocharge Remap
Vorland Technik Carbon Fiber + Alcantara Steering Wheel / Gear Knob

Last edited by Vergis; 10-06-2012 at 01:23 PM.
Reply With Quote
  #8
Old 10-07-2012, 03:02 AM
Vergis's Avatar
Registered User

Join Date: Sep 2011
Location: UK
Posts: 427
Rep Power: 21
Vergis has a spectacular aura aboutVergis has a spectacular aura about
The speakers used were



Focal Access 100 CA 4"
__________________
Aston Martin Vantage 4.3 (46th produced)
High Flow Air Filters and RSC Exhaust Headers
200 cell cats + Miltek Large pipe exhaust + H Pipe
Eurocharge Remap
Vorland Technik Carbon Fiber + Alcantara Steering Wheel / Gear Knob
Reply With Quote
  #9
Old 10-07-2012, 10:52 AM
Registered User

Join Date: Jul 2012
Location: Knoxville, TN
Posts: 39
Rep Power: 4
RichKnox is on a distinguished road
The rear speakers in my V8V fade in and out at times depending on the music. Does this happen to anyone else? I did not know if it was a function of the surround or my amp acting up.

Scratch that, I just found my answer in "search"
__________________
Chump Change Racing 535csl
2007 AM V8V

Last edited by RichKnox; 10-07-2012 at 11:03 AM.
Reply With Quote
  #10
Old 10-07-2012, 06:47 PM
No32's Avatar
Registered User

Join Date: Mar 2011
Location: dallas area
Posts: 149
Rep Power: 9
No32 will become famous soon enough
very nice, let know when you replace the center and sub
Reply With Quote
  #11
Old 10-08-2012, 06:14 AM
brumma's Avatar
Registered User

Join Date: Dec 2010
Location: Fort Myers, FL
Posts: 259
Rep Power: 15
brumma has a spectacular aura aboutbrumma has a spectacular aura about
Quote:
Originally Posted by EAGKnox View Post
The rear speakers in my V8V fade in and out at times depending on the music. Does this happen to anyone else? I did not know if it was a function of the surround or my amp acting up.

Scratch that, I just found my answer in "search"
It's probably the bluetooth module. Mine were doing the same until they dropped out completely. My tech replaced the module and everything's hunky dory now. Try that before replacing the amp--it's much cheaper.
Reply With Quote
  #12
Old 10-08-2012, 12:11 PM
Registered User

Join Date: Oct 2011
Location: San Ramon CA
Posts: 144
Rep Power: 8
mikes300 is on a distinguished road
Here are a few pictures of the install in my 06 DB9
Click the image to open in full size.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
I have about 4K into it, but its flat blows away the stock setup!! not even close, and now I can plug in my Iphone/Pod
I replaced the front and rear speakers and the rear center sub, I just abandoned the center channel dash speaker, everything running through the stock dash deck.
__________________
2006 Aston-Martin DB9

Last edited by mikes300; 10-08-2012 at 12:25 PM.
Reply With Quote
  #13
Old 10-09-2012, 05:20 AM
DominicMartin's Avatar
Registered User

Join Date: Oct 2012
Posts: 18
Rep Power: 0
DominicMartin is on a distinguished road
Wow that looks like quite some set up you have there in the DB9.
Reply With Quote
  #14
Old 11-11-2012, 11:57 PM
brumma's Avatar
Registered User

Join Date: Dec 2010
Location: Fort Myers, FL
Posts: 259
Rep Power: 15
brumma has a spectacular aura aboutbrumma has a spectacular aura about
Quote:
Originally Posted by Vergis View Post
Just finished installing some nice focal speakers with directional tweeters into the door frames. They just about fit but I also used 2 washers each side so that it sat right. There was not issue with putting the door cards back on.
Where did you place the washers? What size did you use?
Reply With Quote
  #15
Old 11-12-2012, 06:55 AM
Vergis's Avatar
Registered User

Join Date: Sep 2011
Location: UK
Posts: 427
Rep Power: 21
Vergis has a spectacular aura aboutVergis has a spectacular aura about
I put them in between the speaker and the door holes for the speakers. So the speaker would sit slight proud and not touch the magnet against the door panel.

The washers were about 1 to 2 cms across with a 1 cm hole.
__________________
Aston Martin Vantage 4.3 (46th produced)
High Flow Air Filters and RSC Exhaust Headers
200 cell cats + Miltek Large pipe exhaust + H Pipe
Eurocharge Remap
Vorland Technik Carbon Fiber + Alcantara Steering Wheel / Gear Knob
Reply With Quote
