Anyone ever change this bulb? Seems impossible to reach, headlamp

Reply




Thread Tools Search this Thread Rate Thread Display Modes
  #1
Old 04-28-2013, 12:24 PM
Registered User

Join Date: Jul 2012
Location: Vancouver BC
Posts: 34
Rep Power: 4
ssonss1 is on a distinguished road
Anyone ever change this bulb? Seems impossible to reach, headlamp

The inner bulb just went out on me, pictured below:



Anyone ever change it out? It didn't give an error on the dash so I was thinking to just remove the other one as well, I like the look with just the projectors and no yellow.

I looked behind and it seems SUPER tight, any tips on how to access it?

Thanks
Attached Thumbnails
Click image for larger version

Name:	null_zpse7b8e626.jpg
Views:	1245
Size:	187.8 KB
ID:	236755
Reply With Quote
  #2
Old 04-28-2013, 02:22 PM
Registered User

Join Date: Apr 2013
Location: east sussex,UK
Posts: 297
Rep Power: 16
bentleytech is a jewel in the roughbentleytech is a jewel in the roughbentleytech is a jewel in the roughbentleytech is a jewel in the rough
its hard,but you can access from under the hood. do it when engine is cold so you dont burn yourself.
Reply With Quote
  #3
Old 04-28-2013, 03:14 PM
Registered User

Join Date: Dec 2010
Location: virginia
Posts: 78
Rep Power: 7
BentleyF is on a distinguished road
mines is out too the dealer told $1.800 to change signal and parking bulbs..
you can just remove fuse they are on separate ones.. They claim they have to remove fenders and bumper.. they get 6 hours labor time for warranty to fix this... as you can tell I said no!!!!
Reply With Quote
  #4
Old 04-28-2013, 03:40 PM
Registered User

Join Date: Jul 2012
Location: Vancouver BC
Posts: 34
Rep Power: 4
ssonss1 is on a distinguished road
Quote:
Originally Posted by bentleytech View Post
its hard,but you can access from under the hood. do it when engine is cold so you dont burn yourself.
Thank you

Quote:
Originally Posted by BentleyF View Post
mines is out too the dealer told $1.800 to change signal and parking bulbs..
you can just remove fuse they are on separate ones.. They claim they have to remove fenders and bumper.. they get 6 hours labor time for warranty to fix this... as you can tell I said no!!!!
Lol wowwww, fuse it is! Do you remember which fuse it was? So there is a seperate fuse for signal and parking lights? Thanks!
Reply With Quote
  #5
Old 04-28-2013, 04:47 PM
REDNOSEGT's Avatar
Registered User

Join Date: Sep 2008
Location: ny
Posts: 239
Rep Power: 15
REDNOSEGT is on a distinguished road
i asked this before, i tried to get to the bulbs i gave up.

i am sure front bumper has to come off, let me know if you can get to it. i want to change mine to leds that i have.
Reply With Quote
  #6
Old 04-29-2013, 05:53 AM
jc_333's Avatar
Registered User

Join Date: Jun 2011
Posts: 368
Rep Power: 18
jc_333 is on a distinguished road
I looked and think u can change the bulb on the lhs as u can fit your hand in. However, rhs has radiator expansion tank and I see no way how I can reach in to remove cover to replace bulb.

I too want to replace the w5 with LED, will investigate a bit more or maybe ask a 3yo to stick their hand down the tight gap?
Reply With Quote
  #7
Old 04-29-2013, 09:03 AM
Registered User

Join Date: Apr 2013
Location: east sussex,UK
Posts: 297
Rep Power: 16
bentleytech is a jewel in the roughbentleytech is a jewel in the roughbentleytech is a jewel in the roughbentleytech is a jewel in the rough
the book says to remove head light assembly but it can be done without doing that,it is hard but i know it can be done.the cover on rhs is just as hard to put back on as well as remove with head light in situ.
Reply With Quote
  #8
Old 04-29-2013, 02:01 PM
REDNOSEGT's Avatar
Registered User

Join Date: Sep 2008
Location: ny
Posts: 239
Rep Power: 15
REDNOSEGT is on a distinguished road
just did the 2 wedge bulbs in the headlights.6000 k canbus leds.

removed rubber intake pipe with 1 clamp on passenger side

almost snapped my wrist in half.
30 mins of work, both bulbs swapped to led.


make sure the motor is COLD!!! mine was warm and the intake manifold is boiling!!

and yes the covers are a nightmare to put back on, they have a small cover that protects the wiring of both the bulbs, have have to pop it off,

you need small hands and small wrist. i almost gave up and was not even going to put the cover back on the passenger side.

these are the bulbs i used,
http://www.ebay.co.uk/itm/4-x-8-SMD-...E:L:OC:CA:3160


they only work 1 way so you have to plug in, test make sure they work, then put them back in the headlamp.


here is the passenger side with the led

http://i587.photobucket.com/albums/s...ps05f772da.jpg


the headlights have a slight tint on them

Last edited by REDNOSEGT; 04-29-2013 at 02:17 PM.
Reply With Quote
  #9
Old 04-30-2013, 11:12 AM
Registered User

Join Date: Jul 2012
Location: Vancouver BC
Posts: 34
Rep Power: 4
ssonss1 is on a distinguished road
Quote:
Originally Posted by phatz View Post
i asked this before, i tried to get to the bulbs i gave up.

i am sure front bumper has to come off, let me know if you can get to it. i want to change mine to leds that i have.
I'll keep you posted

Quote:
Originally Posted by jc_333 View Post
I looked and think u can change the bulb on the lhs as u can fit your hand in. However, rhs has radiator expansion tank and I see no way how I can reach in to remove cover to replace bulb.

I too want to replace the w5 with LED, will investigate a bit more or maybe ask a 3yo to stick their hand down the tight gap?
I'll take another look today, if you have any success let us know. Thanks

Quote:
Originally Posted by bentleytech View Post
the book says to remove head light assembly but it can be done without doing that,it is hard but i know it can be done.the cover on rhs is just as hard to put back on as well as remove with head light in situ.
Do you know if I remove the bulb if I will get an error? The passenger side is currently out and I have not got any errors. I am hoping I can just remove the drivers side bulb and just not have them on at all. Thanks

Quote:
Originally Posted by phatz View Post
just did the 2 wedge bulbs in the headlights.6000 k canbus leds.

removed rubber intake pipe with 1 clamp on passenger side

almost snapped my wrist in half.
30 mins of work, both bulbs swapped to led.


make sure the motor is COLD!!! mine was warm and the intake manifold is boiling!!

and yes the covers are a nightmare to put back on, they have a small cover that protects the wiring of both the bulbs, have have to pop it off,

you need small hands and small wrist. i almost gave up and was not even going to put the cover back on the passenger side.

these are the bulbs i used,
http://www.ebay.co.uk/itm/4-x-8-SMD-...E:L:OC:CA:3160


they only work 1 way so you have to plug in, test make sure they work, then put them back in the headlamp.


here is the passenger side with the led

http://i587.photobucket.com/albums/s...ps05f772da.jpg


the headlights have a slight tint on them
That looks real good! So i guess it is possible lol, thanks


Also on a side note, I tried removing the fuse, the main/dip fuse under the steering only disables the low beam. The indicator fuse disable the parking lights but it also disables the turn signals. So my only option is to access the bulb. I'll update if I have any luck
Reply With Quote
  #10
Old 04-30-2013, 12:40 PM
blackgtc's Avatar
Registered User

Join Date: Aug 2012
Location: PV CA
Posts: 165
Rep Power: 9
blackgtc will become famous soon enough

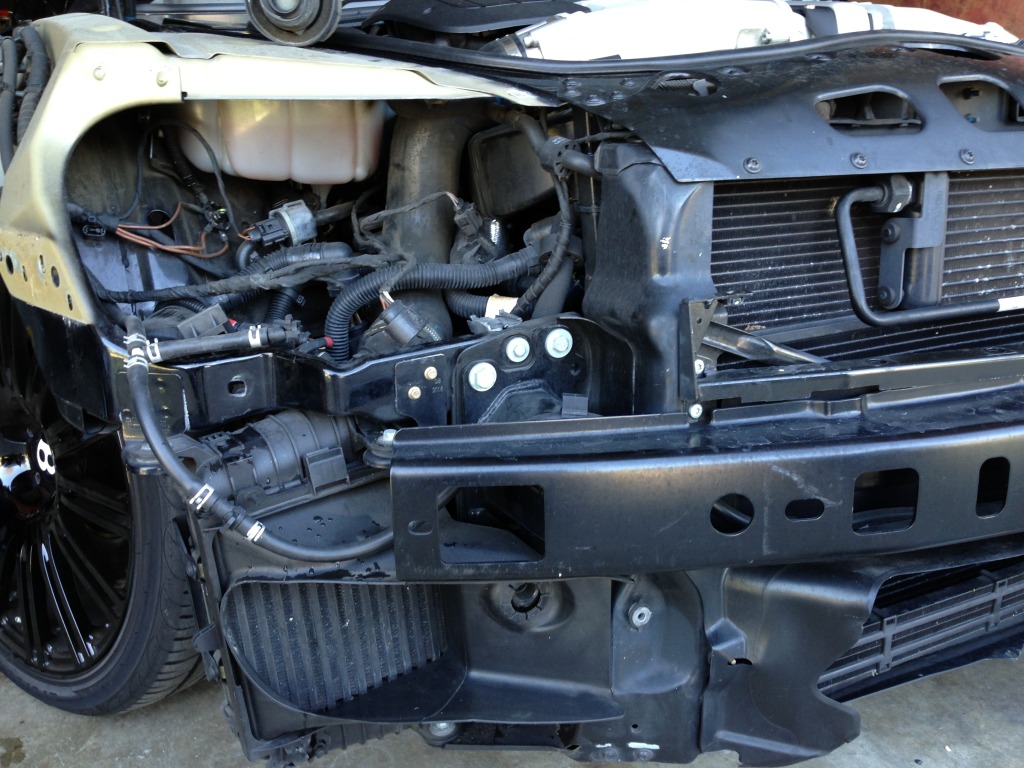

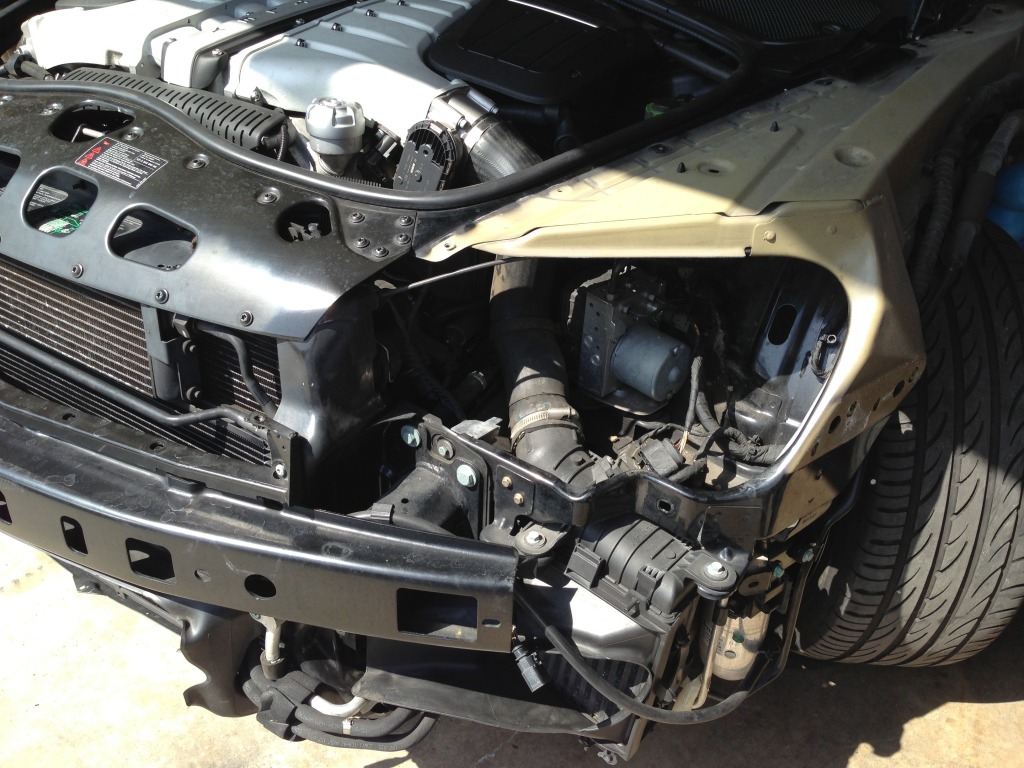

Here is a shot for reference of the space behind the headlights. Very tight.



[IMG][/IMG]
Attached Thumbnails
Click image for larger version

Name:	02C08699-610A-46B4-AAEC-C055772FD2DB-2794-000001A693EE9A32_zps0214d0d7.jpg
Views:	1162
Size:	222.5 KB
ID:	237616   Click image for larger version

Name:	A275E3A9-10F7-41D8-A904-4F43ADACEB64-2794-000001A6708A3B4D_zpsfe08d9a9.jpg
Views:	1165
Size:	220.1 KB
ID:	237617
Reply With Quote
  #11
Old 04-30-2013, 06:30 PM
REDNOSEGT's Avatar
Registered User

Join Date: Sep 2008
Location: ny
Posts: 239
Rep Power: 15
REDNOSEGT is on a distinguished road
I did 6k bulbs ,looks great when headlights are off,but when headlights come on they don't match at all, had them from a previous car they are too blue

The stock headlight I think is 4300k
I'm going I try a 5k led And see how close matches
Reply With Quote
  #12
Old 05-01-2013, 04:00 AM
jc_333's Avatar
Registered User

Join Date: Jun 2011
Posts: 368
Rep Power: 18
jc_333 is on a distinguished road
Great to hear someone has managed the bulb change, will give it a try myself.

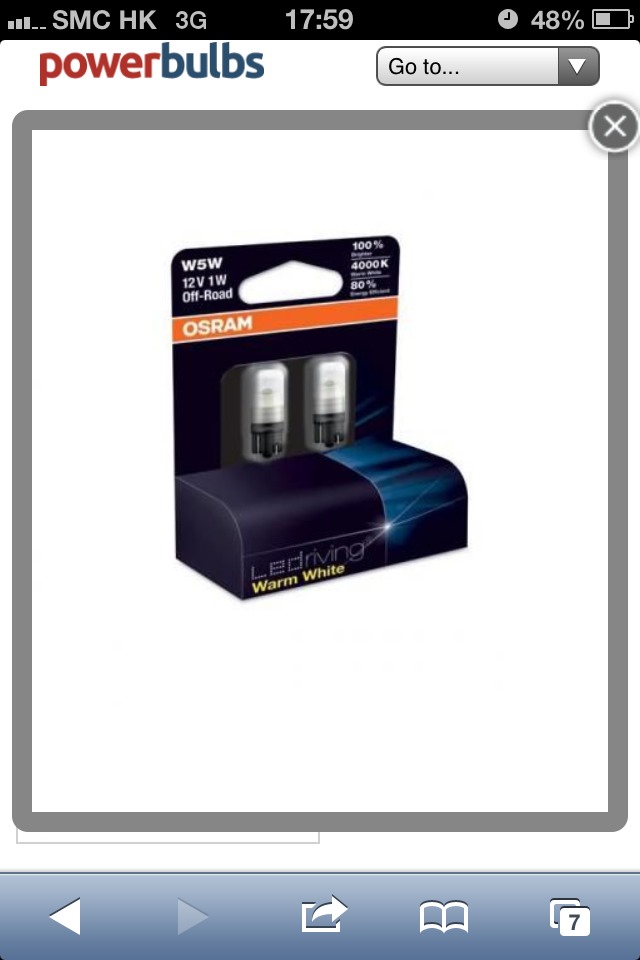

Saw Osram 4000k LED W5 bulbs as attached, will this trigger any warning lights?

Thanks
Attached Thumbnails
Click image for larger version

Name:	image.jpg
Views:	48
Size:	60.0 KB
ID:	237819
Reply With Quote
  #13
Old 05-01-2013, 04:08 AM
enjoythemusic's Avatar
Registered User

Join Date: Apr 2010
Location: Worldwide
Posts: 1,792
Rep Power: 85
enjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to behold
BlackGTC, thanks for posting pics. Interesting to see what is behind the bumper.
__________________
Enjoy the Track,

Steven
Honda Del Sol VTEC, Ferrari 308QV, Formula 2000 race car, Bentley Continental GT, Bentley GTC.
Reply With Quote
  #14
Old 05-01-2013, 09:38 PM
blackgtc's Avatar
Registered User

Join Date: Aug 2012
Location: PV CA
Posts: 165
Rep Power: 9
blackgtc will become famous soon enough
Quote:
Originally Posted by enjoythemusic View Post
BlackGTC, thanks for posting pics. Interesting to see what is behind the bumper.
Very Welcome ETM! Im also working on a headlight project which has mushroomed into intake hose replacements (upper and lower) and minor detail work. Could not believe how brittle and worn the intake hoses were. Some areas of the hoses seemed soft enough to push a finger through. Def inspect your rubber intercooler hoses.
Reply With Quote
  #15
Old 05-02-2013, 05:54 AM
enjoythemusic's Avatar
Registered User

Join Date: Apr 2010
Location: Worldwide
Posts: 1,792
Rep Power: 85
enjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to beholdenjoythemusic is a splendid one to behold
blackgtc, thanks for the info! What year car is this with the hose problems?
__________________
Enjoy the Track,

Steven
Honda Del Sol VTEC, Ferrari 308QV, Formula 2000 race car, Bentley Continental GT, Bentley GTC.
Reply With Quote
