Renntech Digital Lowering Module
#1
Renntech Digital Lowering Module

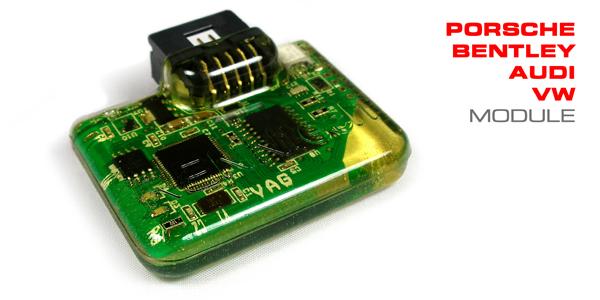

The Volkswagen Audi Group (VAG) V3 Digital Lowering Module (DLM) is designed to work with VAG Air Suspensions. The unit allows the user to have full control over all four corners of the vehicle’s suspension and adjust in 1mm increments. These Air Suspensions are found in the following vehicles:
2004-2010 Porsche Cayenne (955/957)

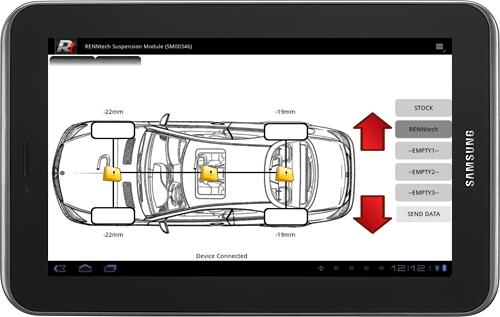

All RENNtech DLMs are adjustable via USB using either Windows or Android OS.The software allows the user to adjust the ride-height at each corner in 1mm increments independently.The software also has three locations where the user can store pre-configured suspension setups for quick changes.
RENNtech VAG V3.5 DLM Module Specifications:
Optional Samsung Tablet
2004-2010 Porsche Cayenne (955/957)
- Cayenne S
- Cayenne GTS
- Cayenne Turbo (S)
All RENNtech DLMs are adjustable via USB using either Windows or Android OS.The software allows the user to adjust the ride-height at each corner in 1mm increments independently.The software also has three locations where the user can store pre-configured suspension setups for quick changes.
RENNtech VAG V3.5 DLM Module Specifications:
- Current Consumption: 30mA (60mA while plugged in to PC/Tablet)
- Adjustment increments: 1mm
- Maximum Lowering: Limited only by vehicle
- Adjustment Methods: PC or Android (Tablet)
- Size: 53mm x 47mm x 17mm
- Weight: 1.0oz
Optional Samsung Tablet
