Diesel: Oil change DIY
There is a lot of useful information out there about changing the diesel's oil yourself, but it's kind of spread out a bit and there is a lack of pics. So now that mine is done, here is my attempt to put it all in one place.
Parts:
Tools:
Notes:
Steps:
Notes:
Pics:

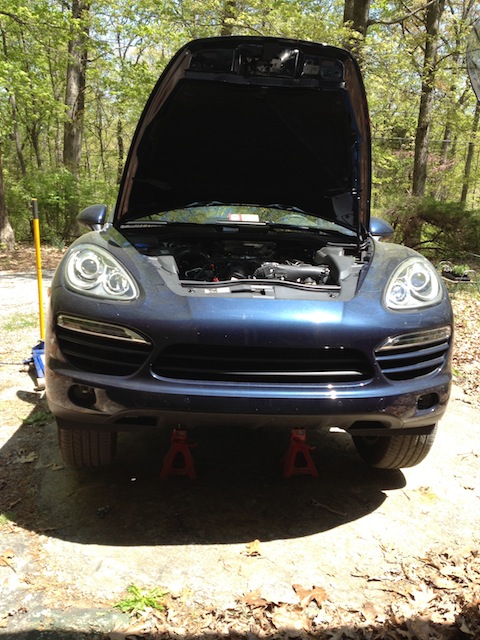

All ready to get started:

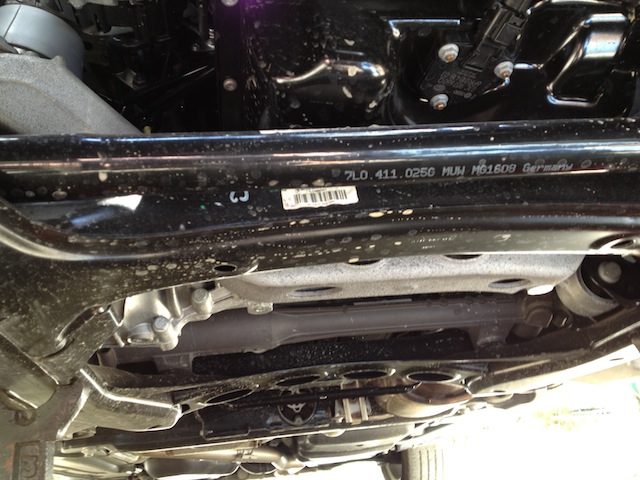

Looking from front to rear with both trays off. The silver colored bar in the middle of the picture sits right under the oil pan.
Oil drain plug views:

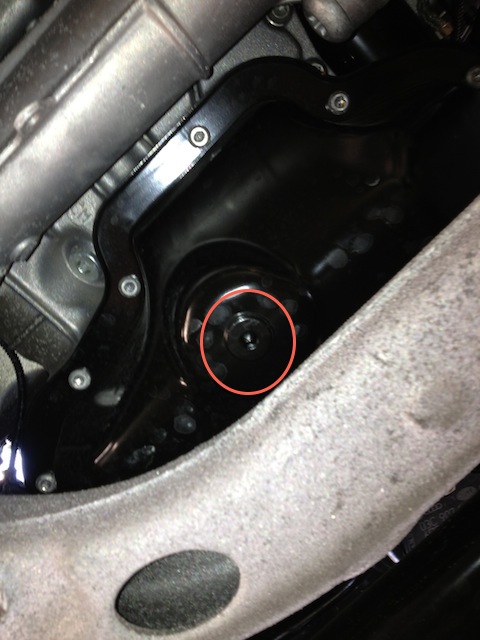

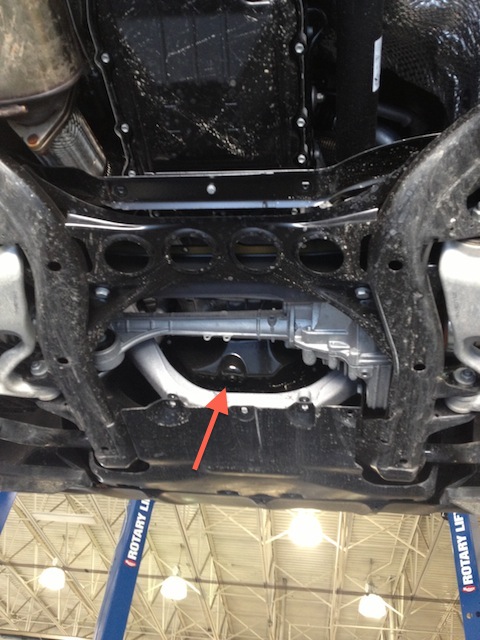

On a lift with only the rear tray off. Red arrow points to the plug.

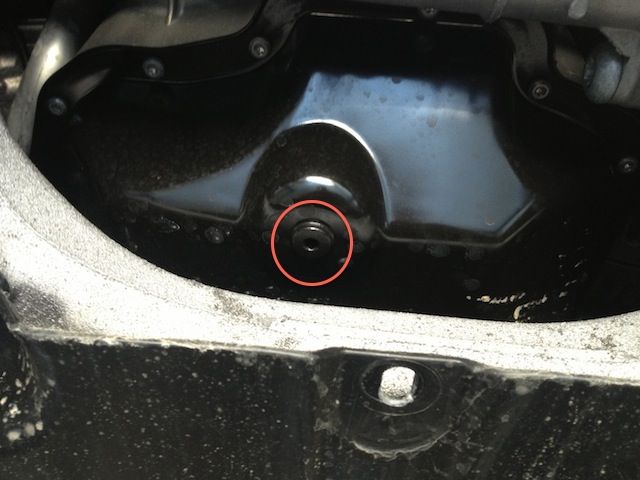

Close up while on the lift:
View from my back with both trays off:
Engine bay with the cover off.
Parts:
- 8 liters of C30 or VW 507.00 oil
- Oil filter w/O-Ring (95810722220)
- Drain plug crush washer (N-013-815-7)
Tools:
- Ratchet
- Torque Wrench
- 32mm socket
- 10mm socket
- 6mm allan driver
- Extension bar for the ratchet
- Plenty of rags
- O-Ring pick (I just used a very small flat head)
Notes:
- The crush washer is available from VW dealers (in case one is more local and you forgot to order one with your filter).
- I used Castrol oil from a VW dealer meeting the VW 507.00 spec.
- I used 5w30 oil because that is what the manual states. Two Porsche dealers have told me that they use 5w40 instead.
- I used the drain plug for the oil change, but according to my dealer the recommendation from Porsche is to use an extractor.
- I'm not stating or clearly showing where I put my jack stands as I don't know if I used a proper place or not. Obviously I survived, but that doesn't mean it's correct.
- The dealer couldn't tell me the proper torque value for the drain plug (since they extract per Porsche). My process for identifying a value is detailed here.
- Check and top off your coolant and power steering fluid as needed. See post #58
Steps:
- Open the hood.
- Pull the engine cover off. Make sure you get all four of the rubber gromets back.
- Jack up the front of the vehicle. The jack points are right behind the front wheels.
- Remove the under carriage trays with the 10mm socket.
- Get your oil pan ready and remove the drain plug with the 6mm allan driver. If you've taken just the rear tray off there are two plugs visible, there is a 3rd if you pull the front tray too. Only one takes a 6mm allan. If you are having to use something other than a 6mm allan then you are trying to open the wrong plug.
- Loosen the cap for the oil filter with the 32mm socket. Unscrew it enough so the o-ring is visible.
- I pulled the plug from the dipstick tube, but I'm not sure this is required.
- Open the oil fill cap. Again not sure it's required, but the procedure my dad taught me as a kid was to open all that stuff.
- Let it drain (I let it go for about half an hour or so).
- Clean off the drain plug and your tools while you wait.
- Remove the old crush washer from the drain plug. Mine was stuck pretty good and I had to find some pliers.
- Wipe off the bottom of the oil pan and replace the drain plug. Torque to 30nm (22ft-lb) per "WM 1001IN Tightening torques for engine".
- Wipe any new drips off.
- Reinstall the under tray(s).
- Drop the car back onto the ground.
- To remove the oil filter from the cover, pull on it while twisting the cap. There are some slots and tabs that seem to need to line up.
- Wipe the cap clean.
- Remove the old o-ring from the oil filter cover and replace with the new one.
- Fit the new filter into the container. The nipple fits into a hole on the right side (it was a little difficult to see due to some old oil still in there).
- Screw the oil filter cap on and then torque to 35nm.
- Fill it back up.
- Put the plug back in the dipstick tube.
- Snap the cover back on.
- Reset your change interval. I used a Durametric.
- Warm up the engine, find a level place, and check the oil level.
Notes:
- Technically you only need to remove the rear under tray. I removed both to make sure I wouldn't end up with a royal mess. I think it would have been fine, but I'll continue removing both for future changes.
- I put 7.5 liters back in and after the car warmed up (my kingdom for a real dipstick!) and it tells me I am bang on the max fill. It's more than I wanted in there, but it works. Next time I'll do 7.25 and then add as needed.
- If you follow my recommendations about opening the oil filter, it won't make a mess (looking at you BMW!!!).
- All it all it was pretty straight forward.
Pics:
All ready to get started:
Looking from front to rear with both trays off. The silver colored bar in the middle of the picture sits right under the oil pan.
Oil drain plug views:
On a lift with only the rear tray off. Red arrow points to the plug.
Close up while on the lift:
View from my back with both trays off:
Engine bay with the cover off.
- Purple circles = mounting nipples for the cover.
- Blue circle = Dipstick tube
- Red arrow = Points to the oil filter
- Green arrow = Points to the filler neck
