08-30-2009, 08:44 AM
|
#1
|
|
 |
Registered User
|
|
Join Date: Dec 2007
Location: Gotham
Posts: 33
Rep Power: 8
|
|

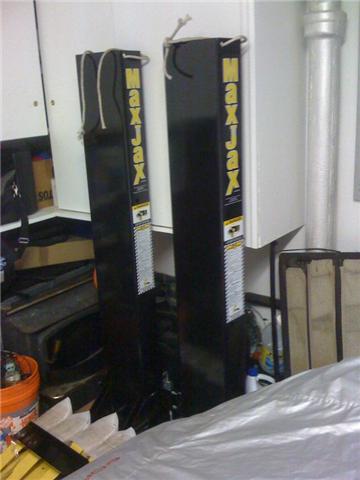

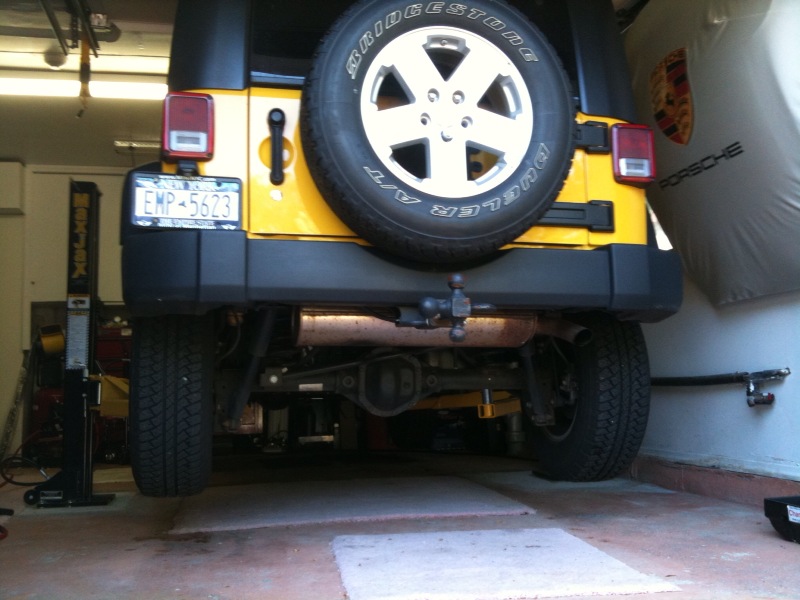

new toy for the garage
|
|
09-01-2009, 07:29 AM
|
#2
|
|
|
Registered User
|
|
Join Date: Jul 2009
Location: Lowell, Ma.
Posts: 13
Rep Power: 0
|
|
|
Very nice. . .
|
|
09-01-2009, 07:53 AM
|
#3
|
|
 |
Registered User
2008 Audi RS4
|
|
Join Date: Apr 2006
Location: Peoria,IL
Age: 40
Posts: 900
Rep Power: 55
|
|
|
Looks great! Does the concrete have to be a particular depth (reason for modifying footprints)?
__________________
*2008 Audi RS4 Ti. pkg.-Viper Green
*2008 VW R32 United Grey #863
*1987 Alfa Milano Verde
|
|
09-01-2009, 10:10 AM
|
#4
|
|
|
Registered User
|
|
Join Date: Dec 2007
Location: Gotham
Posts: 33
Rep Power: 8
|
|
|
Yeah.

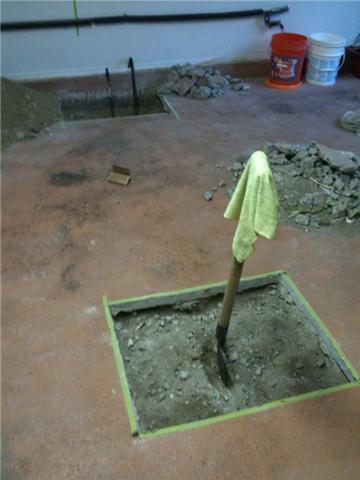

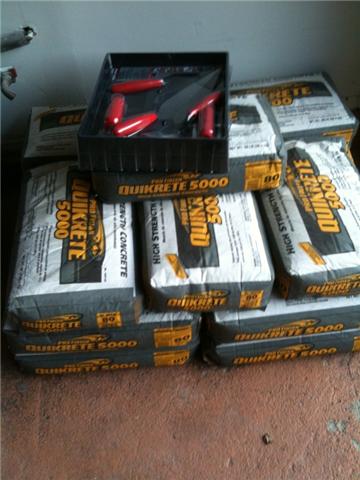

It needs to have a minimum depth of 5 inches. My floor only was 2 inches thick at the thinnest point. I poured 14 inches just to play it safe.

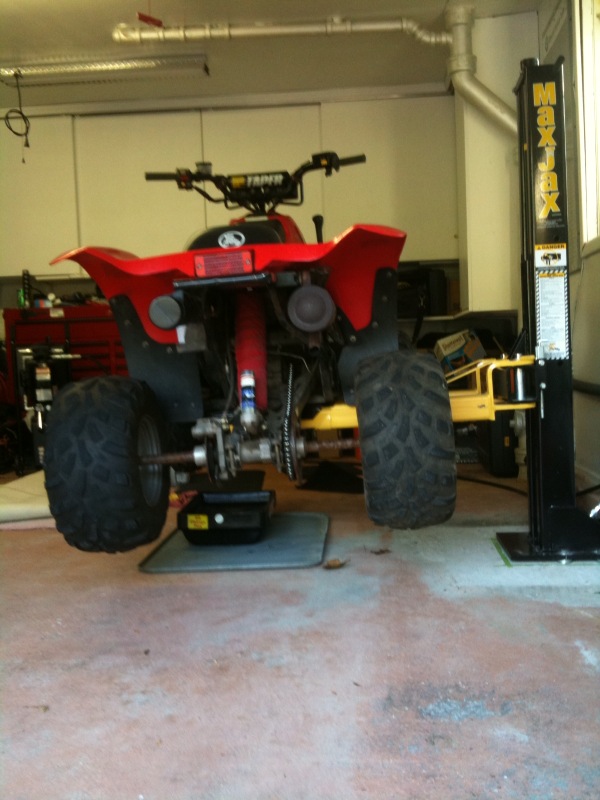

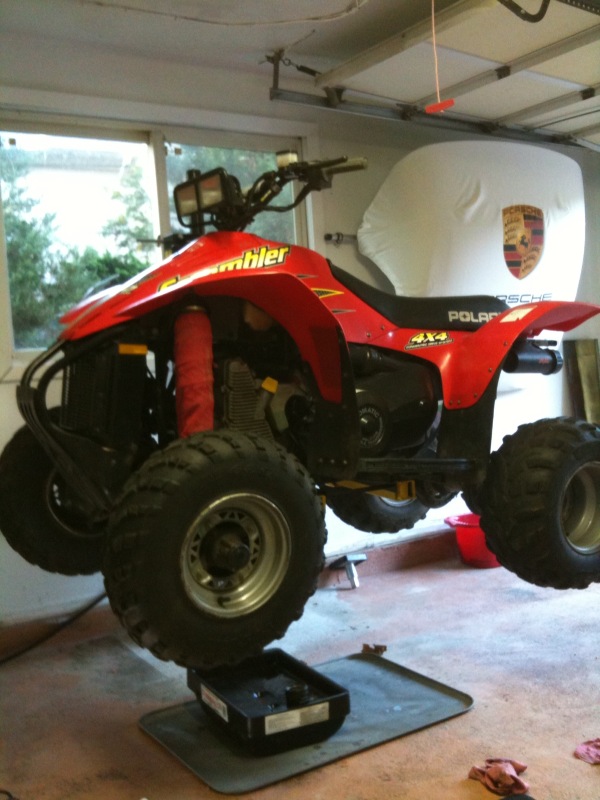

So far I have had my Boxster, my JK Jeep(2door), my wifes JK Jeep(4door) and my quad on the lift.
It's got a 6000 lb capacity.
I'll post some pics later.
Last edited by Nick-NY; 09-01-2009 at 10:14 AM.
|
|
09-01-2009, 10:43 AM
|
#5
|
|
|
Registered User
|
|
Join Date: Aug 2008
Location: socal
Posts: 143
Rep Power: 9
|
|
|
nice! i didnt know garage lifts were that affordable!
although at it's max heigh in a normal garage it does put you at an awkward position, too low to stand too high to sit while working under the car?
|
|
09-01-2009, 11:04 AM
|
#6
|
|
|
Registered User
|
|
Join Date: Dec 2007
Location: NY
Posts: 11
Rep Power: 0
|
|
|
how tall is this lift? It would make creeping under the car much easier. Would it fit into a standard garage?
|
|
09-01-2009, 11:25 AM
|
#7
|
|
|
Registered User
|
|
Join Date: Dec 2007
Location: Gotham
Posts: 33
Rep Power: 8
|
|
|
The max height is 48 inches.
It is made/designed to fit in a standard 8 foot garage. I could go higher but I have to get a side mounted garage door opener. Liftmaster makes one i'm interested in buying.
.maxjaxusa dot com
I have no association with them but it is a great product and a solution to small garages.
|
|
09-01-2009, 12:54 PM
|
#8
|
|
 |
Registered User
|
|
Join Date: May 2009
Location: Fort Lauderdale, FL
Posts: 19
Rep Power: 0
|
|
|
is this a standard 2 car garage? is there room to put a car next to the lift?
__________________
1992 Honda Prelude - Weekend Project
2004 Honda S2000 - Weekend Toy
2009 Honda Accord Coupe EX-V6 Daily Driver.
|
|
09-01-2009, 05:42 PM
|
#9
|
|
|
Registered User
|
|
Join Date: Dec 2007
Location: Gotham
Posts: 33
Rep Power: 8
|
|
|
Starbi
I have it installed in a standard width 2 car garage. I am able to park my other car(e30 M3) with no problems.
The best thing about the lift is that It is movable. It has casters built into the base. I just have to take the 5 bolts out of the floor and it's done. There are no bolts sticking out of the floor to trip on. The permanant anchors are female threaded into the floor.
|
|
09-01-2009, 06:50 PM
|
#10
|
|
 |
Registered User
2001 Porsche Boxster
|
|
Join Date: Mar 2007
Location: New Jersey
Posts: 168
Rep Power: 18
|
|
Congrats Nick! It looks really cool. I'm coming to your house next time to do my oil changes!
__________________
01 986 Arctic Silver, Dansk sports exhaust, 18in SSR GT3s
03 OEM glass windowed soft top and frame retrofitted on my 01
08 Brilliant Red Audi A4 2.0T Quattro
|
|
09-01-2009, 07:03 PM
|
#11
|
|
|
Registered User
|
|
Join Date: Dec 2007
Location: Gotham
Posts: 33
Rep Power: 8
|
|
|
Rich
you are more than welcome to come by and check out the lift.
Maybe a Captree run.
|
|
09-01-2009, 08:13 PM
|
#12
|
|
|
Registered User
|
|
Join Date: Dec 2007
Location: Gotham
Posts: 33
Rep Power: 8
|
|
Quote:
Originally Posted by usdmej
nice! i didnt know garage lifts were that affordable!
although at it's max heigh in a normal garage it does put you at an awkward position, too low to stand too high to sit while working under the car?
|

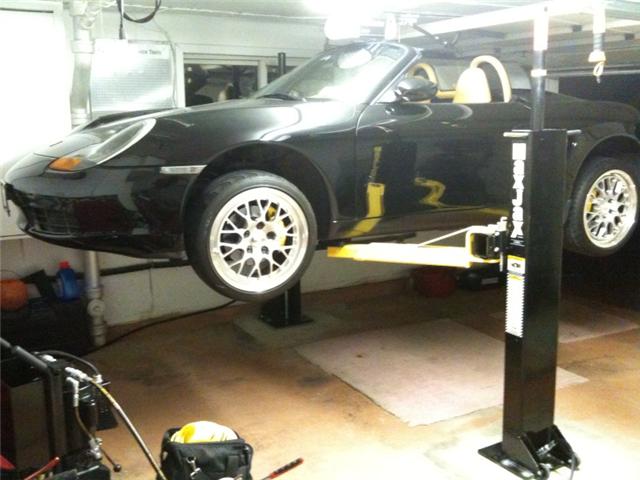

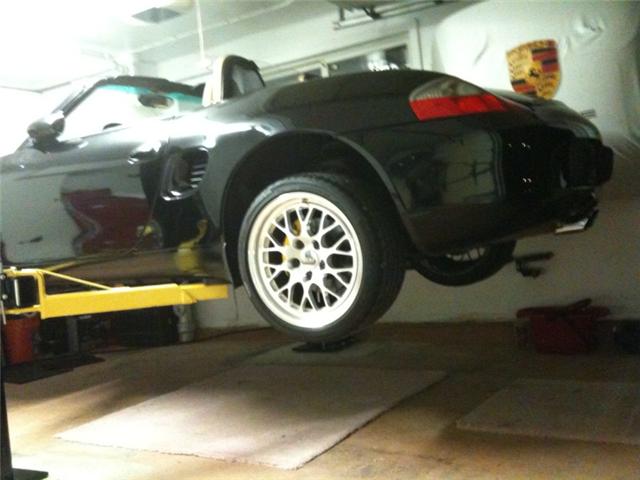

The Boxster and M3 are at the perfect height when standing up to remove wheels and perform a brake job or suspension inspection.

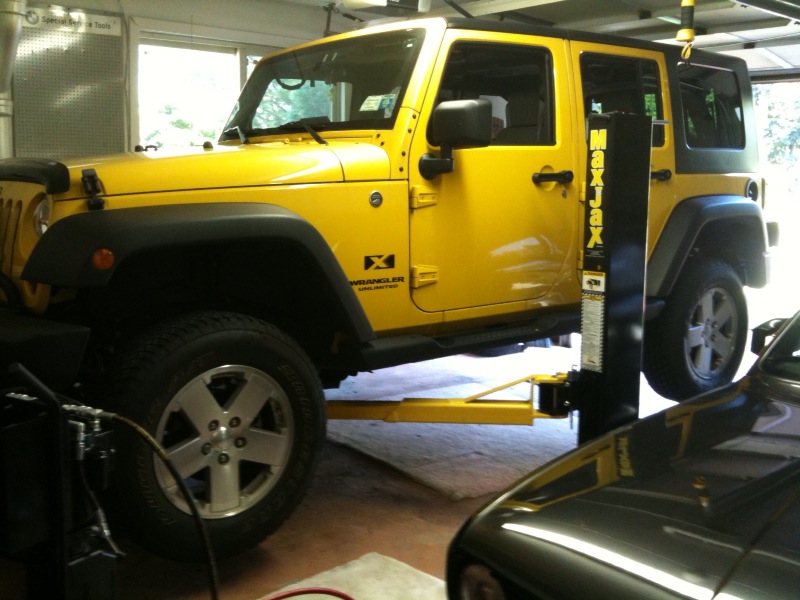

the Jeeps i have are quite a bit taller limiting the height of the lift, but i can still rotate tires and brakes/suspension but on a rolling stool.
|
|
09-02-2009, 10:26 AM
|
#13
|
|
 |
Registered User
|
|
Join Date: Nov 2003
Location: Ridgefield, CT
Posts: 315
Rep Power: 27
|
|
|
Amazing. Great install and great solution compared to a full height jack.
Thanks for sharing
__________________
Gundo
2006 997 S Cab
|
|
09-11-2009, 01:26 AM
|
#14
|
|
|
Registered User
|
|
Join Date: Sep 2009
Location: fremont, california
Posts: 15
Rep Power: 0
|
|
|
nice! good buy.
|
|
09-14-2009, 08:49 PM
|
#15
|
|
 |
Registered User
|
|
Join Date: Aug 2007
Location: DFW
Posts: 101
Rep Power: 8
|
|
Yeah, I considered getting one. The prices are pretty low. If you buy a good floor jack, a roller, a crossbar holder thingy, you'll be out of 3-400 dollars already. May as well pay a little more and get a really useful lift
The only problem is that you need to be pretty sure you'll be staying there. Or can a lift be moved easily if you ever move to another house?
|
|
|
|
