Dashclock added to my Panamera 4
#17

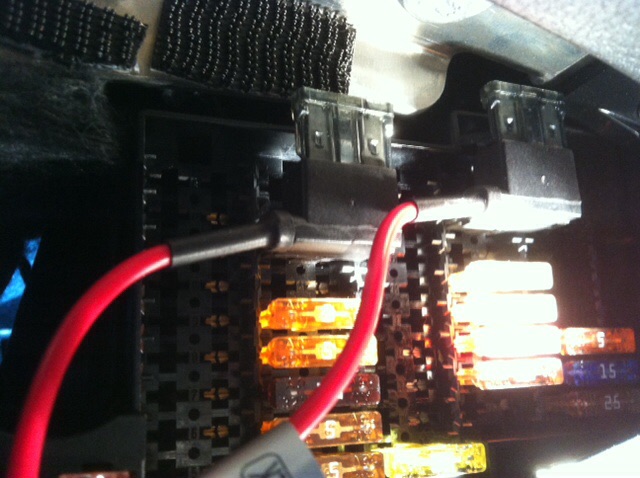

The fuses I tapped onto were empty slots. One is for vehicle tracking which is always hot and we do not have this option in Canada. The other, as I remember, is for seat ventilation which my car does not have. You can certainly use others. The owner's manual has a list of the fuse allocation. You need one fuse slot that is always hot to power the clock and one that is controlled by the ignition to power the LED backlighting.
#18
Thank you tged!!!
WOW, your descriptions/instructions are awesome!!!
It actually looks doable now. I'm going to place the order and try it. The clock was listed for like $112 US dollars so it's not bad at all. I have to call dealer and get the clock cover for the dash. I did ask dealer about installing the clock from sports chrono pkg from porsche but they said they were not sure if they could do it because of the PCM computer, and I got estimates from1,500 to 2,400 to add the clock...
I just wanted a clock and this is perfect. Two last questions, I promise!
1. Did you use a flathead screwdriver to remove the dash cover? Does it snap from the front (cabin side) or the back (windshield side) ?
2. The clock you chose, are there any other choices so I can compare looks wise that will fit? You know, maybe clock face in different color like white to be able to see better, or different layout of numbers...
THANKS A MILLION!
It actually looks doable now. I'm going to place the order and try it. The clock was listed for like $112 US dollars so it's not bad at all. I have to call dealer and get the clock cover for the dash. I did ask dealer about installing the clock from sports chrono pkg from porsche but they said they were not sure if they could do it because of the PCM computer, and I got estimates from1,500 to 2,400 to add the clock...
I just wanted a clock and this is perfect. Two last questions, I promise!
1. Did you use a flathead screwdriver to remove the dash cover? Does it snap from the front (cabin side) or the back (windshield side) ?
2. The clock you chose, are there any other choices so I can compare looks wise that will fit? You know, maybe clock face in different color like white to be able to see better, or different layout of numbers...
THANKS A MILLION!
#19
You need to use a flat blade screw driver(wrap the tip with a cloth) to pry the speaker from the front edge(assuming you are sitting in the driver seat so that is the edge closest to you) and the cover will pop up, just be careful you won't break anything, you also need to lift up part of the air vents, see pic.
#20
This is the closest looking clock to the factory. With LED backlighting, red pointers, white numerals on black, everything matches well with the factory gauges. I have been looking for something like this for a long time and this is the best there is.
#25
2012 panamera dash clock
Hey Tged
Can you tell me what is the product you got for the stainless ring? It looks like an outdoor light. If you can give me the name of it would be great. Im thinking home depot should have it?
The order for assembly would be: (please correct me if wrong)
1. Clock,
2. Weather strip,
3. Stainless ring,
4. Fit into the cover opening
Also the clock once all put together just fits snugg onto the cover opening? Nothing to snap on right?
Thanks again
Can you tell me what is the product you got for the stainless ring? It looks like an outdoor light. If you can give me the name of it would be great. Im thinking home depot should have it?
The order for assembly would be: (please correct me if wrong)
1. Clock,
2. Weather strip,
3. Stainless ring,
4. Fit into the cover opening
Also the clock once all put together just fits snugg onto the cover opening? Nothing to snap on right?
Thanks again
#26
You are correct. You also need to wrap weather stripping around the stainless steel ring to give a snug fit. And I used pull-ties to further secure the clock from behind, I also cut short the copper screws. Once you have the clock and the new speaker cover, play around with them and you will know what I mean.

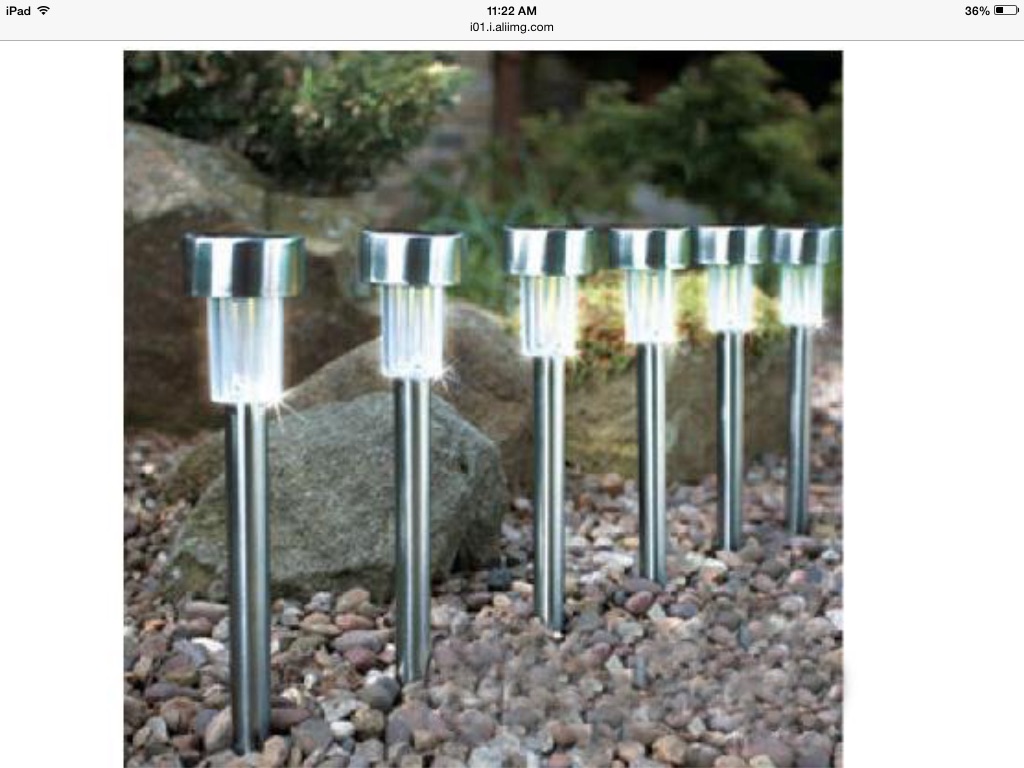

As for the stainless steel ring, I got it sometime ago from The Home Depot or something like that, I don't have the brand name, I took it apart and threw out the rest. It was just a solar outdoor garden light. I will go measure it. It is slightly larger than the clock and smaller than the opening on the speaker cover.
As for the stainless steel ring, I got it sometime ago from The Home Depot or something like that, I don't have the brand name, I took it apart and threw out the rest. It was just a solar outdoor garden light. I will go measure it. It is slightly larger than the clock and smaller than the opening on the speaker cover.
#27
The stainless steel ring has a diameter of about 2 1/4 inch. I forgot to mention that there is an interior light sensor that is attached to the speaker cover, that is the semi spherical thing near the windshield, you need to unplug the wire, remove the sensor and re-install it on the new cover.
#28
2012 Panamera dash clock mod
Hey TEGD,
Ok, so i got delivery of the dash clock from Auto Meter today. I got the clock model 1285 cause the number dial dashes seemed bigger over the one you got model 3685. First i had ordered the cobalt no 6185 that has the blue lighting and thought it would look cool, but changed my mind since all dials have the white lights in the car and the clock would look out of place.
Question:
1. I found the ADD A CIRCUIT. Amazon.com - PICO 0956PT 10 amp mini blade fuse Add-a-circuit. On the manual it says
Fuse 24 Seat ventilation, front seats 7.5 Amps
Fuse 44 Vehicle tracking System VTS 5 Amps
So can use the 10 Amp add a circuit above? Or do i need to match the fuse Amperage to the circuit?
2. I found the landscape light you talked about. Is it RETHINK MINI SOLAR LIGHTS? On Amazon they sell by case or on walmart.com
I gotta go to dealer tomorrow to order the dash clock cover.
Thanks
Ok, so i got delivery of the dash clock from Auto Meter today. I got the clock model 1285 cause the number dial dashes seemed bigger over the one you got model 3685. First i had ordered the cobalt no 6185 that has the blue lighting and thought it would look cool, but changed my mind since all dials have the white lights in the car and the clock would look out of place.
Question:
1. I found the ADD A CIRCUIT. Amazon.com - PICO 0956PT 10 amp mini blade fuse Add-a-circuit. On the manual it says
Fuse 24 Seat ventilation, front seats 7.5 Amps
Fuse 44 Vehicle tracking System VTS 5 Amps
So can use the 10 Amp add a circuit above? Or do i need to match the fuse Amperage to the circuit?
2. I found the landscape light you talked about. Is it RETHINK MINI SOLAR LIGHTS? On Amazon they sell by case or on walmart.com
I gotta go to dealer tomorrow to order the dash clock cover.
Thanks
#29
Also
3. Can you tell me the model number for the LEDdimmer you used?
4. Is there another fuse you can use so light will go on only when lights are on at night or is this not possible?
Thanks again
3. Can you tell me the model number for the LEDdimmer you used?
4. Is there another fuse you can use so light will go on only when lights are on at night or is this not possible?
Thanks again
#30
Answers:
1. Both fuses 24 & 44 should be empty unless you car has seat ventilation. The clock and the backlight draw very little current, and the clock instructions suggest using an 1 Amp fuse for each circuit, therefore you definitely will not overload either fuse slot. Make sure the add-a-circuit you order accepts ATO fuse, that is the same kind used in the car.
2. I really can't remember the kind of landscape solar light I bought, you just need a ring which is slightly bigger than the clock.
3. The LED dimmer is also from Autometer, I think it is listed under accessories on their website.
4. This would probably require tapping onto the headlight switch which I would not attempt. Actually you hardly notice the backlight during the day. Because the backlight is in LED, lifespan is not an issue, especially when a dimmer is used.
1. Both fuses 24 & 44 should be empty unless you car has seat ventilation. The clock and the backlight draw very little current, and the clock instructions suggest using an 1 Amp fuse for each circuit, therefore you definitely will not overload either fuse slot. Make sure the add-a-circuit you order accepts ATO fuse, that is the same kind used in the car.
2. I really can't remember the kind of landscape solar light I bought, you just need a ring which is slightly bigger than the clock.
3. The LED dimmer is also from Autometer, I think it is listed under accessories on their website.
4. This would probably require tapping onto the headlight switch which I would not attempt. Actually you hardly notice the backlight during the day. Because the backlight is in LED, lifespan is not an issue, especially when a dimmer is used.
