The turbos I chose are the Xona Rotor XR6564 with IWG (internal wastegate) turbine housings. The reason I chose these is because they have enough compressor wheel for ~1300whp, and utilize internal wastegates. This greatly simplifies the exhaust fabrication - all I had to do was modify the outlet pipes from my BBi exhaust to fit the TiAL v-band outlets. They are also quieter, with the wastegate gasses being contained within the exhaust without being dumped to atmosphere. These housings use a TiAL patented setup that swirls the wastegate gas around in the housing and uses it to increase turbine efficiency via a venturi effect. I'm also using the smaller turbine housing option - the .62 A/R. A larger turbine housing, the .86 is a quick swap with no other changes in the future. I'm monitoring backpressure (eMAP) to give us a good idea of where the limits are.

Right now where I am on the stock gearbox it might actually make more sense to use the .86 since we are essentially limiting torque in the midrange to protect the transmission. This would drop backpressure at the higher RPMs and give me a little top end back for the mid-range we're not using. It's always a game of optimization.

One of the reason I chose this turbo is that it's the smallest of the series. I had originally planned on using XR7164 or XR7864, but decided to start smaller to maximize my requirements for street driving. I can always swap out parts later without having to change any other components. The exterior dimensions stay the same.

XR6564
Compressor Wheel - 57/79mm inducer/exducer diameter.
Turbine Outlet - 64.1mm diameter.
65lb/min max compressor mass flow.

If the car ever starts to feel "slow" I can swap out parts to either;

XR7164
Compressor Wheel - 59.1/82mm inducer/exducer diameter.
Turbine Outlet - 64.1mm diameter.
71lb/min max compressor mass flow.

XR7864
Compressor Wheel - 62.1/86mm inducer/exducer diameter.
Turbine Outlet - 64.1mm diameter.
78lb/min max compressor mass flow.


Still need to fabricate the WG actuator rods, but otherwise they are ready to go.

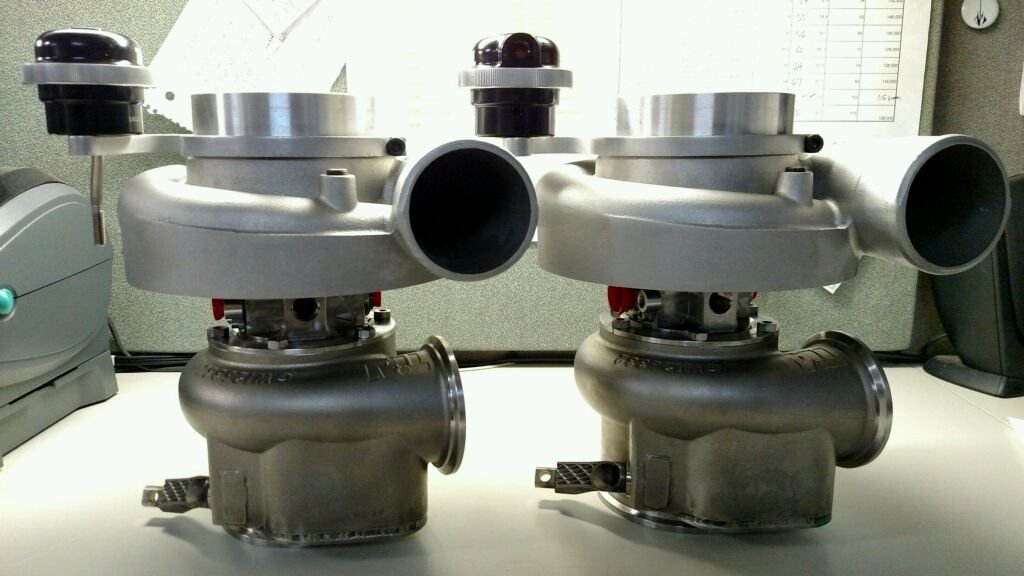

The Xona turbos can certainly claim the winning position in the beauty contest. FAP covers (flow advancement port), super sexy wastegate actuators, and CNC billet compressor wheels... yeah, it's the FAP you were really thinking of.

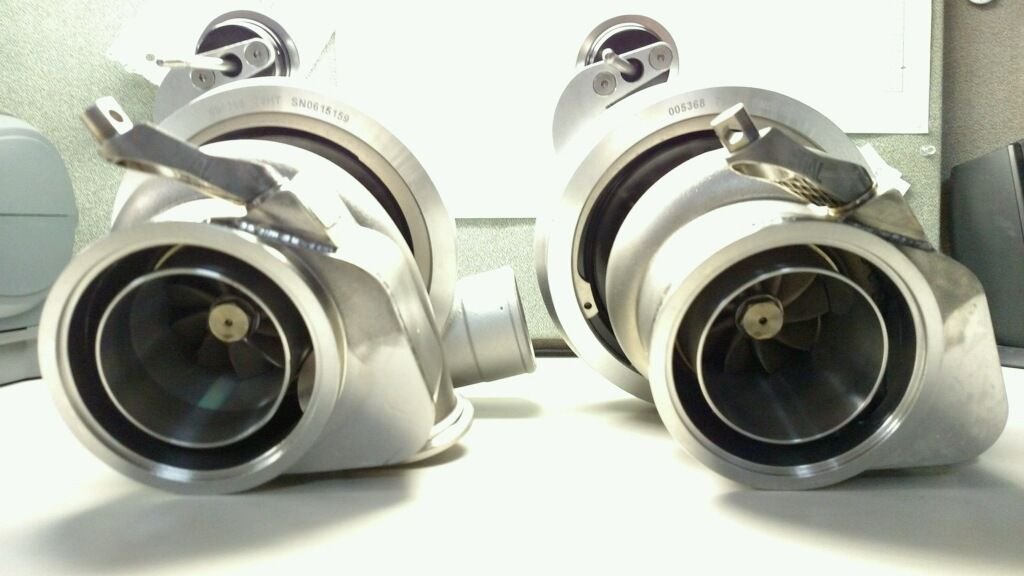

Here you can see the inner/outer concentric rings of the exhaust. Wastegate gas is swirled through the outer ring, and gas that passes the turbine is in the inner ring.

I'm running these on the Syvecs with turbo RPM sensors in the compressor covers. This gives us shaft RPM, and we can accurately spin the turbos for maximum flow. Boost really isn't a good indicator of how hard you're pushing a turbo. The VE (volumetric efficiency) of an engine, the size of the engine, etc. can really change things. The best way to judge how hard you are pushing a turbo is how fast you're spinning it. The strategy is get it to the highest efficient shaft speed, and hold it there. Use all of the turbo. The arbitrary "boost" value of positive manifold pressure isn't nearly as authoritative as people make it out to be.

Wastegates are also an interesting topic. It seems counter intuitive, but the less boost you want to run the more wastegate you need. In order to slow the turbo down, you have to bypass more air around the turbine, not less. A turbo with no wastegate would spin *really* fast, once. What you really get out of external wastegates is flexibility. Run any turbo, run any amount of boost. All of it, or none of it. An internal wastegate setup is tuned to the flow of the compressor, and can run a "reasonable" amount of boost -- say 15psi to as much as the turbos can flow.

While I had finally come up with some turbo specs I was happy with, Unobtanium was busy working on the headers. Remember when I said that the experience with the previous vendor worked out for the best? This is when things start to get really cool.


In the beginning, there was inconel.


Chris @ Unobtainium is really the metal whisperer. His communication is off the charts, all the pictures he sent through the process were phenominal.


Fabrication photos are so much fun.

Anyone interested in the highest quality custom welding for their project should just call Chris @ Unobtainium and get it over with. Seriously, he is that good. Don't visit his Instagram feed unless you're wiling to just throw your hands up in the air and buy everything he makes.

Still more coming...


Last edited by rix; 05-17-2017 at 02:04 AM. Reason: Englais tooning
