Porsche Fresno Sapphire Blue Cayman GT4 BBi Roll Bar & Extended Wing Support Intall

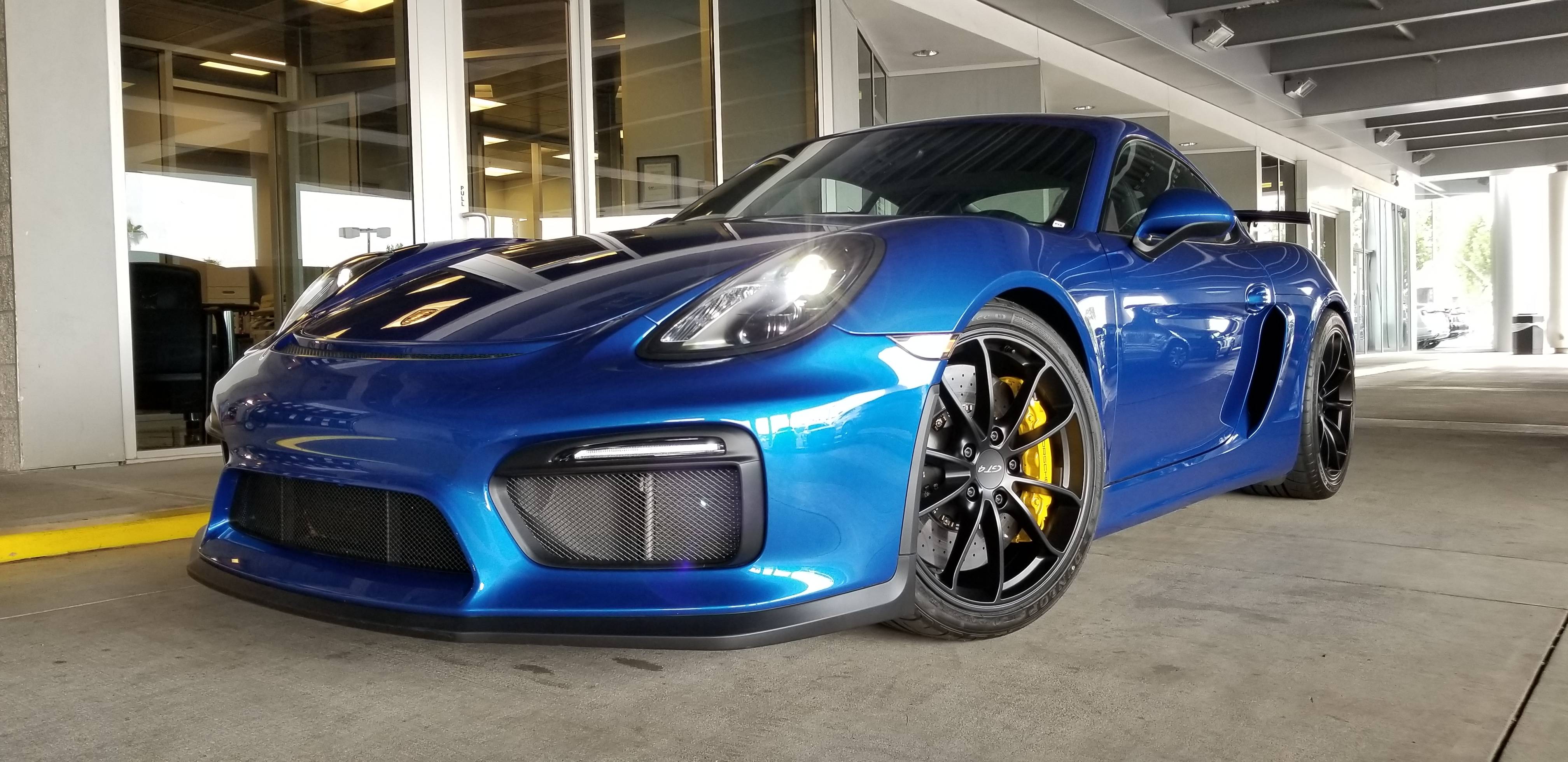

This Sapphire Blue Porsche Cayman GT4 is ready for the track with BBi Autosport StreetCup Roll Bar and Extended Wing Supports installed by Porsche Fresno dealership. Now owned by our good friend C.J. Wilson, be sure to check them out if you are in the Central Valley and in the market for a Porsche or interested in performance upgrades. We are proud to be working with many dealerships across North America as our premiere installation centers for BBi Autosport performance and safety products. Here are some detailed pictures of the build process that we would like to share below.

Vehicle Specifications

Interior:

• BBi Autosport GT4 Roll Bar Satin Black
• BBi Sub-Strap Brackets
• Schroth Racing GT3 HANS Harnesses

Exterior

• BBi Autosport Extended Wing Uprights

Installation Process.
The client chose to leave out the interior carpet and plastic trim to be able to quickly revert the car back to stock.

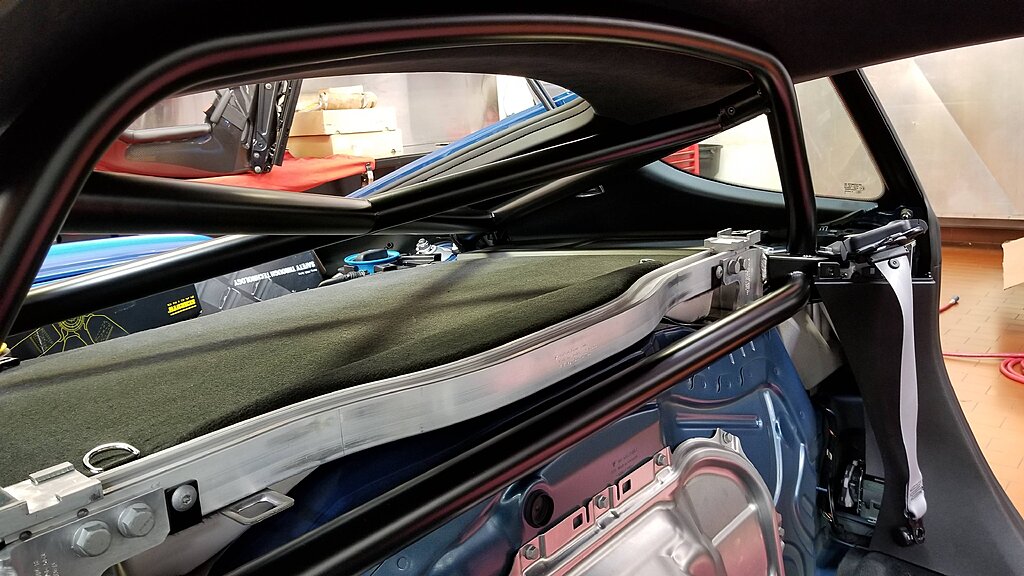

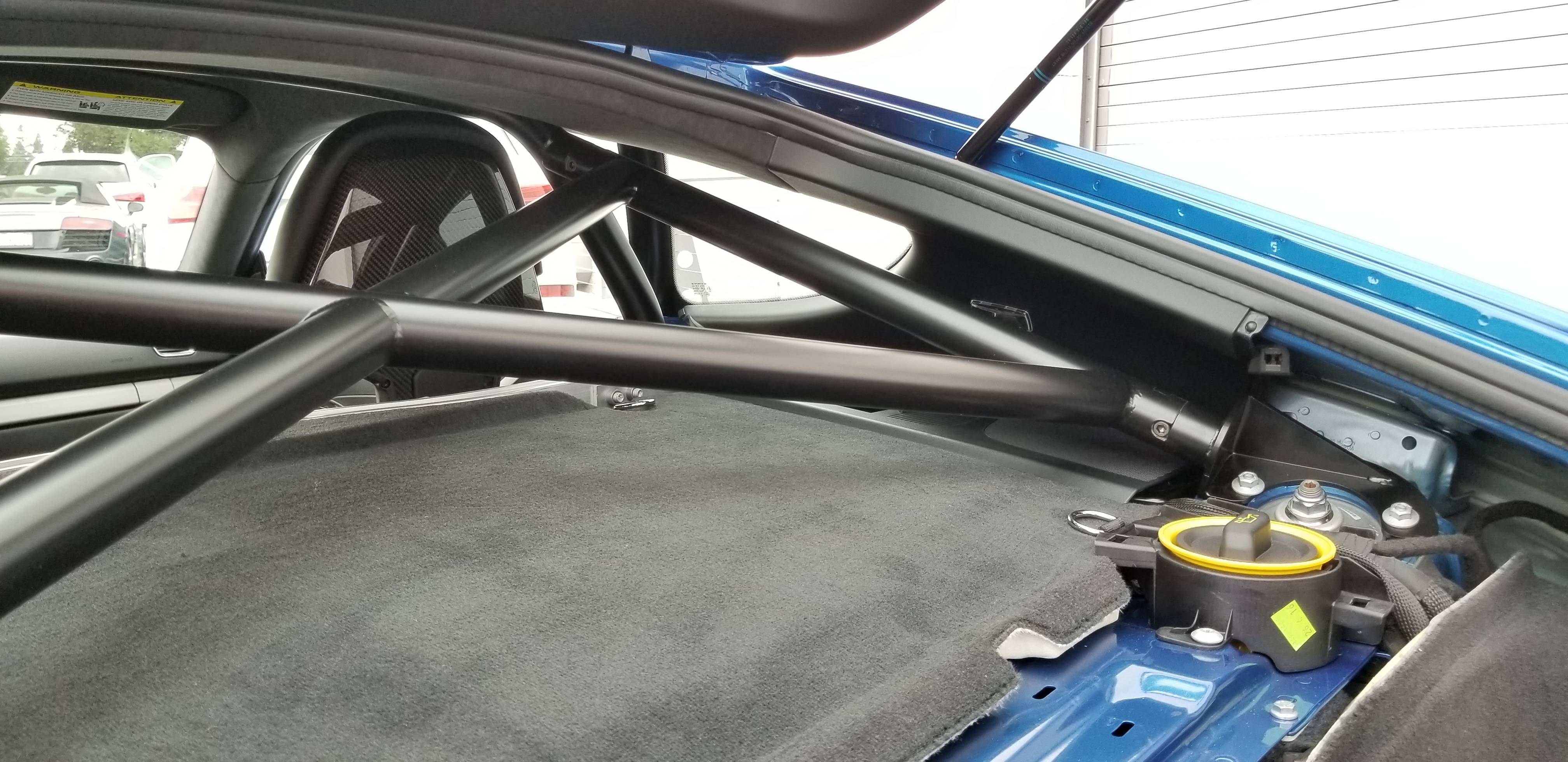

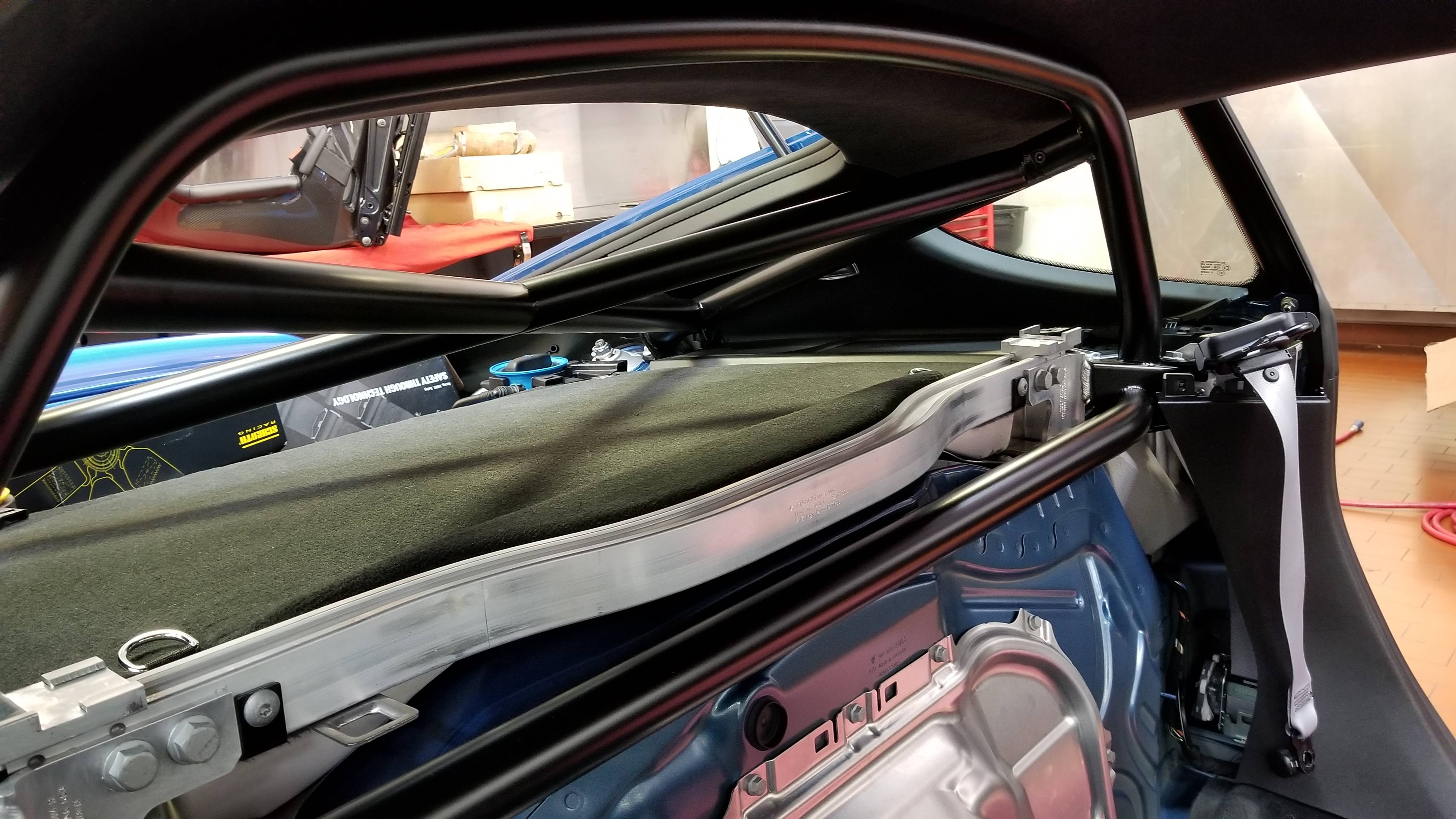

BBi Autosport 981 GT4 StreetCup Roll Bar



Key Features

• Chrome moly steel tubing utilized for excellent strength to weight ratio
• Modular construction to allow access to engine for servicing without removing entire roll bar
• Shoulder harness mounting crossbar positioned at appropriate height as per Schroth's instructions

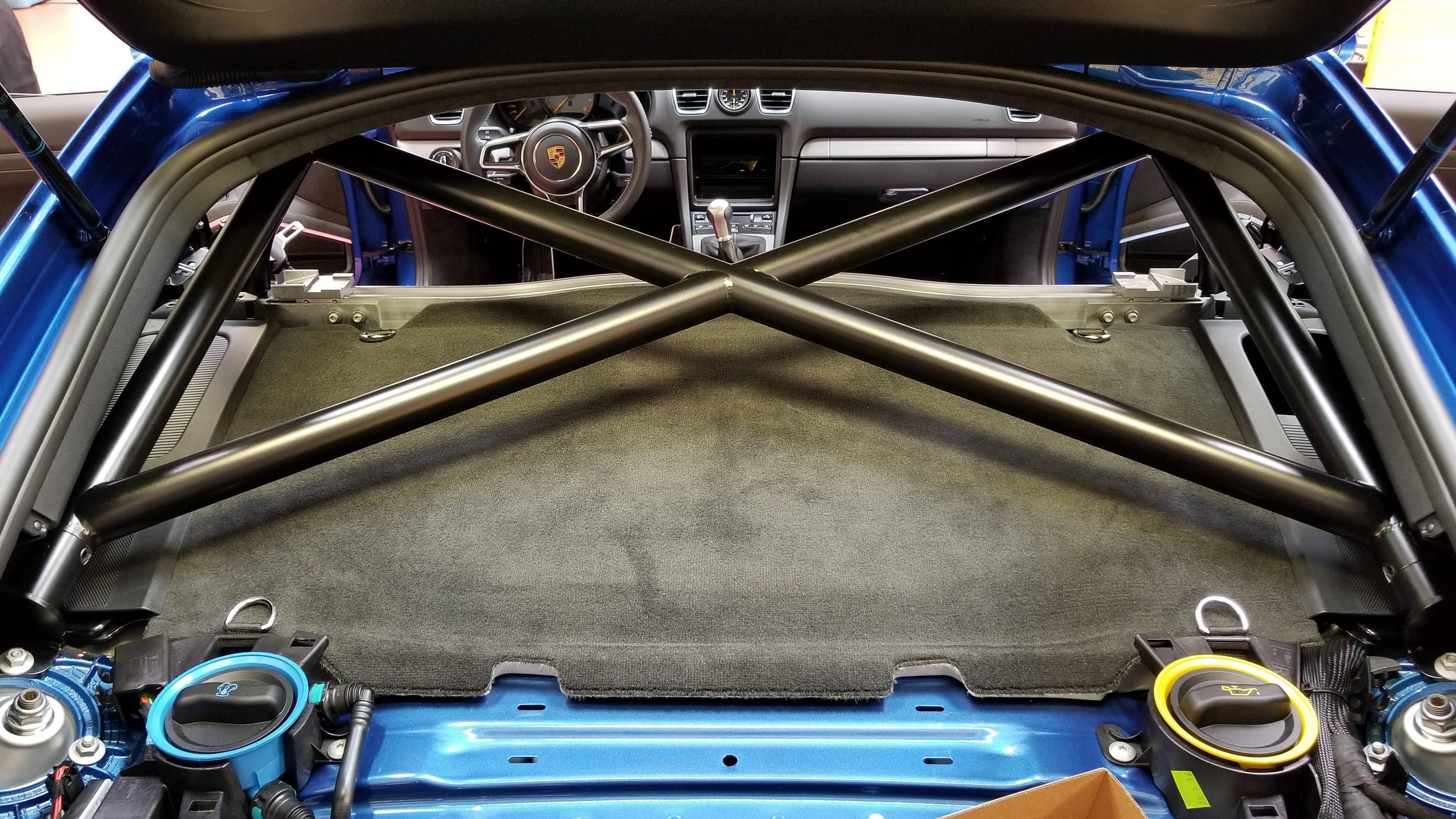

• TIG welded and utilizes "X" braces on rear section for superior strength and rigidity
• Mounts to frame structure and rear strut tower to provide strongest mounting points and maximum protection
• Utilizes laser cut mounting plates & inner diameter tube clamps that are CNC turned and milled for a precise fit
• Designed to work with stock or any aftermarket seats on the market
• Minimal effect on seat travel to accommodate taller drivers
• Can be used with stock seat belts or 6 point harnesses for track use
• Designed to work with wrap-around style harnesses while optional eyelet bolt provisions are available for clip-in harnesses
• OEM fit & finish. The main hoop contours entire arch of the roof with an even curve
• Finished in satin black powder coat. Other colors available
• Bolt-in installation requires no drilling and minimal carpet trimming

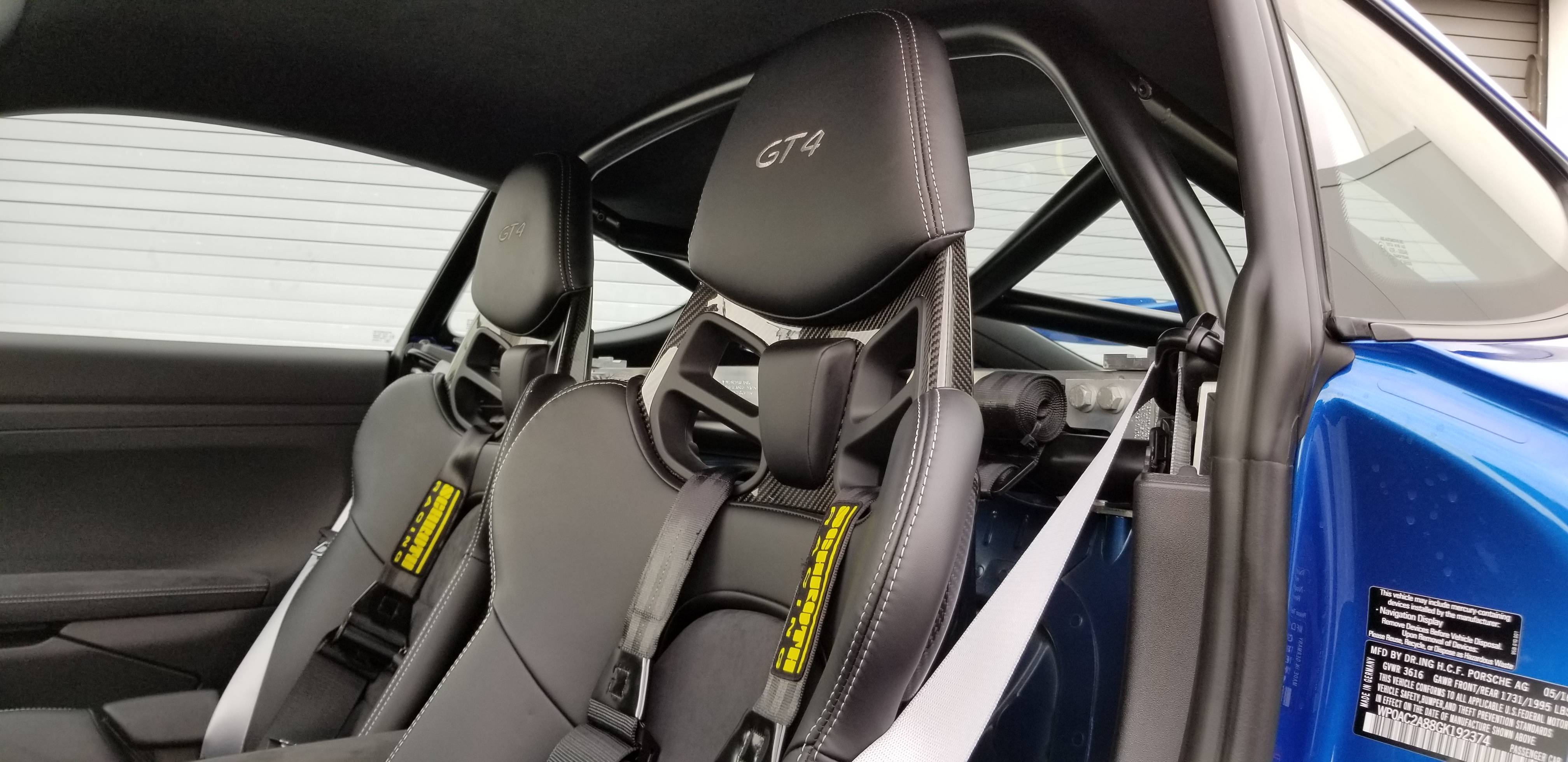

Schroth Racing Profi-II HANS Harness, Porsche GT3 Specific Black



Porsche GT3 Cup Cars come with Schroth belts direct from the factory. They are specific because of the lap belt attachment. They have a sewn-in bracket that fits perfectly on the factory mount. Standard belts require additional fabrication and a spacer to make them work. These are a bolt-in replacement which is much easier. The sub-straps have no adjusters to fit correctly in the vehicle, and the shoulder belts are shorter to reach the works cages with minimal excess.

Key Features

• Shoulder: HANS Specific 2" tapered to 3" Shoulders
• Lap: Sewn-in B43A (GT3 Specific Hardware)
• Sub belts: LV11 with B14 Snap-in Bracket Wrapped-in
• Include hardware: 1 SG23 7/16" Eyebolt, 1 S3 Wavy Washer
• Available with Pull-Down lap belts only

BBi Sub-Belt Mount Porsche 991 GT3/ GT3RS / Cayman GT4



If you have the optional Sport Bucket seats and planning to install 6-point race harnesses, then you will need this bracket. Shown here as a pre-production example, this bracket bolts directly to the seat and keeps the harnesses at the proper 10-20° angle regardless of the seat position.

Key Features

• Provides mounting location for sub-belts at the proper 10-20° angle regardless of the seat position
• Precision CNC laser cut and bent from one piece high carbon steel for superior strength
• Stylish design with laser cut BBi logo and durable satin black Powdercoat finish
• Attaches to seat assembly using factory mounting points with all hardware included
• Compatible with Porsche 991 GT3 and 981 Cayman GT4 models equipped with Sport Bucket Seats
• Made in the USA
