#46

03-12-2014, 07:05 PM

therock88

Registered User

Thread Starter

Join Date: Feb 2010

Location: Pleasantville!

Posts: 1,340

Rep Power: 165

Quote:

Originally Posted by LIMITED

Nice write up!

Thanks...Hope it helps!

DC

#47

04-20-2014, 08:23 PM

slawek

Registered User

Join Date: Jan 2007

Location: NEW YORK

Posts: 680

Rep Power: 72

So I did it just like Dr. Rock suggested.

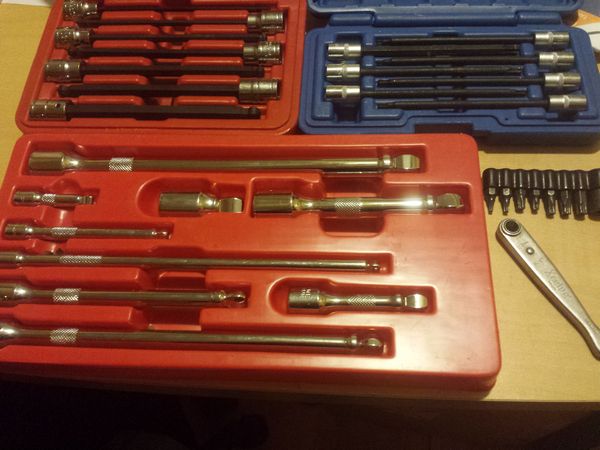

My best advice would be to order the correct tools before you start -wobble extensions and sets of long ball allen and torex bits are a must for this job.
I didn’t drop the engine or move any oil or coolant pipes in order to get in to spark plugs .

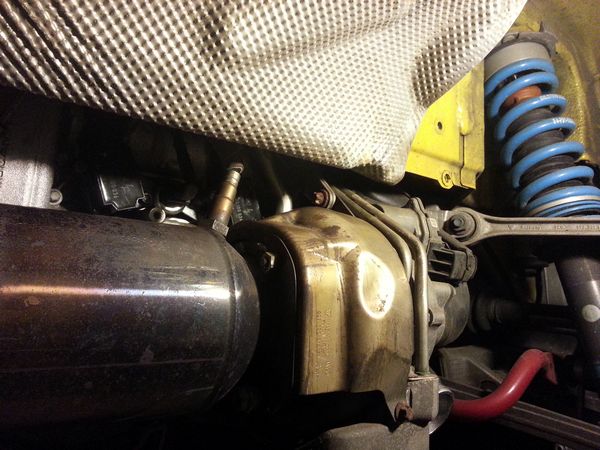

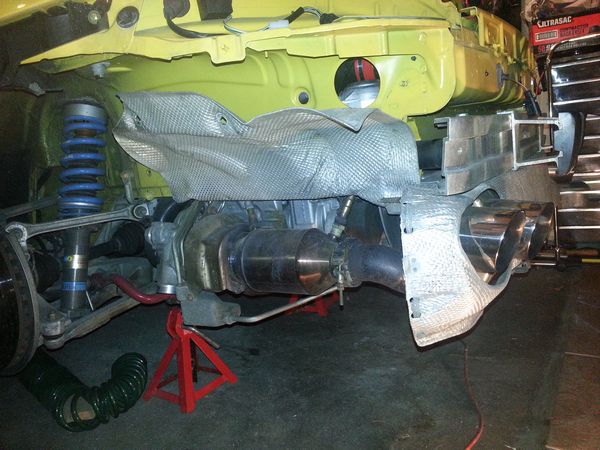

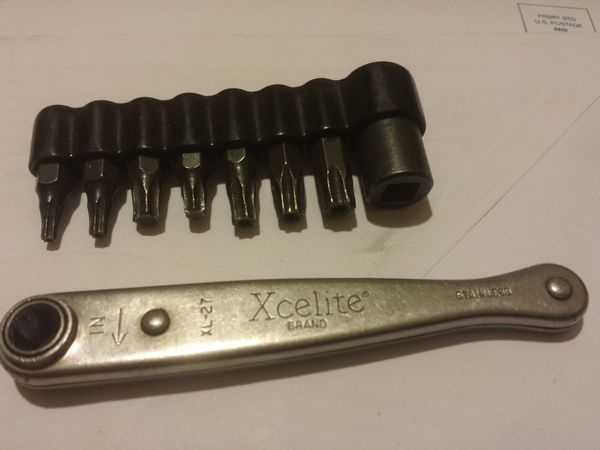

All project was about one spark plug –first on the driver site facing the front –it took me more time to do this one spark then to change other five. I used my tool (see attached picture) to remove driver site actuator.
Eclou said “ If you can do this, you can probably jerk-off a hamster blindfolded” and he was right -hamster was very happy.
I’ve also replaced coil packs and changed brake fluid.

<!--[if gte mso 9]><xml> <w:WordDocument> <w:View>Normal</w:View> <w:Zoom>0</w:Zoom> <w:TrackMoves/> <w:TrackFormatting/> <w:PunctuationKerning/> <w:ValidateAgainstSchemas/> <w:SaveIfXMLInvalid>false</w:SaveIfXMLInvalid> <w:IgnoreMixedContent>false</w:IgnoreMixedContent> <w:AlwaysShowPlaceholderText>false</w:AlwaysShowPlaceholderText> <w

oNotPromoteQF/> <w:LidThemeOther>EN-US</w:LidThemeOther> <w:LidThemeAsian>X-NONE</w:LidThemeAsian> <w:LidThemeComplexScript>X-NONE</w:LidThemeComplexScript> <w:Compatibility> <w:BreakWrappedTables/> <w:SnapToGridInCell/> <w:WrapTextWithPunct/> <w:UseAsianBreakRules/> <w

ontGrowAutofit/> <w:SplitPgBreakAndParaMark/> <w:EnableOpenTypeKerning/> <w

ontFlipMirrorIndents/> <w:OverrideTableStyleHps/> </w:Compatibility> <m:mathPr> <m:mathFont m:val="Cambria Math"/> <m:brkBin m:val="before"/> <m:brkBinSub m:val="--"/> <m:smallFrac m:val="off"/> <m:dispDef/> <m:lMargin m:val="0"/> <m:rMargin m:val="0"/> <m:defJc m:val="centerGroup"/> <m:wrapIndent m:val="1440"/> <m:intLim m:val="subSup"/> <m:naryLim m:val="undOvr"/> </m:mathPr></w:WordDocument> </xml><![endif]-->

Attached Thumbnails

Click image for larger version

Name: tn_316.jpg
Views: 246
Size: 34.0 KB
ID: 363285

Click image for larger version

Name: tn_317.jpg
Views: 238
Size: 53.5 KB
ID: 363286

Click image for larger version

Name: tn_227.jpg
Views: 288
Size: 65.2 KB
ID: 363287

Click image for larger version

Name: tn_231.jpg
Views: 274
Size: 66.4 KB
ID: 363288

Last edited by slawek; 04-20-2014 at 10:16 PM.

#48

04-21-2014, 01:46 AM

xbox_fan

Registered User

Join Date: Jul 2012

Location: Stockholm, Sweden

Posts: 780

Rep Power: 70

Quote:

Originally Posted by therock88

Thanks...Hope it helps!

DC

Why isnt you pdf listed in the DIY section here on 6speed???

I have a copy but it should almost be printed in A5 and added to the 997 manual

#49

04-21-2014, 12:58 PM

therock88

Registered User

Thread Starter

Join Date: Feb 2010

Location: Pleasantville!

Posts: 1,340

Rep Power: 165

Quote:

Originally Posted by xbox_fan

Why isnt you pdf listed in the DIY section here on 6speed???

I have a copy but it should almost be printed in A5 and added to the 997 manual

Thanks! I am not an administrator...so best I could do is post as an entry in the DIY topic...which I did.

To the previous post...On the driver's side, I was able to get the plugs out without removing the actuator. It is actually easier (much) to lower the motor....Two 18 mm nuts and a stand....That actuator is NEARLY impossible to remove...and install. Just FYI. Also looks like you had all the right tools based on the photo!

DC

#50

04-21-2014, 03:08 PM

slawek

Registered User

Join Date: Jan 2007

Location: NEW YORK

Posts: 680

Rep Power: 72

Quote:

Originally Posted by therock88

I'm pretty sure both of us have thousands of $ in tools, otherwise we wouldn't even touch those cars.

Rock thank you for all your help.

#51

04-25-2014, 03:03 PM

tomb18

Registered User

Join Date: Nov 2012

Location: Montreal

Posts: 267

Rep Power: 24

Well, I decided to go to the dealer and get this done, I don't have a lift or even a jack.... I must admit they did a fine job charging 4 hours labor and replacing the coil packs under CPO. Can't complain about that!

#52

04-25-2014, 03:08 PM

DNugget991GT3

Registered User

Join Date: Oct 2005

Posts: 5,597

Rep Power: 330

big thanks Rock. finally got around to doing this last week (after a year of procrastinating).
my plugs were shot, and every single coil pack was cracked. thats exactly 1 year after ownership (previous owner had the plugs changed right before i bought the car).

im ready for the hamsters.

#53

04-26-2014, 05:49 AM

therock88

Registered User

Thread Starter

Join Date: Feb 2010

Location: Pleasantville!

Posts: 1,340

Rep Power: 165

Quote:

Originally Posted by Steve K ny

Excellent! Glad you were able to get it done. Based on your description...I am assumin (like mine) it is running MUCH better and smoother with no sputtering...and crisp steady idle...

DC

#54

07-09-2014, 08:21 PM

jjurroz

Registered User

Join Date: Mar 2014

Location: Miami, FL.

Posts: 243

Rep Power: 39

how much does this DIY apply to changing injectors?

-Jose

#55

07-09-2014, 08:49 PM

therock88

Registered User

Thread Starter

Join Date: Feb 2010

Location: Pleasantville!

Posts: 1,340

Rep Power: 165

Quote:

Originally Posted by jjurroz

how much does this DIY apply to changing injectors?

-Jose

I would say a great deal of it. It gets you through to accessing and lowering your motor etc...Beyond that, I do not know as I have not needed to change my injectors...but this should get you pretty close...

DC

#56

07-11-2014, 04:15 PM

matt2ace

Registered User

Join Date: Sep 2012

Location: NC

Posts: 120

Rep Power: 22

Quote:

Originally Posted by Duff0000

I have heard this was possible without lowering the motor, what do you think? does lowering it make it that much easier??

Yes, it is possible to do the plugs without lowering the engine. I did them with a friend who is a professional mechanic. Neither of us knew about the method with the lowered engine, despite some research through forums.

4 plugs can be done in less than an hour, the remaining two took two hours eacheven when you have removed the obstructing parts

. Getting some of the coils back in was another big issue if you don't remove all of the obstructions. The boot would hang up in the spark plug hole making it impossible to push the coil in without risking damage.

In the end, it was very educational. I would definitely lower the engine next time.

#57

07-11-2014, 04:33 PM

therock88

Registered User

Thread Starter

Join Date: Feb 2010

Location: Pleasantville!

Posts: 1,340

Rep Power: 165

Hey....Whatever works....Glad you were able to get it done.....

DC

#58

09-15-2014, 11:44 AM

saabin

Registered User

Join Date: Sep 2012

Location: DFW,TX

Posts: 289

Rep Power: 46

Well, it looks like I’m getting closer to starting this project.. A few questions for therock88.. I used your write-up for the front bumper removal – worked like a champ! Thanks! - I posted a thread in the 997 forum with some pics.

1) My original thought was to use the factory plugs , but I see you used different ones. It looks like this was because of your tune.. I have a FVD tune and was wondering what plugs I should use or just stick with OEM?

2) Same Q’s on the coil packs – why did you switch part #s?

3) I’m fairly certain that I will drop the engine to make it easier, since it looks like it’s just the 2 bolts – I assume the hoses will stretch a little, and as long as you don’t drop it too far it should be okay?

4) Regarding the headers: Where did you get your replacements? I assume for performance reasons? Do you think you have to remove them completely (from the block & turbo) or could you just unbolt them from the flange of the turbo? And this is just so the turbo can wiggle a little bit for 2 of the plugs?
