Front bumper removal- problem with electrical connector
#1
Front bumper removal- problem with electrical connector
Hi,
This past weekend, I removed the front bumper to install a set of LED DRL lights as replacements for the turn signal spars on my '08 997tt. As some of you may know, bumper removal requires unplugging the large multi-lead connector behind the passenger fender. The problem I ran into was that the connector did not want to re-connect. I had plugged and unplugged it a few times during the testing process and when I finally had everything just right and had reinstalled the bumper, it just would not click back together. I checked the alignment of the male and female prongs and everything seems to line up OK. Has anyone had this problem with electrical connectors? I have been working on cars and bikes for years and have never had an electrical connector that won't go back together so I am stumped. My local P-car independent suggested I try to pry out the rubber seal in the connector as this may be the physical block that I am hitting. No amount of "tweaking" the angle at which I pushed the two parts of the connector would allow it to click back together. With the connector back together as far as it would go, there is no current crossing the terminals so I figure there's no contact at all.
Any input would be appreciated!
Thanks,
Franc
This past weekend, I removed the front bumper to install a set of LED DRL lights as replacements for the turn signal spars on my '08 997tt. As some of you may know, bumper removal requires unplugging the large multi-lead connector behind the passenger fender. The problem I ran into was that the connector did not want to re-connect. I had plugged and unplugged it a few times during the testing process and when I finally had everything just right and had reinstalled the bumper, it just would not click back together. I checked the alignment of the male and female prongs and everything seems to line up OK. Has anyone had this problem with electrical connectors? I have been working on cars and bikes for years and have never had an electrical connector that won't go back together so I am stumped. My local P-car independent suggested I try to pry out the rubber seal in the connector as this may be the physical block that I am hitting. No amount of "tweaking" the angle at which I pushed the two parts of the connector would allow it to click back together. With the connector back together as far as it would go, there is no current crossing the terminals so I figure there's no contact at all.
Any input would be appreciated!
Thanks,
Franc
#2
Shine a torch into both female and male connectors on the car and bumper side, and check for bent/broken connection pins or something causing a blockage. Can't imagine it's anything else.
#3
Thx,
Franc
#4
I did check both connectors, and counted the prongs. It looked like they corresponded on both sides to the number of wires in the connectors. The interesting thing about the connector is that there are two sizes of prongs, the central ones are wider and the peripheral ones are smaller. When I was examining them to make sure that a bent pin wasn't catching the connector, they all seemed to be well aligned and were all the same length. I will look again. You never know.
Thx,
Franc
Thx,
Franc
DC
#6
https://www.6speedonline.com/forums/...4&d=1359564582
Unfortunately, I put everything back together including the splash shield for now so that I could drive the car in an emergency. She has been sitting at home, since I have no front lights right now besides the headlights. And I am sure that I was orienting the connector properly, as it will only go together one way due to the D shape of the inside of the connector.
Thanks again,
Franc
#7

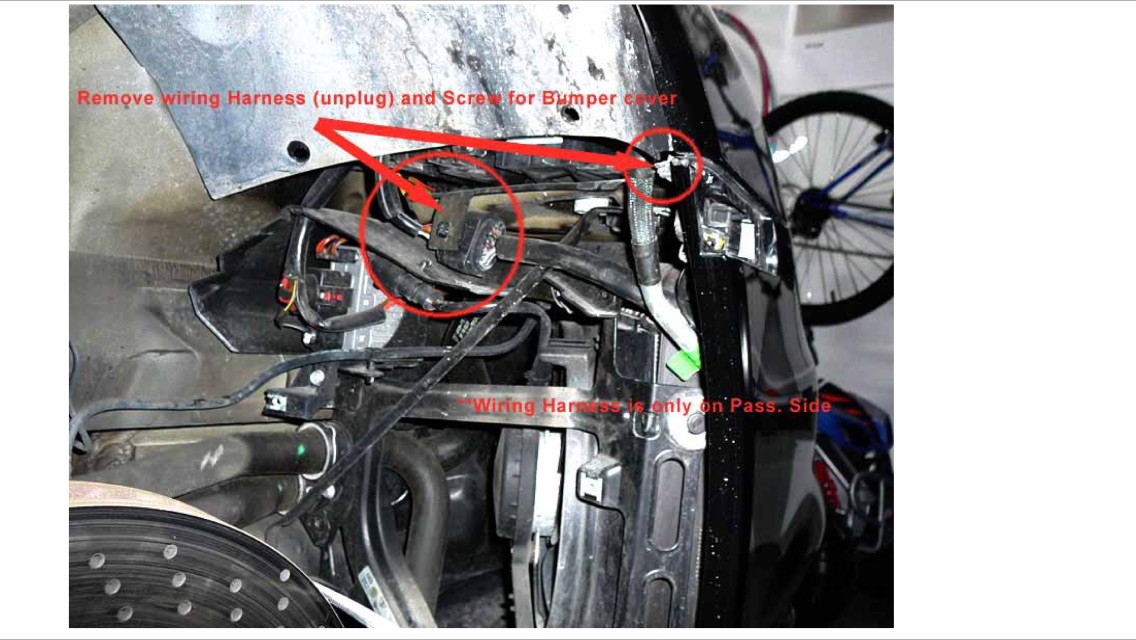

I did not check to see if there is a locking side latch on the connector. The locking tab that you push to open it was definitely moving, and in fact it wasn't even getting to the point where there was contact between the locking tab and the little nipple on the other side of the connector. As requested, I have attached a pic of the connector from the bumper removal PDF that is on this site:
https://www.6speedonline.com/forums/...4&d=1359564582
Unfortunately, I put everything back together including the splash shield for now so that I could drive the car in an emergency. She has been sitting at home, since I have no front lights right now besides the headlights. And I am sure that I was orienting the connector properly, as it will only go together one way due to the D shape of the inside of the connector.
Thanks again,
Franc
https://www.6speedonline.com/forums/...4&d=1359564582
Unfortunately, I put everything back together including the splash shield for now so that I could drive the car in an emergency. She has been sitting at home, since I have no front lights right now besides the headlights. And I am sure that I was orienting the connector properly, as it will only go together one way due to the D shape of the inside of the connector.
Thanks again,
Franc
If you take it back apart and have a picture, perhaps someone can help you out. Only other suggestion is make sure it is really snapped together tight..they are fickle.
DC
Trending Topics
#8
Those connectors are a VERY tight fit. They have to be weather tight so it does take firm, but careful effort to push them together. It can be a bit intimidating to push very hard of the connectors while worrying that you are going to damage pins or are doing something wrong.
My first try with my turbo went very slow to be sure I got it right. When I did my 06 Cayman, it went easier because I knew just how much you need to push to get these connectors to snap together.
My first try with my turbo went very slow to be sure I got it right. When I did my 06 Cayman, it went easier because I knew just how much you need to push to get these connectors to snap together.
#9
The part that doesn't make sense to me is that I probably plugged/unplugged that connector at least 5 times during the process and it wasn't until the last time that it wouldn't come together. I will post a pic of my connector once I get a chance to pull the splash shield off. I was pushing pretty damn hard due to my frustration but no go. I considered using padded channel lock pliers to generate some real force but didn't for fear of breaking the plastic or bending the pins.
Thanks, DC, for that how-to as well as all of your other guides!
-Franc
Thanks, DC, for that how-to as well as all of your other guides!
-Franc
#10
The part that doesn't make sense to me is that I probably plugged/unplugged that connector at least 5 times during the process and it wasn't until the last time that it wouldn't come together. I will post a pic of my connector once I get a chance to pull the splash shield off. I was pushing pretty damn hard due to my frustration but no go. I considered using padded channel lock pliers to generate some real force but didn't for fear of breaking the plastic or bending the pins.
Thanks, DC, for that how-to as well as all of your other guides!
-Franc
Thanks, DC, for that how-to as well as all of your other guides!
-Franc
Good luck,
DC
#11

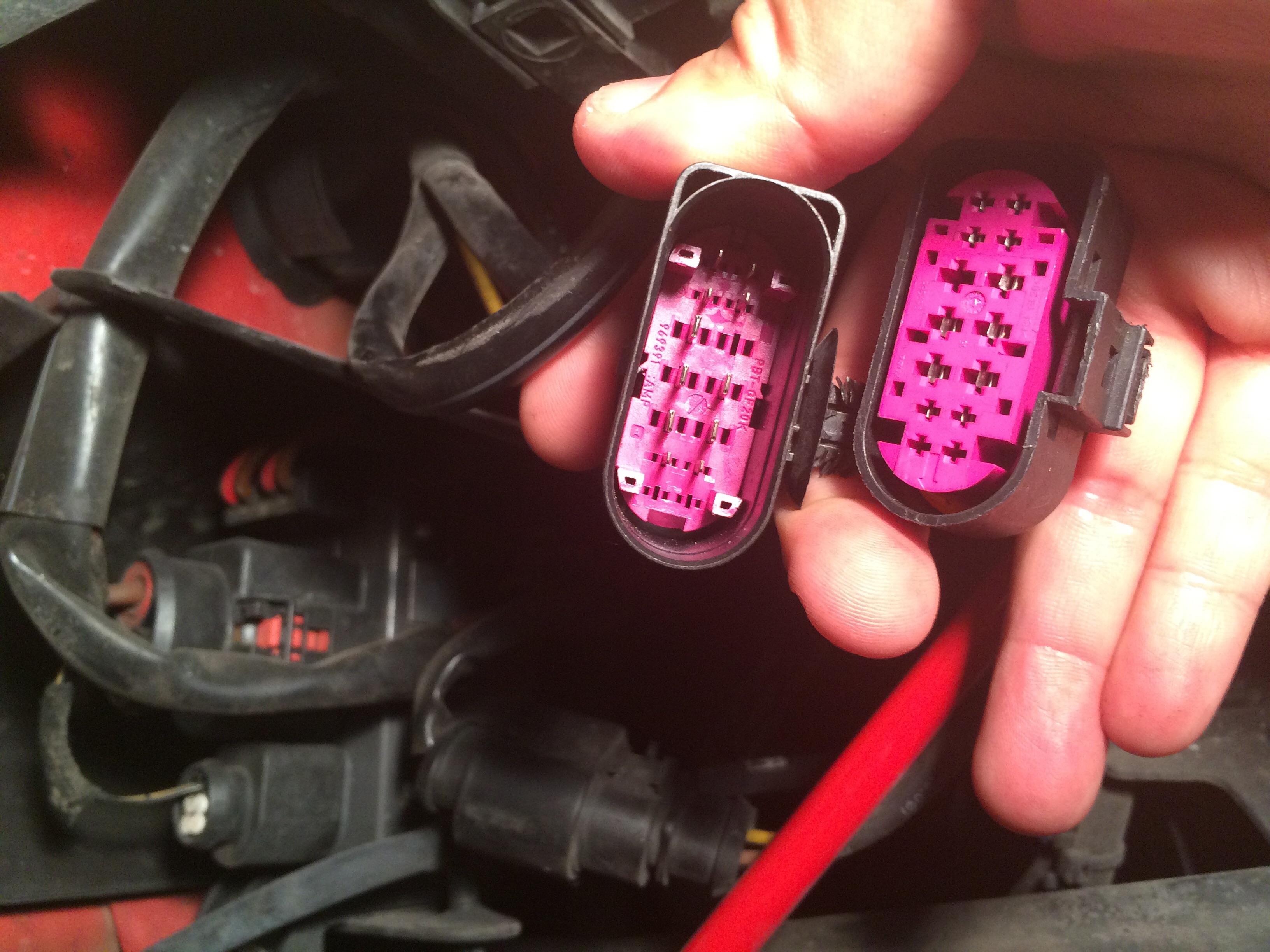

So I figured out the problem. On the male (smaller side) the entire purple part with the prongs had slid over inside the black plastic shell by a few mm and it was just out of alignment a bit but enough to prevent the purple prongs from sliding into the purple slots. With a screwdriver, I slid over the entire purple piece with the contacts and it came together. Attached is a pic of my connector.
Thanks for everyone's help!
-Franc
Thanks for everyone's help!
-Franc
#12
So I figured out the problem. On the male (smaller side) the entire purple part with the prongs had slid over inside the black plastic shell by a few mm and it was just out of alignment a bit but enough to prevent the purple prongs from sliding into the purple slots. With a screwdriver, I slid over the entire purple piece with the contacts and it came together. Attached is a pic of my connector.
Thanks for everyone's help!
-Franc
Thanks for everyone's help!
-Franc
Take care,
DC
