996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

Mounts arrived

Thread Tools

Rate Thread

Old Apr 6, 2012 | 02:07 PM
  #1
r71's Avatar
r71
Thread Starter
|
Registered User
Joined: Mar 2012
Posts: 137
From: Atlanta
Rep Power: 21
r71 has a spectacular aura aboutr71 has a spectacular aura about

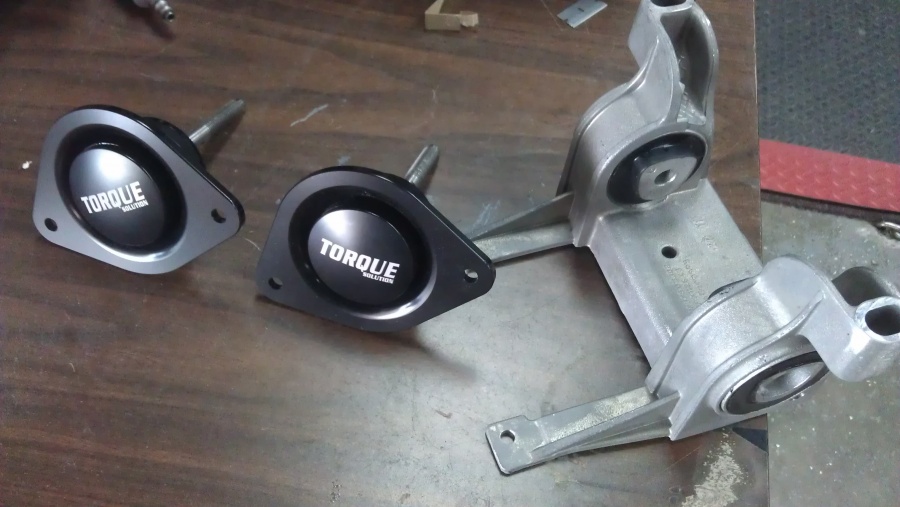

Mounts arrived

Looks like I know what I'm doing tomorrow. I'm sure it's self explanatory once I get the car on the lift, but anyone done a write up on this?

Attached Images
Old Apr 6, 2012 | 09:41 PM
  #2
pat's Avatar
pat
Registered User
Joined: Dec 2009
Posts: 875
From: indiana
Rep Power: 80
pat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond repute
While you have your trans mount off check for cracks on the flex disc. I just changed mine .

Old Apr 6, 2012 | 09:45 PM
  #3
pat's Avatar
pat
Registered User
Joined: Dec 2009
Posts: 875
From: indiana
Rep Power: 80
pat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond reputepat has a reputation beyond repute
Old Apr 6, 2012 | 11:55 PM
  #4
Duane996tt's Avatar
Registered User
Joined: Mar 2007
Posts: 1,870
From: San Diego, San Francisco
Rep Power: 116
Duane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond reputeDuane996tt has a reputation beyond repute
Originally Posted by r71
Looks like I know what I'm doing tomorrow. I'm sure it's self explanatory once I get the car on the lift, but anyone done a write up on this?
Engine mounts: A very simple dyi. Jack the car up at the jacking point and use pin type jack plates if you have them. Place jack stands under the rear cross member near the suspension mounting points. Once you have it up on jack stands, get a peice of 2x4 about the length of your engine case. Place this lengthwise between the jack and the long joint connecting each half of the engine to take distribute the weight and jack it up just enough to take the weight off the engine. R&R one side at a time starting with the bolt underneath, then the two bolts on top. Don't overtorque these as they are threaded into aluminum. 23 ft. lbs. for the two top-side bolts, and 63 ft. lbs. for the bottom 18mm nuts. Total time about 30 minutes.


Last edited by Duane996tt; Apr 6, 2012 at 11:58 PM.
Old Apr 7, 2012 | 12:50 PM
  #5
r71's Avatar
r71
Thread Starter
|
Registered User
Joined: Mar 2012
Posts: 137
From: Atlanta
Rep Power: 21
r71 has a spectacular aura aboutr71 has a spectacular aura about
Welp, just like you guys said, the tranny mounts were toast. The motor mount was ok but since I already had new ones, I changed it out.
