Got paddle shifters for my Tip, now what?
Thread Starter
|
Registered User
Joined: Jun 2010
Posts: 69
From: Austin, TX
Rep Power: 18
Got paddle shifters for my Tip, now what?
So, a couple weeks ago I installed AMG paddles shift switches on my '03 turbo. I'm thinking of repurposing my old tip switches to turn signal switches. I have driven a lot of Ferrari's that have the turn signal switches on the wheel and I like the configuration.
Has anyone done this?
Has anyone done this?
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 628
email cmessmer@roos.com chris designed the paddle setup for the dct wheels for m/b and for the porsche. if anybody can help you he can. tell him 32krazy! sent you
Last edited by 32krazy!; Dec 5, 2015 at 07:20 PM.
Registered User
Joined: Sep 2012
Posts: 282
Rep Power: 27
I recently hacked the AMG paddles onto my '08 Cayman S Tiptronic... So much nicer than the silly thumb switches!
I bought a spare steering wheel to do the mod from a non-tip car and it came with the 'blank' inserts used on non-tip cars, just used them where the original tip thumb switches were.
I bought a spare steering wheel to do the mod from a non-tip car and it came with the 'blank' inserts used on non-tip cars, just used them where the original tip thumb switches were.
Last edited by pfbz; Dec 6, 2015 at 08:04 PM.
Registered User
Joined: Sep 2012
Posts: 282
Rep Power: 27
...but if you do decide to try and use the tip switches for turn signals, you'll have a few challenges:
1. The tip switches are 'momentary ground'. You'll need a circuit to trigger with that momentary ground and convert it to 12v blinker pulses.
2. There's no extra clockspring wires to allow you to send signals directly from the wheel to the steering column. You can 'encode' some signals on existing wires and 'decode' it on the column side, or do an RF circuit, but both are going to be a fair bit more difficult than just modding the AMG paddles onto a tip steering wheel.
1. The tip switches are 'momentary ground'. You'll need a circuit to trigger with that momentary ground and convert it to 12v blinker pulses.
2. There's no extra clockspring wires to allow you to send signals directly from the wheel to the steering column. You can 'encode' some signals on existing wires and 'decode' it on the column side, or do an RF circuit, but both are going to be a fair bit more difficult than just modding the AMG paddles onto a tip steering wheel.
Thread Starter
|
Registered User
Joined: Jun 2010
Posts: 69
From: Austin, TX
Rep Power: 18
...but if you do decide to try and use the tip switches for turn signals, you'll have a few challenges:
1. The tip switches are 'momentary ground'. You'll need a circuit to trigger with that momentary ground and convert it to 12v blinker pulses.
2. There's no extra clockspring wires to allow you to send signals directly from the wheel to the steering column. You can 'encode' some signals on existing wires and 'decode' it on the column side, or do an RF circuit, but both are going to be a fair bit more difficult than just modding the AMG paddles onto a tip steering wheel.
1. The tip switches are 'momentary ground'. You'll need a circuit to trigger with that momentary ground and convert it to 12v blinker pulses.
2. There's no extra clockspring wires to allow you to send signals directly from the wheel to the steering column. You can 'encode' some signals on existing wires and 'decode' it on the column side, or do an RF circuit, but both are going to be a fair bit more difficult than just modding the AMG paddles onto a tip steering wheel.
Registered User
Joined: Sep 2012
Posts: 282
Rep Power: 27

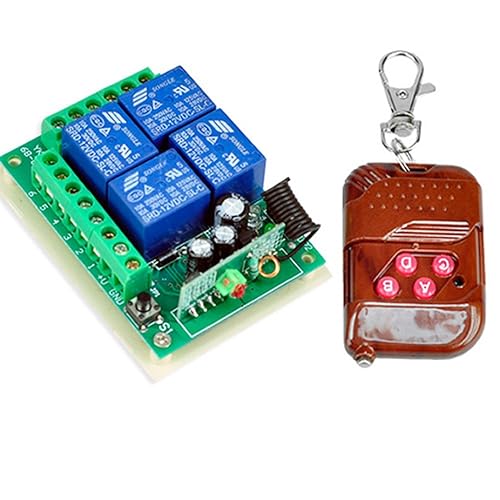

Search for "2ch wireless remote" and you'll find hundreds of them for just a few bucks on ebay and amazon. Hack the paddles (or tip switches) into the remote portion and place inside the steering wheel, put the receiver under the dash someplace. Downside is having to pop out the airbag every year or two to replace the transmitter battery...
