Change over valve

http://www.pelicanparts.com/cgi-bin/...ir%20Injection



This is it
Cycle valve "N75"
http://www.pelicanparts.com/cgi-bin/...njection%2C%20



http://www.autoatlanta.com/porsche-p..._911_parts.php Air injection I believe #14 actually #44 according to above number. Do not recall that valve being so cheap?



Note there are 2 other valves that look similar, both are called change over valve. 1 works to open and close your diverter valves and the other is associated with the air pump.



99660515500 is the N75/boost control

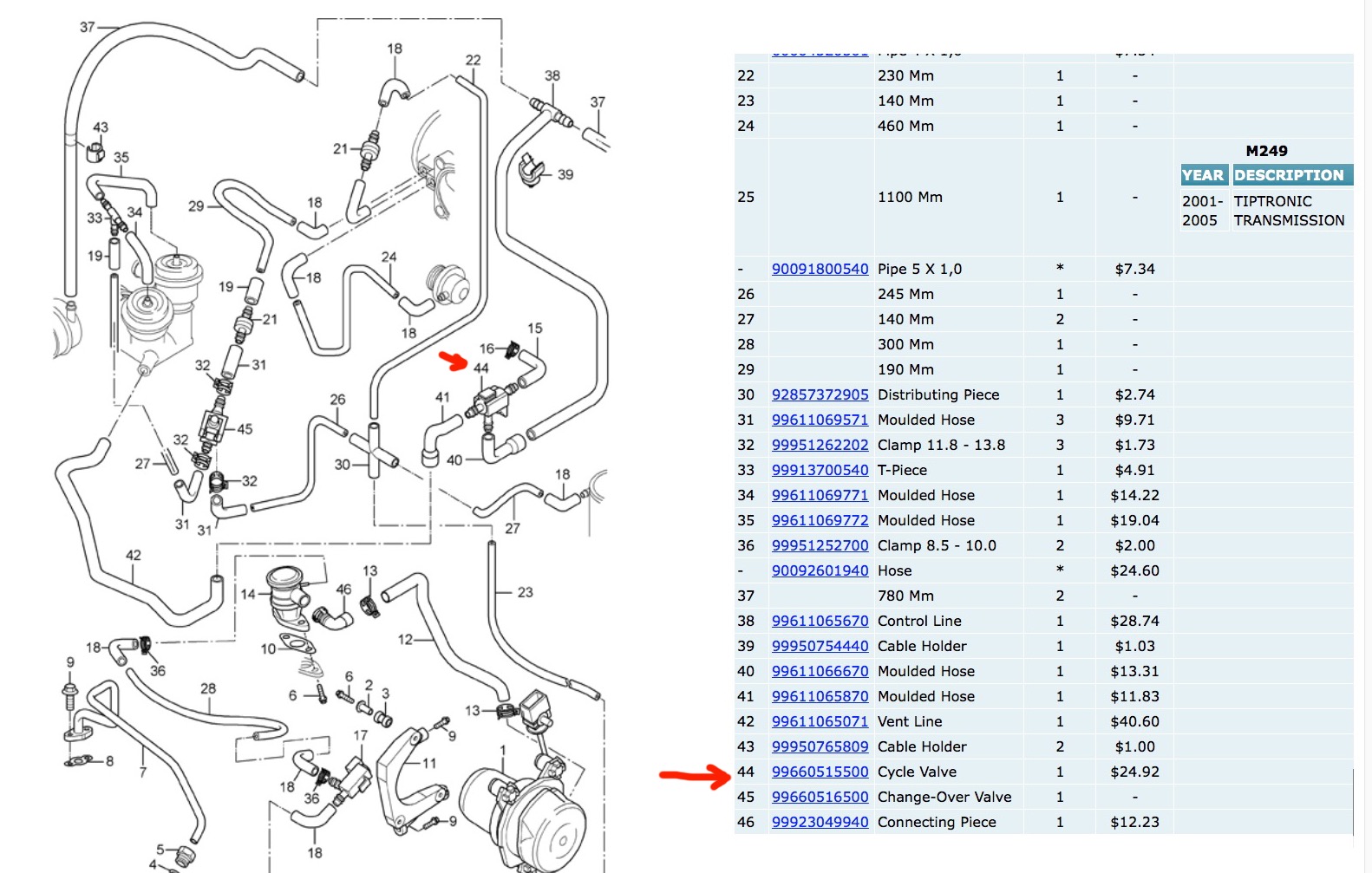

99660516500 is a change over valve and it is related to the EGR system, item #45 on the picture. The N75 called a cycle valve is #44 which control boost.



im going to sell this car just on the fact that finding the correct parts is so ****ing annoying



Looks like I ordered the wrong item....I sent a PM to pelican, but the forum doesn't show I sent a PM. Tried twice. Is the common until the person accepts it or something?


I may throw my computer.....at the porsche



Last time I had to modify my order I decided to call them instead of emailing and my problem was resolved really fast! 1-888-280-7799



Are the valves the exact same thing, but different part numbers because they are in 2 different spots?

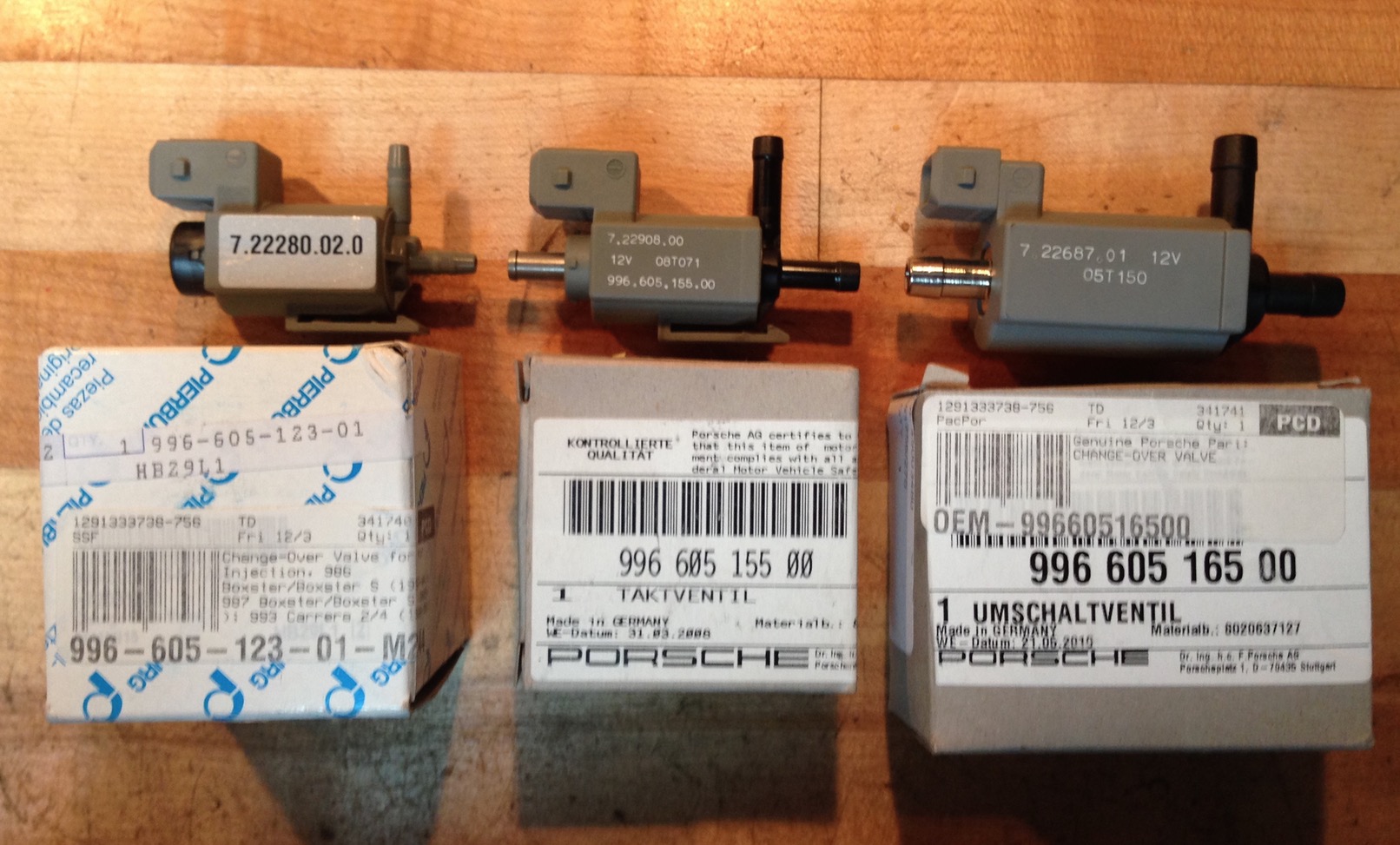

Dont be frustrated, you will always found someone to help you here ;-) I took a picture (sorry for the phone pic) of the three valves side by side to show you the difference #17 996-605-123-01 (7PP906270) (the one you order) #44 (N75) 996-605-155-01 and #45 996-605-165-00. Yes I have all three in stock just in case That's me



155.00 is correct. jeanmarcs pelican link is correct.

its also visible with the engine decklid raised. if it doesn't say "bosch"? dont buy it.

i sure hope jp's valves say bosch as he is never wrong lol



Deleted....Create confusion....



I always buy OEM ok ok sometimes used

If you can read german like me you will see Porsche AG Kontrollierte qualitat which mean Porsche AG quality control (thanks google translator ;-)



call pelican 800 w your order number before they ship! theyre super helpful..

the n75 valve is the only CLEARLY visible bosch valve you will see at the lower end of your intake area. NOT the MAF which will not have the "bosch" lettering visible, plus the maf is on the "drivers side" of the engine comp from the N75 on lower right ( passenger side moreso ). sorry i dont have a pic. just look for the "bosch" valve it'll be staring back at you.
