need help--- where is tcu located on 2002 porsche c4s?

does anybody know? i searched the forum and internet, no luck

. i took off the bose woofer and carpet , and only found the DME behind the passenger side rear seat.

May 13, 2011 | 03:42 AM

MikeyinAZ

Registered User

Joined: Jan 2010

Posts: 48

From: Germany (from Tucson AZ)

Rep Power: 19

MikeyinAZ is infamous around these parts

On Turbos it is behind the panel aft of passenger door(next to rear passenger seat) pretty sure it is in the same place on the C4S.

May 13, 2011 | 11:34 AM

kent996

Thread Starter

Registered User

Joined: Nov 2009

Posts: 456

From: Los Angeles

Rep Power: 35

your guess is wrong buddy

there is only the seat belt roller over there, nothing else in my c4s.

Quote:

Originally Posted by MikeyinAZ

On Turbos it is behind the panel aft of passenger door(next to rear passenger seat) pretty sure it is in the same place on the C4S.

May 13, 2011 | 11:45 AM

MikeyinAZ

Registered User

Joined: Jan 2010

Posts: 48

From: Germany (from Tucson AZ)

Rep Power: 19

I have the PET on home computer i will look it up and post what i find when i get there if someone didn't beat me to it first

May 13, 2011 | 01:58 PM

MikeyinAZ

Registered User

Joined: Jan 2010

Posts: 48

From: Germany (from Tucson AZ)

Rep Power: 19

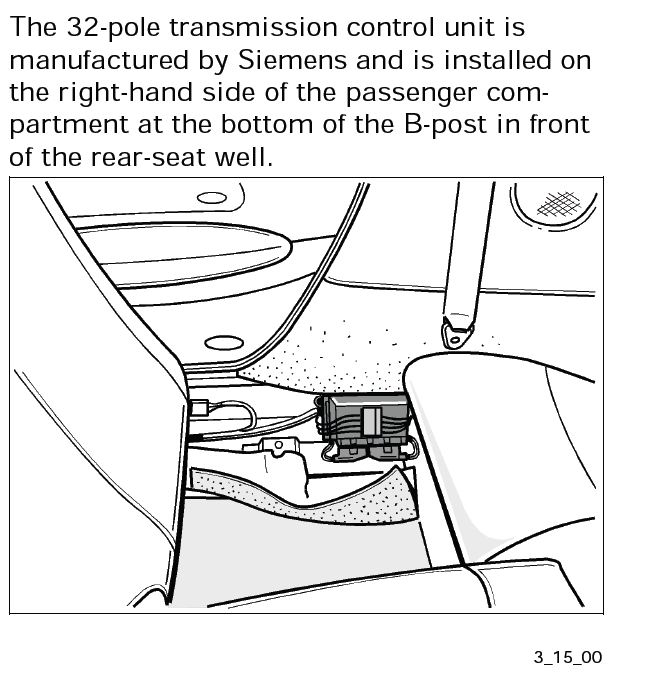

It is as shown in picture according to the manual (snap shot from manual)
Hope it helps.
Mikey

Attached Images

May 13, 2011 | 03:33 PM

kent996

Thread Starter

Registered User

Joined: Nov 2009

Posts: 456

From: Los Angeles

Rep Power: 35

Many thanks brother!!!!!!!!!!!!!!!!!!!!!!!!!!!

happy nice weekend!

Quote:

Originally Posted by MikeyinAZ

It is as shown in picture according to the manual (snap shot from manual)
Hope it helps.
Mikey
