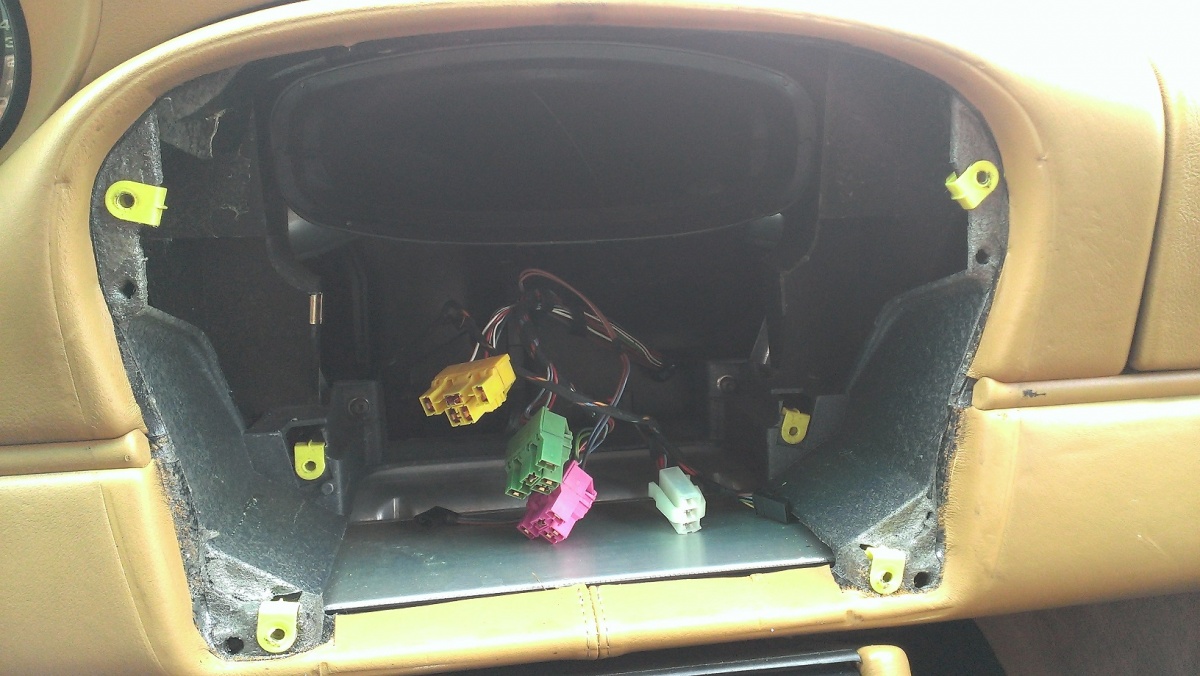

So I am having a major issue here. I ripped open my dash and none of the pieces match.

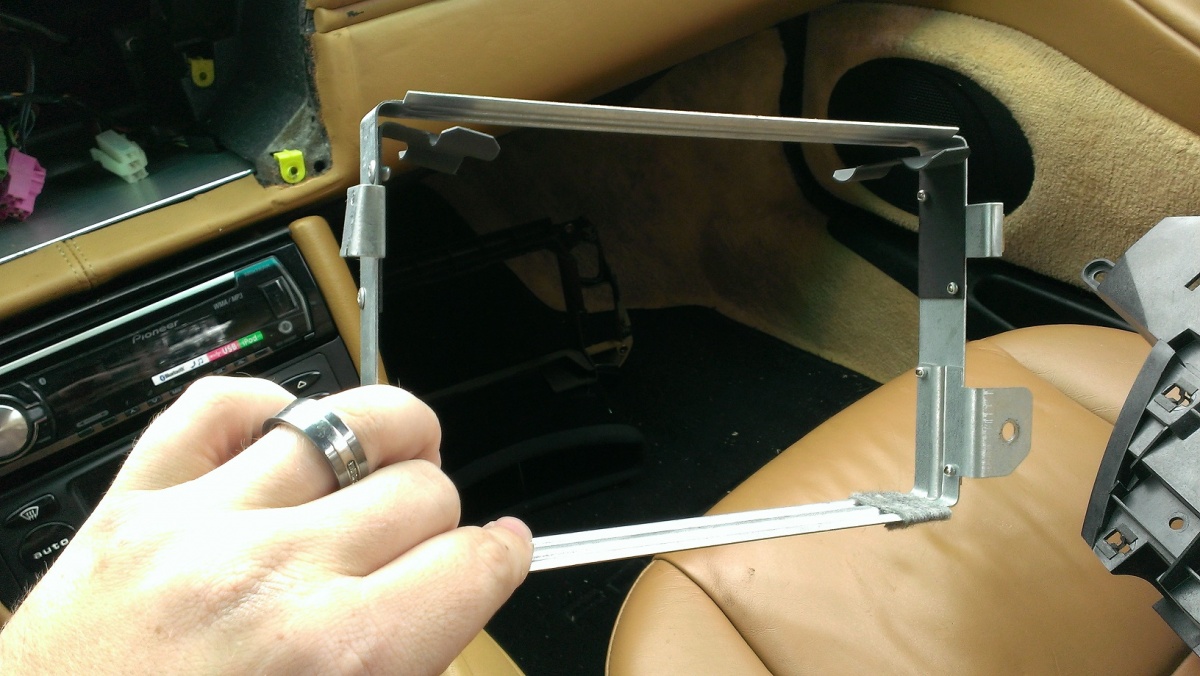

Supposedly the radio support I ordered fits 911 and boxster, but it doesn't fit at all.

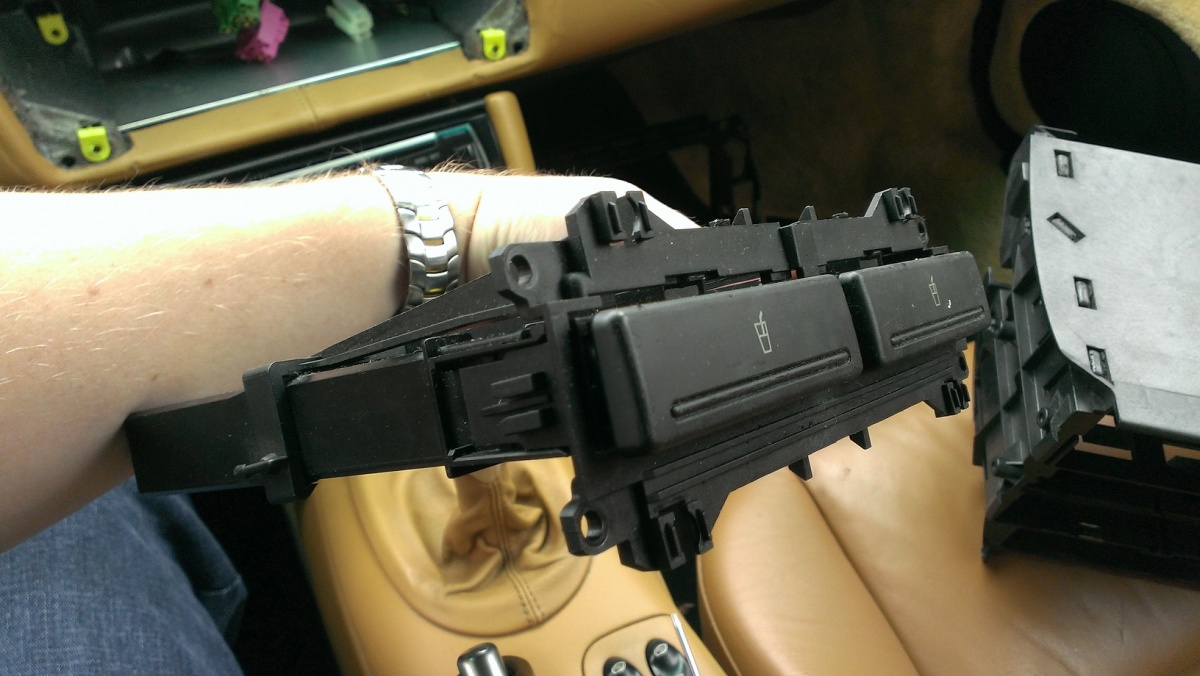

Attached are some pictures and hopefully you'll get what I'm trying to do.

Please let me know if I'm missing any pieces or what I need to order.



Some more pics. Only lets me upload 5 per post.

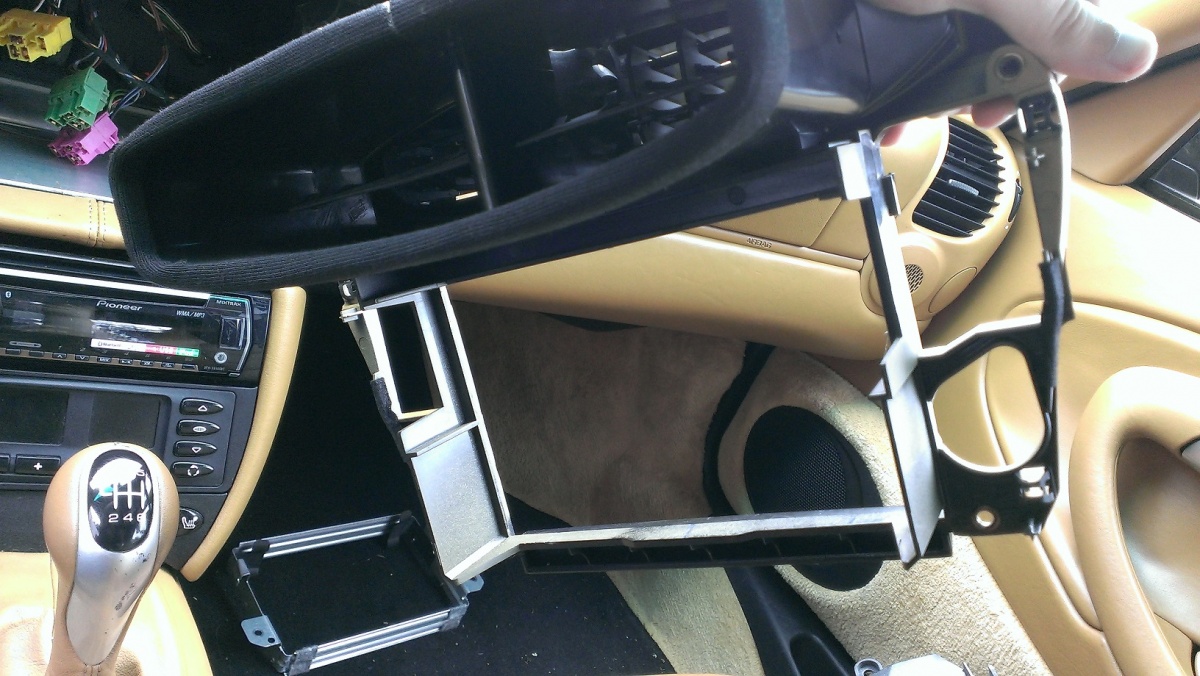

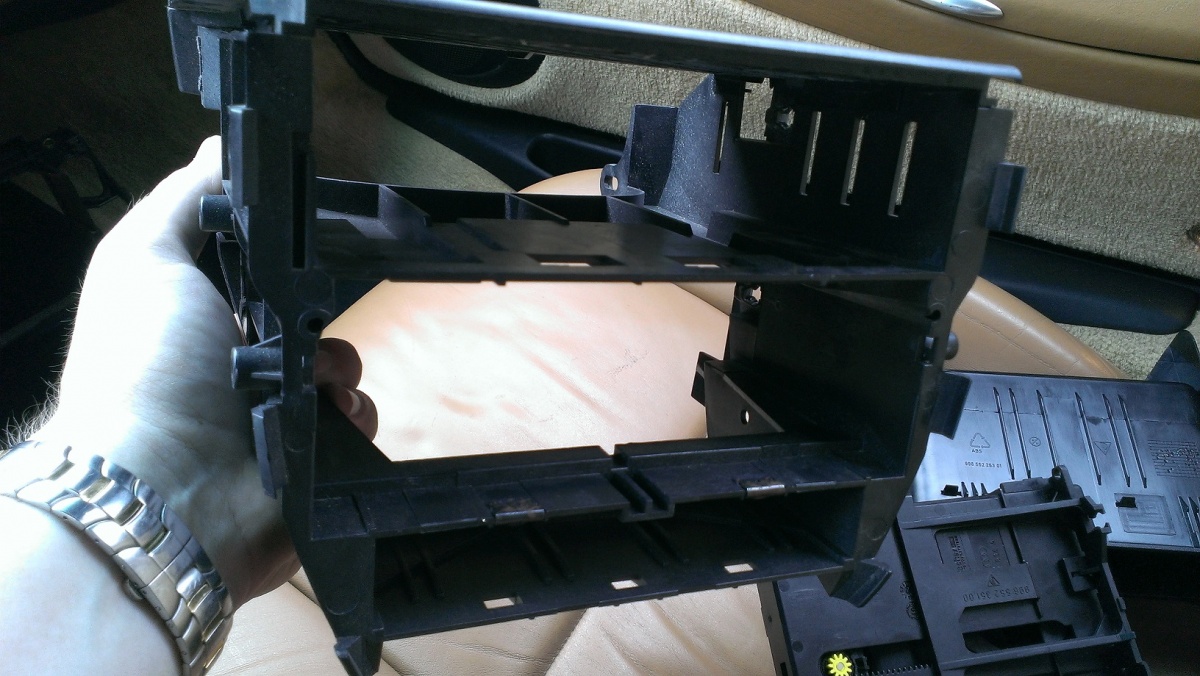

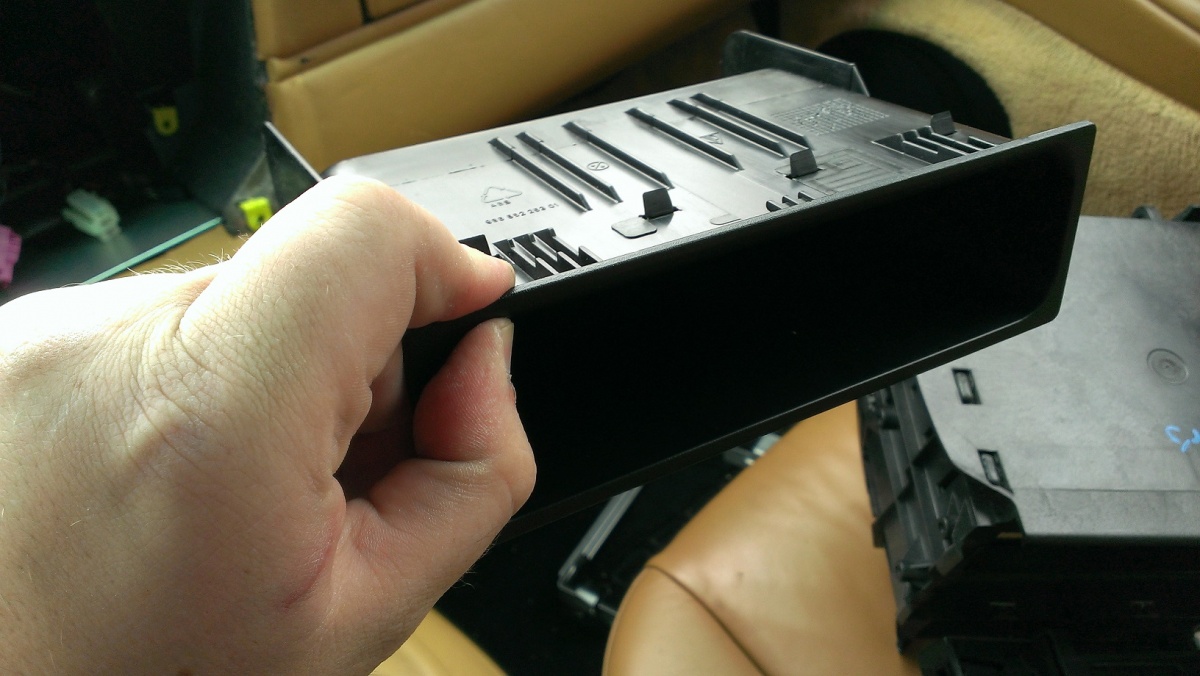

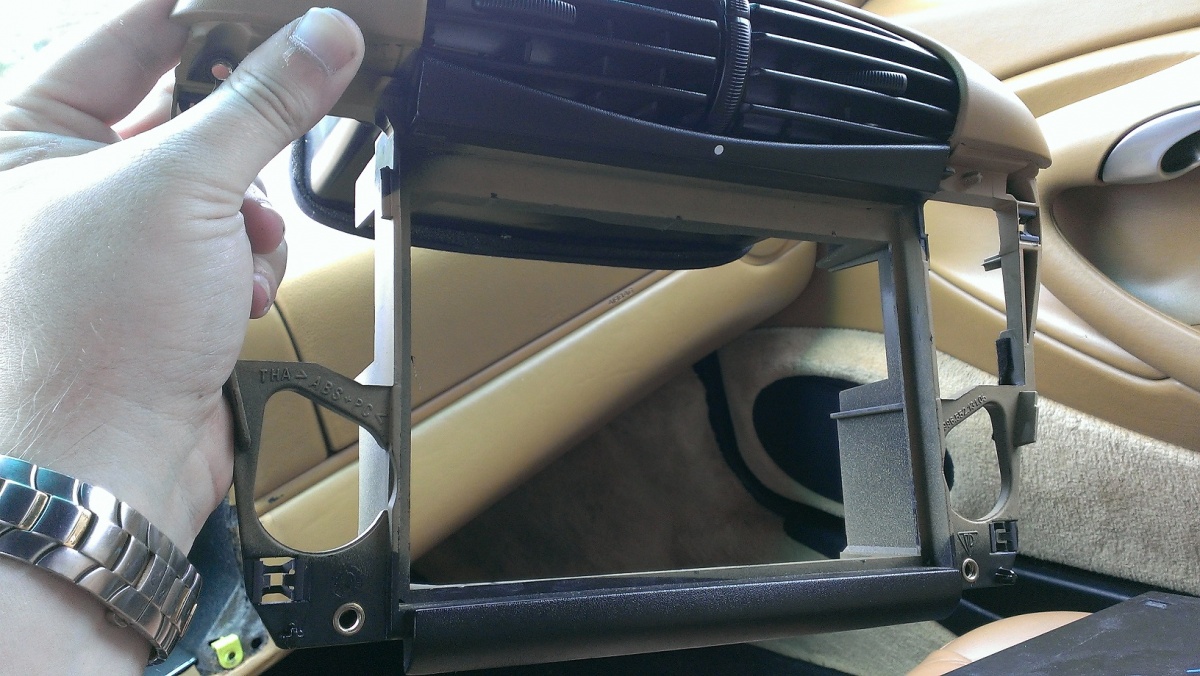

That's the support frame for a car with navigation. If you're wanting to fit that storage shelf, you need the correct retaining bar - 99655267302, and the correct support frame - 99655213104S33 (Savanna, non-leather, without navigation).
There's also an adapter for the cup holders - 99655259300. You'll need two of those
Retaining frame for the cup holders - 99655235100
Screw for the retaining frame - 90014307609 (4 needed)
Cup holder trim cover - 9965522870001C
Clip for the trim cover - 191853615A (4 needed)



Thank you for your very informative answer! Any recommendations on where I should order these parts?

Also, in the picture below - Am I needing part number 11?



We should be able to get you everything you need. PM me with details and I will get you a cart ready.



I am in dire straights with a cracked rear wheel.

I am looking for 18's (aftermarket is ok) black rims for under $1000.

If anyone knows the direction I can start looking (checked ebay and craigslist).

Thanks



Ordered! Thanks a Ton!

Sorry about the delay, just closed on our new house and moved.

Cheers



I had the wheel straightened and welded ~$100.

Recommend Cascade Wheels for repairs or painting or powder coating if you're in the Seattle Area.

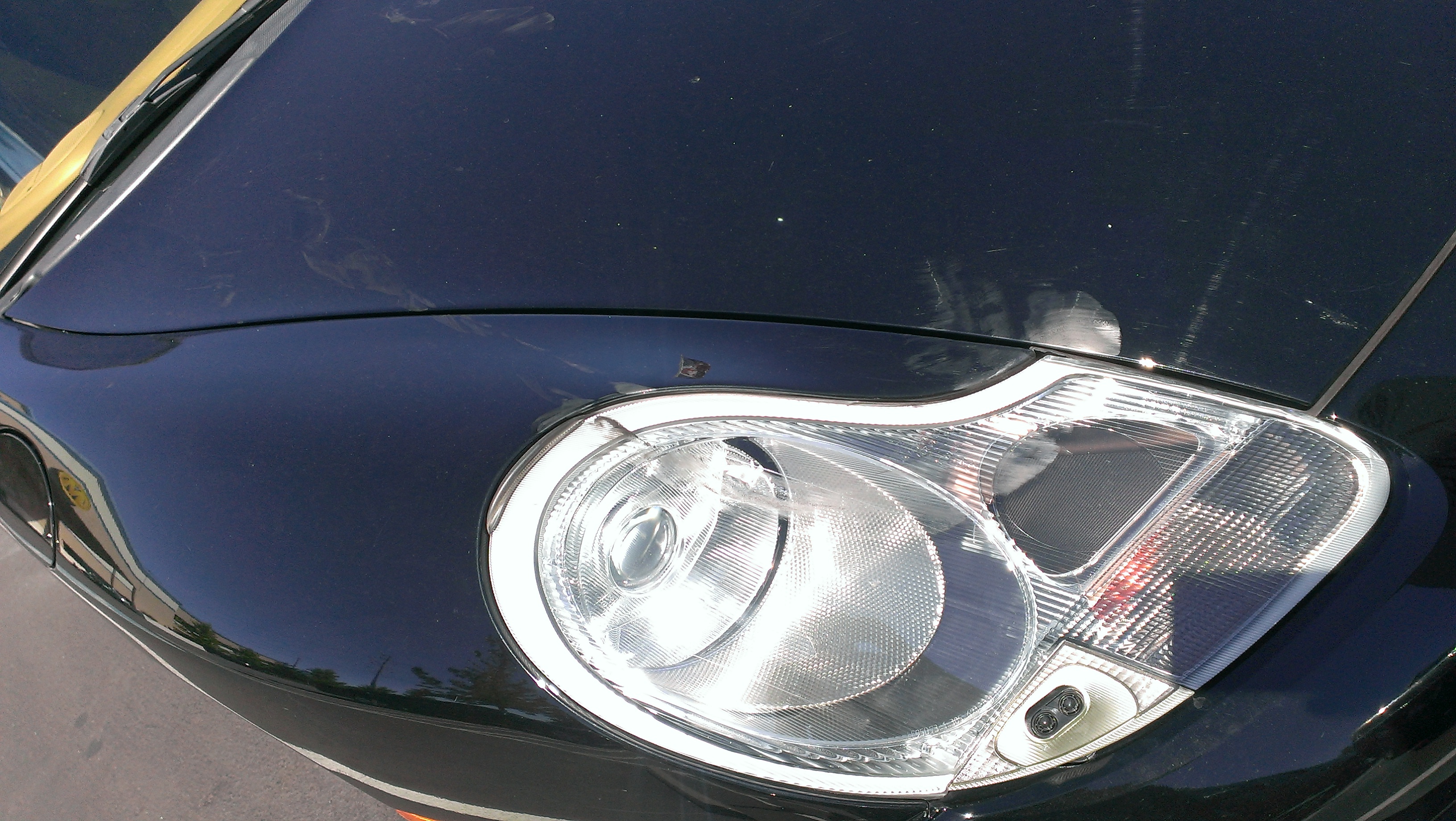

So I was going down I-405, keeping up with traffic in the go fast lane with my top up .... and BLAMMO - The remainder of a semi tire flew up from under a car and smacked my headlight and dented my hood.

It looks like a biker did burnouts on my hood...

Took it into Kirmac in Bellevue the following day and now I have a buffed front end of my car (new headlight, new hood, new emblem).

Now I just need to buff the back half of my car to match the front



Would you happen to have a diagram for the radio for pre 2002?

Thank you very much.

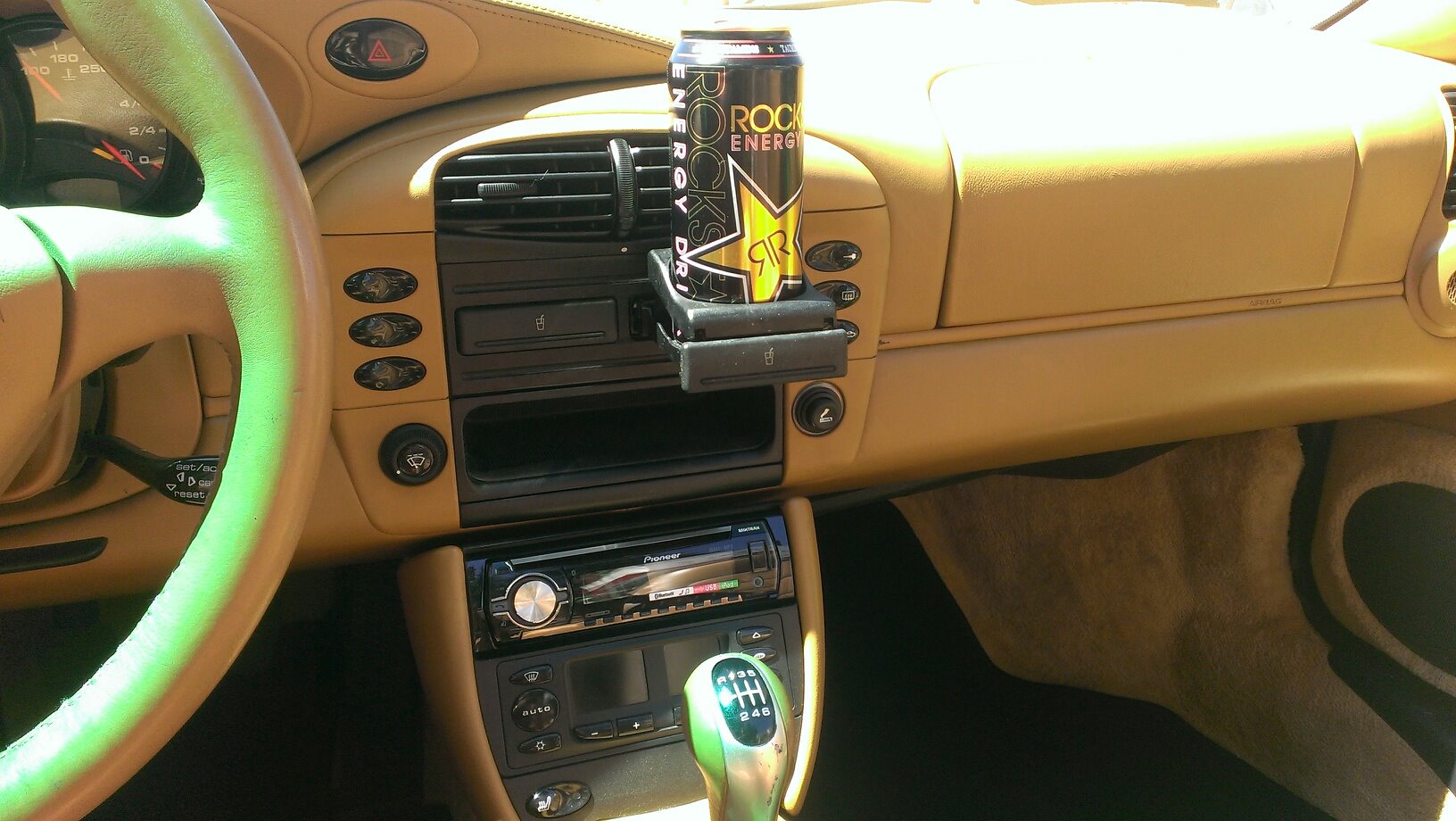

I figured it out and it works as intended!!! The exact setup I wanted!

Thanks guys!



Sweet! Looks perfect!



Glad you got it figured out, it turned out great
