Cold Air Intake: Schnell V. Fabspeed
#31
Agreed, 100%
Last edited by mrfva; 10-13-2009 at 10:41 AM.
#32
That is quite a testimony. With a couple of key questions:
What filter is inside the airbox?
Did the class restrict any modifications in air intake?
Did they get the Fabspeed hose for free?
I would be absolutely convinced that the Fabspeed hose does not cause a REDUCTION in HP. But is there a real increase without the use of a BMC filter? What is the dyno result with a BMC filter alone?
Sorry for being a skeptic; I just know oftentimes things are not necessarily what they appear to be.
What filter is inside the airbox?
Did the class restrict any modifications in air intake?
Did they get the Fabspeed hose for free?
I would be absolutely convinced that the Fabspeed hose does not cause a REDUCTION in HP. But is there a real increase without the use of a BMC filter? What is the dyno result with a BMC filter alone?
Sorry for being a skeptic; I just know oftentimes things are not necessarily what they appear to be.
#33

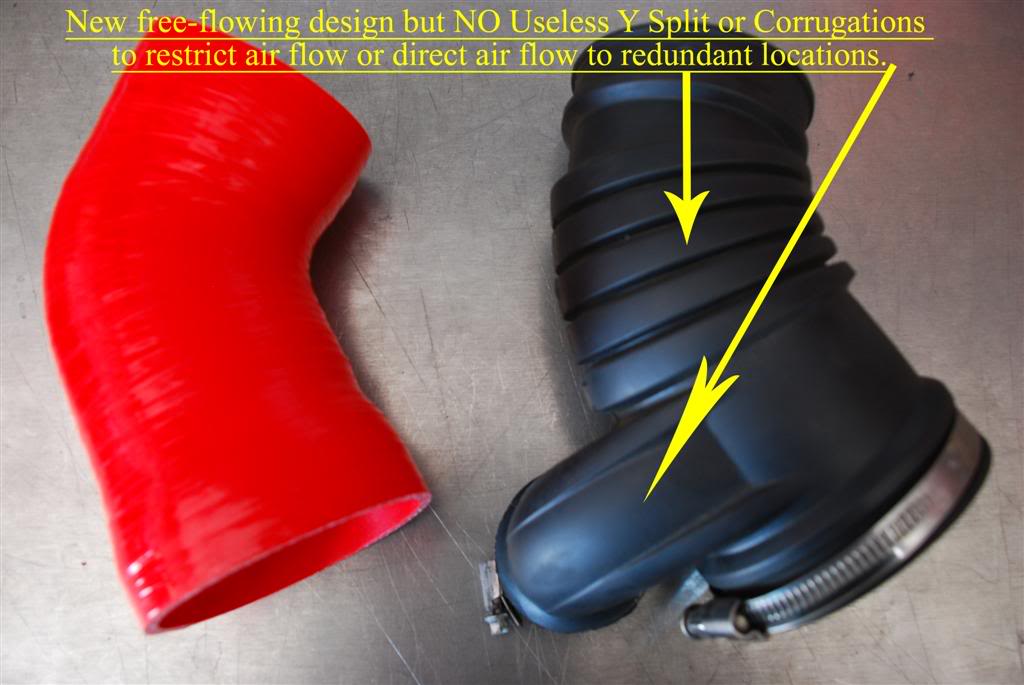

Check out the comparison between the Factory Y hose on a 996 or 997 versus our Fabspeed mirror smooth silicone which increases power and sound when used together with the BMC air filter. You can clearly see why our Intake hose flow better and makes an increase of 8+ HP through out the RPM range on a 997 S. Take a look at the pictures below. Let me know if you have any questions.
Thanks,
![Name: 996and997FactoryYHoseInformationLar.jpg
Views: 656
Size: 72.9 KB](https://www.6speedonline.com/forums/attachment.php?attachmentid=507363&d=1501791993)
![Name: 996and997IntakeHoseVersusFabspeedLa.jpg
Views: 1011
Size: 73.9 KB](https://www.6speedonline.com/forums/attachment.php?attachmentid=507364&d=1501791993)
Video Demonstration on the Intake:
http://www.fabspeed.com/videos/997%2...0Air%20Kit.wmv
Thanks,
Video Demonstration on the Intake:
http://www.fabspeed.com/videos/997%2...0Air%20Kit.wmv
Last edited by Fabspeed Motorsport; 10-13-2009 at 10:35 AM.
#35
Alex - thanks for the pictures. Do you have any data on gains using your intake tube + resonator cap without an aftermarket air filter of any kind? I think that is where the majority of curiosity resides.
#36
Thanks guys, if you do just the cold air kit upgrade which is the hose and block off, you will see approximately a 4-5 HP gain without the BMC filter. The BMC filter makes a big difference because they complement each other when done together and you see the full potential of hp gain.
Thanks,
Thanks,
#37
I just capped my resonator for the sound improvement, I think that silicone elbow hose is a waste of money.
The K&N just looks bad and has limited "water shield" benefits.
I think porsche knows how to design an efficient airbox that flows well and keeps the water out of the motor.
The K&N just looks bad and has limited "water shield" benefits.
I think porsche knows how to design an efficient airbox that flows well and keeps the water out of the motor.
i understand the Fabspeed comes with one red cap..
thanks
What did u use to cap it..
anyway how does it work?
thanks
#38
i already posted a pic (see post #14) in this thread.
#39
Find a cap in your garage that just fits the resonator opening and cut it down to fit. The rubber hose then fits right over it. On or off in 2 minutes.
No air actually flows thru the resonator, it is basically just a small chamber that is tuned to muffle certain intake frequencies.
If you cant find a cap in your house i think a Gillete Gel shave cream cap will do the job.
d
No air actually flows thru the resonator, it is basically just a small chamber that is tuned to muffle certain intake frequencies.
If you cant find a cap in your house i think a Gillete Gel shave cream cap will do the job.
d
Nice..
So now i have to find a suitable cap..
Any issues so far with your cap? must it be very secure?
Im jus worried if the Cap might come loose and end up entering the Airbox
thx
#41
Thanks guys, if you do just the cold air kit upgrade which is the hose and block off, you will see approximately a 4-5 HP gain without the BMC filter. The BMC filter makes a big difference because they complement each other when done together and you see the full potential of hp gain.
Thanks,
Thanks,
Can you make one of those tubes to connect an x-51 air box to a stock 997S motor?
Or just one for a stock 997S with X-51?
#42
Thanks,
#43
Alex,
That is not at all what I am asking.
The X-51 option has a larger diameter hose then the stock 997s.
Approx 6mm.
Many of us have converted to the X-51 airbox requiring us to create a sleeve to fit over the the Throttle body with the Xi51 air box and its hose.
So I will ask again;
Can you make one of those tubes to connect an x-51 air box to a stock 997S motor? Larger diameter at the air box same for the TB as current.
Or just one for a stock 997S with X-51? Larger dia both ends.
That is not at all what I am asking.
The X-51 option has a larger diameter hose then the stock 997s.
Approx 6mm.
Many of us have converted to the X-51 airbox requiring us to create a sleeve to fit over the the Throttle body with the Xi51 air box and its hose.
So I will ask again;
Can you make one of those tubes to connect an x-51 air box to a stock 997S motor? Larger diameter at the air box same for the TB as current.
Or just one for a stock 997S with X-51? Larger dia both ends.
#45
Alex,
I believe what dndodd is asking is would Fabspeed be willing to fabricate a tapering hose that will fit the X-51 airbox, tapering down to the stock 997S or 997 TB for a smooth transition.
I believe what dndodd is asking is would Fabspeed be willing to fabricate a tapering hose that will fit the X-51 airbox, tapering down to the stock 997S or 997 TB for a smooth transition.
