New to Forum/Filter Changes at 9000 miles

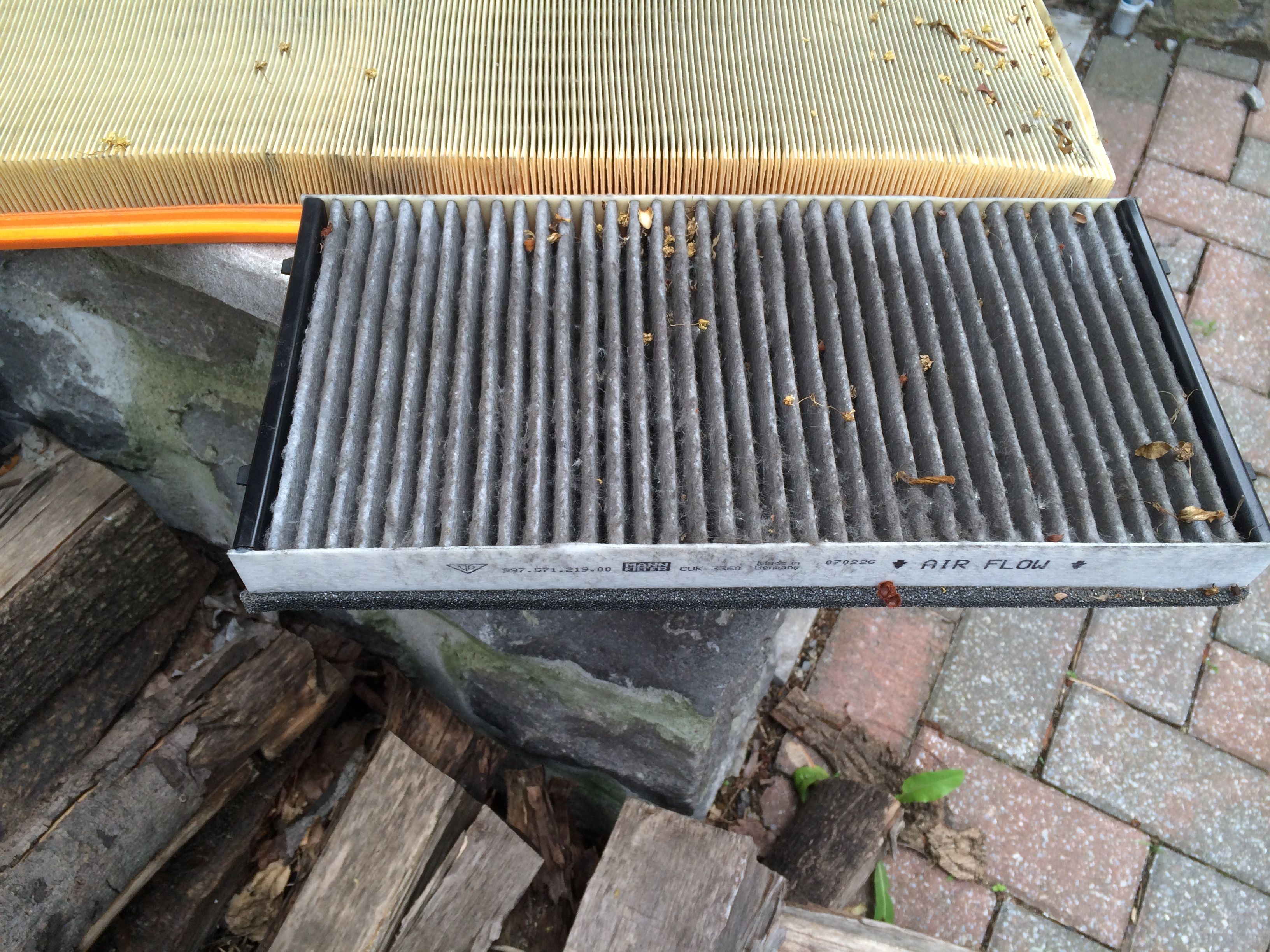

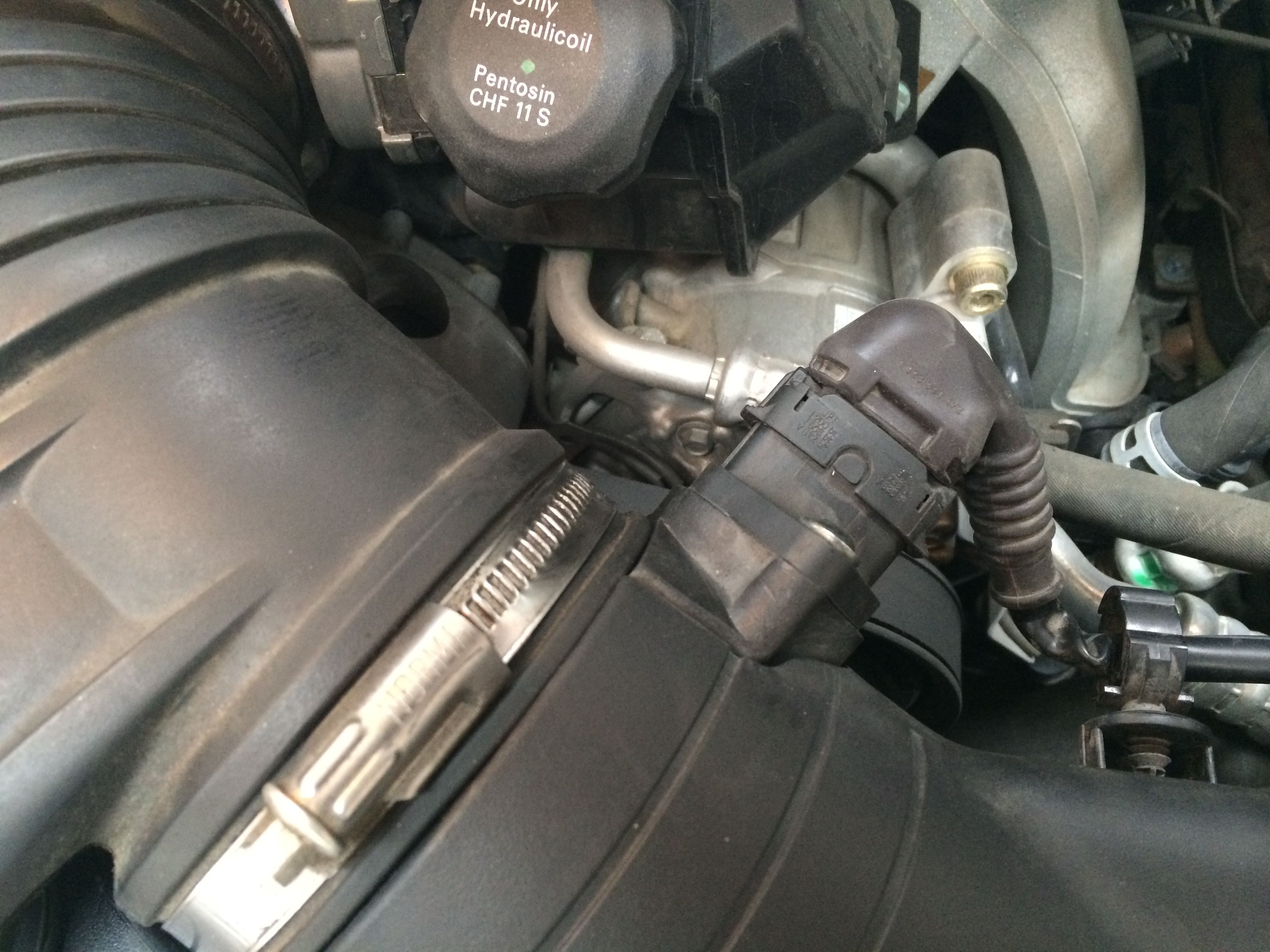

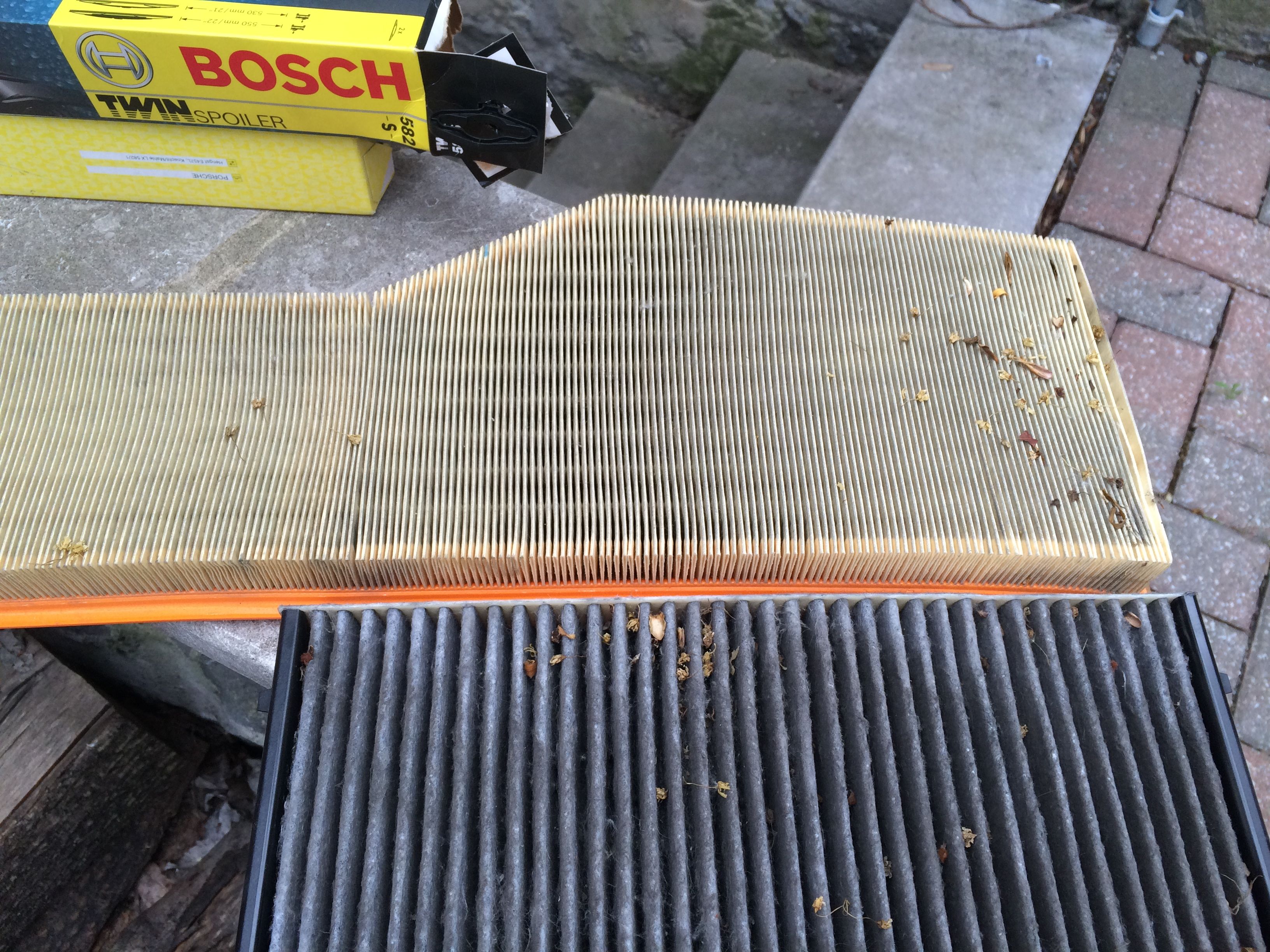

I am new to the forum and have been gobbling up all the great info on it. I have had a 2007 997.1 C4S Cab since new. It is a fair weather car and is not driven much: 9000 miles in 7 years. While the warranty was in effect and until last, the car was dealer maintained. What finally convinced me to perform my own maintenance, was a quote from my local dealer for CAD1800 for a major service: oil/filter, plugs, air filter, cabin filter plus some inspections. I just changed the air filter and the cabin filter, which was not too challenging. I was amazed by the crap that was stuck in the filters. Considering the small cost of the parts, I will be changing filters every season, irregardless of mileage. Here are 2 photos of the old filters. I was unable to pull this connector off and gave up in fear of breaking it. I was able to twist the air box 90 degrees and change the filter. For the next time, how does one remove this connector? The other connector had a metal clip which I pulled out and then I lifted the connector straight up.

Attached Thumbnails Click image for larger version

Name:	IMG_0596.jpg
Views:	89
Size:	1.31 MB
ID:	388188   Click image for larger version

Name:	IMG_0597.jpg
Views:	93
Size:	1.35 MB
ID:	388189   Click image for larger version

Name:	IMG_0598.jpg
Views:	99
Size:	725.9 KB
ID:	388190
Old Jun 17, 2014 | 07:22 AM
  #2
barncobob's Avatar
Registered User
Joined: Oct 2012
Posts: 631
From: Hangtown, Ca.(gold country)
Rep Power: 42
barncobob is a jewel in the roughbarncobob is a jewel in the roughbarncobob is a jewel in the roughbarncobob is a jewel in the rough
I just replaced my serpentine belt so I had to totally remove airbox including the MAF,,,i used a #20 safety torx and took the the 2 screws out, really easy..
the safety torx is same as regular torx but has a dimple in bottom

Old Jun 17, 2014 | 08:45 AM
  #3
hansr433's Avatar
Thread Starter
|
Registered User
Joined: Jun 2014
Posts: 5
From: Montreal
Rep Power: 0
hansr433 is infamous around these parts
Originally Posted by barncobob
I just replaced my serpentine belt so I had to totally remove airbox including the MAF,,,i used a #20 safety torx and took the the 2 screws out, really easy..
the safety torx is same as regular torx but has a dimple in bottom
Dah...I did not think of that. Thanks.

Old Jun 17, 2014 | 10:52 AM
  #4
porschelady's Avatar
Registered User
Joined: Oct 2013
Posts: 215
From: texas
Rep Power: 25
porschelady is just really niceporschelady is just really niceporschelady is just really niceporschelady is just really niceporschelady is just really nice
Porsche charges outrageous prices for those services. It can all be done for about $5-600.00.00 in parts. I changed oil/filter/cabin air and engine air plus plugs, and while they were out, the ignition coils for around $600.00. Should've done the belt while box was out but had forgotten to order one. Took about 6 hours but at least I wasn't paying someone $150.00/hour. BTW, the MAF can be cleaned without removing it in an "08. With the box out you can see the electrodes and spray them with MAF cleaner.

Old Jun 17, 2014 | 05:00 PM
  #5
hansr433's Avatar
Thread Starter
|
Registered User
Joined: Jun 2014
Posts: 5
From: Montreal
Rep Power: 0
hansr433 is infamous around these parts
So, today I finally figured out how to disconnect the MAF sensor - so easy when you know how. Place your thumb on the middle of the connector just where the rubber sleeve ends and your index finger in the same position on the back of the connector. Press hard with your index finger - the area you are pressing is slightly raised, and CLICK. Lift the connector straight up. Reverse - insert plug until it CLICKS. Done.

Old Jun 18, 2014 | 12:39 PM
  #6
Dadio's Avatar
Registered User
Joined: Jun 2008
Posts: 1,342
From: USA
Rep Power: 104
Dadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond reputeDadio has a reputation beyond repute
Originally Posted by hansr433
Dah...I did not think of that. Thanks.


In light of the chance the MAF could be damaged or soiled while removed from the air box, I leave it where it is and just remove the connector.
