GT 3 Rear brake duct install for track

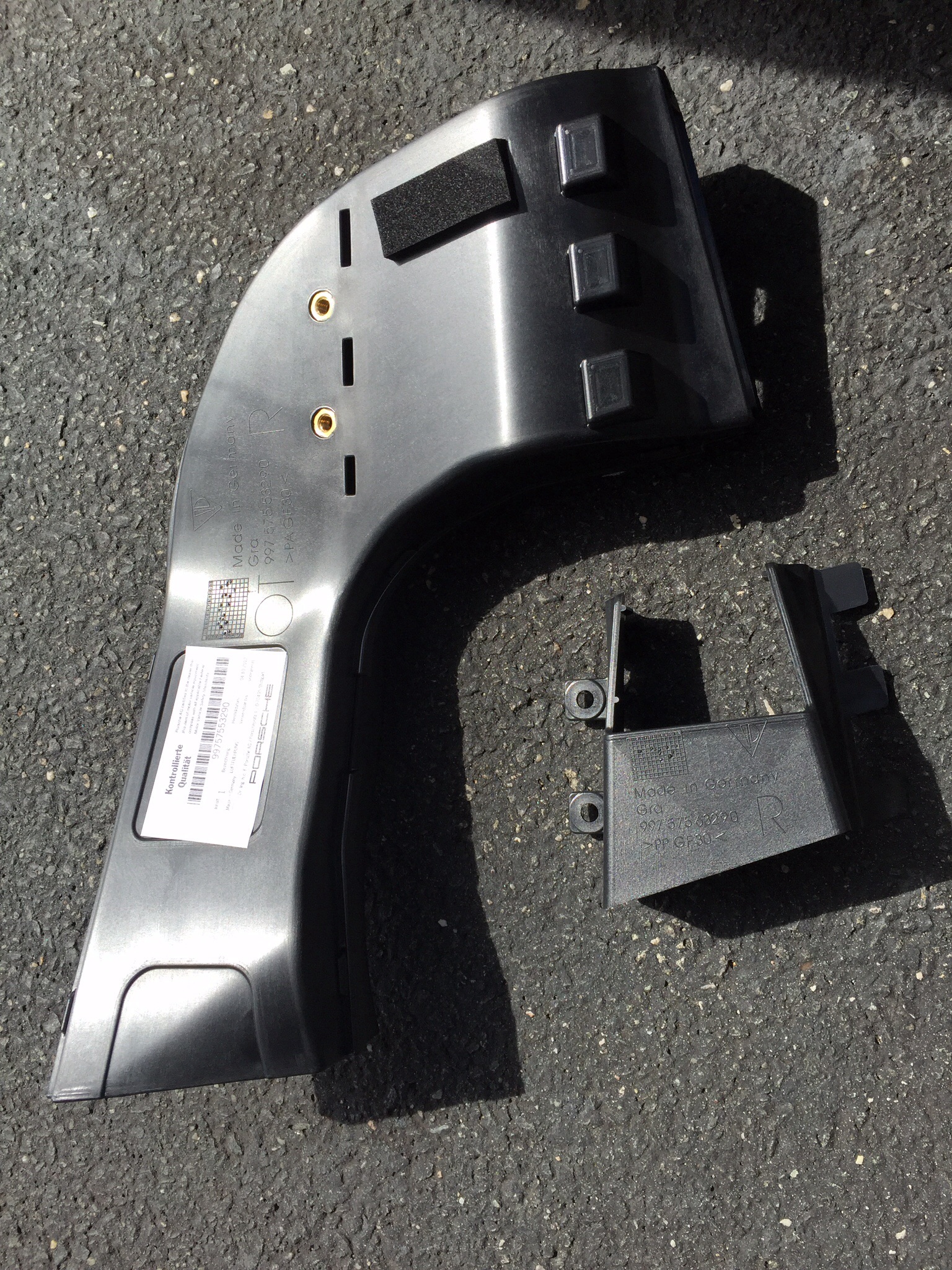

I noticed that 997.2 GT3's have a large cooling duct under the rear lower control arm and I wondered if they would fit my 997.1 Carrera S. You can order them from the dealer but Suncoast has a kit with all the parts.
Here is what you do;
Jack up and support the car properly
Remove the rear wheel
Remove the rear caliper and hang it out of the way, be carefull of the wireing attached to the rear of the caliper.
Remove brake disc
Remove backing plate
Place bracket over the control arm and slide it to the stop on the control arm
Slide in one side of bracket to the duct
Use supplied screws or attach other side of bracket to duct, I actually used longer screws, just could not get the short ones to catch.
Measure and trim backing plate so air comming out of duct can hit disc.
Re attach backing plate, disc, brake caliper, and remount tire.
Hopefully this will extend the life of the brake discs.

I did wonder if this was a weird design, since all the air blows on only one side of the disc, but I believe Porsche must know best.

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	95
Size:	1.32 MB
ID:	425576
Old Aug 8, 2015 | 12:16 PM
  #2
Karl B's Avatar
Thread Starter
|
Registered User
Joined: May 2010
Posts: 169
From: Bay SHore, LI, NY
Rep Power: 22
Karl B is infamous around these parts

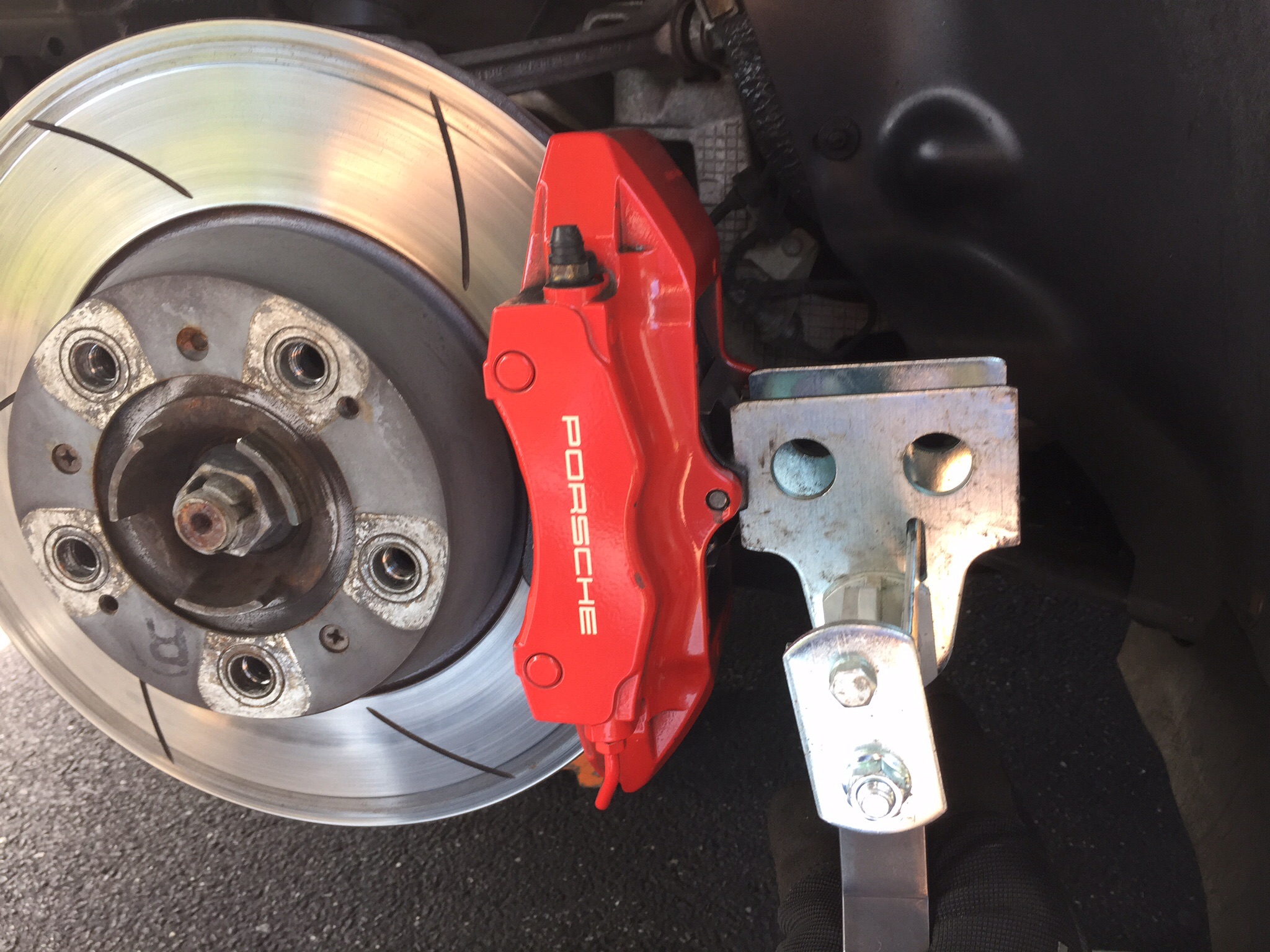

Spread the pads

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	91
Size:	745.4 KB
ID:	425577
Old Aug 8, 2015 | 12:18 PM
  #3
Karl B's Avatar
Thread Starter
|
Registered User
Joined: May 2010
Posts: 169
From: Bay SHore, LI, NY
Rep Power: 22
Karl B is infamous around these parts

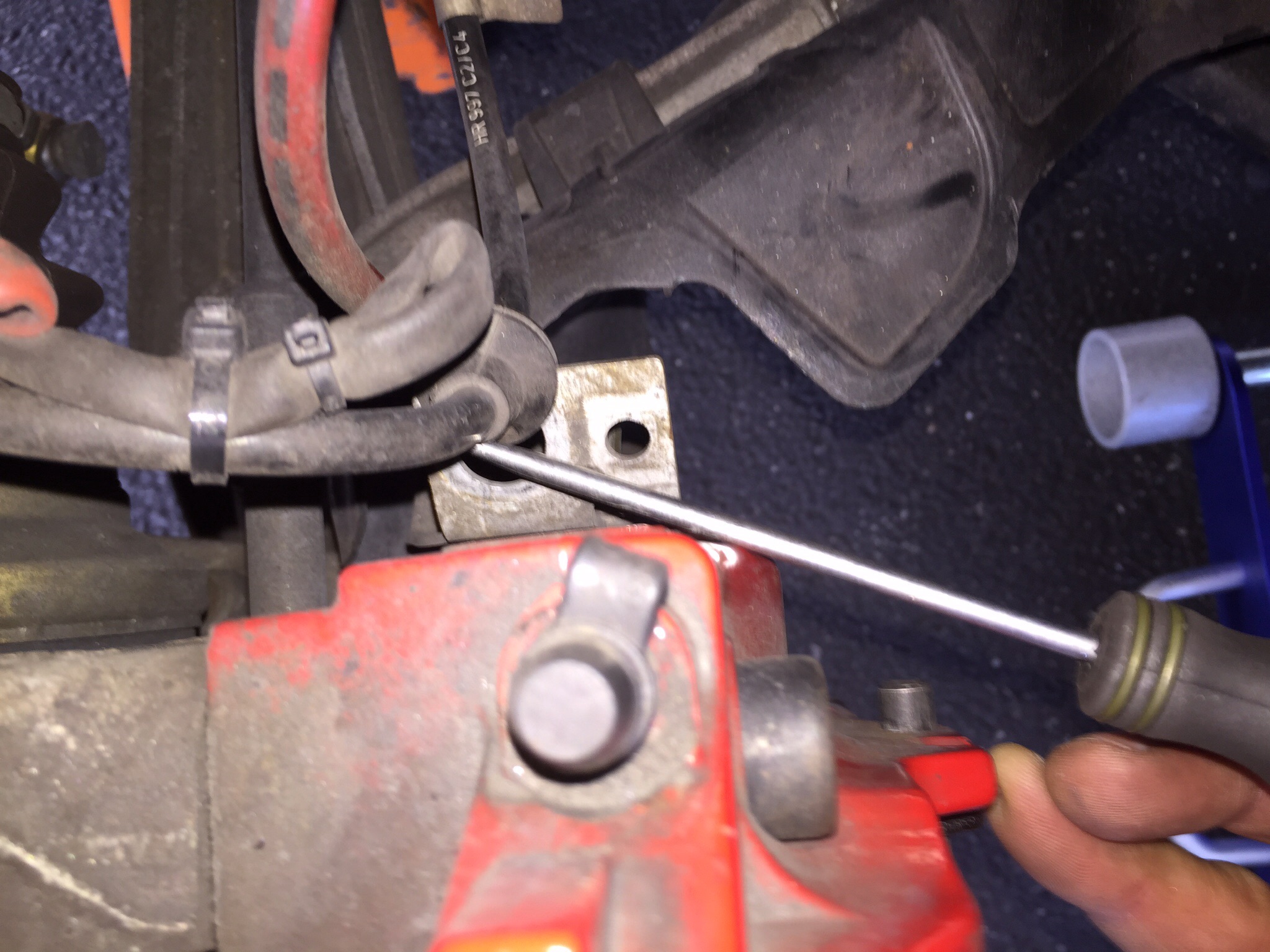

Pry out the wire carefully

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	85
Size:	575.0 KB
ID:	425578
Old Aug 8, 2015 | 12:19 PM
  #4
Karl B's Avatar
Thread Starter
|
Registered User
Joined: May 2010
Posts: 169
From: Bay SHore, LI, NY
Rep Power: 22
Karl B is infamous around these parts

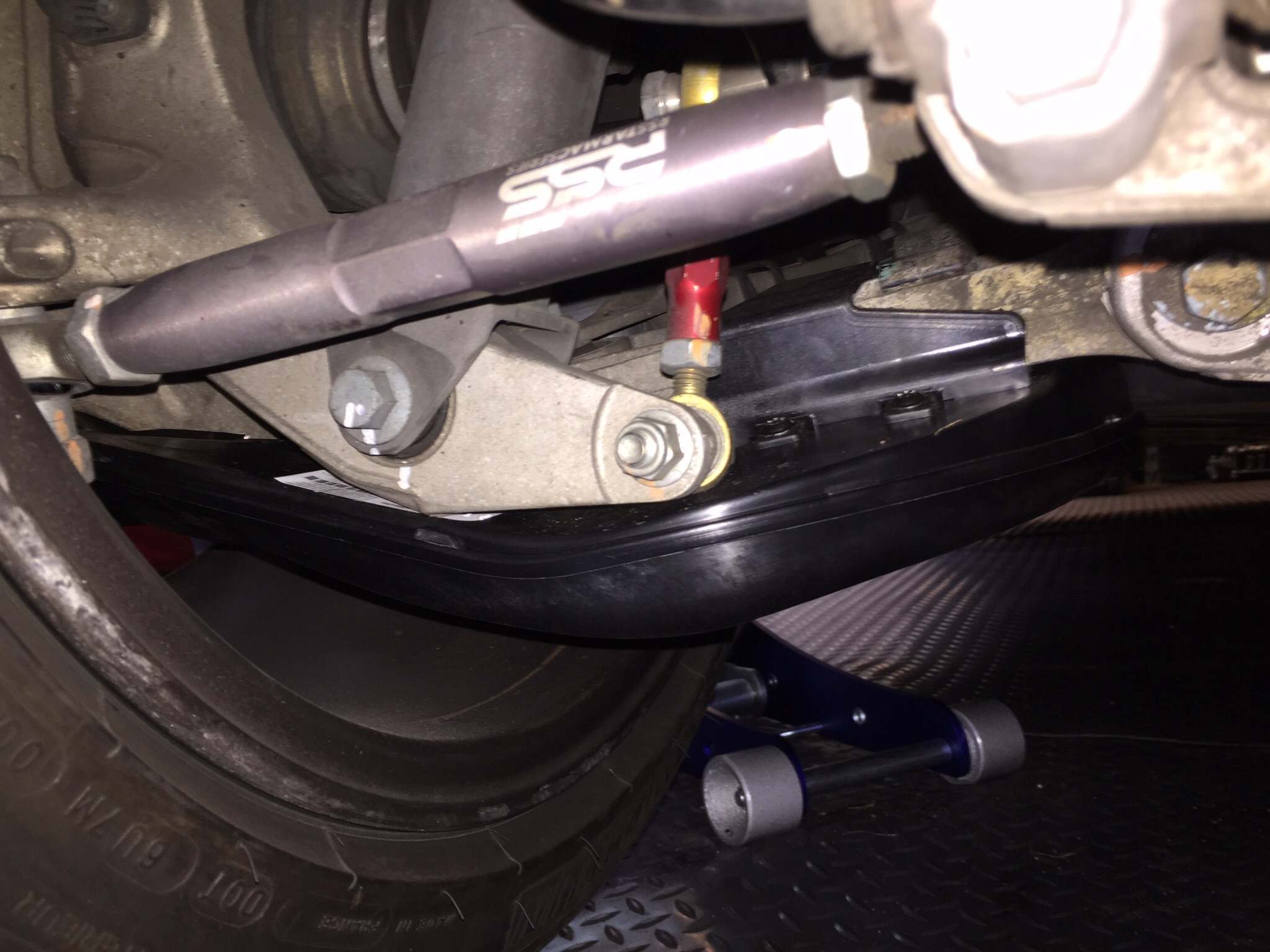

Fitting duct

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	77
Size:	552.0 KB
ID:	425579
Old Aug 8, 2015 | 12:21 PM
  #5
Karl B's Avatar
Thread Starter
|
Registered User
Joined: May 2010
Posts: 169
From: Bay SHore, LI, NY
Rep Power: 22
Karl B is infamous around these parts

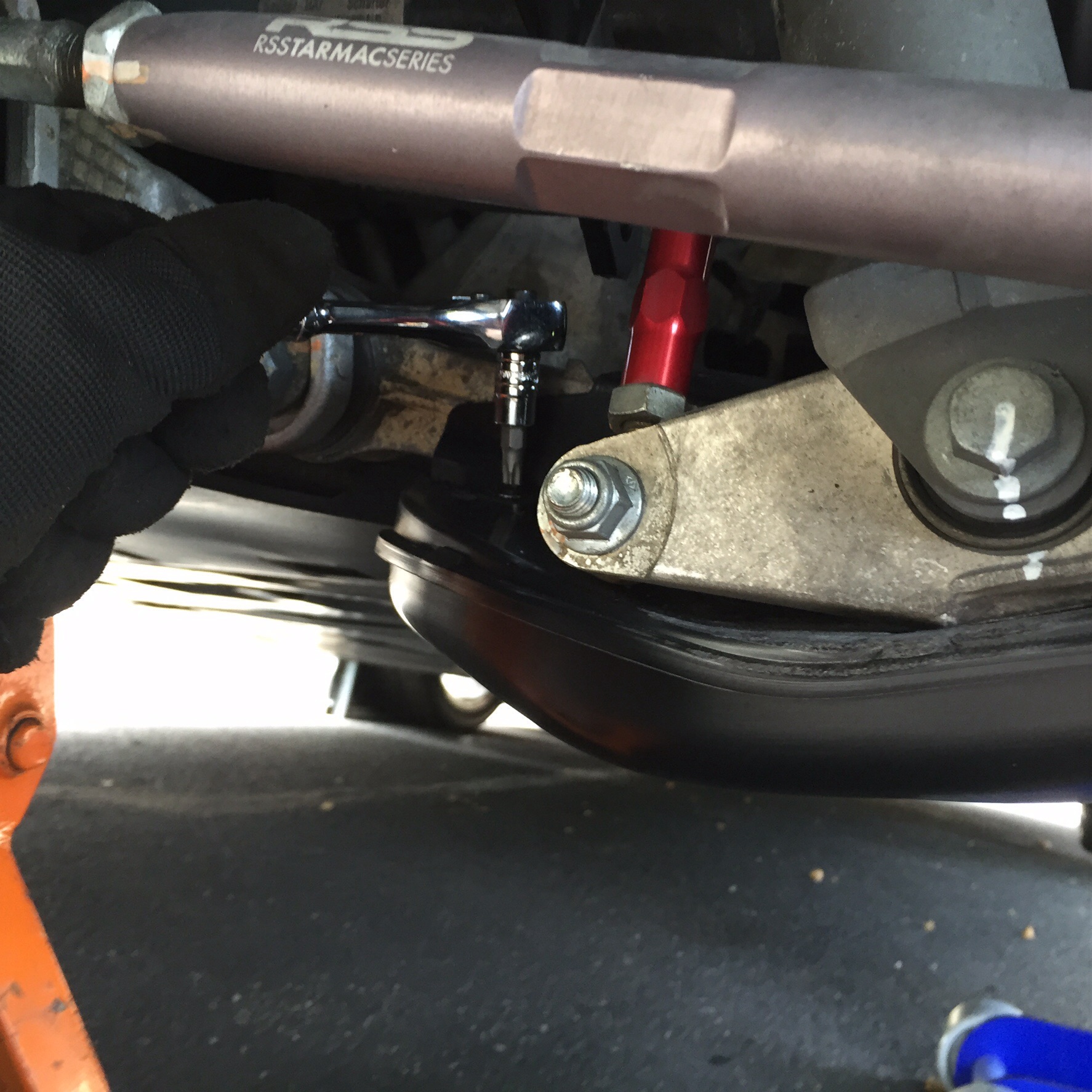

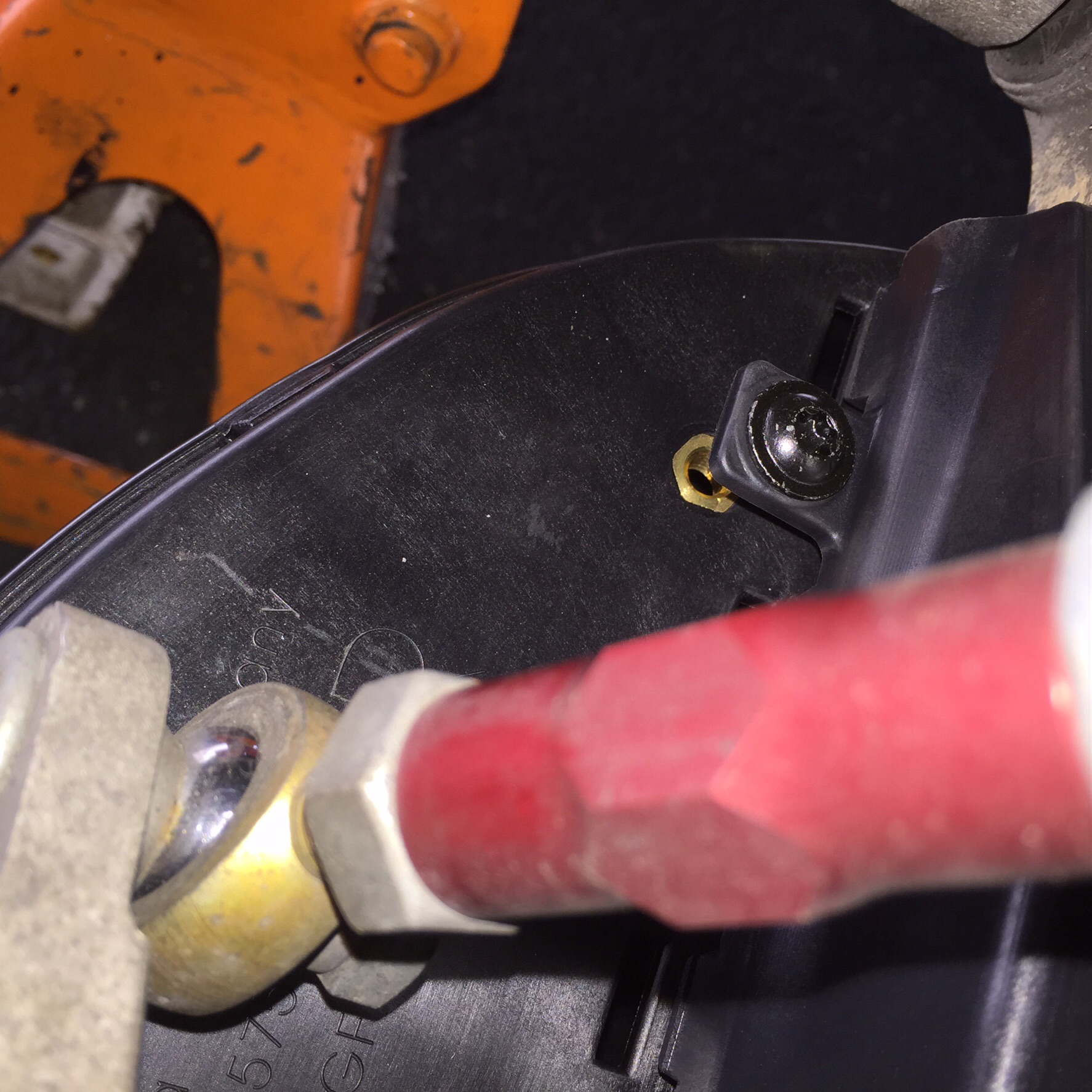

Line everything up and insert screws

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	77
Size:	674.5 KB
ID:	425580
Old Aug 8, 2015 | 12:23 PM
  #6
Karl B's Avatar
Thread Starter
|
Registered User
Joined: May 2010
Posts: 169
From: Bay SHore, LI, NY
Rep Power: 22
Karl B is infamous around these parts

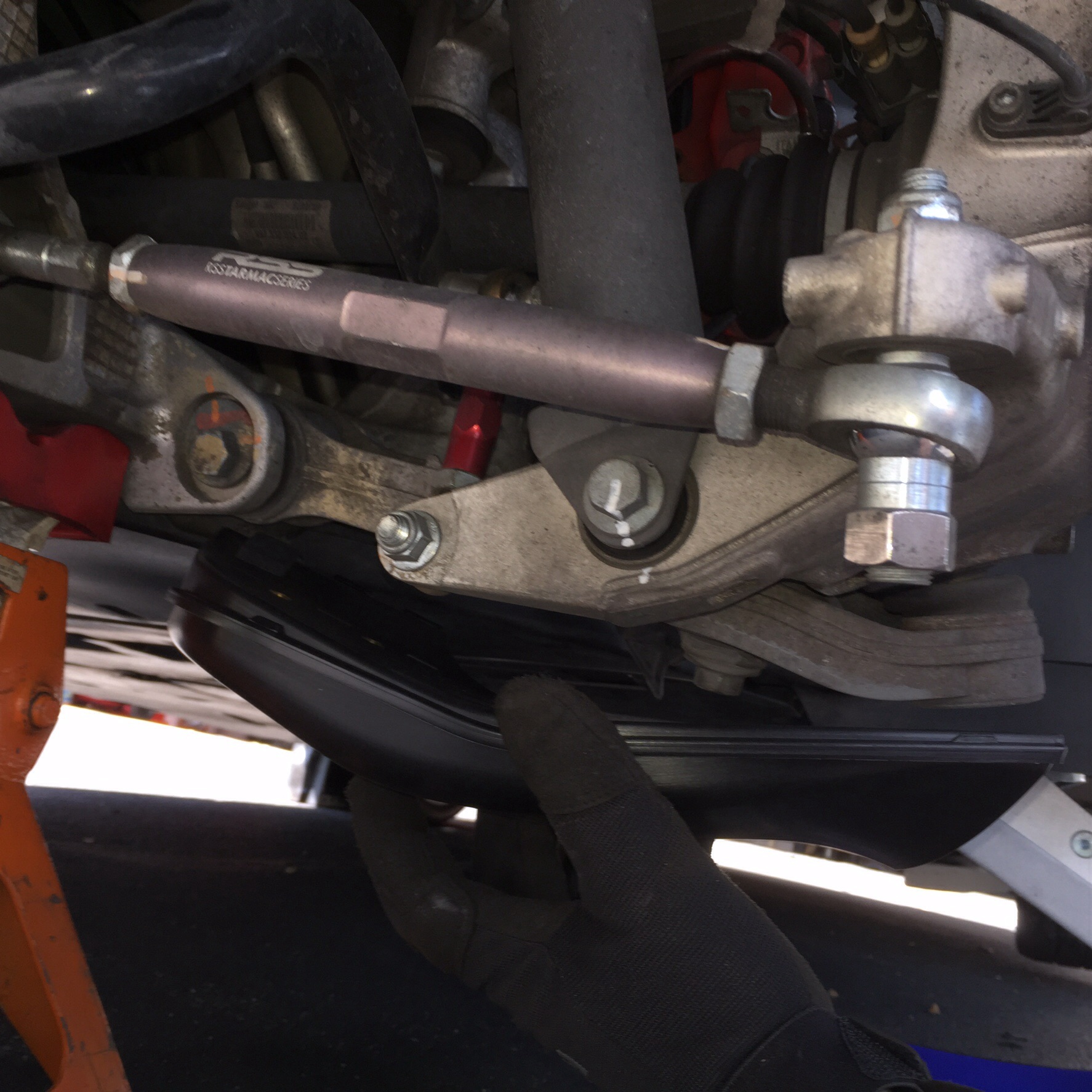

It's really tight between the sway bar and rear axle

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	71
Size:	589.0 KB
ID:	425581
Old Aug 8, 2015 | 12:26 PM
  #7
Karl B's Avatar
Thread Starter
|
Registered User
Joined: May 2010
Posts: 169
From: Bay SHore, LI, NY
Rep Power: 22
Karl B is infamous around these parts

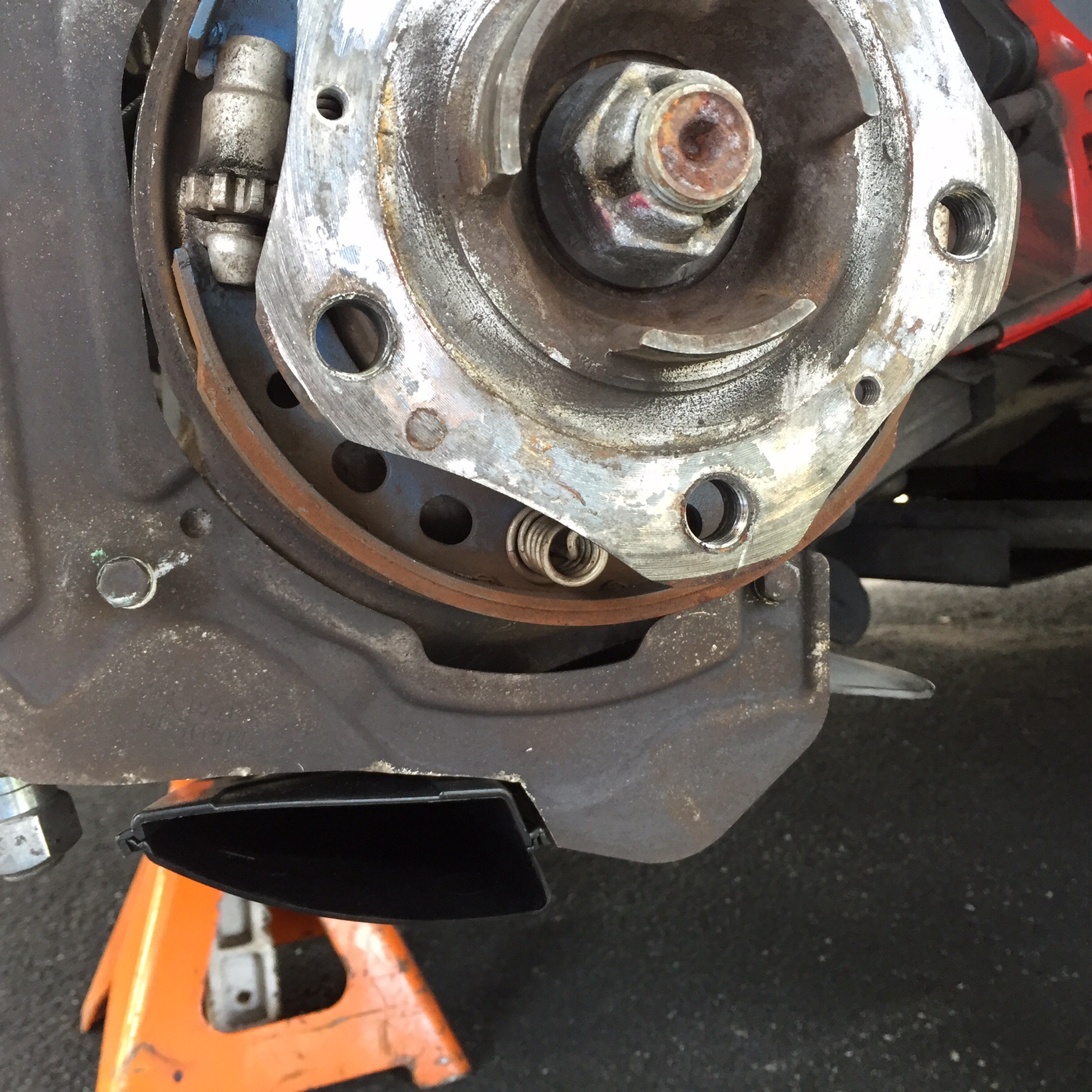

Not much metal needs to be removed, I used a pair of tin snips

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	84
Size:	848.2 KB
ID:	425582
Old Aug 8, 2015 | 12:29 PM
  #8
Karl B's Avatar
Thread Starter
|
Registered User
Joined: May 2010
Posts: 169
From: Bay SHore, LI, NY
Rep Power: 22
Karl B is infamous around these parts
Lime Rock Park this Thursday, let's see how they work.

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	74
Size:	577.3 KB
ID:	425583
