Avoid EBC Redstuff brake pads
Registered User
Joined: Apr 2011
Posts: 2,358
From: Melbourne
Rep Power: 214
Here are the steps from Aston's Service Bulletin SB0243V3:
Issue
Brake squeal under light to medium braking, usually at lower speeds.
Based on individual customer usage, always reuse the existing foundation brake pads unless they will not reach the next routine maintenance service, in which case new disc pads (material only) are chargeable to the customer.
Following the fitment of any new brake pads with isolators, ensure the brake pads are properly bedded in (see SB0151).
1. Remove the brake pads as required.
2. Deglaze the friction material surfaces and then clean using brake cleaner.
3. Radius the leading edges of the pads.
4. Apply a proprietary “brake paste” to the brake pad metal top and bottom edges, where the pad slides into the caliper.

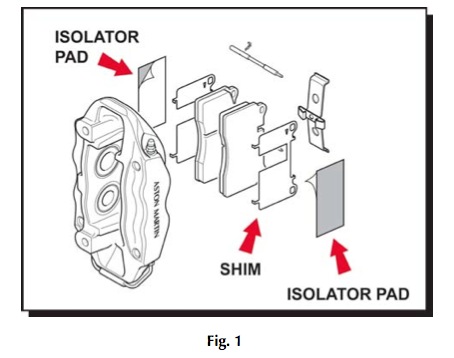

5. Fit one of the sticky backed isolators to each of the pads, adhesive side to the steel shim (see Fig 1).
7. Refit the pads.
8. Road test the car to confirm that brake squeal is eliminated.
Issue
Brake squeal under light to medium braking, usually at lower speeds.
Based on individual customer usage, always reuse the existing foundation brake pads unless they will not reach the next routine maintenance service, in which case new disc pads (material only) are chargeable to the customer.
Following the fitment of any new brake pads with isolators, ensure the brake pads are properly bedded in (see SB0151).
Note: The procedure detailed below must only be carried out on a customer complaint basis, and must be done as a complete vehicle set regardless of whether the squeal is front or rear.
Procedure1. Remove the brake pads as required.
2. Deglaze the friction material surfaces and then clean using brake cleaner.
3. Radius the leading edges of the pads.
4. Apply a proprietary “brake paste” to the brake pad metal top and bottom edges, where the pad slides into the caliper.
5. Fit one of the sticky backed isolators to each of the pads, adhesive side to the steel shim (see Fig 1).
Note: When fitting the isolators to the rear Brake Pads they will require trimming to fit. Remove any excess isolator material protruding over the lower edge of the Brake Pad.
6. Lightly deglaze the brake disc surface and then clean using brake cleaner.7. Refit the pads.
8. Road test the car to confirm that brake squeal is eliminated.
Last edited by karlfranz; Aug 20, 2013 at 07:26 AM.
Registered User
Joined: May 2011
Posts: 381
From: Chicago Area
Rep Power: 62
Thank you KF! I installed both front and rear pads with Porterfield R4-S over the weekend. Reused the OE shims by removing the new shims came with the new pads. applied permatex on both side of the shims and didn't break the brake sensor cables.
Result is pure quietness! would like to give you another rep point but the system won't allow.
Result is pure quietness! would like to give you another rep point but the system won't allow.
Registered User
Joined: Feb 2013
Posts: 509
From: pa
Rep Power: 37
Break noise
Try the porterfield pads, a little more pricey at around 400 for a set. I am on my second set, one I put on without changing the rotors, the other after putting on the new two piece rotors from Stu. Neither squealed, the brake dust is way down and the bite/grip of the pad on the new rotors is awesome. I will be tracking the car in the fall, can't wait to see the difference.
