chaps,

Can anyone tell me the part-numbers of the early ('04 05') DB9's PDC-sensors mounted in the rear-bumper and rear diffuser? It's a total of 4 sensors which I suspect are either Volvo-parts or Ford? Thanks in advance.



I was told the system is from Jaguar. The center ones are not the same as the outer ones.



Thanks for that. Anyone that can verify that and if so of which Jag-model?

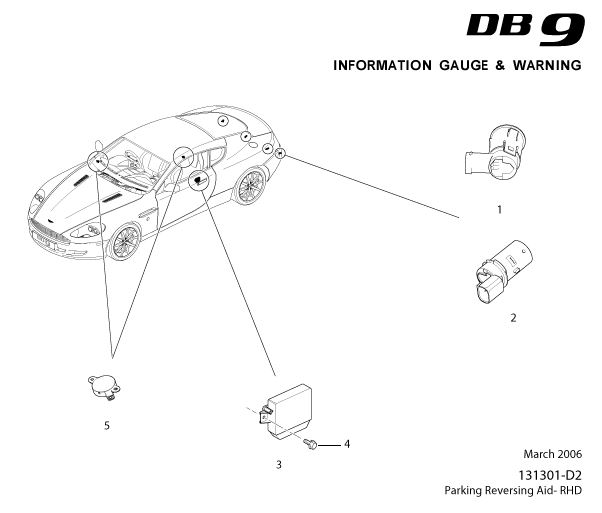

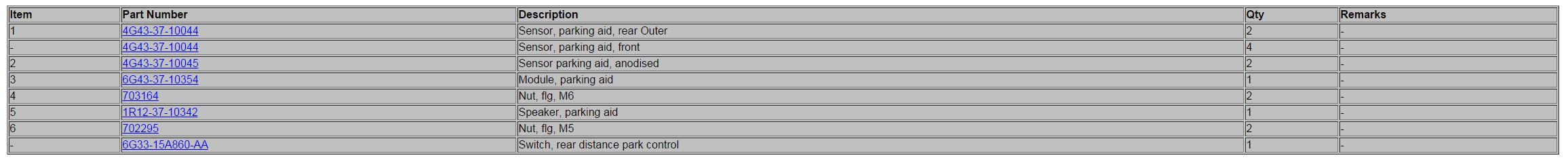

I've done some more research and have found the right part no's: the outer two (2) sensors are 4G43-37-10044 with the two (2) inner being Part no # 4G43-37-10045. See attached.



Have you removed the old sensors? Sometimes Aston Martin will have their own in house part# but the original part# will be stamped on it from whatever manufacture's parts bin they took it from. A stamped Jaguar or Volvo part# would not surprise me in this case...



Haven't done so yet, but I have ordered the parts per above. I want to keep my OEM bumper intact & stored and have my modded bumper to have all the original fittings.
