Ralt RT-40 Formula Atlantic
#1
Ralt RT-40 Formula Atlantic
Year: 1994
Make: Toyota
Model: Celica
Price: $32000
Mileage: 1
Color: Red
Private or Dealer Listing: Private Listing
Location (State): GA
Transmission: Manual
Drivetrain: Rear Wheel Drive
We got it here at my shop and finished the job over a period of about 4 months.
All the critical components have been crack checked.
The tub was gone through at Algie Composites.
Dyno time only Loyning engine w/carbs.
Top of the line PI "Delta" logger and dash.
Fresh "everything"
Has numerous spares, gear sets, wheels (unassembled) that I have not inventoried
Needs belts and a couple of little things.
$32,000
Keith Roberts
Located in Lagrange, GA 30240
#2
Ralt RT-40 Formula Atlantic
Chassis #1015
Engine

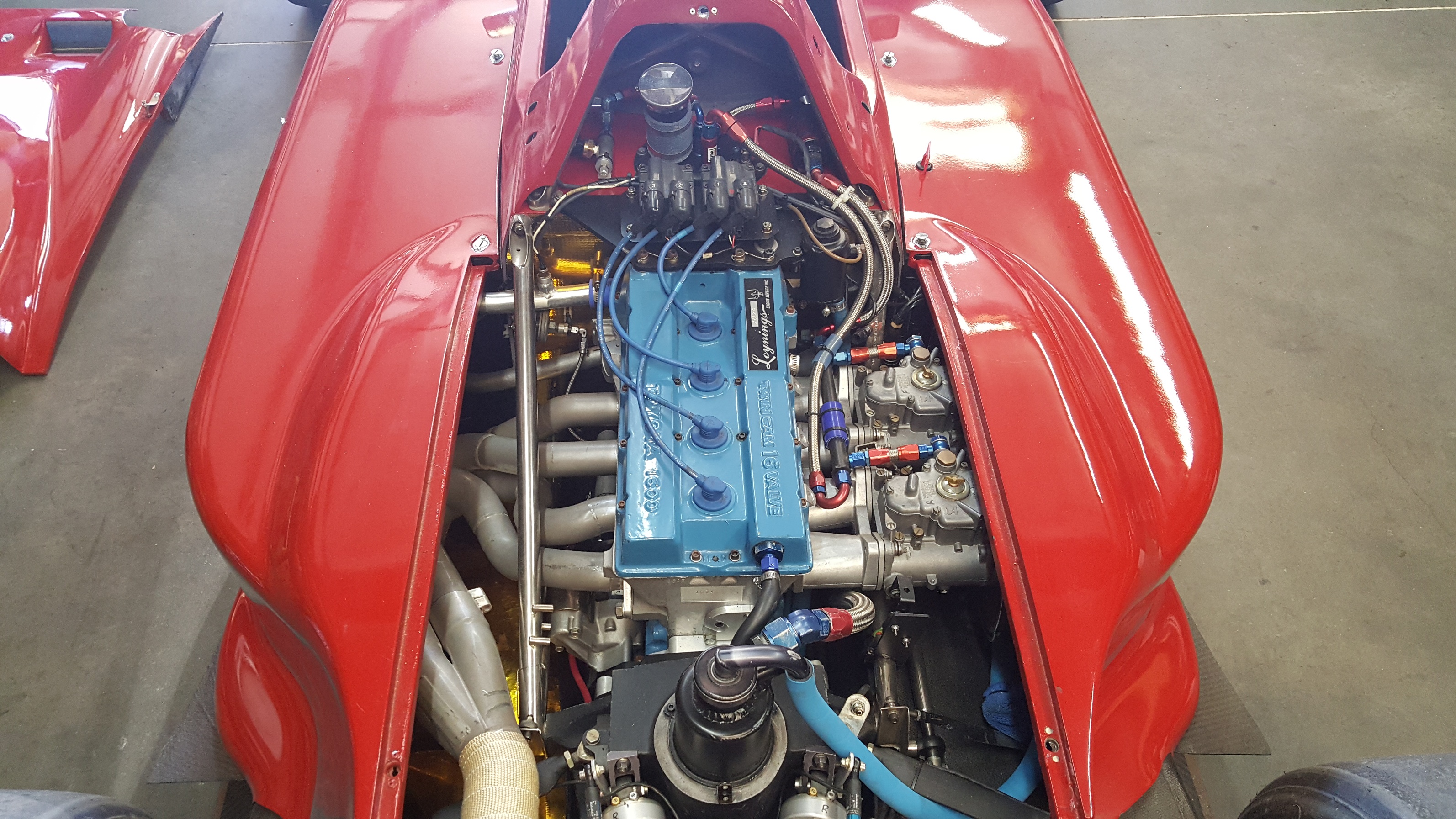

• Zero-mile fresh Loyning Toyota 4AGE #1074 (dyno time only)

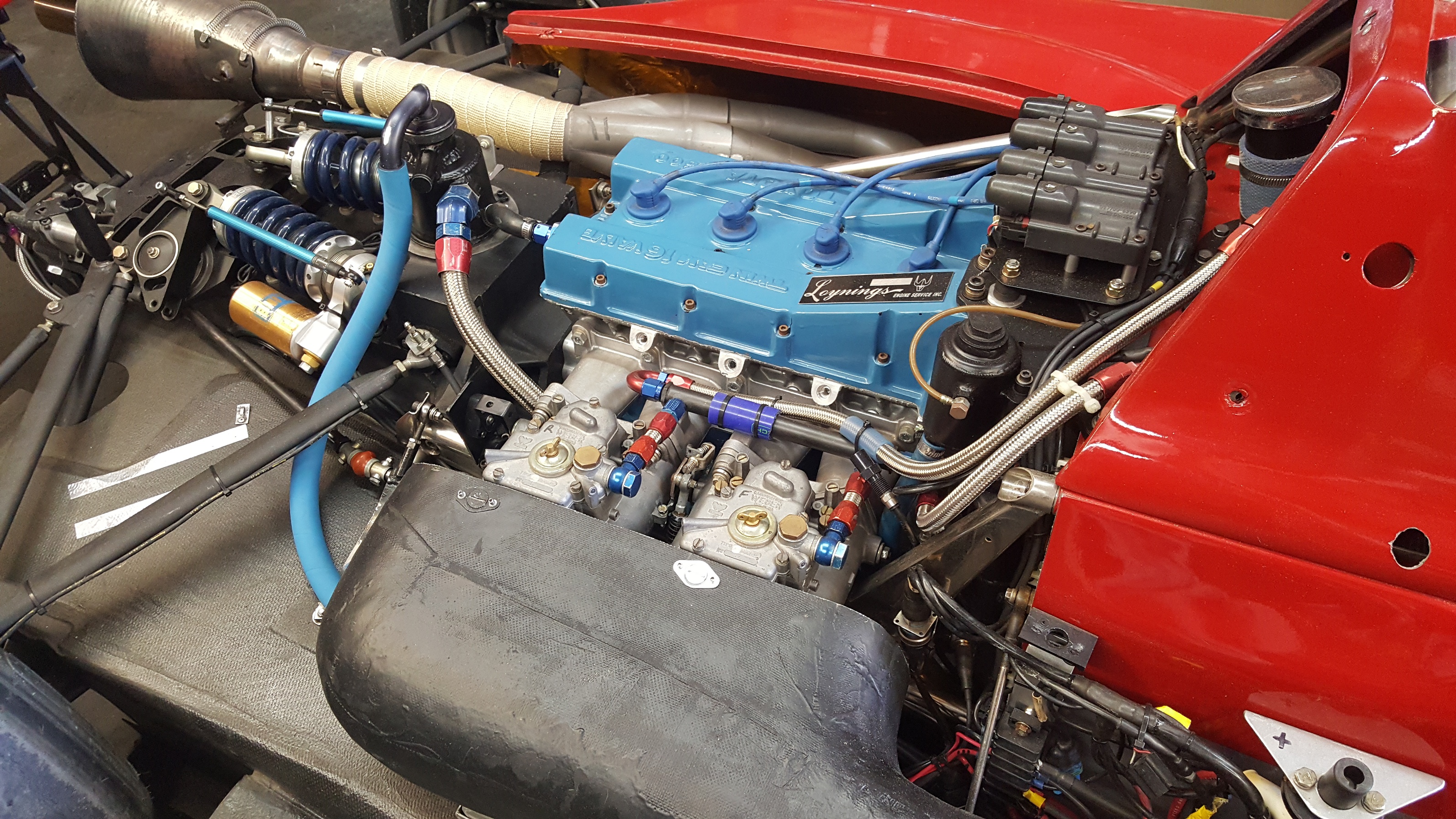

• Weber carbs

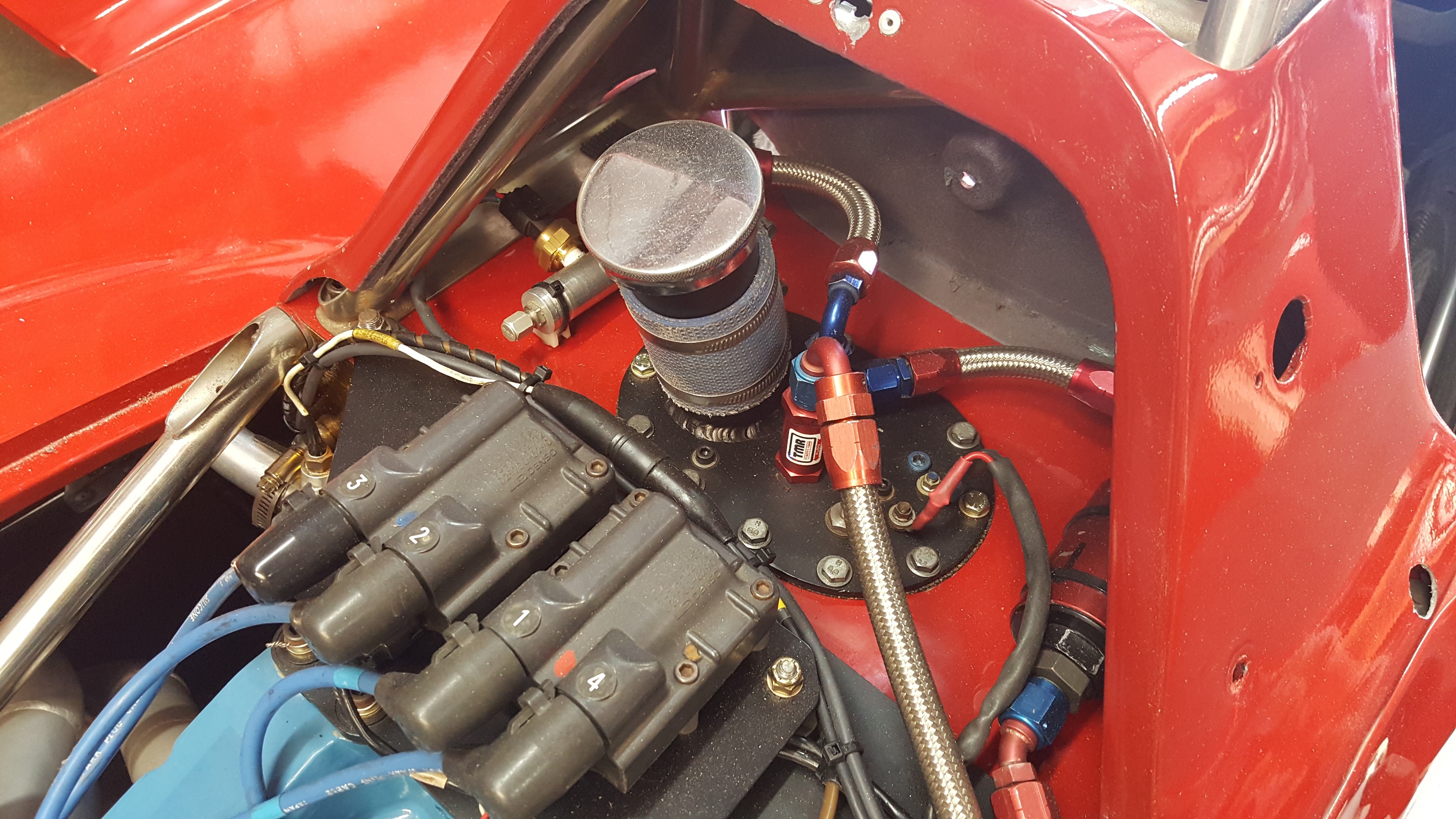

• TRD ECU and coil packs
• New throttle cable
Dampers

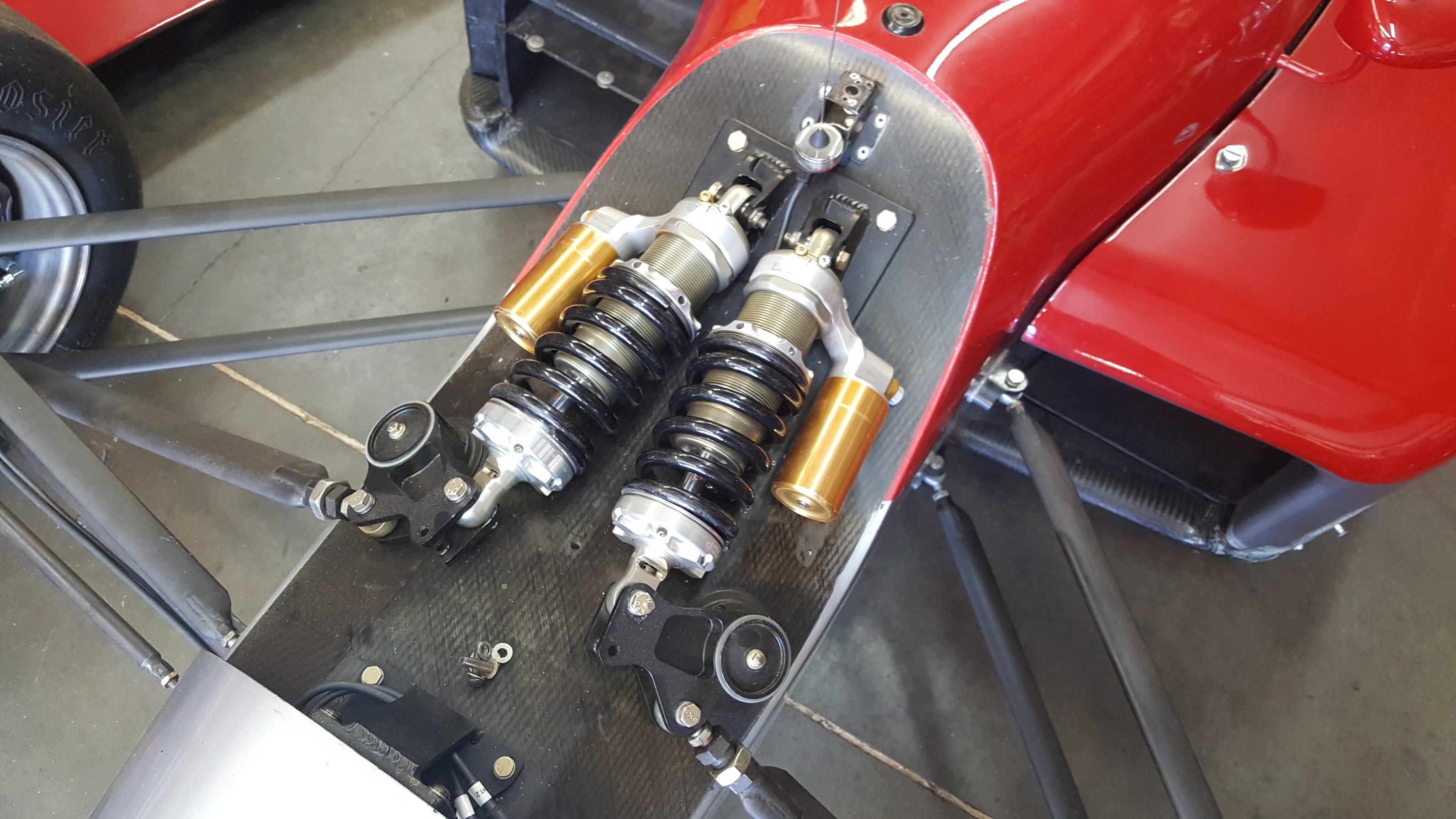

• Ohlins TT44 dampers
• 5-way adjustable
• Valved specifically for the RT-40/41
Data Acquisition
• New Pi Delta System with Expansion Module and Harnesses

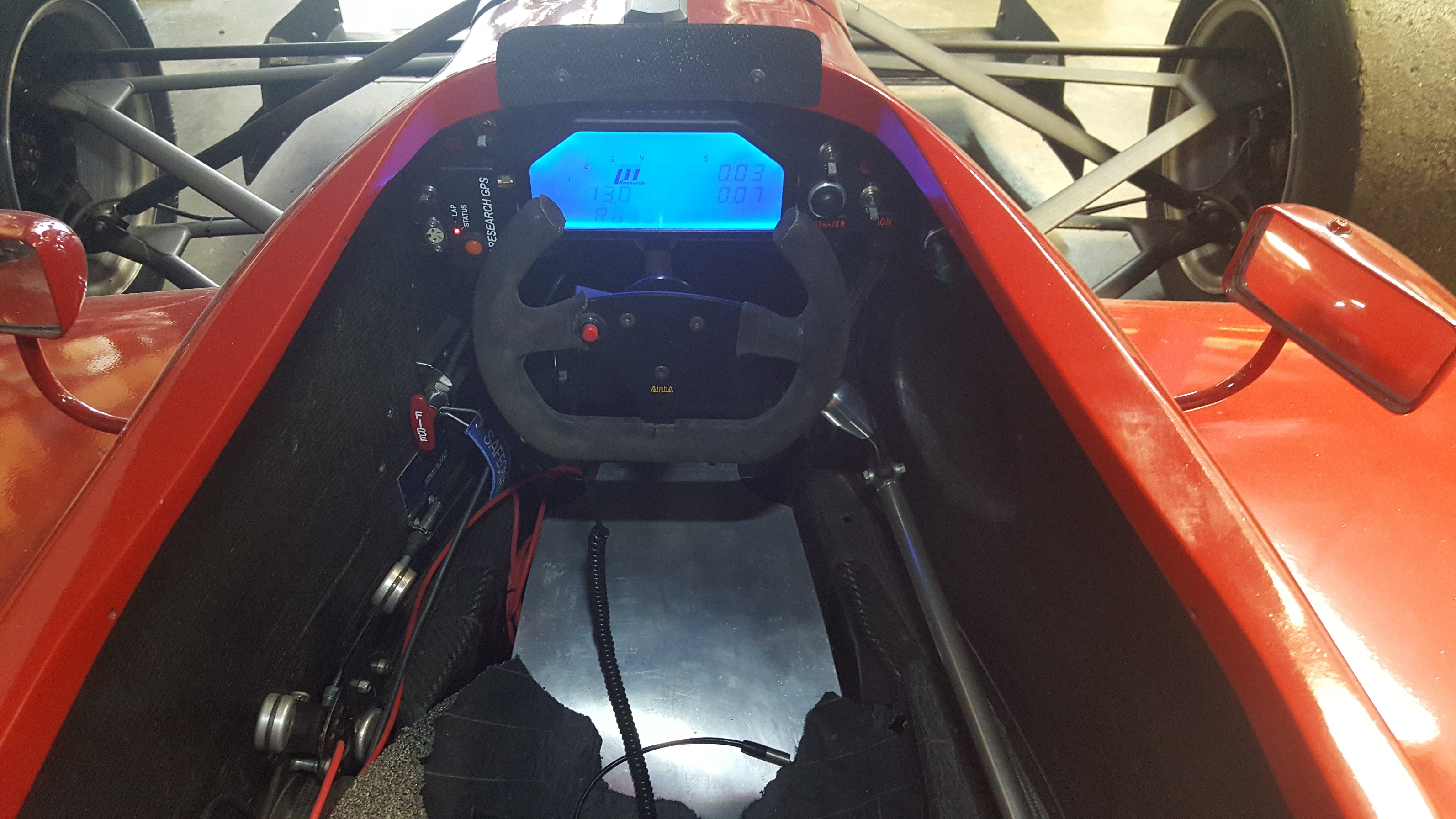

• New Omega D1 dash display
• New GPS speed sensor
• New Shift light module
• 16 MB memory, 200 Hz logging rate, 22 analog channels
• USB download cable
• Custom dash panel with all new switches and placards
Gearbox
• New bearing carrier
• Salisbury LSD with Atlantic ramps (rebuilt by K-Hill)
• Pre-load and backlash set/verified
• All new apex joints in shift linkage
• All new saddle washers in shift linkage
Brakes
• New brake master cylinders and reservoirs
• New caliper pistons and seals
• New caliper fluid cross-over pipes
• New rotor bobbins
• New brake lines
• New brake bias adjuster
• New brake pedal bushings
Fuel System
• New fuel pumps (2)
• New fuel pressure regulator valve
• New fuel lines and filters
Oil/Cooling
• Oil tank cleaned out and side engine mount threads repaired
• Oil cooler ultrasonically cleaned
• Radiator ultrasonically cleaned
Suspension/Steering
• New Hyperco hydraulic spring perches (4)
• Rebuilt steering rack (K-Hill)
• New rear rocker mounting block by Fast Forward
• New rocker bearings and thrust washers
• New custom made front damper mount
• New “Pro-Coat” black coating applied to most suspension pieces
• All worn rod ends replaced
• Uprights inspected and cleaned by Fast Forward
• New steering shaft apex joints
Tub
• Tub No. 1015
• New engine mount studs in tub
• Re-bushed engine trunion aft mounting holes
• New Halon fire bottle and new mechanical activation cable
• New battery and starter electrical cables
Wheels
• Two disassembled sets of Jungbloed wheels
• Jungbloed wheel centers crack checked and re-coated
• One set of Kodiak wheels
Chassis #1015
Engine
• Zero-mile fresh Loyning Toyota 4AGE #1074 (dyno time only)
• Weber carbs
• TRD ECU and coil packs
• New throttle cable
Dampers
• Ohlins TT44 dampers
• 5-way adjustable
• Valved specifically for the RT-40/41
Data Acquisition
• New Pi Delta System with Expansion Module and Harnesses
• New Omega D1 dash display
• New GPS speed sensor
• New Shift light module
• 16 MB memory, 200 Hz logging rate, 22 analog channels
• USB download cable
• Custom dash panel with all new switches and placards
Gearbox
• New bearing carrier
• Salisbury LSD with Atlantic ramps (rebuilt by K-Hill)
• Pre-load and backlash set/verified
• All new apex joints in shift linkage
• All new saddle washers in shift linkage
Brakes
• New brake master cylinders and reservoirs
• New caliper pistons and seals
• New caliper fluid cross-over pipes
• New rotor bobbins
• New brake lines
• New brake bias adjuster
• New brake pedal bushings
Fuel System
• New fuel pumps (2)
• New fuel pressure regulator valve
• New fuel lines and filters
Oil/Cooling
• Oil tank cleaned out and side engine mount threads repaired
• Oil cooler ultrasonically cleaned
• Radiator ultrasonically cleaned
Suspension/Steering
• New Hyperco hydraulic spring perches (4)
• Rebuilt steering rack (K-Hill)
• New rear rocker mounting block by Fast Forward
• New rocker bearings and thrust washers
• New custom made front damper mount
• New “Pro-Coat” black coating applied to most suspension pieces
• All worn rod ends replaced
• Uprights inspected and cleaned by Fast Forward
• New steering shaft apex joints
Tub
• Tub No. 1015
• New engine mount studs in tub
• Re-bushed engine trunion aft mounting holes
• New Halon fire bottle and new mechanical activation cable
• New battery and starter electrical cables
Wheels
• Two disassembled sets of Jungbloed wheels
• Jungbloed wheel centers crack checked and re-coated
• One set of Kodiak wheels
#3
Rt40
I am interested in your car for sale, I have reviewed the listing and photo's but I did not see anything regarding spares, do you have spares for this car? Also what is the condition of the engine and when did you last have it serviced by Loyning?
Monty Holt
360-859-3595
Monty Holt
360-859-3595
#4
Picture album
I've uploaded some pictures to an amazon album. Shows most of the spares.
The engine made good power on the dyno and has zero miles on it since rebuild. I've test run it here at the shop to check the install after pulling the spark plugs and building oil pressure prior to starting.
Send me a message and we could discuss any questions you have.
Thanks,
Keith
The engine made good power on the dyno and has zero miles on it since rebuild. I've test run it here at the shop to check the install after pulling the spark plugs and building oil pressure prior to starting.
Send me a message and we could discuss any questions you have.
Thanks,
Keith
