2012 Maserati Quattroporte S M139 Pininfarina Brembo Brakes
Category: Brakes
Price: $1450
Private or Vendor Listing: Private Listing
Part fits: Maserati
Location (State): NY
Item Condition: Used
Shipping Information: Item can be shipped
For sale is a beautiful complete set of the powerful Brembo brakes off of the 2012 Maserati Quattroporte S , all components have less then 15,000 miles of normal road use.
Included in the sale are:

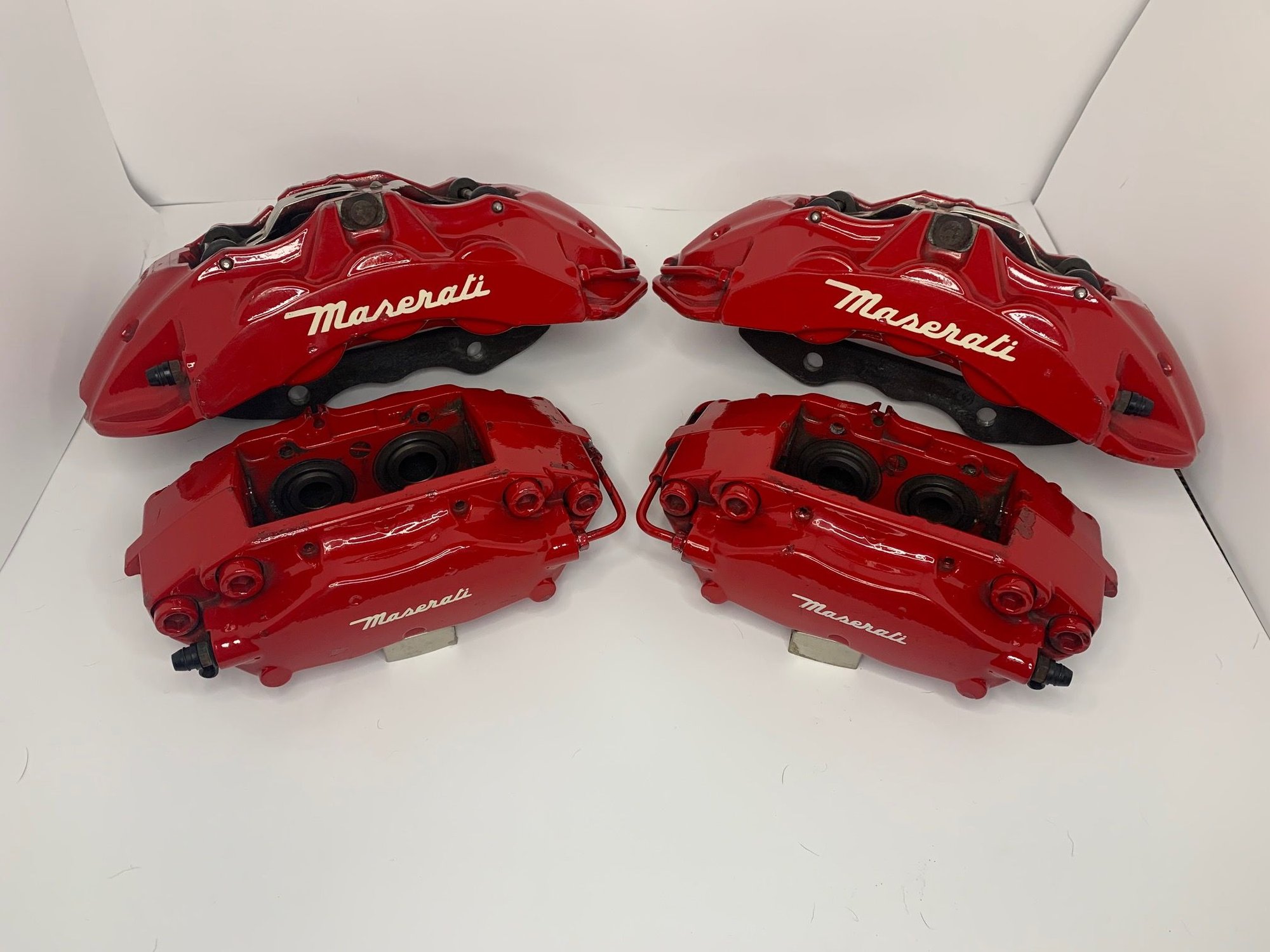

1) Brembo supplied two front 6 piston monobloc calipers with Brembo axial mounts and two rear radial mounted 4 piston monobloc calipers finished in the original factory Maserati Rosso paint. (An $800 option)

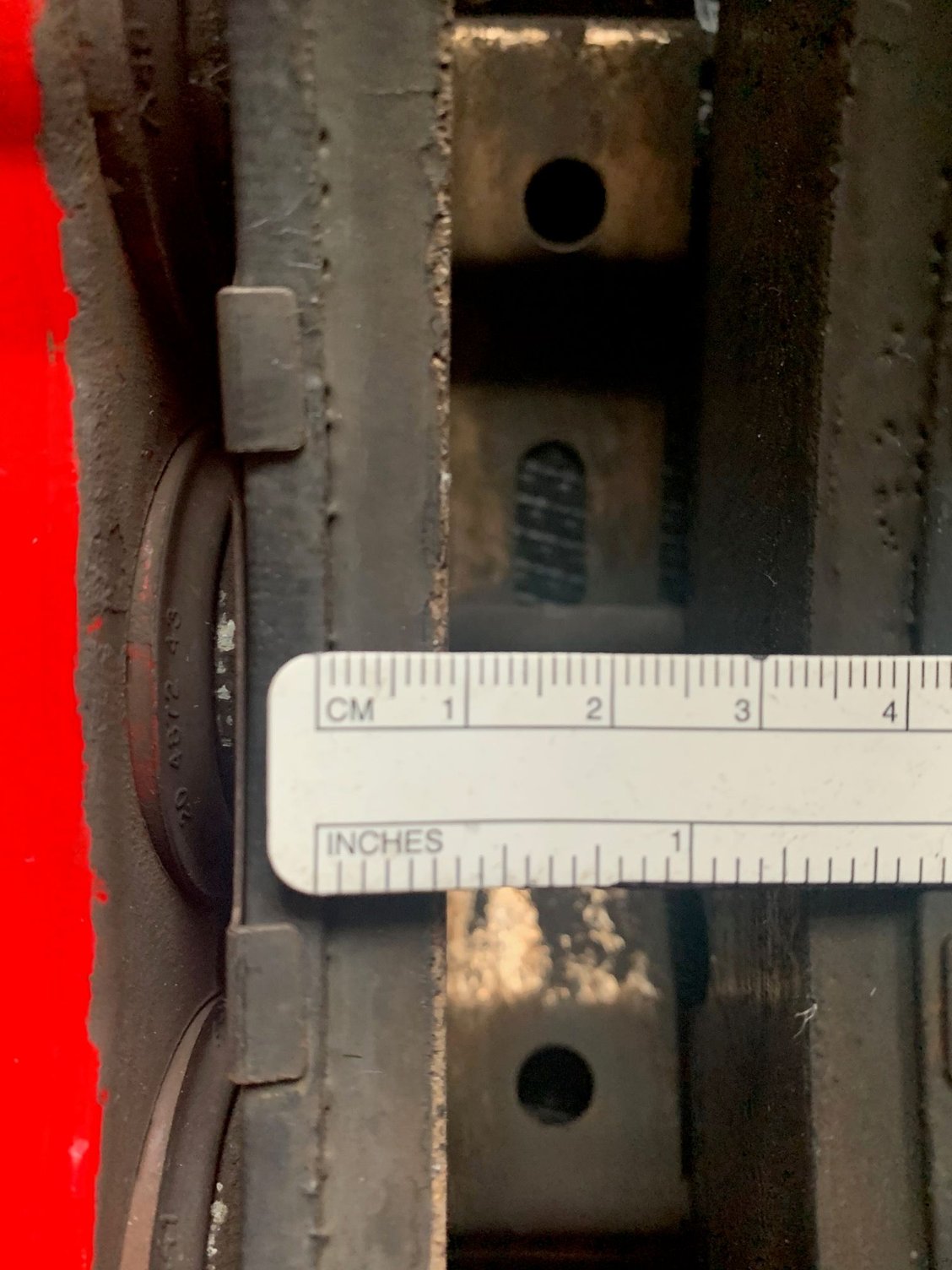

2) Gently Used (<15000miles) Brembo Front Brake Pads 980156013 approximately 60% pad life remaining
(New $361.73)
3) Front and rear Brembo brake pad mounting hardware and steel shims
**No brake lines, brake discs, mounting bolts, or rear brake pads included.
**All calipers have minor rock chip paint defects, the paint is factory original and has been touched up in spots, when mounted, it's hardly noticeable. All cross-over pipes are original, not bent. The bleeder valves are original brembo and not stripped. All threads are tight. No stripping evident.
Brembo Rosso Red
GENUINE ITALIAN MANUFACTURED
BREMBO 6 PISTON FRONT &
4 PISTON REAR CALIPERS
WITH DISCS
Front Calipers:
RHF Brembo no: 20.A001.05
LHF Brembo no: 20.A001.06
Pistons: 6 pistons
Unloaded Weight: 3.3kg
Piston Sizes: 2x 30mm, 2x 34mm, 2x 38mm
Piston Area: 5500mm2
Mount: Axial
Caliper Bolt hole to bolt hole distance : 194mm
Pad Length 190mm
Rotor Diameter 360x32mm
Caliper Mounting Bolt Holes: M14, non-threaded.
38mm Boot and Seal: pn: 182121
34mm Boot and Seal: pn: 215664
30mm Boot and Seal: pn: 215663
Centric Pn for all boots and seals: 143.35037
Bleeder Screw Maserati PN: 152954 (M10x1.0)
Bleeder Dust Seal PN: 215666
Rear Calipers:
Pistons: 4 pistons
Piston Sizes: 2x 36mm, 2x 32mm
Mount: Radial
Bolt hole to bolt hole distance : 130mm
Bleeder Screw Maserati PN: 152954 (M10x1.0, Qty: 2)
Bleeder Dust Seal PN: 215666
Brembo Piston Boot (36mm) 20.4872.44
Brembo Piston Boot (32MM) 20.4872.42
