Wiring diagram 2008 Bentley Continental GT Speed
#2

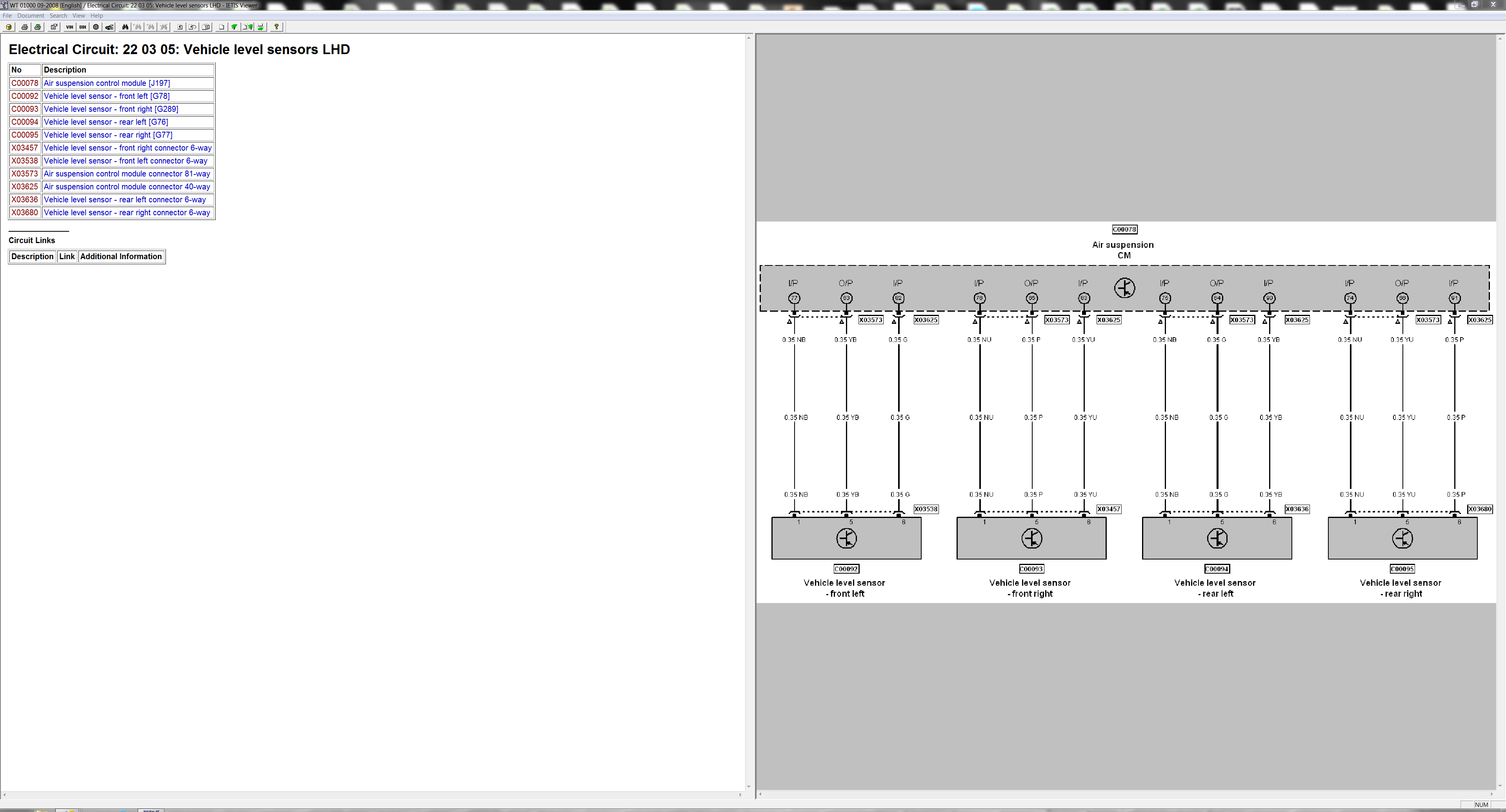

Click on screen shots.
.
Last edited by Johnny Hotspur GT; 12-04-2017 at 08:37 PM.
#3
2008 Bentely continental wiring diagram
please I need the complete engine wiring diagram of 2008 continental Bentley. The cars hard starts and shoots when throttle to start. The Catalytic converter also flows red.
#4
Go get IETIS. It has all the wiring diagrams. There are a LOT of them!
#5
I bought IETIS and cannot find the complete vehicle harness assembly to trace anything, any ideas?
#6
It's a very complex car and you would never get the entire wiring onto one diagram!
If you can track down the id code for a connector, then you can search for it.
So for example search for accelerator pedal and then select your model. Wiring is different on different years, type and driving side!
Then you'll get a massive list of where the accelerator pedal is mentioned.
So this will take you a diagram like C00511 Engine Management CM Bank 1 and on there you'll see how the accelerator pedal, SAI pressure sensor, Vac pump sensor, Boost sensor, turbo bypass sensor are all connected to the ECU.
Then you'll see X numbers that indicate the connectors and pin numbers and wire colours. So the Boost sensor is part C00654, connector X03446. 3 wires, colours YW,GP, SR.
There's also a list of every connector in the entire body loom, sorted by number of ways.You can click on a connector and you will see the pinout.It won't tell you specifically what each pin does or what you should expect to see on it though.
Last edited by rich9911; 08-18-2020 at 11:33 AM.
