Wiring Diagram Resources

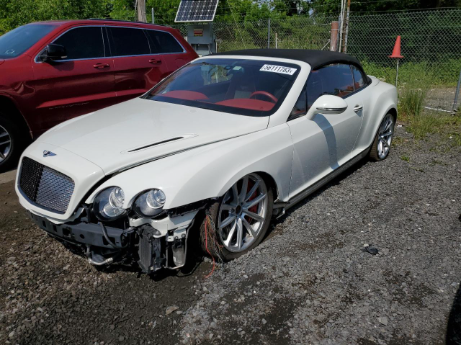

For a 2012 Bentley GTC Supersports, (I believe it is Glacier White over Hotspur) I am seeking the wiring diagrams for the body control module forward as it had an accident that severed the harness over at the left front fender and I need to find all the wires and connectors to put the harness back together again. I believe that Johnny Hotspur has a resource for this - can you please share how to purchase or download the related wiring diagrams, connectors, and harness information to help me make the repair. Also, since this 2012 is the rare exception to retain the gen 1 body style on a 2012, I assume I need a bumper that fits the 2005-2010 cars, correct? I believe the wiring may be gen 2, however, or perhaps some hybrid between the two.
