Remove a 986 Muffler HOW TO........???

1.Lubricate all the bolts with a penetrating oil\ 13mm
2. Loosen the 4 nuts that hold on the 4” factory clamp
Name: 6SleeveGap.jpg
Views: 1990
Size: 86.0 KB

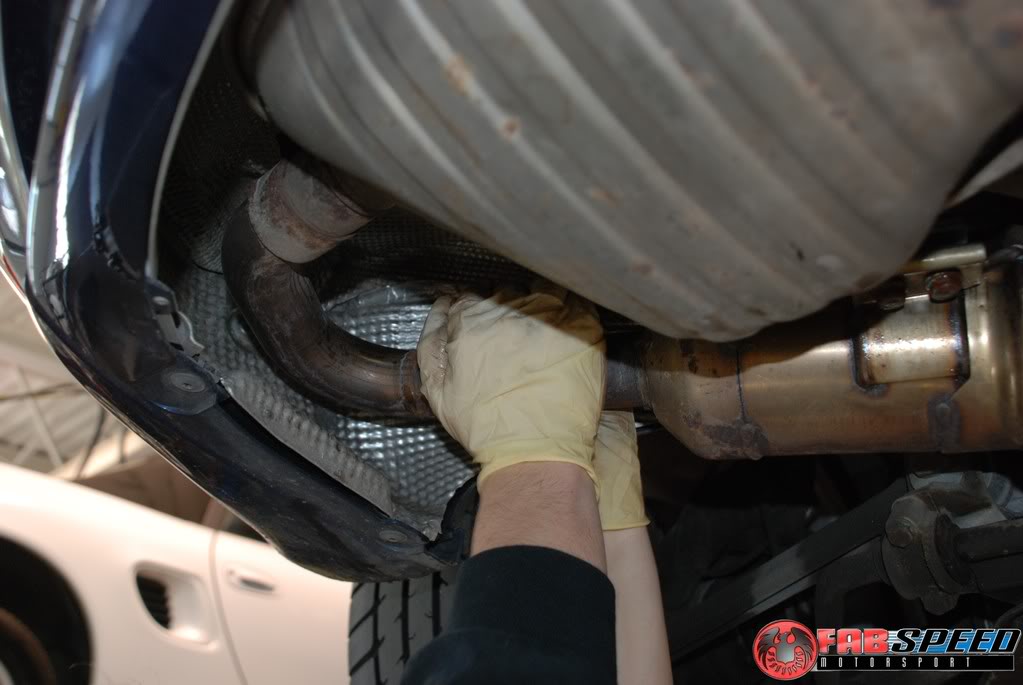

Name: 5RemoveSleeve.jpg
Views: 2020
Size: 72.4 KB

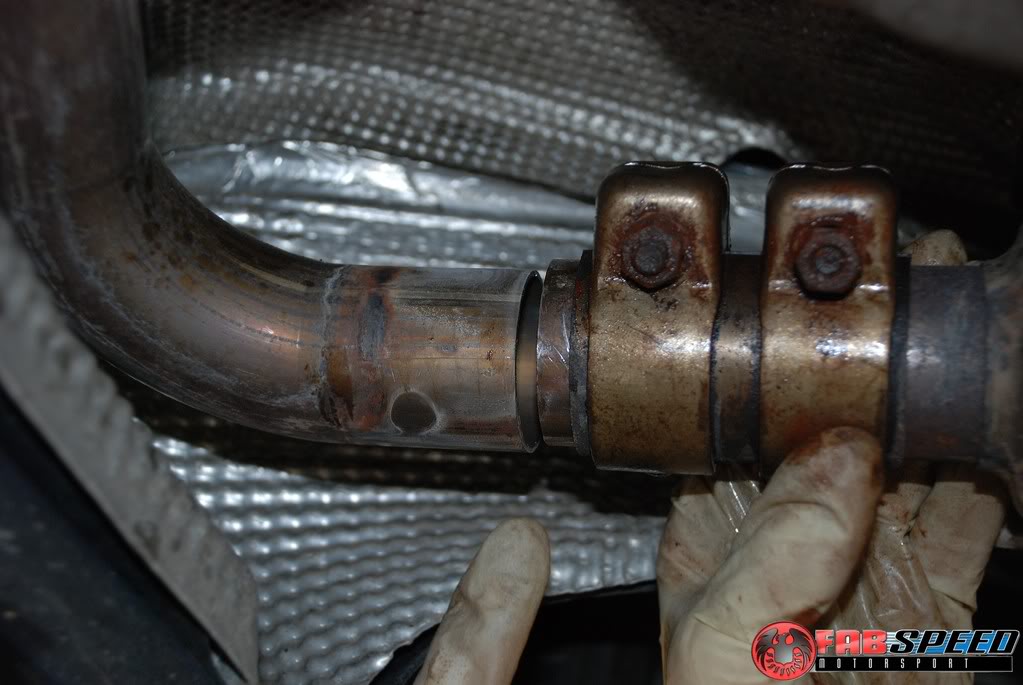

3. Then slide the clamp over towards the cat
Name: 6SleeveGap.jpg
Views: 1990
Size: 86.0 KB

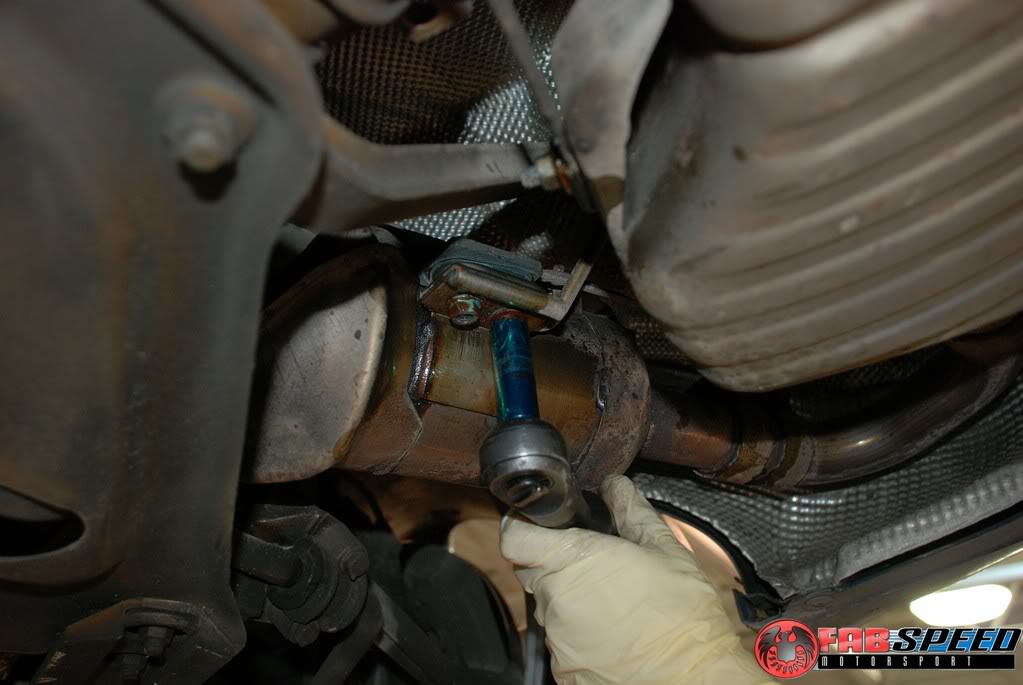

4. Loosen the 2 nuts that hold the cats to the mufflers
Name: 2RemoveBracket.jpg
Views: 1645
Size: 76.1 KB

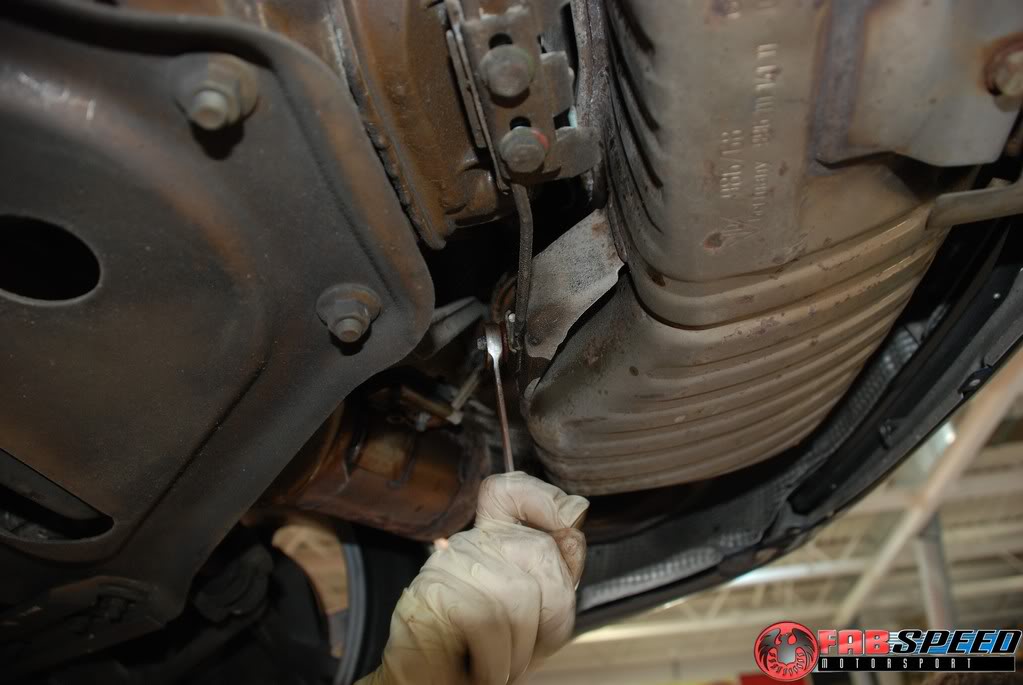

5. Remove nuts on the bottom brackets that hold the muffler
Name: 4RemoveMufflerBracket.jpg
Views: 1722
Size: 76.5 KB

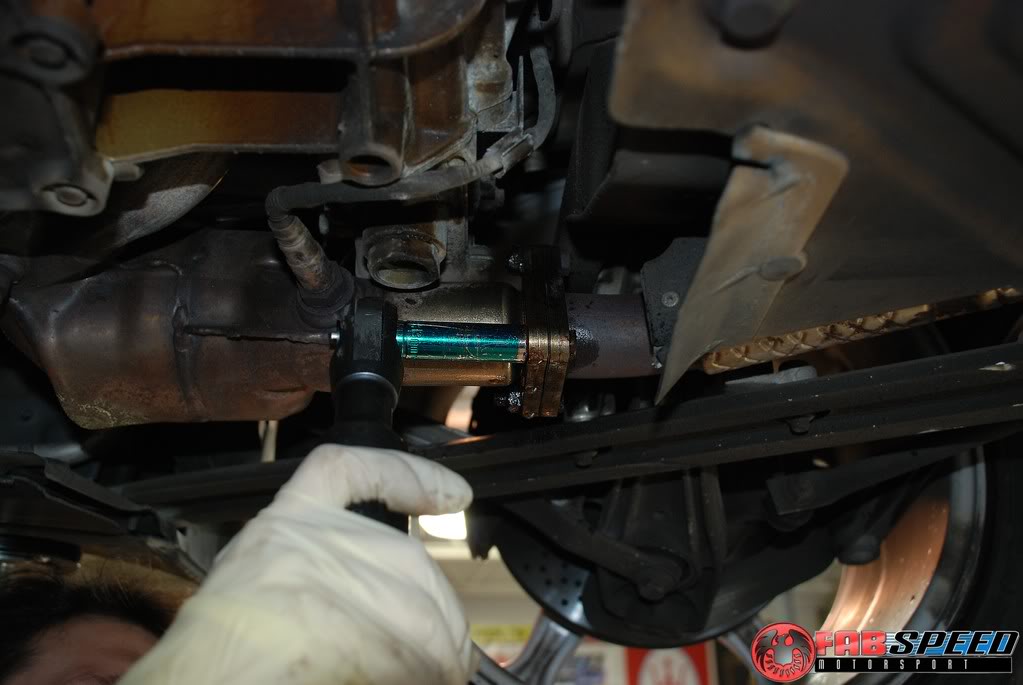

6. Remove bolts on the 3 bolt flange where the headers meet the mid pipe
Name: 3RemoveAxlePipes.jpg
Views: 1611
Size: 70.4 KB

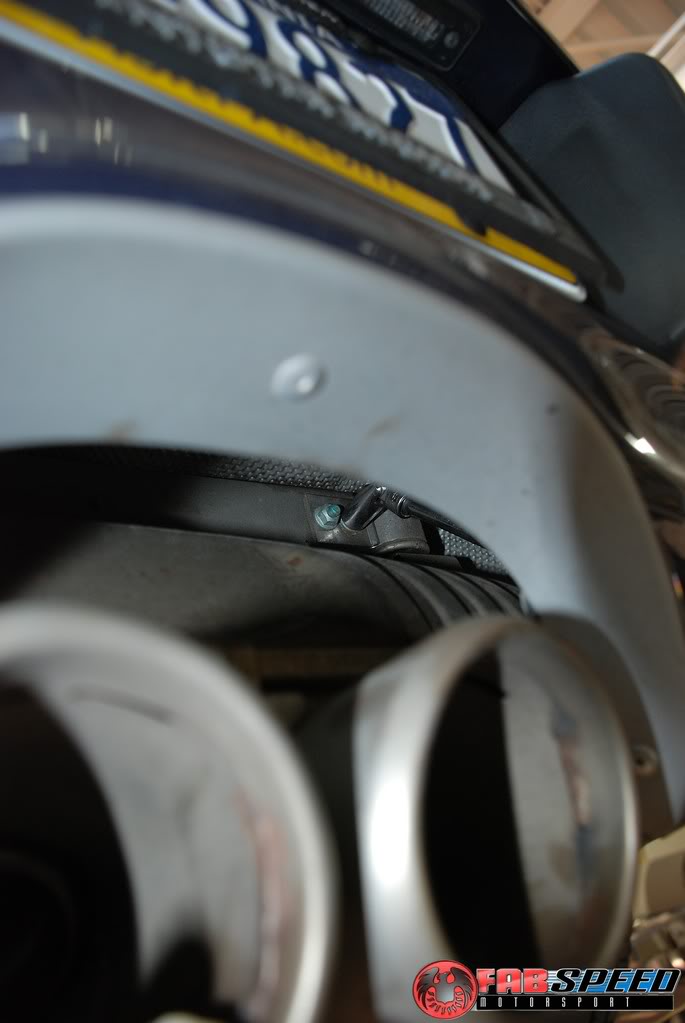

7. Remove the top mounts by taking off the 2 13 mm bolts and nuts that hold the top mount
Name: 7RemoveTopMufflerBracket.jpg
Views: 1563
Size: 53.5 KB

8. Then carefully rotate the muffler facing the tip towards the floor the muffler will slide down and out the bottom
Name: 8RemoveMuffler.jpg
Views: 1895
Size: 75.7 KB

Name: 8RemoveMuffler.jpg
Views: 1895
Size: 75.7 KB

Attached Images


Last edited by Fabspeed Motorsport; Feb 17, 2009 at 03:26 PM.

Feb 17, 2009 | 04:00 PM

Dave

Registered User

Joined: Sep 2003

Posts: 845

From: The Jersey Shore

Rep Power: 64

That is an awesome post. It has been a long time since I've seen someone posting how-tos on the forum. Especially this detailed with pictures. Kudos to you.
