HG Performance Matte Silver Porsche 991 GT3 RS BBi Center Section Exhaust & Roll Bar
#1
11-30-2017, 11:14 AM
Join Date: Oct 2017
Location: Huntington Beach
Age: 39
Posts: 155
Rep Power: 0
HG Performance Matte Silver Porsche 991 GT3 RS BBi Center Section Exhaust & Roll Bar
Attachment 1
HG Performance Matte SilverPorsche Porsche 991 GT3 RS BBi Center Section Exhaust & Roll Bar Safety Package Install

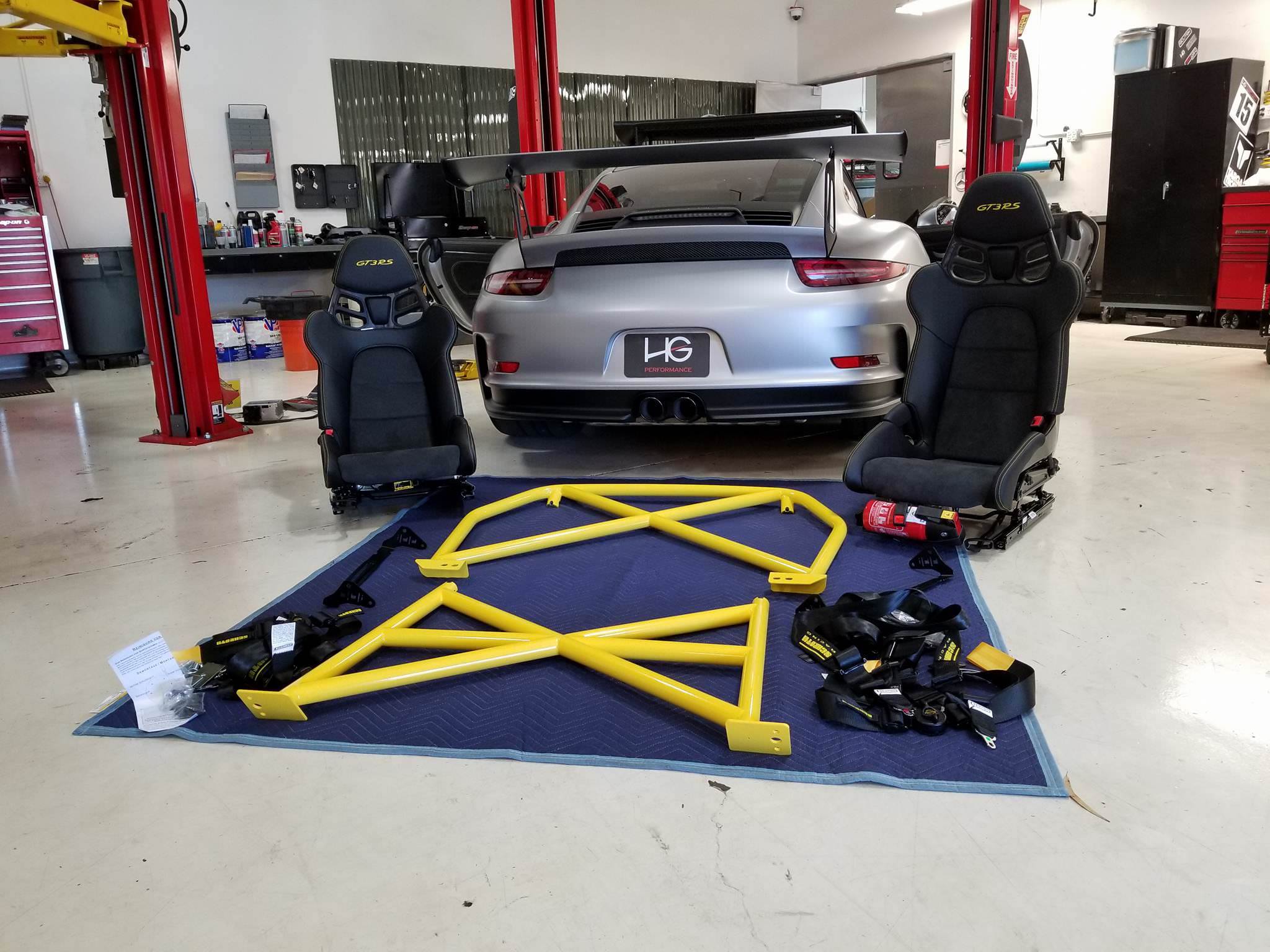

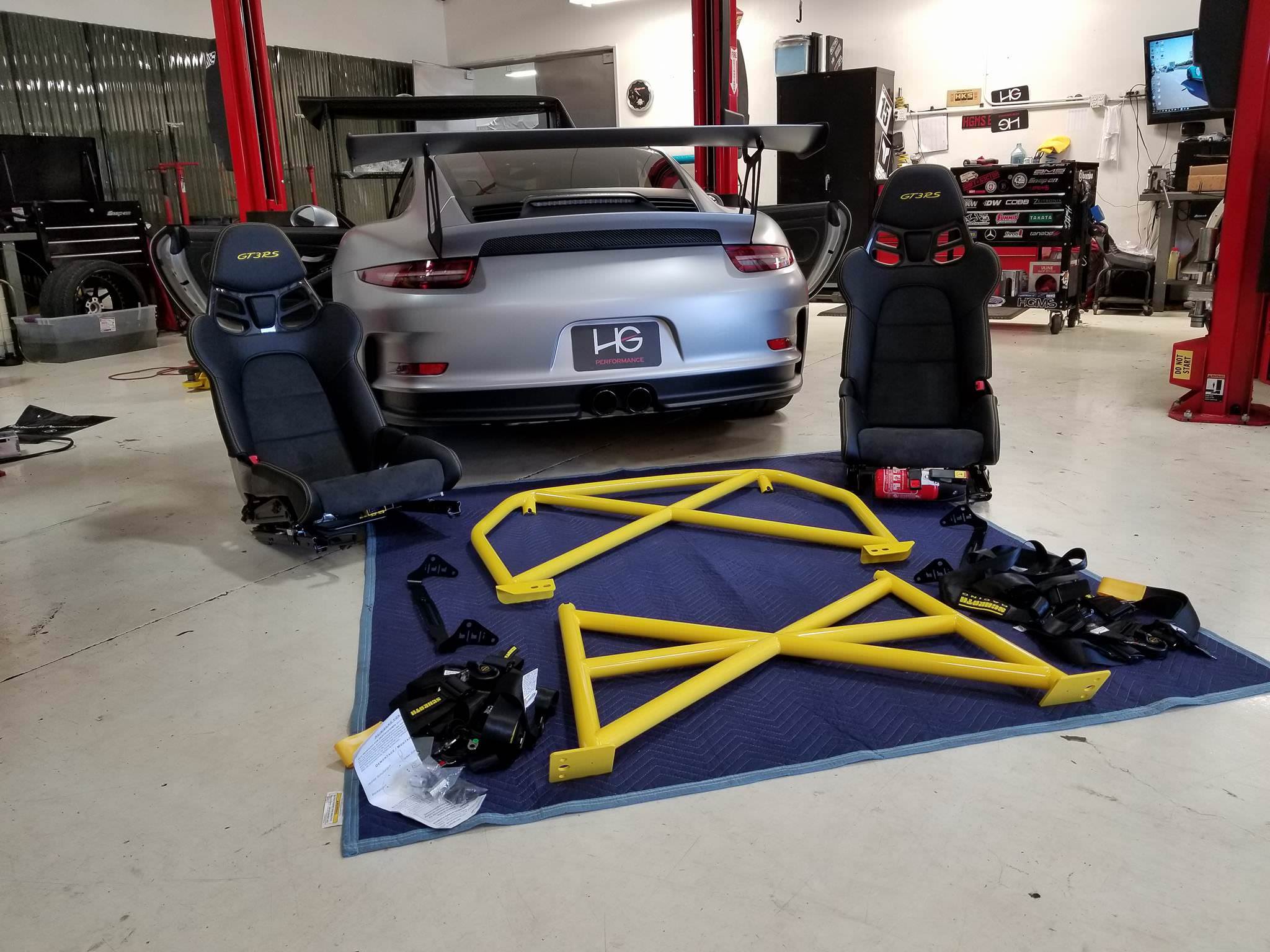

In collaboration with HG Performance, we would like to present this Matte Silver Porsche 991 GT3 RS. To provide proper restraint and make the car sound a little more aggressive, HG installed our BBi Autosport StreetCup Exaust and Safety Package. Located in San Diego, we are proud to have HG Performance as one of our premiere dealers in the country representing our complete line of performance and safety upgrades. Here are some detailed pictures of the build process that we would like to share below.
Upgrades
Engine
• BBi 991 GT3/RS Center Section Exhaust
Safety
• BBi Autosport StreetCup Center Section Exhaust
• BBi Autosport StreetCup Roll Bar in Gloss Yellow
• BBi Autosport Sub Belt Bar
• Schroth Racing Profi II GT3 HANS Harnesses

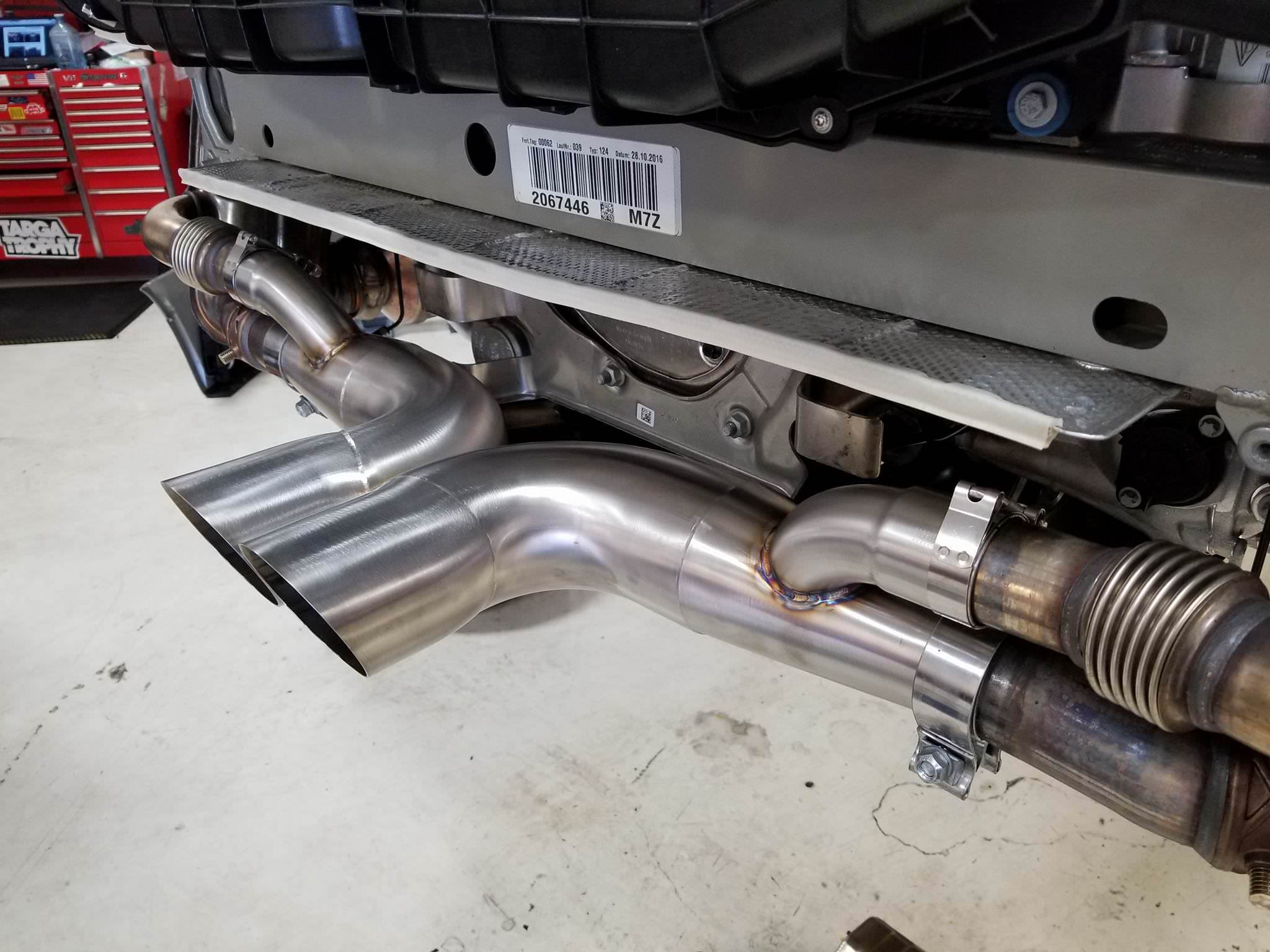

To reduce weight and deliver an aggressive exhaust note, HG swapped out the secondary center mufflers with our BBi Center Section Exhaust.

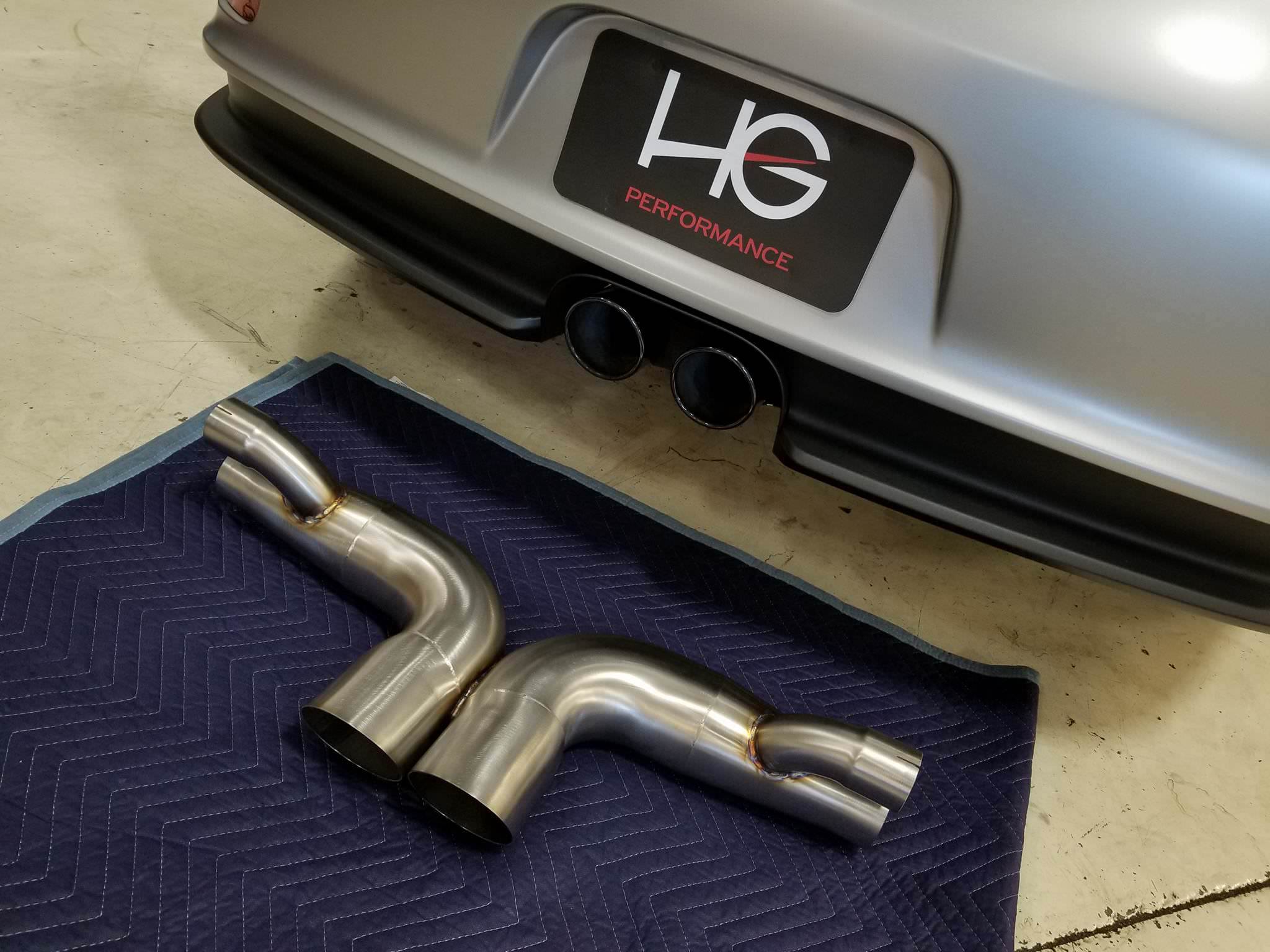

New BBi Autosport Porsche 997 & 991 GT3 / GT3RS StreetCup Center Section Exhaust
Made in the USA, the newly released BBi 991 GT3/RS Center Section Exhaust is TIG welded out of brushed T304 stainless steel and features the main pipes merging in the middle to function as an x-pipe. For those who desire a slightly milder exhaust tune, this piece is a great alternative to our Cup-style Side Muffler Bypass Pipes. By retaining stock side mufflers and valves, the factory "sports button" feature is kept to conveniently switch back and forth between the aggressive "sport" mode during spirited driving sessions and the quieter, more civil "non-sport" mode for minimal noise on the highway.
Features
Next, the BBi Safety Package which includes Bolt-in Roll Bar, Sub-Strap Mount, and Schroth 6 point harnesses is installed to properly secure the driver and provide additional protection.
BBi Porsche 991 GT3/ GT3RS / Cayman GT4 Sub-Strap Mount
If you have the optional Sport Bucket seats and planning to install 6-point race harnesses, then you will need this bracket. This bracket bolts directly to the seat and keeps the harnesses at the proper 10-20° angle regardless of the seat position.
Schroth Racing Profi-II HANS Harness, Porsche GT3 Specific
Porsche GT3 Cup Cars come with Schroth belts direct from the factory. They are specific because of the lap belt attachment. They have a sewn-in bracket that fits perfectly on the factory mount. Standard belts require additional fabrication and a spacer to make them work. These are a bolt-in replacement which is much easier. The sub-straps have no adjusters to fit correctly in the vehicle, and the shoulder belts are shorter to reach the works cages with minimal excess.
Features
BBi Autosport Porsche 991 GT3 StreetCup II Bolt-In Roll Bar
Features

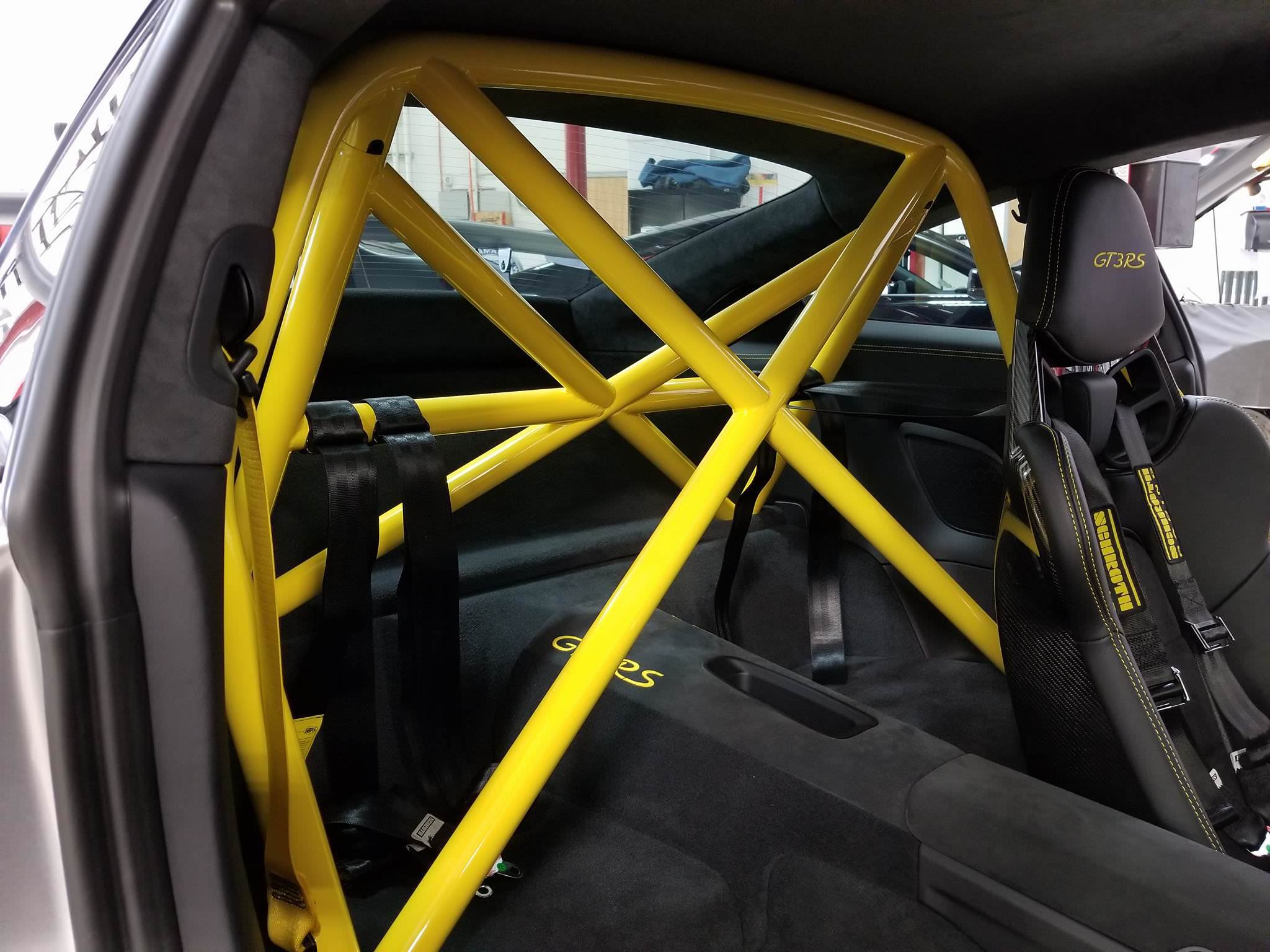

Bar Installed

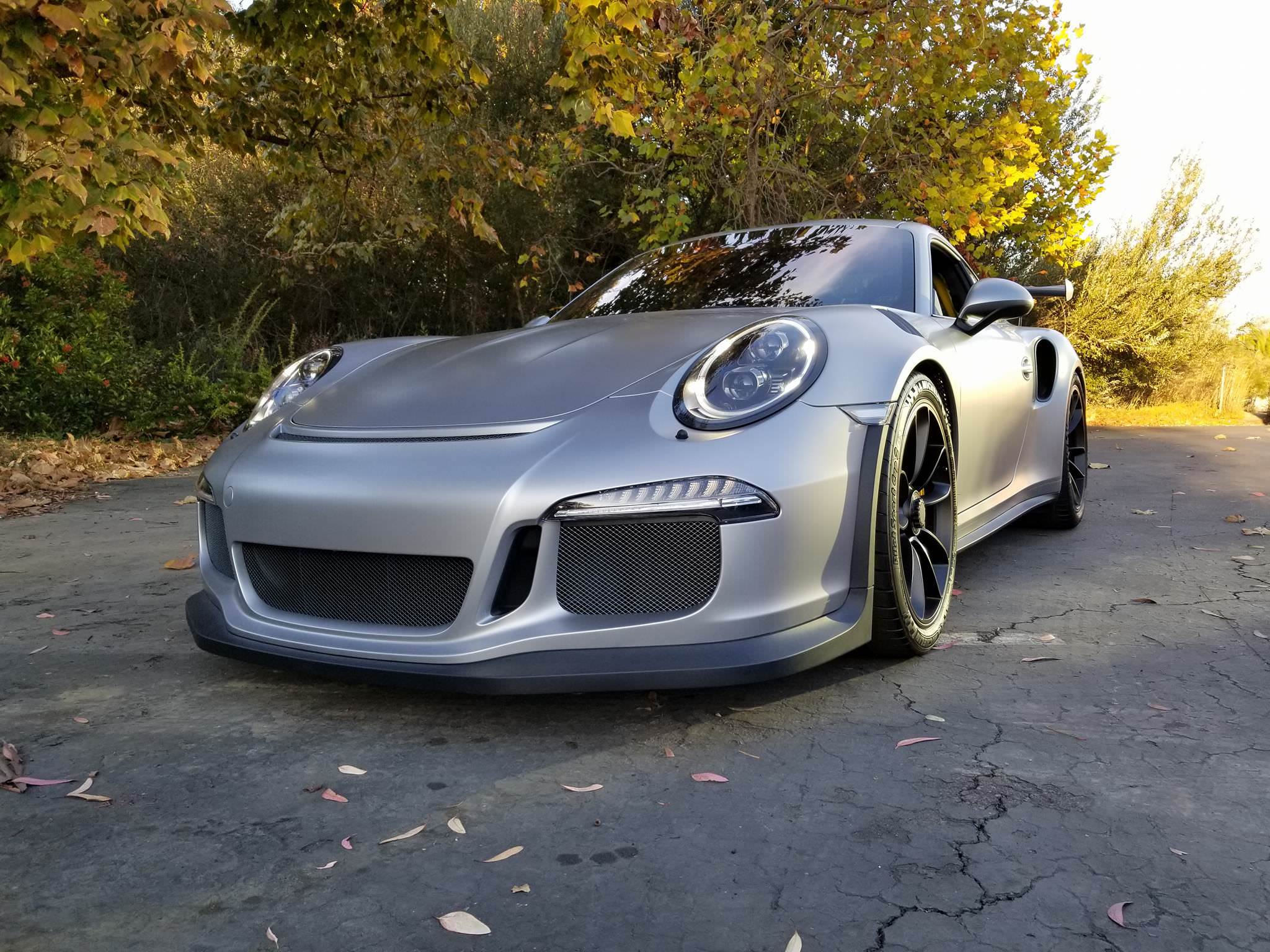

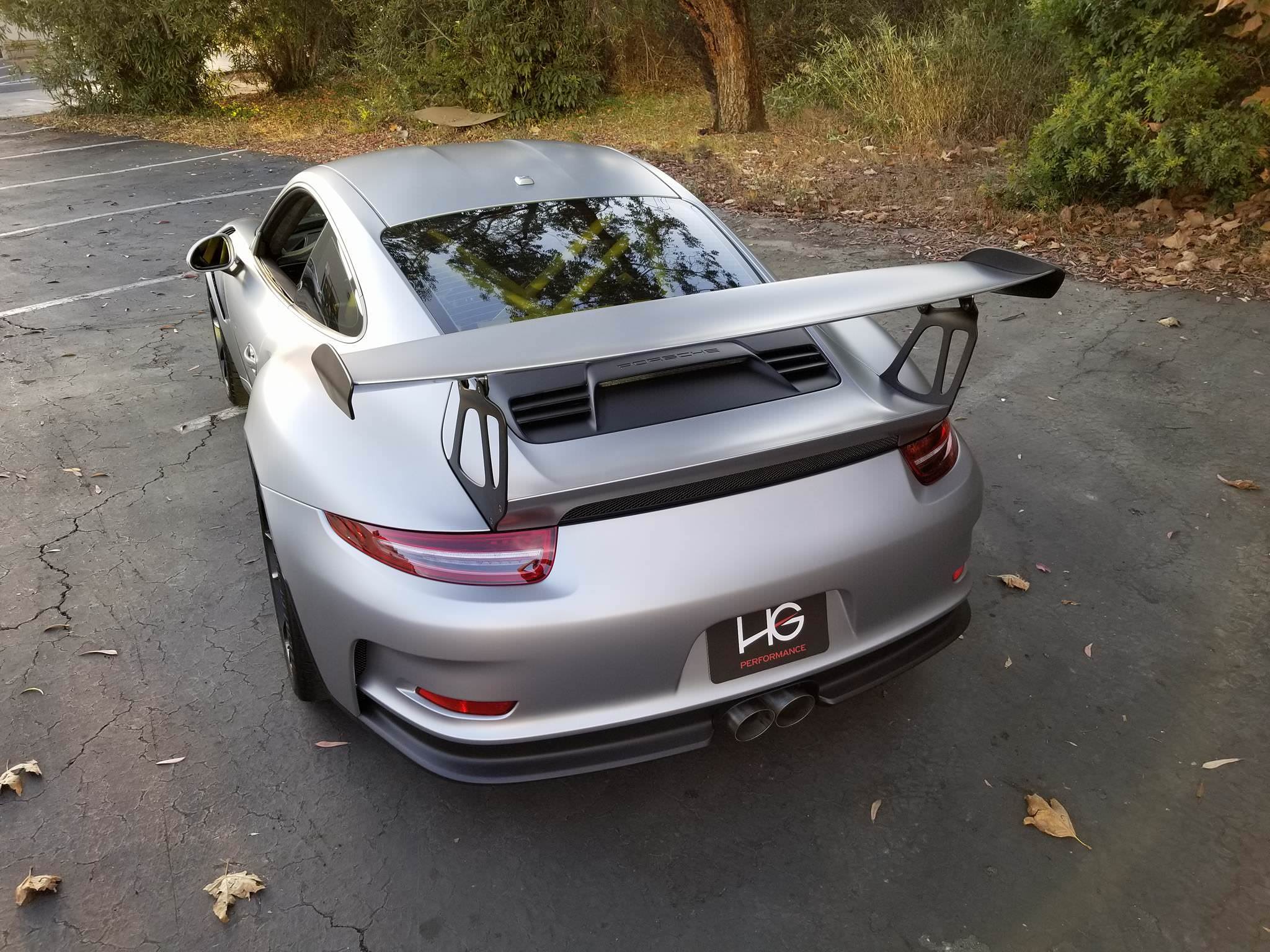

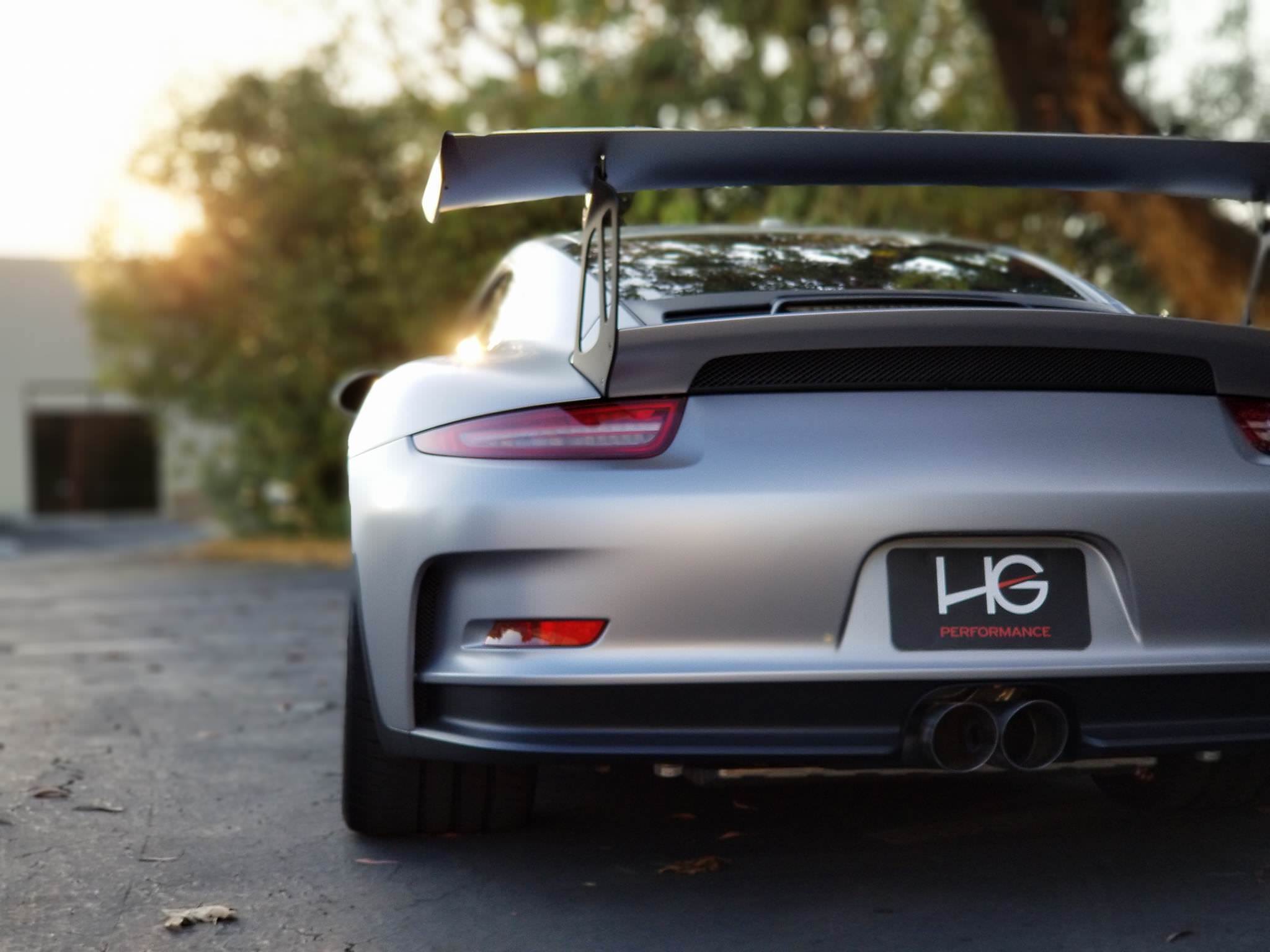

Completed Project
About HG Performance
Attachment 1
4122 Sorrento Valley Blvd Unit 101
San Diego CA 92121
Call: +1.619.504.8140
Facebook: www.facebook.com/hgperformanceusa
Email: info@hgmotorsports.com
- Jerry@BBiAutosport.com
HG Performance Matte SilverPorsche Porsche 991 GT3 RS BBi Center Section Exhaust & Roll Bar Safety Package Install
In collaboration with HG Performance, we would like to present this Matte Silver Porsche 991 GT3 RS. To provide proper restraint and make the car sound a little more aggressive, HG installed our BBi Autosport StreetCup Exaust and Safety Package. Located in San Diego, we are proud to have HG Performance as one of our premiere dealers in the country representing our complete line of performance and safety upgrades. Here are some detailed pictures of the build process that we would like to share below.
Upgrades
Engine
• BBi 991 GT3/RS Center Section Exhaust
Safety
• BBi Autosport StreetCup Center Section Exhaust
• BBi Autosport StreetCup Roll Bar in Gloss Yellow
• BBi Autosport Sub Belt Bar
• Schroth Racing Profi II GT3 HANS Harnesses

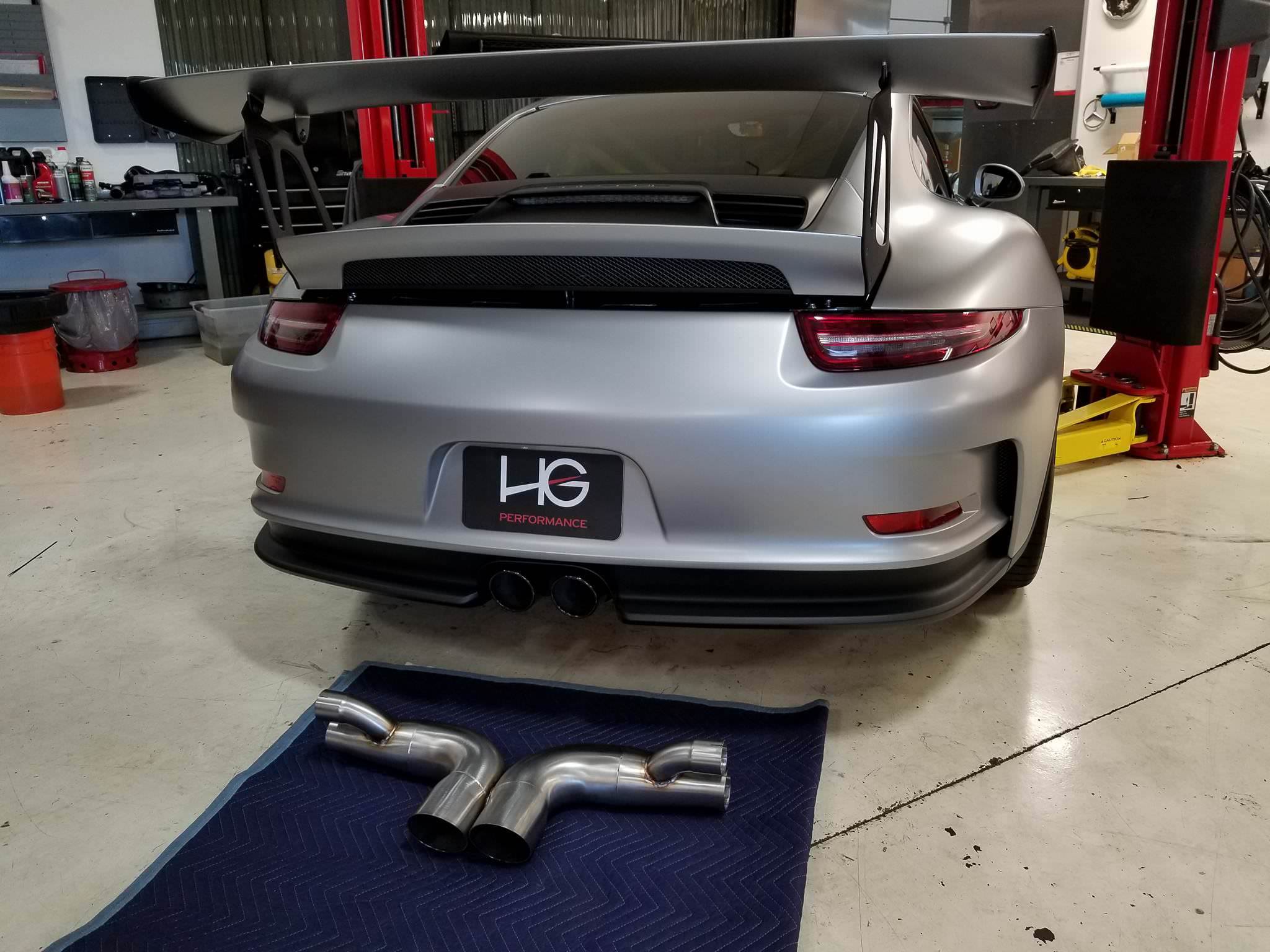

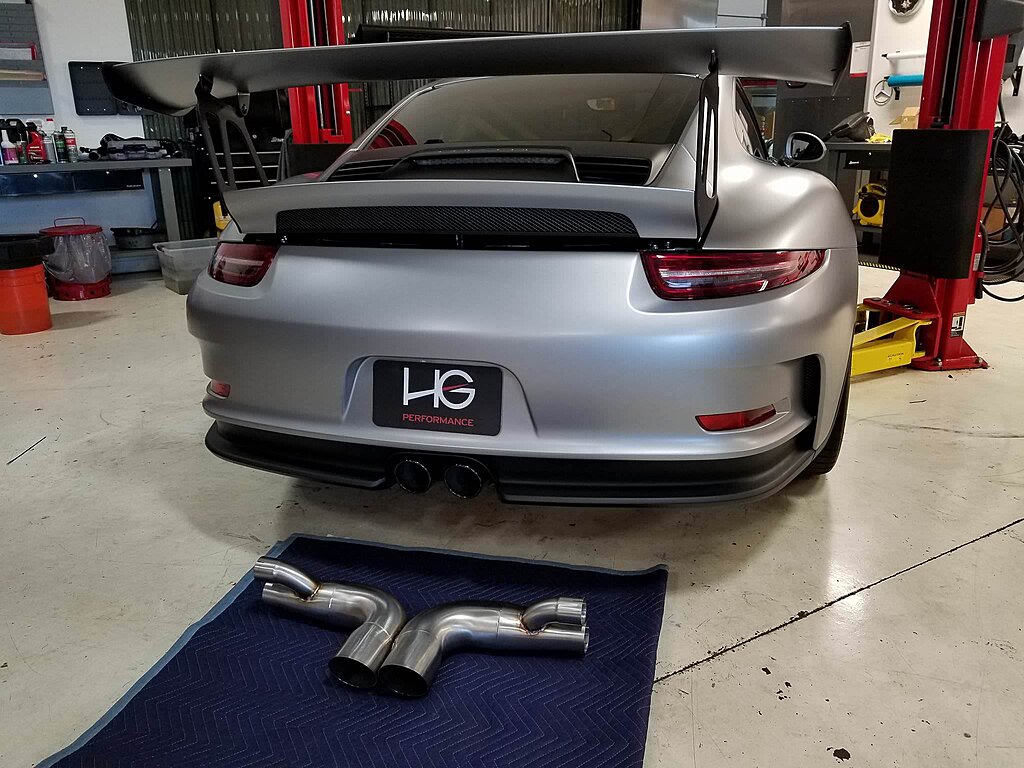

To reduce weight and deliver an aggressive exhaust note, HG swapped out the secondary center mufflers with our BBi Center Section Exhaust.

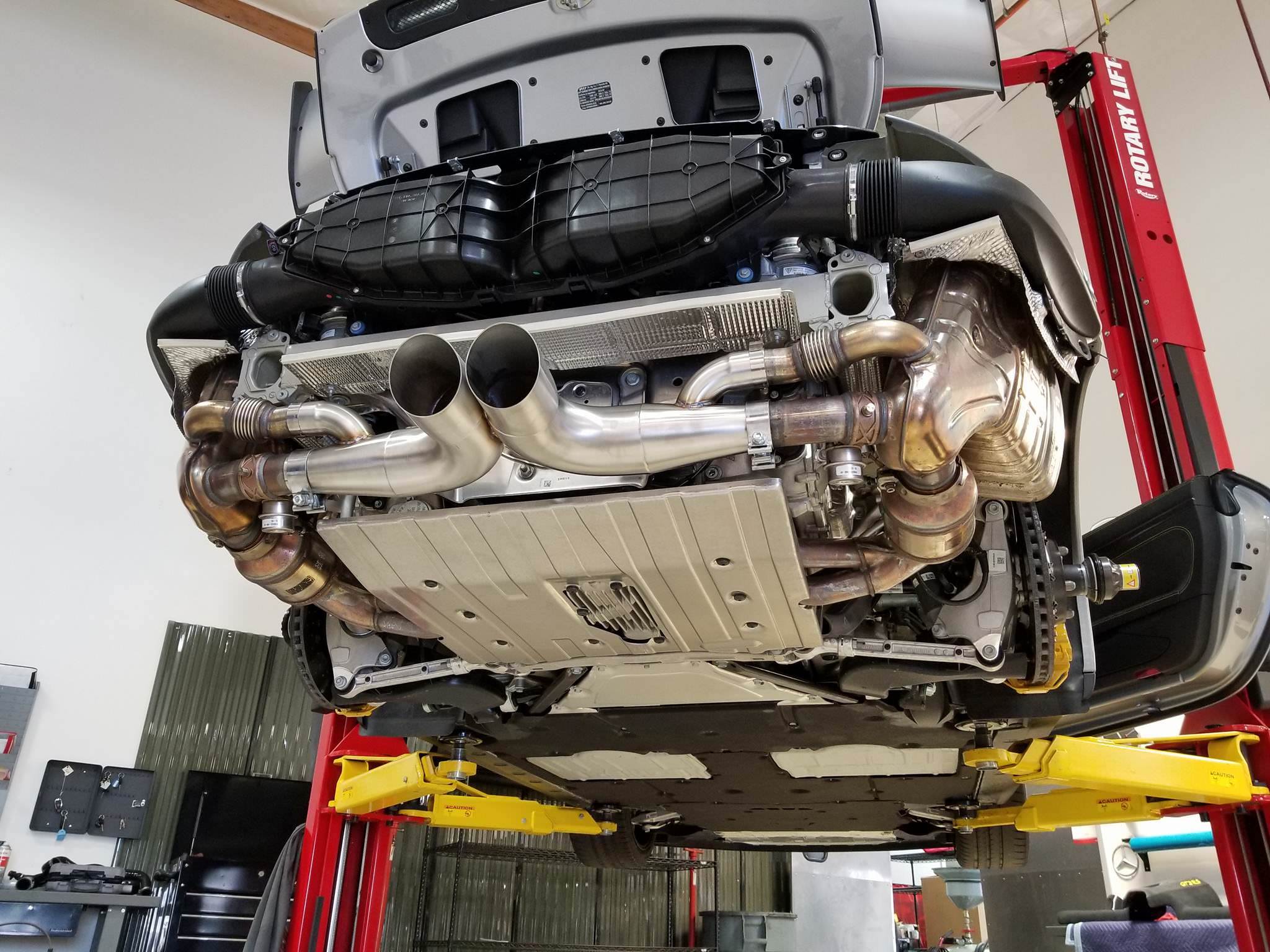

New BBi Autosport Porsche 997 & 991 GT3 / GT3RS StreetCup Center Section Exhaust
Made in the USA, the newly released BBi 991 GT3/RS Center Section Exhaust is TIG welded out of brushed T304 stainless steel and features the main pipes merging in the middle to function as an x-pipe. For those who desire a slightly milder exhaust tune, this piece is a great alternative to our Cup-style Side Muffler Bypass Pipes. By retaining stock side mufflers and valves, the factory "sports button" feature is kept to conveniently switch back and forth between the aggressive "sport" mode during spirited driving sessions and the quieter, more civil "non-sport" mode for minimal noise on the highway.
Features
- Delivers deep aggressive exhaust sound
- Significant weight reduction
- Retains Sports Exhaust Button function
- TIG welded T304 brushed stainless steel construction
- Factory primary side mufflers & catalytic converters are all retained
- Direct bolt on replacement
- Fits all 997 & 991 GT3/GT3RS models
- 50 State 100% emissions legal
- Will not void warranty
- Optional black ceramic coat finish available
- Made in the USA

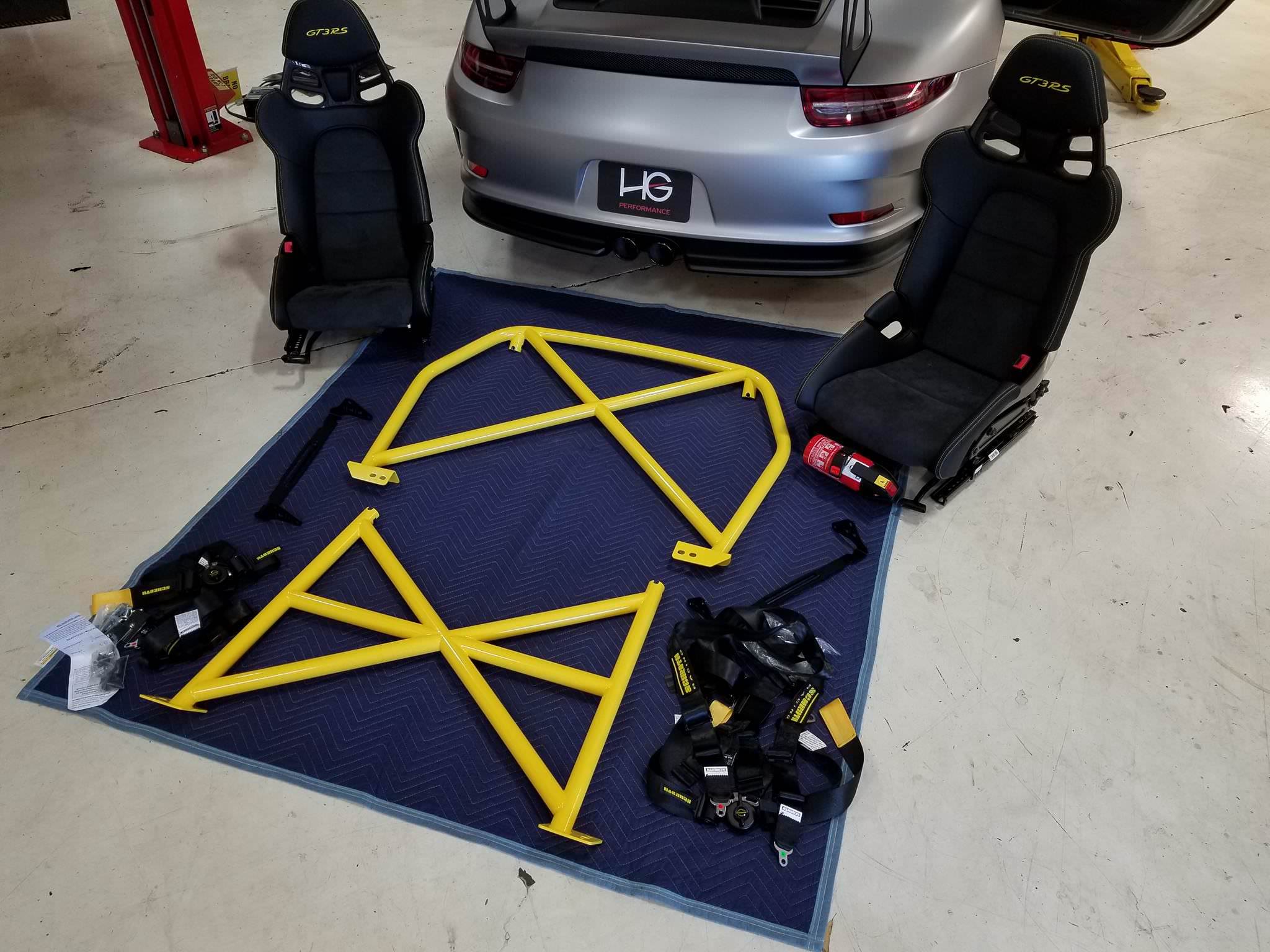

Next, the BBi Safety Package which includes Bolt-in Roll Bar, Sub-Strap Mount, and Schroth 6 point harnesses is installed to properly secure the driver and provide additional protection.
BBi Porsche 991 GT3/ GT3RS / Cayman GT4 Sub-Strap Mount
If you have the optional Sport Bucket seats and planning to install 6-point race harnesses, then you will need this bracket. This bracket bolts directly to the seat and keeps the harnesses at the proper 10-20° angle regardless of the seat position.
Schroth Racing Profi-II HANS Harness, Porsche GT3 Specific
Porsche GT3 Cup Cars come with Schroth belts direct from the factory. They are specific because of the lap belt attachment. They have a sewn-in bracket that fits perfectly on the factory mount. Standard belts require additional fabrication and a spacer to make them work. These are a bolt-in replacement which is much easier. The sub-straps have no adjusters to fit correctly in the vehicle, and the shoulder belts are shorter to reach the works cages with minimal excess.
Features
- Shoulder: HANS Specific 2" tapered to 3" Shoulders
- Lap: Sewn-in B43A (GT3 Specific Hardware)
- Sub belts: LV11 with B14 Snap-in Bracket Wrapped-in
- Include hardware: 1 SG23 7/16" Eyebolt, 1 S3 Wavy Washer
- Available with Pull-Down lap belts only
BBi Autosport Porsche 991 GT3 StreetCup II Bolt-In Roll Bar
Features
- 1.625" x 0.095" 4130 chrome moly steel tubing utilized for excellent strength to weight ratio
- TIG welded and utilizes "X" braces on both front and rear sections for superior strength and rigidity
- Mounts to frame structure (utilizing factory bolts) to provide strongest mounting points and maximum protection
- Utilizes laser cut mounting plates & inner diameter tube clamps that are CNC turned and milled for a precise fit
- Designed to work with stock seats or any aftermarket seats on the market
- Allows full seat travel to accommodate taller drivers
- Can be used with stock seat belts or 6 point harnesses for track use
- Designed to work with wrap-around style harnesses while optional eyelet bolt provisions are available for clip-in harnesses
- OEM fit & finish. The main hoop contours entire arch of the roof with an even 3/16 inch gap
- Finished in satin black powder coat. Other colors available Bolt-in installation requires no drilling and minimal carpet trimming
- Made in USA

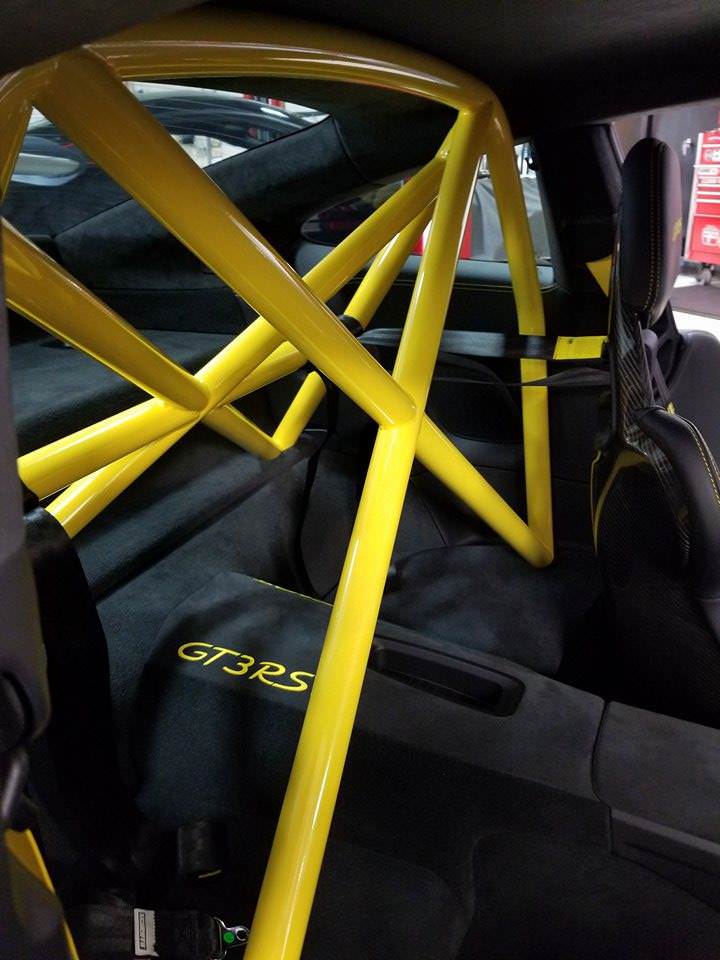

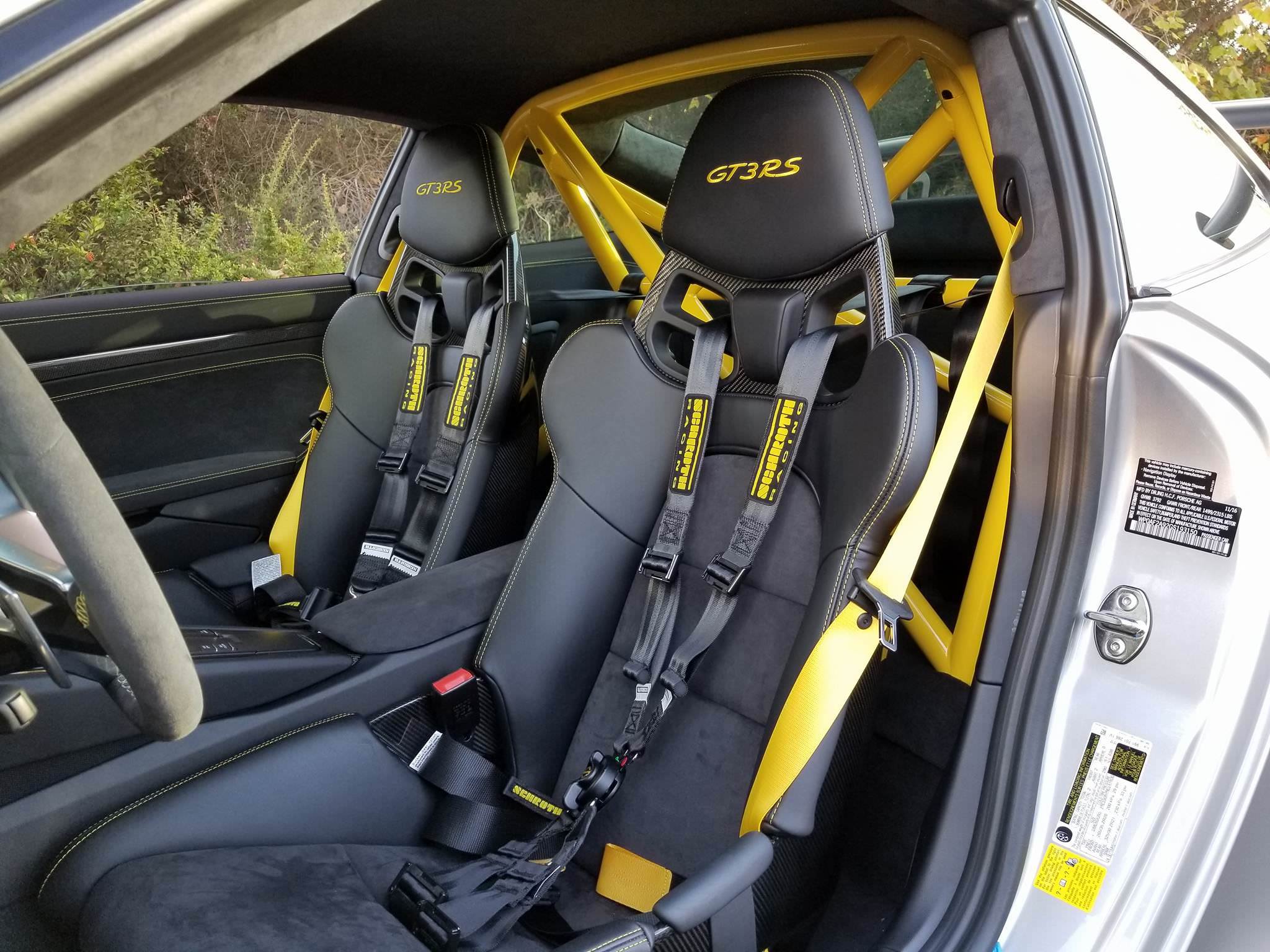

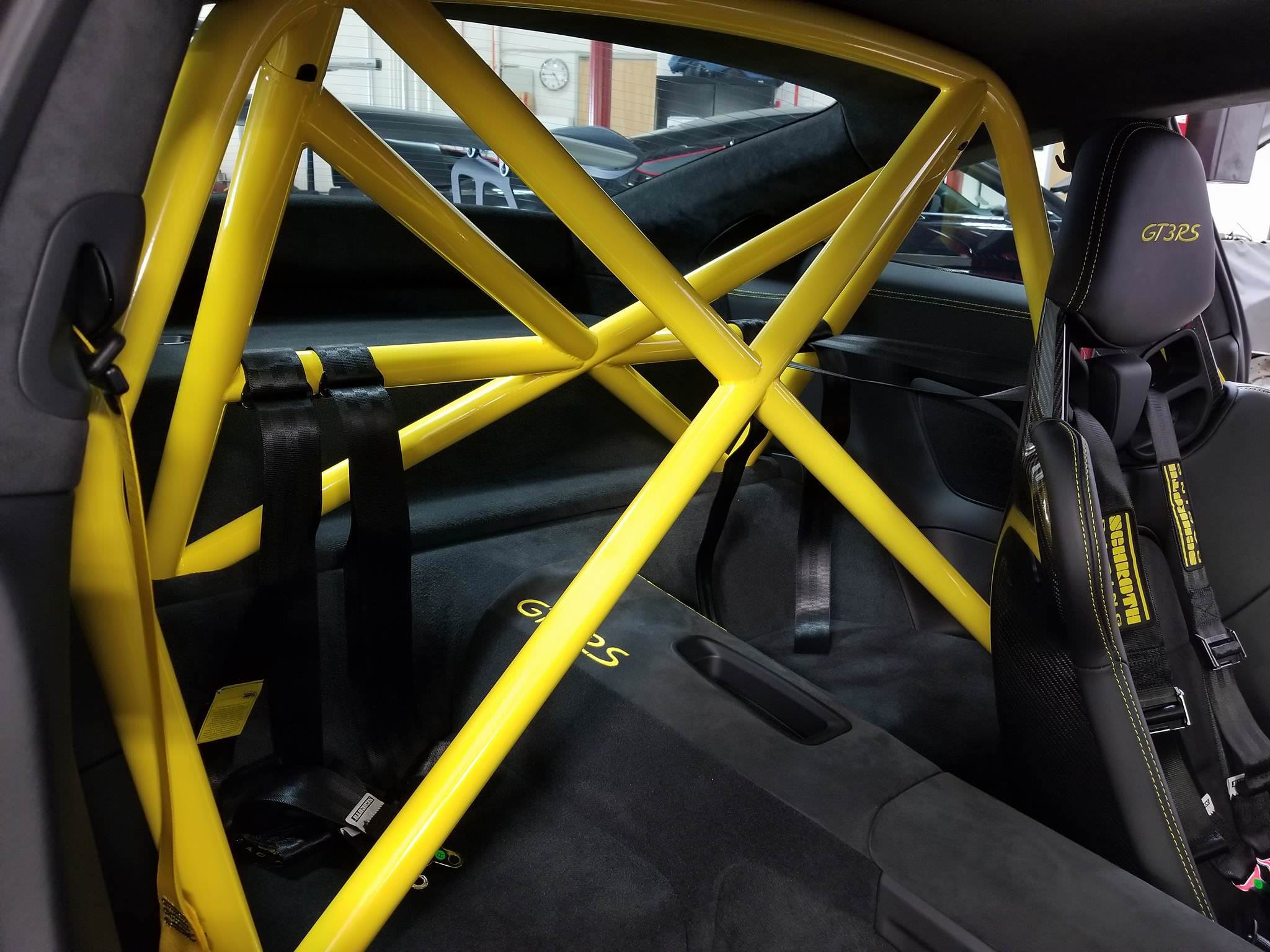

Bar Installed

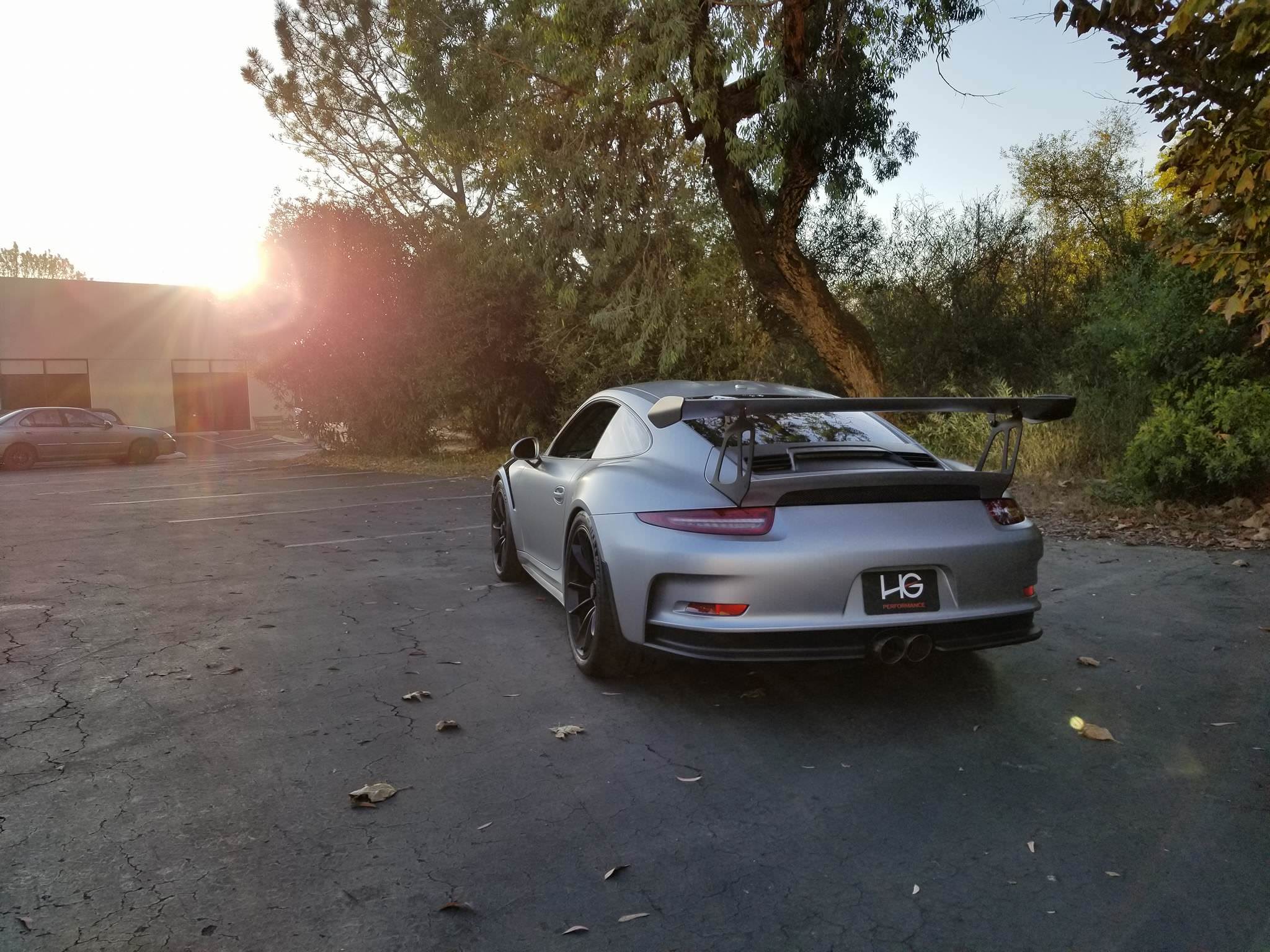

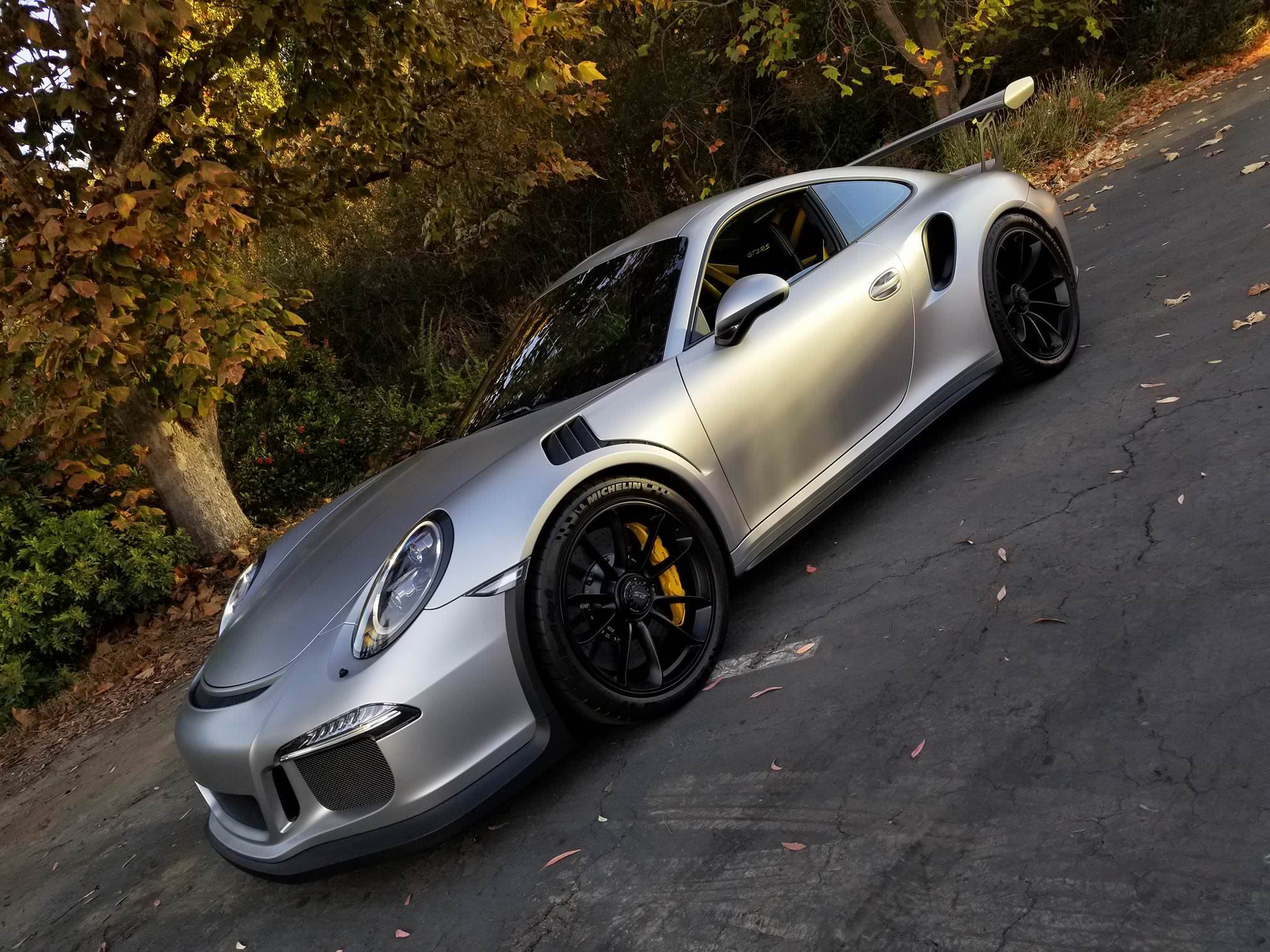

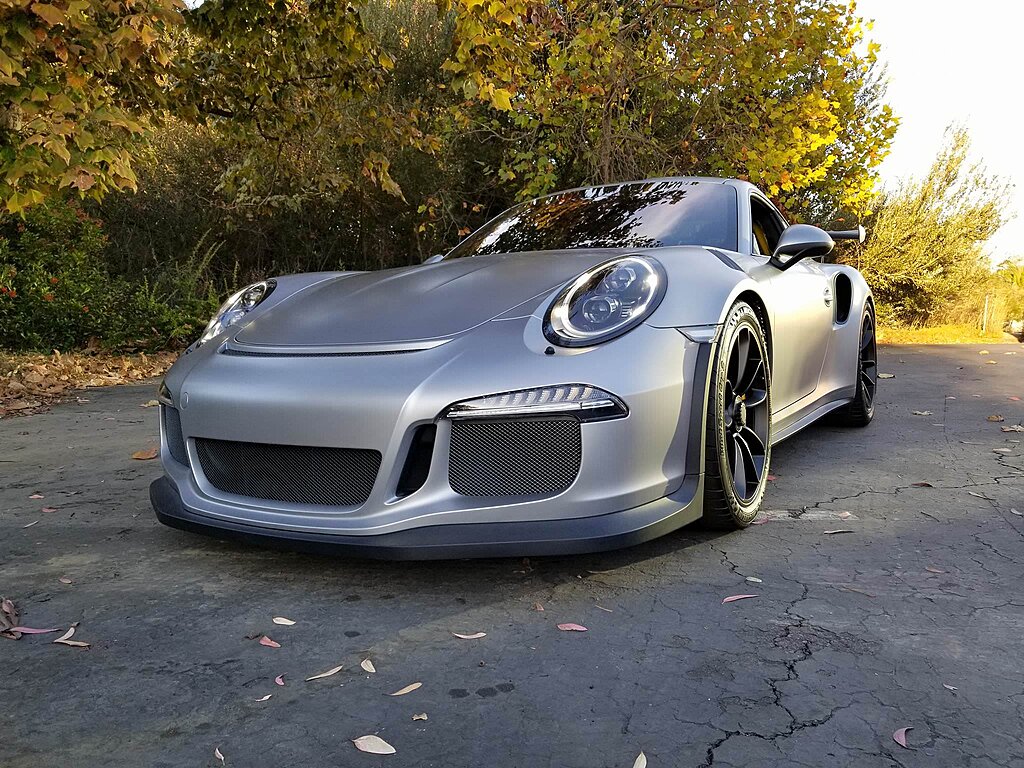

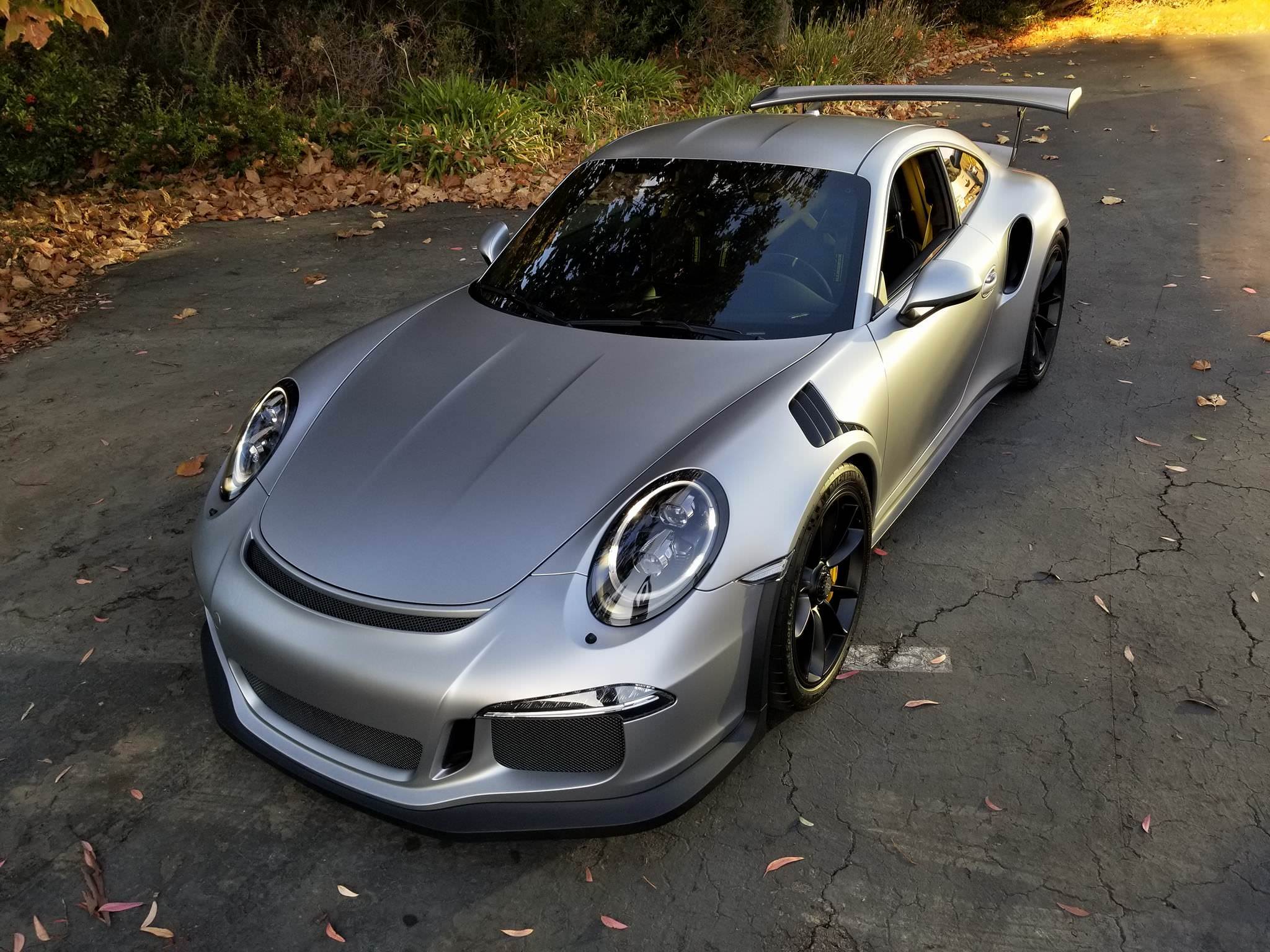

Completed Project
About HG Performance
Attachment 1
4122 Sorrento Valley Blvd Unit 101
San Diego CA 92121
Call: +1.619.504.8140
Facebook: www.facebook.com/hgperformanceusa
Email: info@hgmotorsports.com
- Jerry@BBiAutosport.com
