997TT MK.1 PCM 3 conversion DONE :)
#287
"you are lucky one if bought used turbo 09 a/c unit, or new one. your headache will be in one thing - 997.1 don't have evaporator temp sensor, so you will need to install this one with two wires, plug and cut hole with dremel tool, OR "fool" a/c unit with resistor. "
Hi Serg, could you please give some advice:
- "...install this one with two wires..."
- which type/kind of sensor exactly and where should the two wires go to?
- "...plug and cut hole with dremel tool..."
- where exactly should the hole be located?
I have a 2007 Turbo and a 2009 used AC control unit.
So I need to do it like this, correct?
Regards
David
Hi Serg, could you please give some advice:
- "...install this one with two wires..."
- which type/kind of sensor exactly and where should the two wires go to?
- "...plug and cut hole with dremel tool..."
- where exactly should the hole be located?
I have a 2007 Turbo and a 2009 used AC control unit.
So I need to do it like this, correct?
Regards
David
#288
New amp for PCM 3

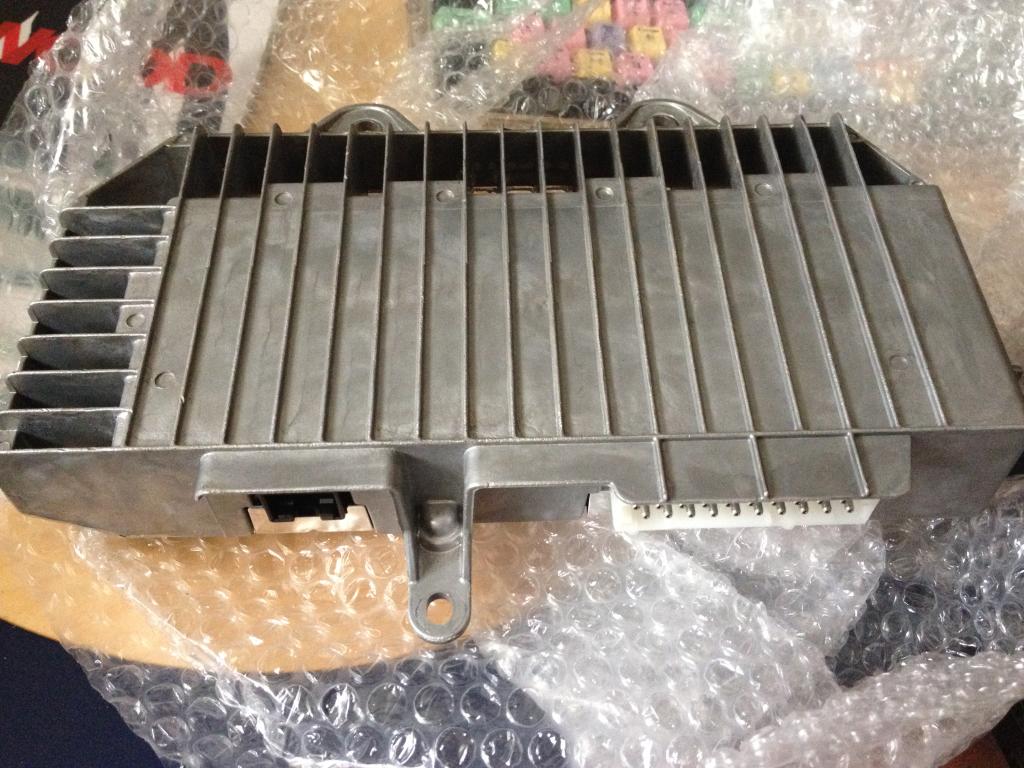

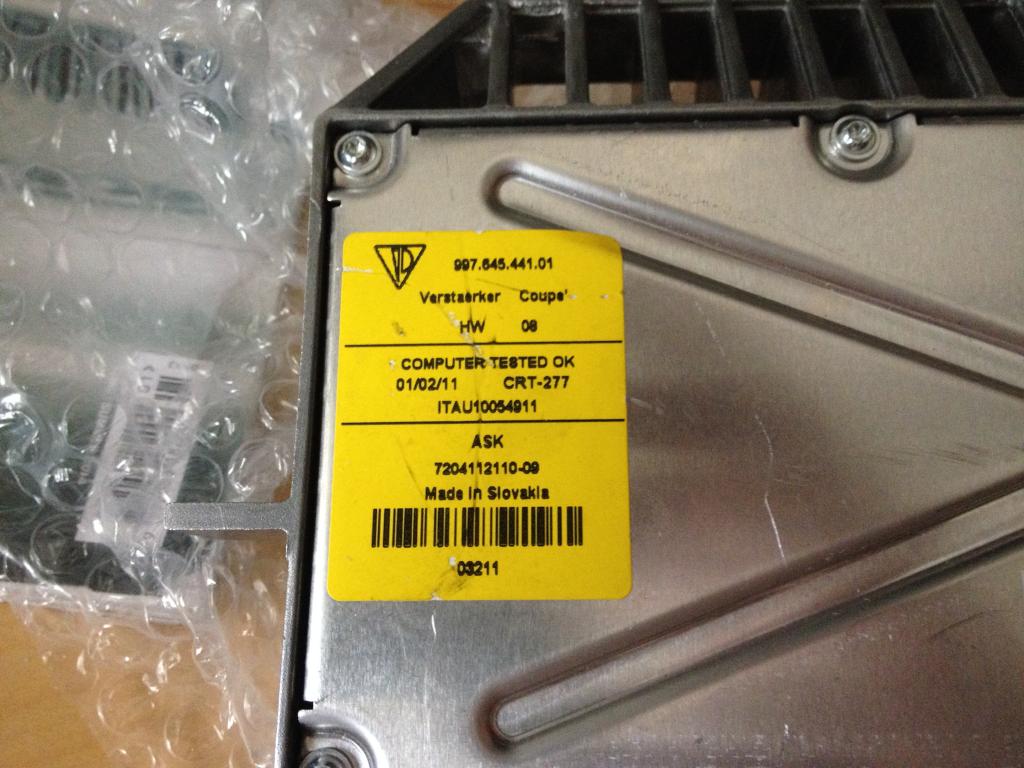

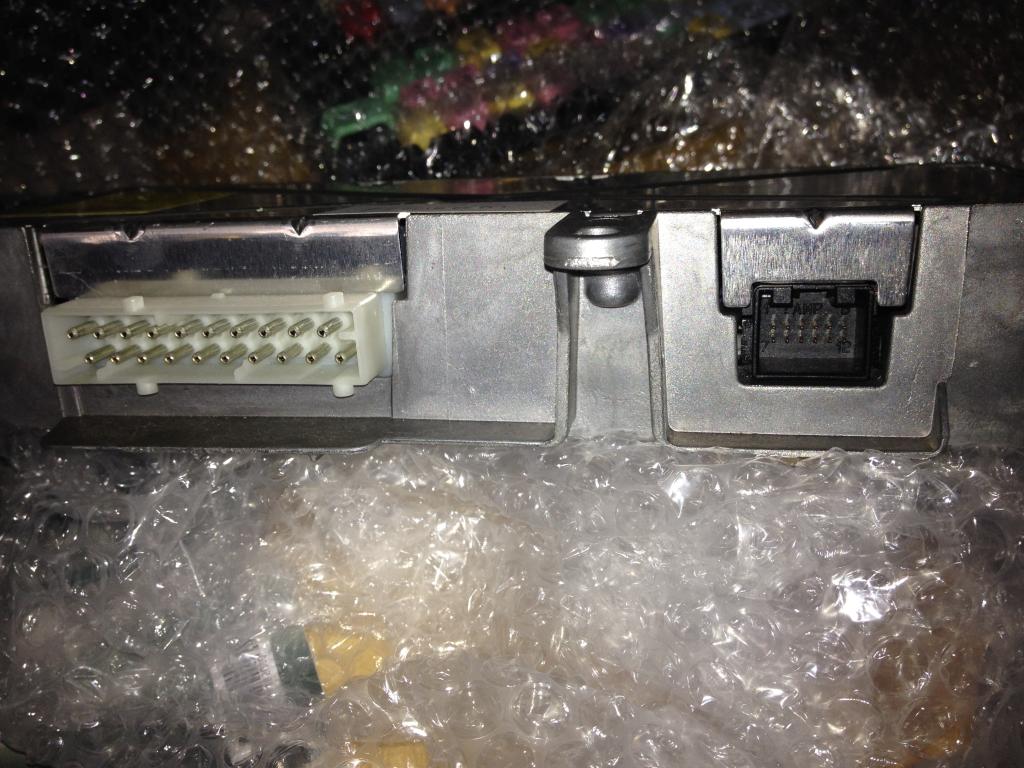

Hello hello hello chaps I'm back,,, I've got a new AMP for the PCM 3 mod now I've notice it has two Separate plugs on the new amp and my old amp it has only one white plug ,,,, its not plug and play ,,, would you have a wiring diagram for this conversion please and where do I get a plug for the black Square bit and what dose it do ... Thanks for your help In advance. ....... I now have all the bits in place ready to install but I'm Scratching my head regarding AMP....thanks from London

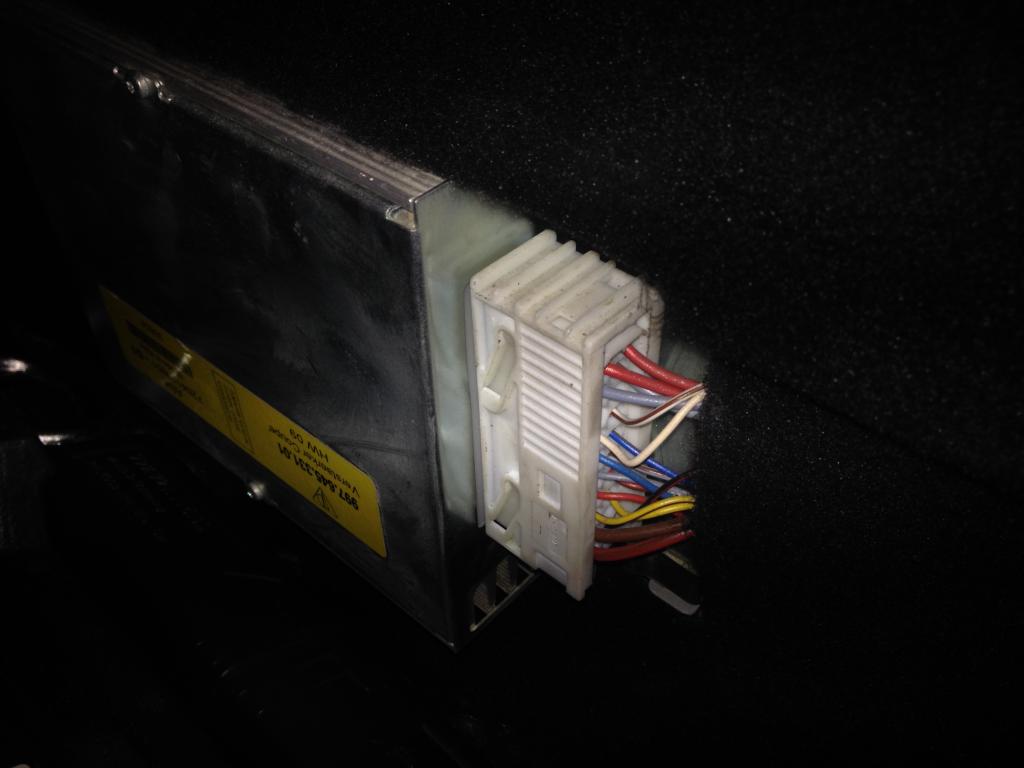

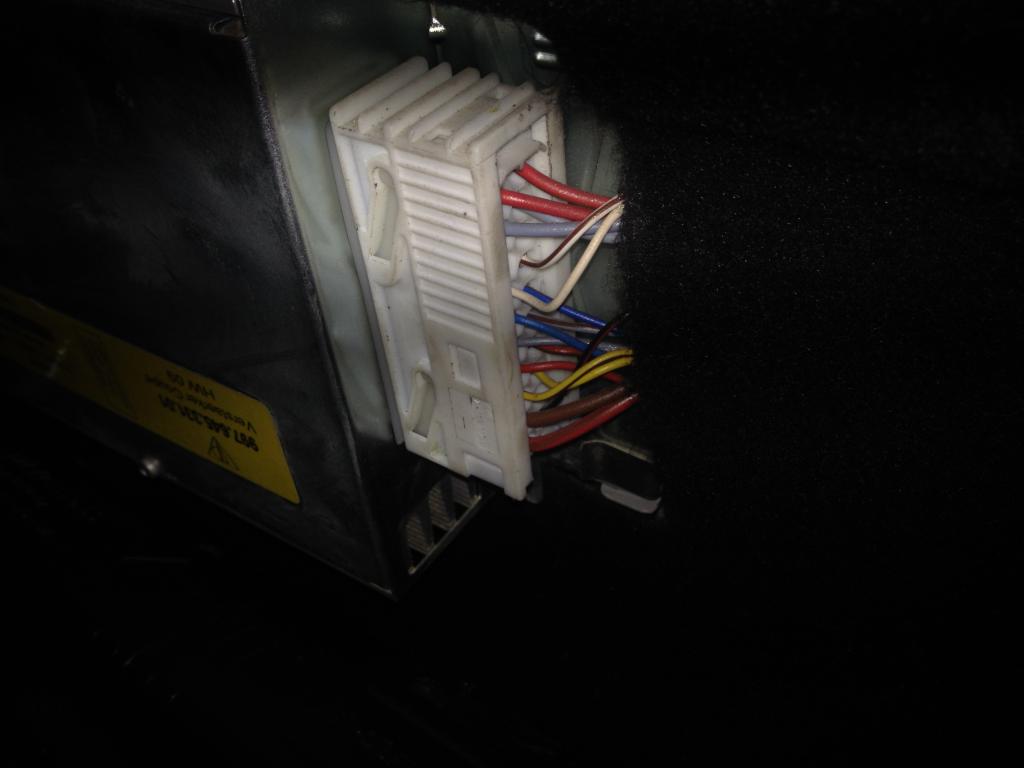

My old 997 PCM 2.1 amp wiring below
My old 997 PCM 2.1 amp wiring below
Last edited by iandiman; 06-19-2014 at 07:10 AM.
#289
Sorry just seen Your post ... I'm in north london ,,,, I know what you mean its very Vague
Last edited by iandiman; 06-19-2014 at 07:00 AM.
#290
"you are lucky one if bought used turbo 09 a/c unit, or new one. your headache will be in one thing - 997.1 don't have evaporator temp sensor, so you will need to install this one with two wires, plug and cut hole with dremel tool, OR "fool" a/c unit with resistor. "
Hi Serg, could you please give some advice:
- "...install this one with two wires..."
- which type/kind of sensor exactly and where should the two wires go to?
- "...plug and cut hole with dremel tool..."
- where exactly should the hole be located?
I have a 2007 Turbo and a 2009 used AC control unit.
So I need to do it like this, correct?
Regards
David
Hi Serg, could you please give some advice:
- "...install this one with two wires..."
- which type/kind of sensor exactly and where should the two wires go to?
- "...plug and cut hole with dremel tool..."
- where exactly should the hole be located?
I have a 2007 Turbo and a 2009 used AC control unit.
So I need to do it like this, correct?
Regards
David
behing heater unit
Hello hello hello chaps I'm back,,, I've got a new AMP for the PCM 3 mod now I've notice it has two Separate plugs on the new amp and my old amp it has only one white plug ,,,, its not plug and play ,,, would you have a wiring diagram for this conversion please and where do I get a plug for the black Square bit and what dose it do ... Thanks for your help In advance. ....... I now have all the bits in place ready to install but I'm Scratching my head regarding AMP....thanks from London
My old 997 PCM 2.1 amp wiring below
My old 997 PCM 2.1 amp wiring below

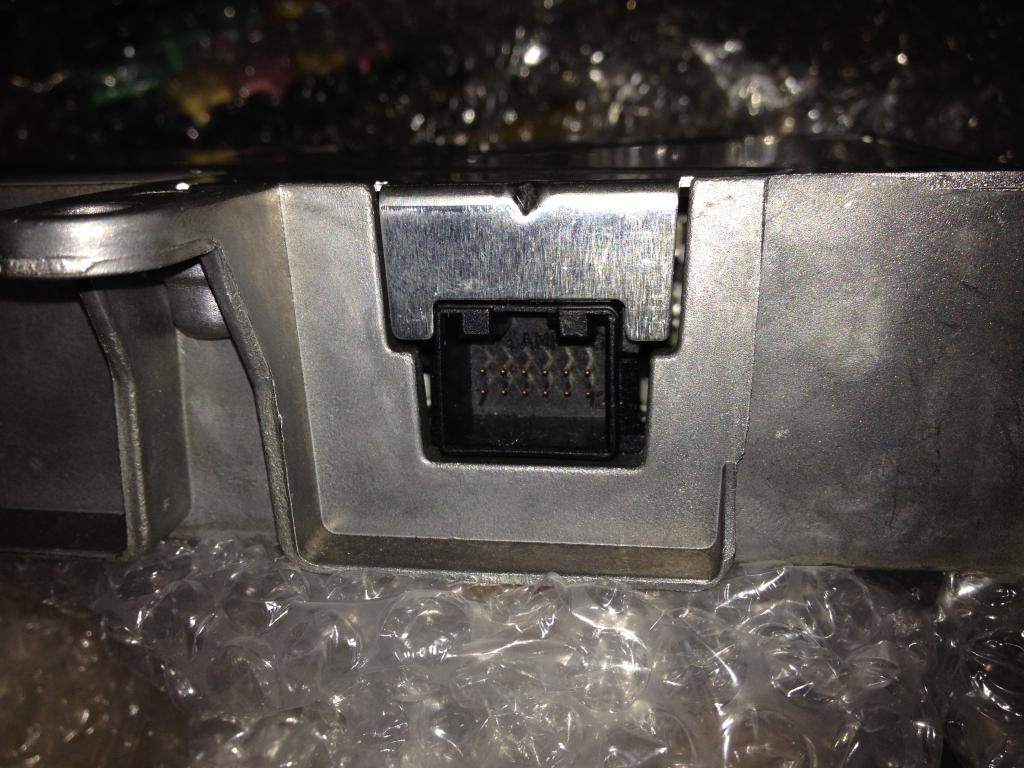

I beleive black plug is 4A0972883
#291
who EVER told you about plug'n'play???
I beleive black plug is 4A0972883[/QUOTE]
Hahahahahaha no one said ,, but was just hopping it was hahahaha thanks for the plug info do you have a wiring diagram on how to make the connection or photos of the end result in car ... Serg124 thanks
I beleive black plug is 4A0972883[/QUOTE]
Hahahahahaha no one said ,, but was just hopping it was hahahaha thanks for the plug info do you have a wiring diagram on how to make the connection or photos of the end result in car ... Serg124 thanks
Last edited by iandiman; 06-19-2014 at 12:44 PM.
#292
mmm of course I have wirings. but. it all russian. and not at home. google for "porsche wds"
this black plug is for sound input, so you need to cut old loom off pcm connector, isolate wires each, and make new loom from pcm to amp from 4 twisted pairs 0.35 gauge
this black plug is for sound input, so you need to cut old loom off pcm connector, isolate wires each, and make new loom from pcm to amp from 4 twisted pairs 0.35 gauge
#297
I've got a PCM 3 & Bose amp (and speakers for that matter) out of my 2011 turbo if anyone is interested. Not sure how much of a market there is for it. I was saving them to put the car back to stock if/when I sold it, but that looks less and less likely as time goes on.
Last edited by Stage7; 10-01-2014 at 10:40 AM.
#298
SO SORRY I HAVE BEEN AWAY - now out of action for a bit
it's been three months since the last update. Is the build completed?[/QUOTE]
SO SORRY I HAVE BEEN AWAY for 3 weeks and when i got back, the **** the hit the fan and its everywhere now ,,, work deadline everywhere, home DIY to do, so i have not even had a chance to even wash the car and thats not like me at all,,, so once again sorry, i have not even looked at the PCM 3 ... just getting my life back on track some how its been hell here hahahah but when i do get back to the PCM 3.0 this page will be the first to know ... once again sorry ....

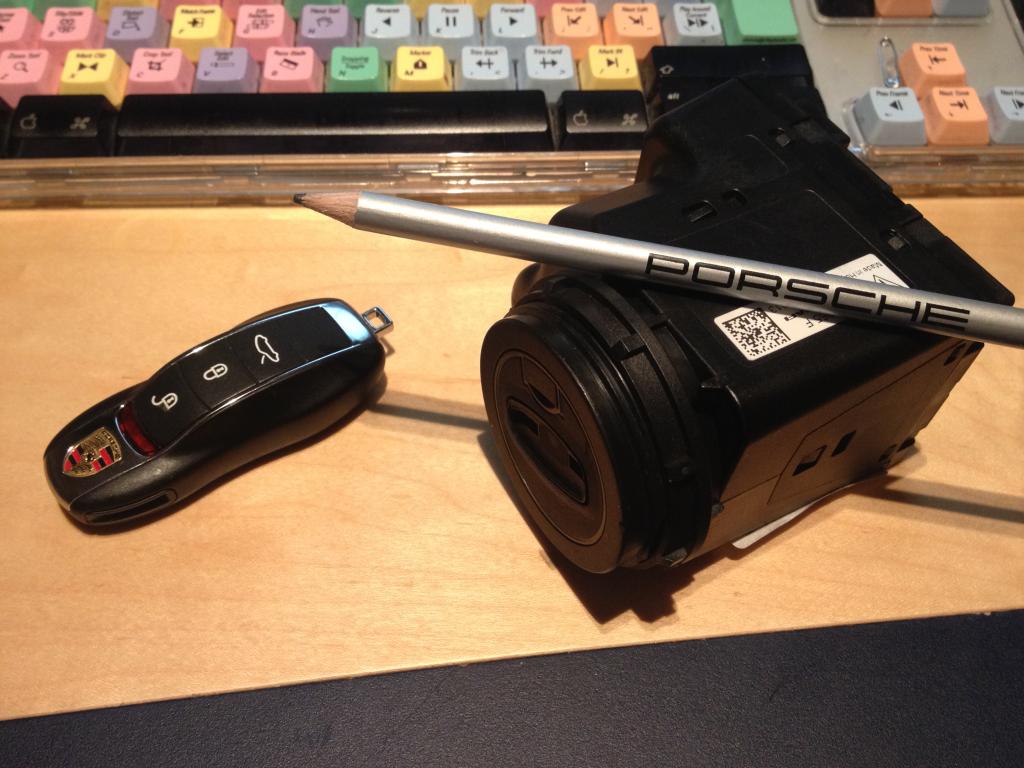

BUT ,,, I did manage to pick up a little something for a bit of fun KEY modding this key is from a 991 turbo s ,,, can i mod it to fit into a 997 ,,, IS IT even POSSIBLE ,,, check it out, what do you think ?
SO SORRY I HAVE BEEN AWAY for 3 weeks and when i got back, the **** the hit the fan and its everywhere now ,,, work deadline everywhere, home DIY to do, so i have not even had a chance to even wash the car and thats not like me at all,,, so once again sorry, i have not even looked at the PCM 3 ... just getting my life back on track some how its been hell here hahahah but when i do get back to the PCM 3.0 this page will be the first to know ... once again sorry ....
BUT ,,, I did manage to pick up a little something for a bit of fun KEY modding this key is from a 991 turbo s ,,, can i mod it to fit into a 997 ,,, IS IT even POSSIBLE ,,, check it out, what do you think ?
Last edited by iandiman; 10-16-2014 at 05:03 PM.
