ABS PSM Fault code 4460
Thread Starter
|
Registered User
Joined: Oct 2009
Posts: 20
From: somewhere
Rep Power: 0
ABS PSM Fault code 4460
Hi all,
after changing the steel brakelines (few weeks after)
996 TT mod04 has ABS PSM light on.already checked:
brakelight switch / new
MAF new
MAF lines to ECU checked
Brake sistem purged convencionally (RR,RL,FL,FR)
ABS unit new /with PIWIS purged & programmed
But still get the same" Fault code 4460 "
has someone have this issue before?
Thnx in advance
911rs
after changing the steel brakelines (few weeks after)
996 TT mod04 has ABS PSM light on.already checked:
brakelight switch / new
MAF new
MAF lines to ECU checked
Brake sistem purged convencionally (RR,RL,FL,FR)
ABS unit new /with PIWIS purged & programmed
But still get the same" Fault code 4460 "
has someone have this issue before?
Thnx in advance
911rs
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268

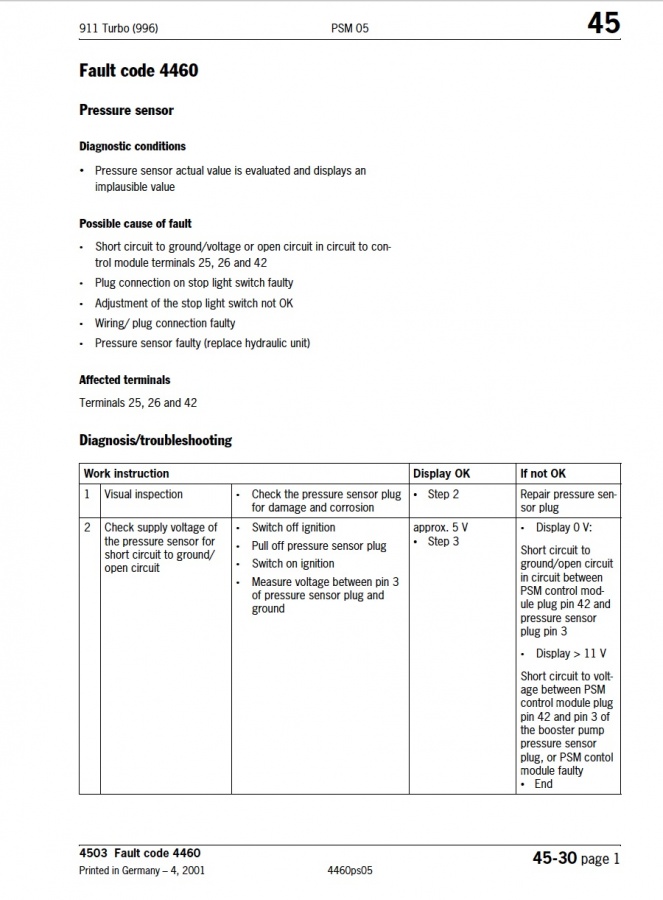

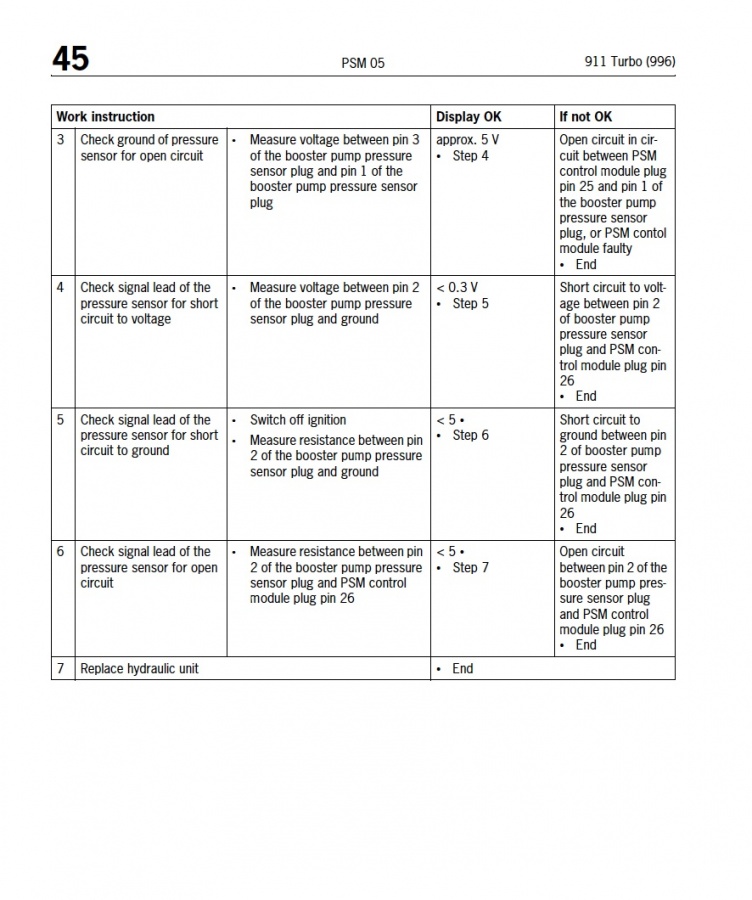

There is some easy troubleshooting you can do if you got a voltmeter.... The pressure sensor they are talking about is located on the PSM itself (plug with three wires, one black, one red and green, one black and brown)
Last edited by jpflip; Dec 4, 2010 at 08:26 AM.
Registered User
Joined: Jul 2003
Posts: 2,957
From: Texas
Rep Power: 456
I believe I had this code. Fixed with replacing brake light switch on brake pedal. Its the switch that turns on the brake lights when you press down the pedal, I believe. It is a very inexpensive part.
Thread Starter
|
Registered User
Joined: Oct 2009
Posts: 20
From: somewhere
Rep Power: 0
thnx a lot guys for your info's. but I checked already step by step and there were ok. brake light switch also replaced. I wonder if the metalic brake line set could cause this problem or the pre load pump (just in your pic under the main brake cilinder)?
BR
911rs
BR
911rs
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
Just realized your bleeding sequence is not as per repair manuel. RR,LR,FR,FL...Finish with the nearest to the reservoir.... But I doubt it is part of your problem.... If you got access to Durametric V6 you are suppose to be able to start the booster pump. ( I was not able may be due to a slow laptop...) and once the pump is started you are suppose to bleed the front right....
Last edited by jpflip; Dec 4, 2010 at 09:19 AM.
Trending Topics
Thread Starter
|
Registered User
Joined: Oct 2009
Posts: 20
From: somewhere
Rep Power: 0
Just realized your bleeding sequence is not as per repair manuel. RR,LR,FR,FL...Finish with the nearest to the reservoir.... But I doubt it is part of your problem.... If you got access to Durametric V6 you are suppose to be able to start the booster pump. ( I was not able may be due to a slow laptop...) and once the pump is started you are suppose to bleed the front right....
regards
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
911rs you are fully equip!!! Lucky guy
You did a very deep troubleshooting. It is a very difficult one to troubleshoot. Keep us inform of your findings....
Thread Starter
|
Registered User
Joined: Oct 2009
Posts: 20
From: somewhere
Rep Power: 0
yes it's adjusted.
Thread Starter
|
Registered User
Joined: Oct 2009
Posts: 20
From: somewhere
Rep Power: 0
I'm still asking if somone had any problemm with replacing the original rubber brake hoses to the Steel Braided TROUTMAN W/ JACKET
Regards
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
Can you take a moment and explain the pressure button, level, location and purpose. Thanks!
Registered User
Joined: Jul 2003
Posts: 2,957
From: Texas
Rep Power: 456
The switch has a plastic plunger type button that activates the brake lights. Before you install the switch on the brake pedal you need to set the appropriate level for the button. It adjusts by sliding to plunger into the housing or pulling it outward. I set it up kind of by trial and error. It finally worked and the ABS/PSM 4460 quit returning.
