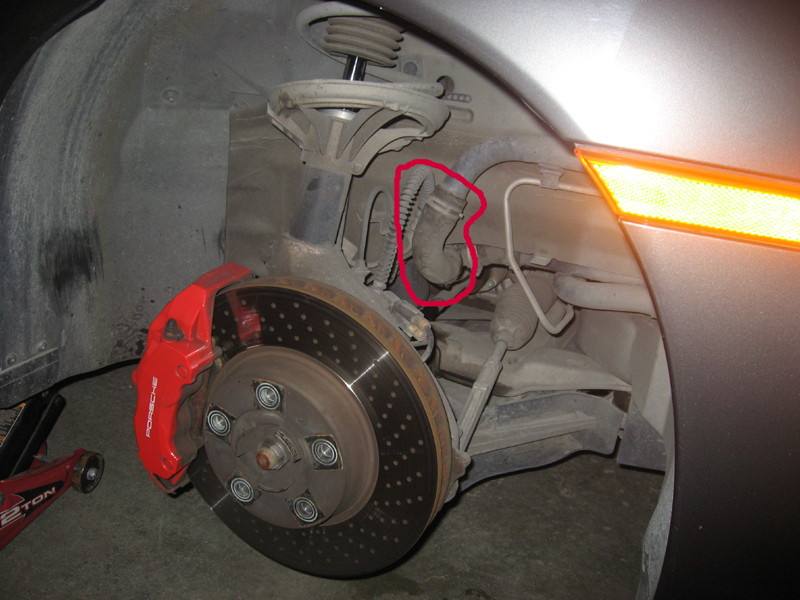

Does anyone know the part number for this coolant hose?
Registered User
Joined: Jan 2009
Posts: 2,251
Rep Power: 166
Hard to say for sure from the parts catalog but maybe 996 106 502 74
Start looking on page 35 (KAT 23) in this PDF and go from there a few pages forward as well to the radiators:
http://www.porsche.com/all/media/pdf...SA_KATALOG.pdf
Start looking on page 35 (KAT 23) in this PDF and go from there a few pages forward as well to the radiators:
http://www.porsche.com/all/media/pdf...SA_KATALOG.pdf
Registered User
Joined: Jan 2004
Posts: 5,706
From: SW FL
Rep Power: 390
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 738
From: Canada
Rep Power: 64
I took a look at the diagrams and still cant pin point which one it would be. I even sent a pic to the local Porsche dealer and they couldn't give me the Part number. LOL
Anyone?
Anyone?
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268

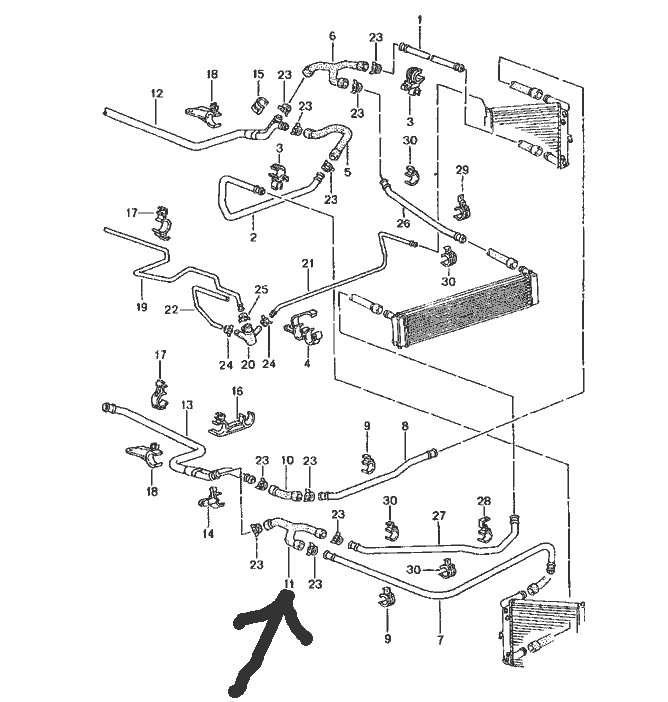

I was looking at my car a2002 TT. If you look closely at the pipe , it is a Y going to the front radiators and after the Y it is a rigid metal line. So it has to be item# 11 from the parts catalog which is #996 106 728 72. $26.48 at Sonnen....
Last edited by jpflip; Apr 5, 2013 at 10:58 AM.
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 738
From: Canada
Rep Power: 64

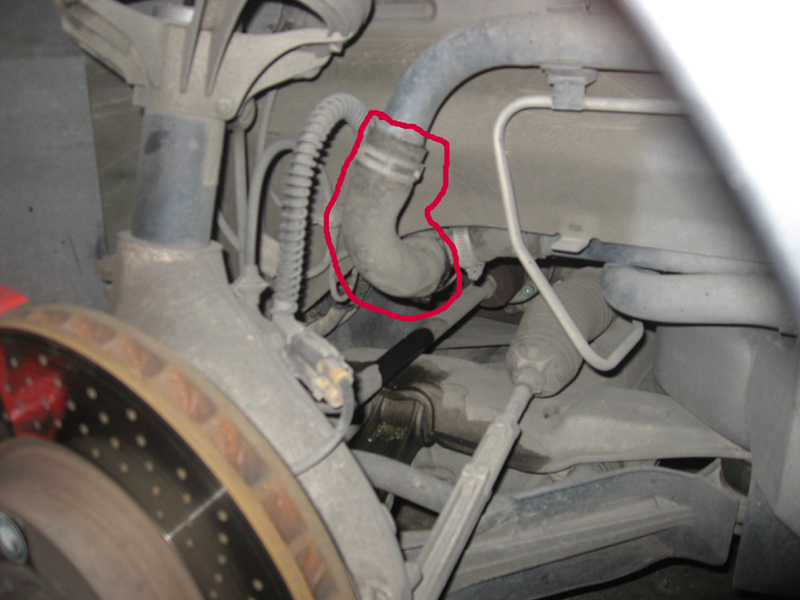

Thanks for ths input. Although the hose is not a Y it is a 12" hose with about a 90 degree bend in it. Right when it attaches on one end though there is another hose that attaches to the same T so I am thinking from the pic you posted it may be #5.
Last edited by NTIMD8; Apr 5, 2013 at 12:22 PM.
Trending Topics
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268

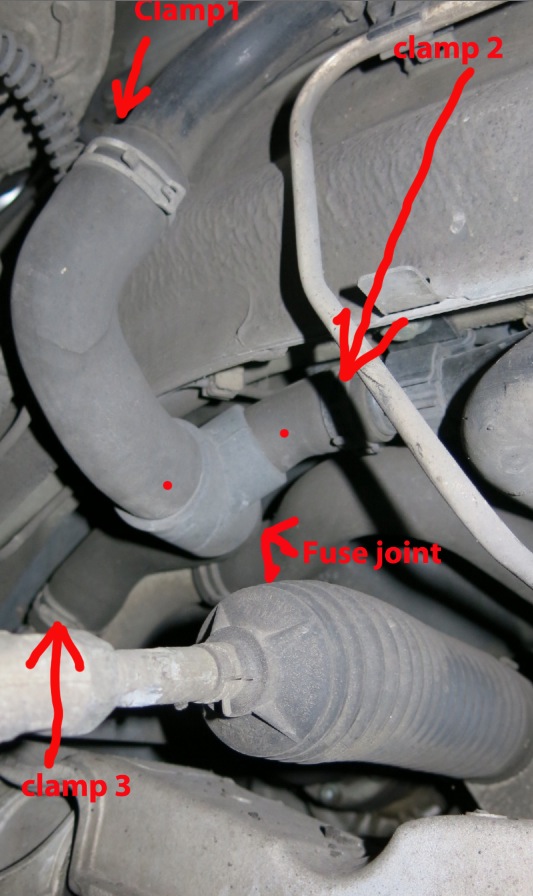

Went to take a picture of my set-up. I got a Y with three clamps. The middle part is a triple fuse joints and the pipes cannot be separated because they are manufactured that way. But may be your set-up is different..... I can see on your picture a clamp that is not OEM.....
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 738
From: Canada
Rep Power: 64
1st of all thank you very much for taking the time and trying to help and even going out of your way to take pics. I noticed mine had a worm gear clamp which was different than the spring clamps that came OEM so now I am thinking the original owner modified it for some reson. This is becoming a pain.
Registered User
Joined: Mar 2008
Posts: 2,807
From: Montreal Canada
Rep Power: 268
Good point. It is really strange because the view shows the lines going to the left which should be the back of the engine. I've check the Porsche catalog and they mention left also for #11 and right for #6....Hum... I am a bit confused because #27 is right side....I personally would like to order #11
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 738
From: Canada
Rep Power: 64
Yet # 7 is Left side. This is a mess. LOL
Well armed with your pic and my pic I went to the parts counter and we are 99% sure it is #6 we need. The good news is although the part numbers are different #6 and #11 look identical.
Thanks again for your help. I would have never figured it out without your pic showing that the old owner modified the hose.
PS, Rep added for you!
Well armed with your pic and my pic I went to the parts counter and we are 99% sure it is #6 we need. The good news is although the part numbers are different #6 and #11 look identical.
Thanks again for your help. I would have never figured it out without your pic showing that the old owner modified the hose.
PS, Rep added for you!
Thread Starter
|
Registered User
Joined: Oct 2012
Posts: 738
From: Canada
Rep Power: 64
I just checked and even though #6 and #11 look the same they have different part numbers and prices so they cant be the same. Well I orderd #6 but if it turns out it is wrong and we need #11 I am sure my parts guy wont have an issue doing the exchange.
