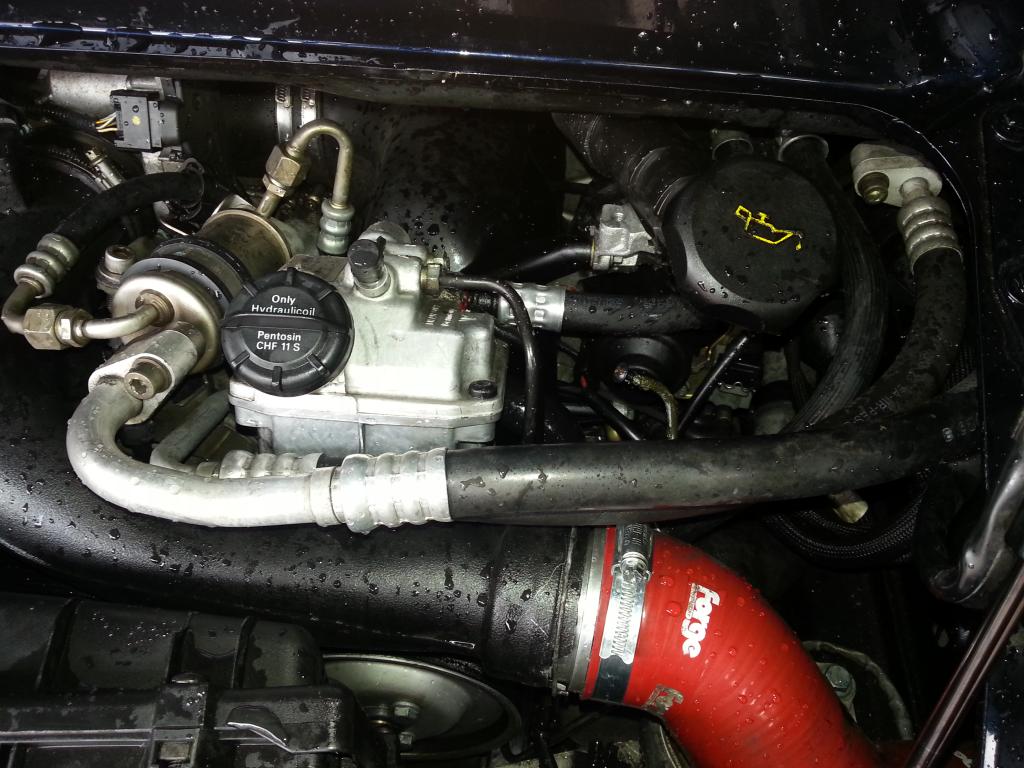

Hi Guys my car has the GT2 Slave conversion, its been fine for 18months, but last night one of the pipes started leaking real bad. I nursed her home, I was only 5miles away. Had enough fluid not to run the pump dry. I cannot find the part number for this pipe for the life of me. Please help!

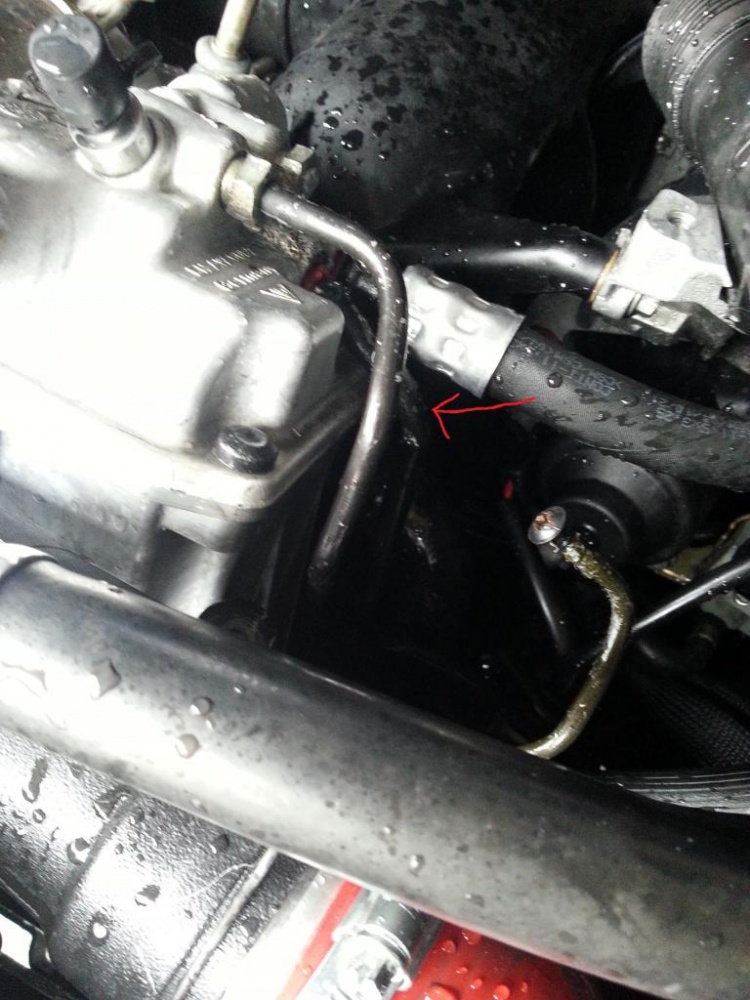

The pipe that is split and leaking......



Go to autoatlanta.com they have great pics with numbers in parts. Hope this helps



PN 99631426902 pressure line (item 16)

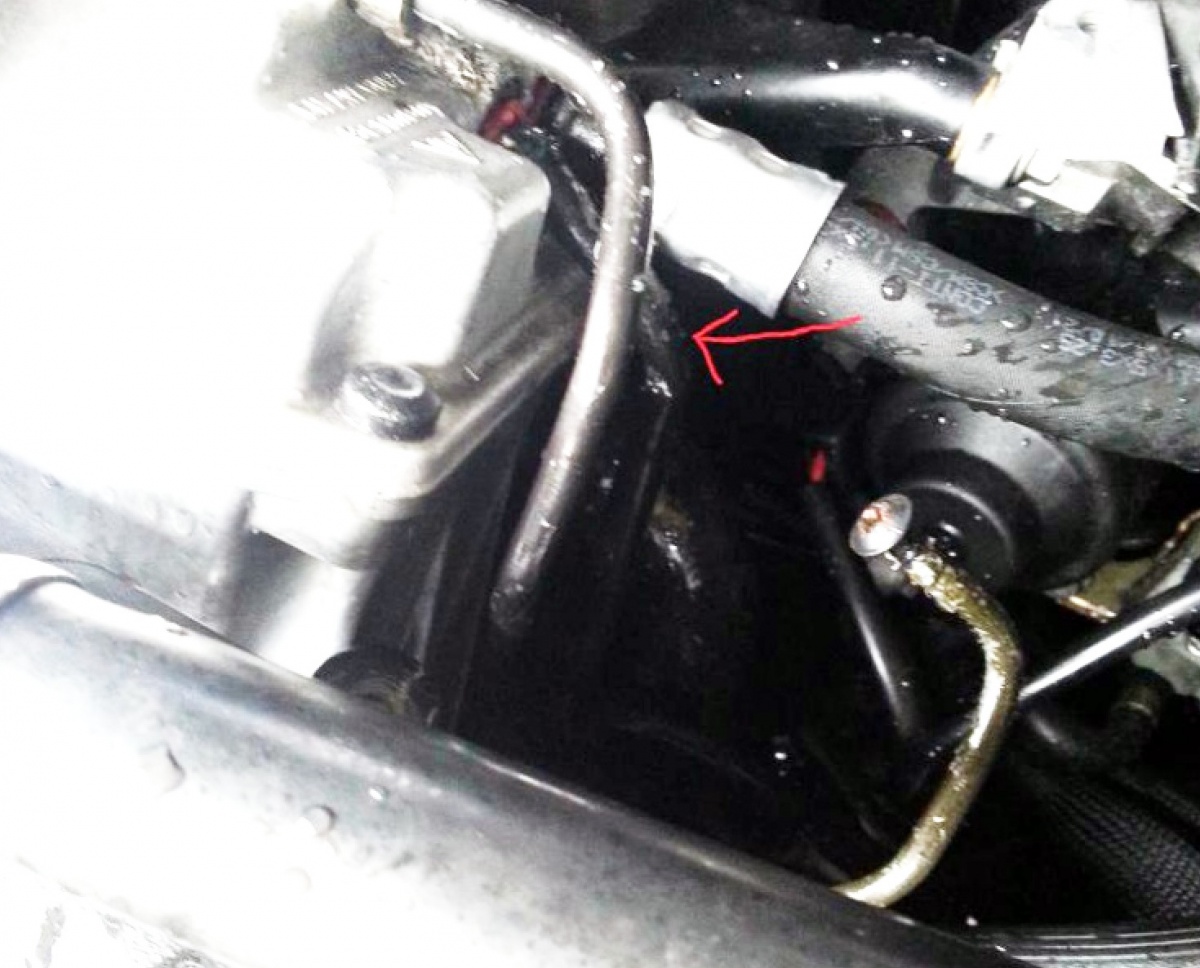

Hum...I removed a bit of contrast from the picture and the arrow seems to be pointing towards the middle rigid line.

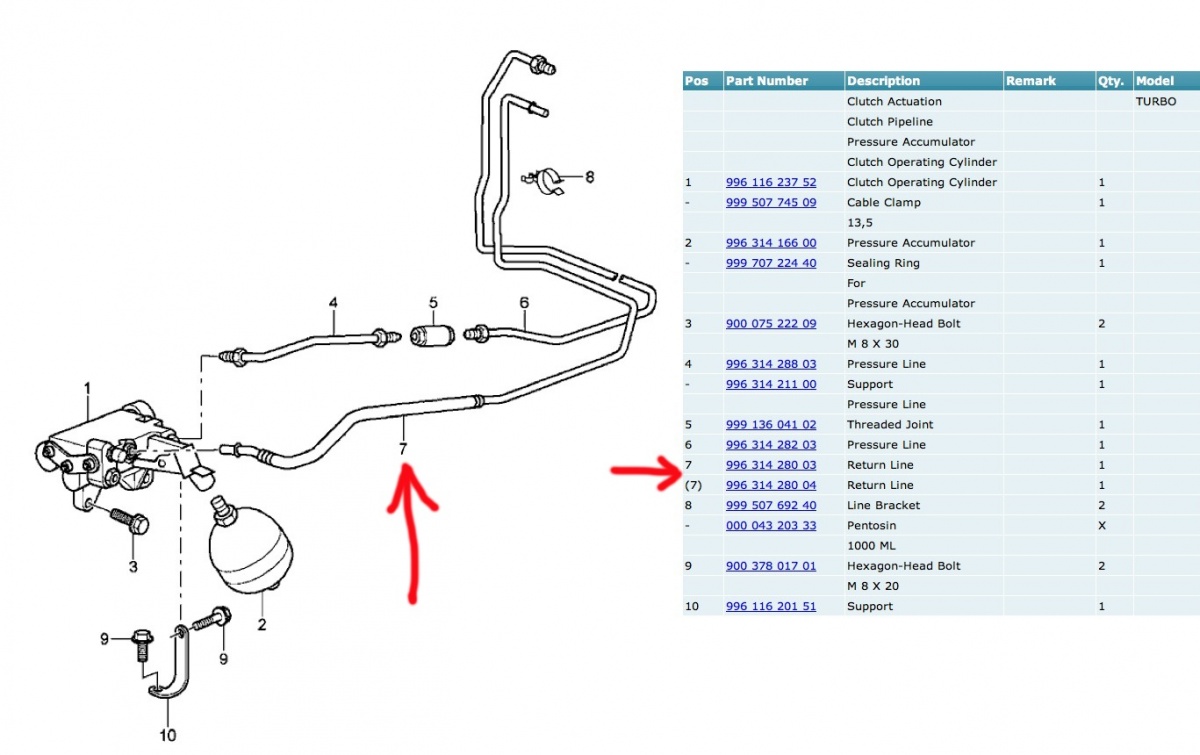

If it is the middle line which is rigid, it is a long line going to the slave (gt2 conversion ?) ....Part# 996 314 280 03 supersede by part#99631428004 $79.75 at Sonnen. Must be a very good job to replace.... Is this line still in used with the GT2 conversion?

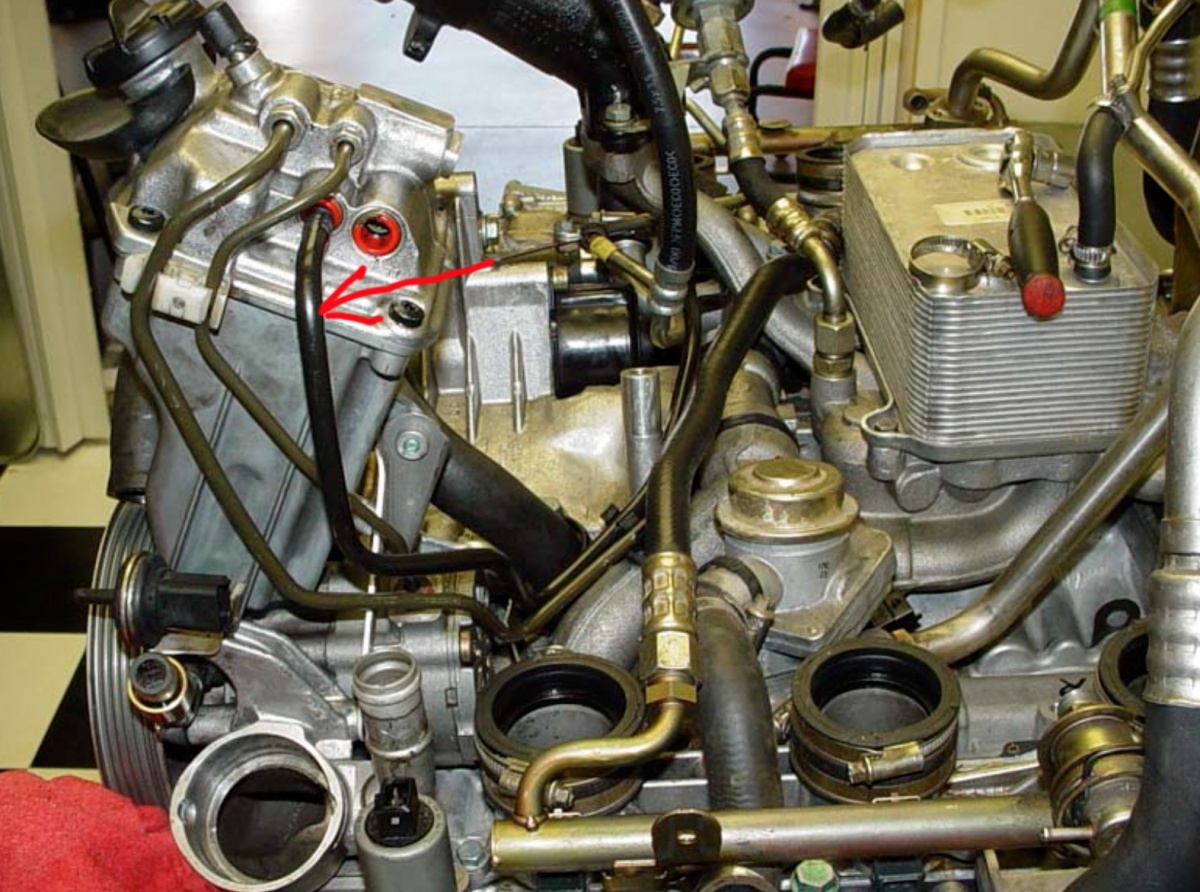

JP flip the pipe u identified in your edited pic is indeed the one i require. it does not go to the slave cylinder. it is a power steering pipe.



Hum...I removed a bit of contrast from the picture and the arrow seems to be pointing towards the middle rigid line.

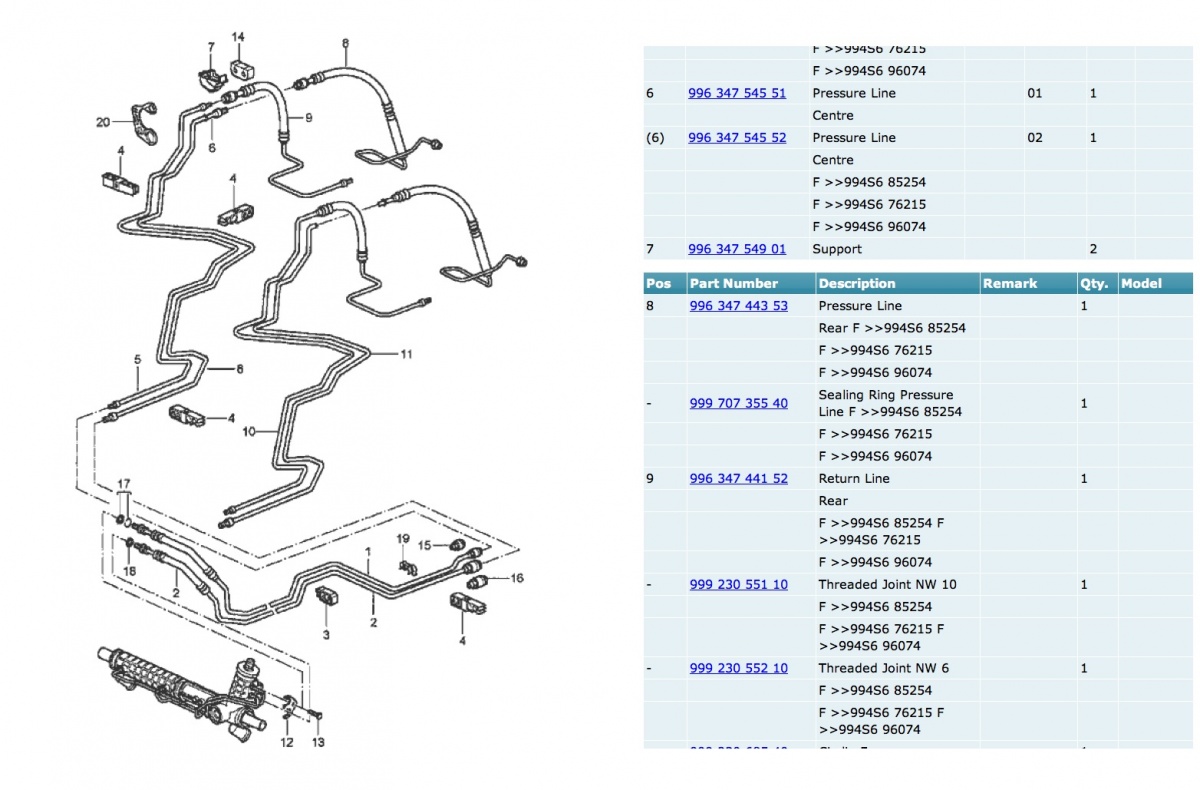

Very hard to see on the parts catalog. I am trying to locate the other two lines going to the steering rack but it is very difficult. According to this drawing items 8 and 9 are steering pressure and return but the shape of them seems to be different....The black line has to be return....
