Oil Leak

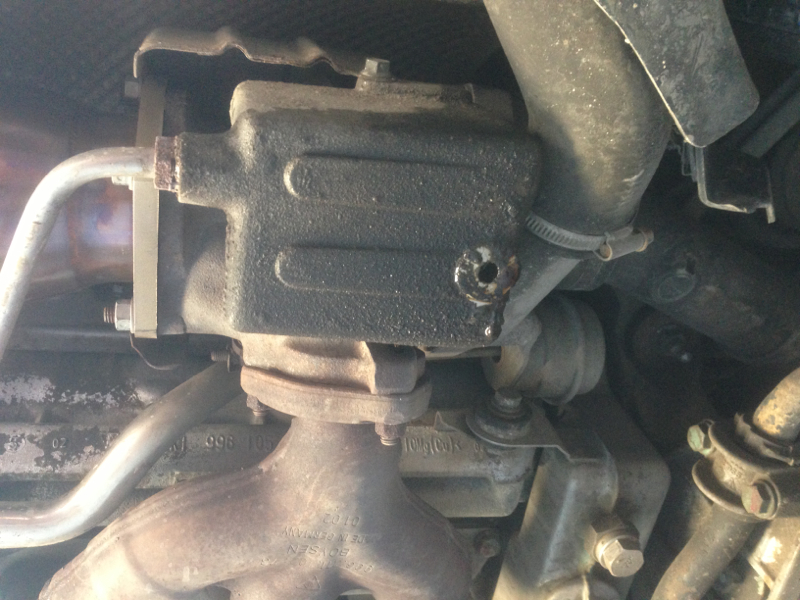

Started to get a very small leak from under the passenger side turbo I assume this is part if the turbo oiling system. Anyone have this issue? Fixes?
The drivers side is bone dry.

Attached Images

Sep 17, 2013 | 08:38 PM

32krazy!

Banned

Joined: Dec 2008

Posts: 5,551

From: tn

Rep Power: 628

crush washer on the drain plug needs changing

Sep 18, 2013 | 02:39 AM

jpflip

Registered User

Joined: Mar 2008

Posts: 2,807

From: Montreal Canada

Rep Power: 268

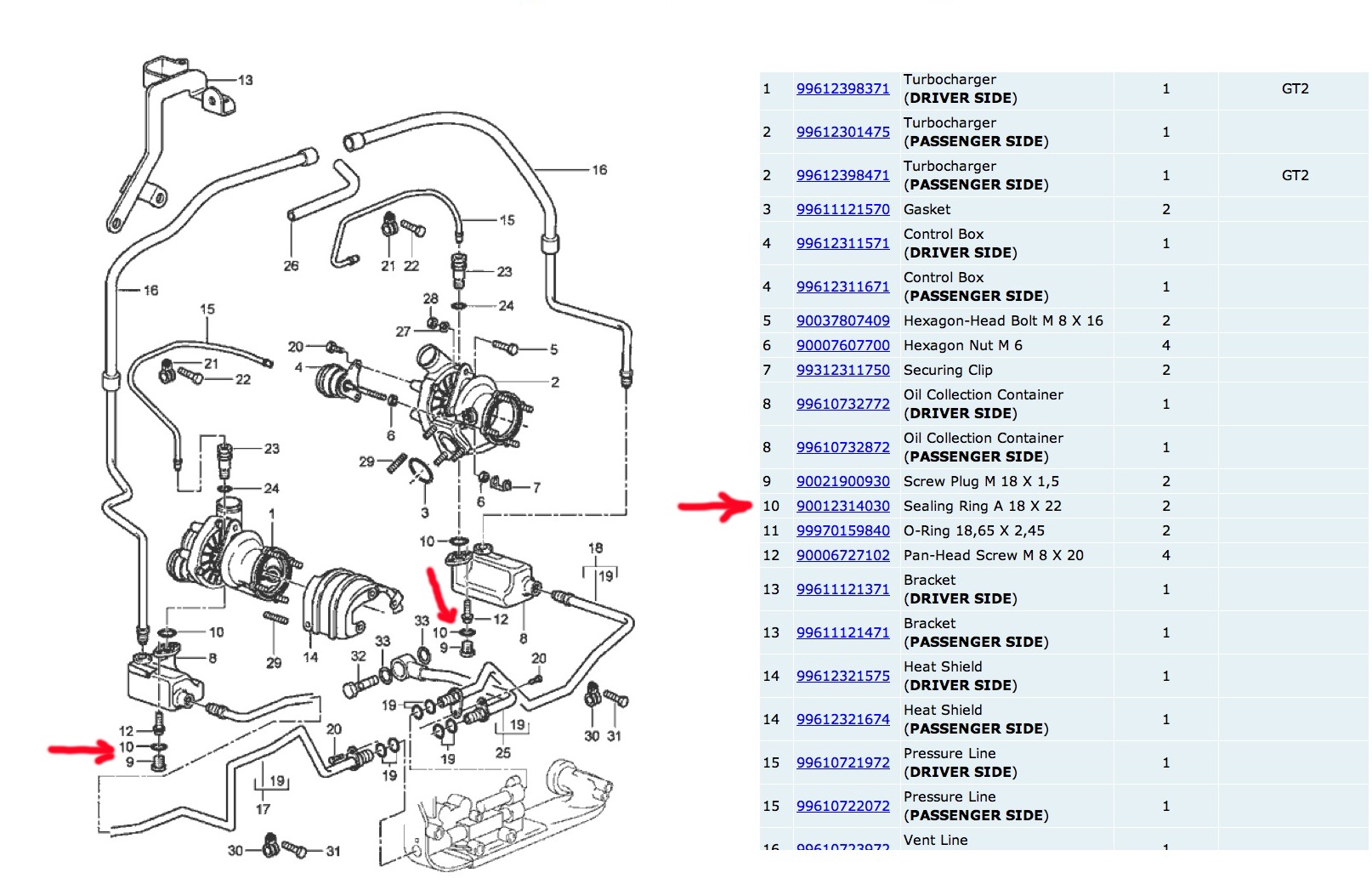

Agree with 32 Krazy! You got a damage or missing crush washers part# 900 123 140 30.Easy job to replace (allen key 8 mm) and just a little bit of oil will come out. The torque for the plug is 22 ft/lb.

Attached Thumbnails

Click image for larger version

Name: Capture d’écran 2013-09-18 à 04.37.23.jpeg
Views: 58
Size: 359.3 KB
ID: 281874

Last edited by jpflip; Sep 18, 2013 at 02:49 AM.

Sep 18, 2013 | 04:09 AM

mtlsp

Registered User

Joined: Apr 2013

Posts: 465

From: north est

Rep Power: 61

Quote:

Originally Posted by Cowtown10

Started to get a very small leak from under the passenger side turbo I assume this is part if the turbo oiling system. Anyone have this issue? Fixes?
The drivers side is bone dry.

it could be the washer! but i am more worry to see the side tank wet look like it maybe coming from the top of turbo! it can be the check valve leaking to
good luck
