Found the leak, any ideas?

Hard to tell by trying to see it from garage floor at night... I'm pretty sure that's coolant, now it explains few things: Wondering if anyone ever had a leak from that place, and whats above maybe someone can post a picture of the engine....whats above that area....any coolant pipes?

story: Had to add coolant few weeks ago to top it off, because it was below _low_ line, (have the car for 8 months now so i was thinking maybe it was when they changed the clutch ), since i drive the car only on weekend.

Was checking for leak last weekend, car runs, drives, no overheat, no warning lights etc,...i pull out of the garage, no leak when its fully warmed up, after 50 miles of driving it, no leak. (BUT IF car is left over night, it shows wet spot on the floor) thinking when coolant cools down it leaks----also it looks like someone used wrong coolant as well, or its just old, looks orange/yelow'ish, smells like coolant car has 47k miles, probably never changed.

Wondering if the engine needs to be dropped to fix that leak.

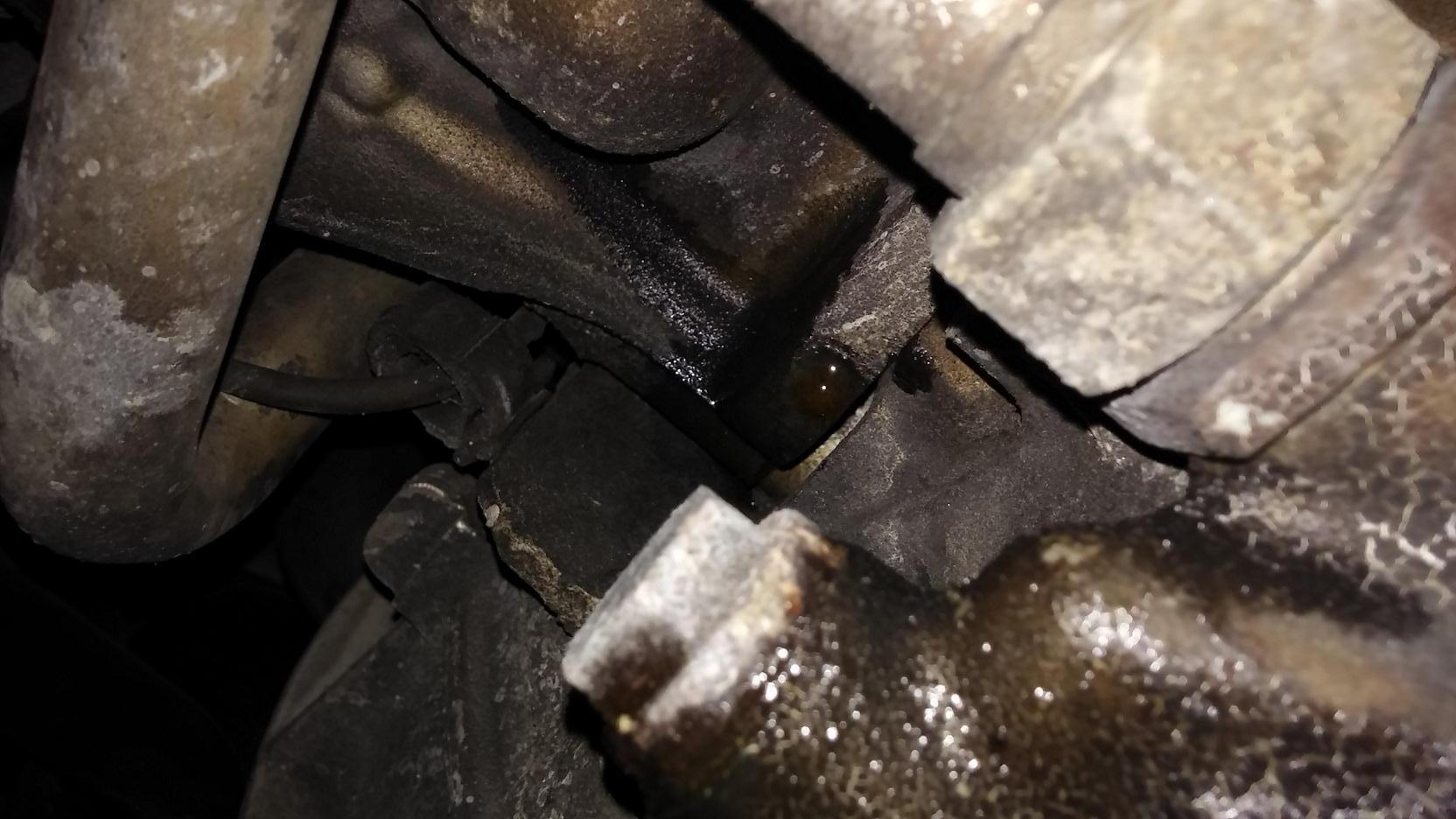

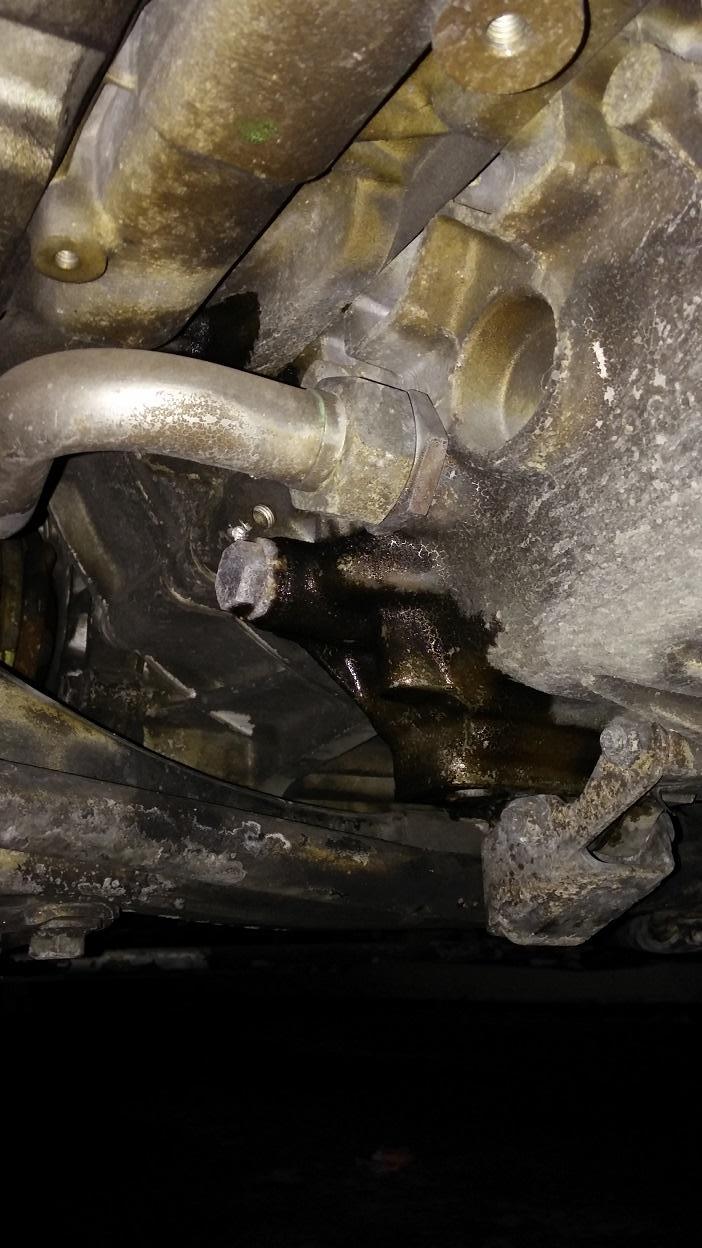

I took few pictures, that's rear drivers side.

Name:  QtaHbUB.jpg
Views: 21
Size:  149.7 KB

Name:  OTHPhE8.jpg
Views: 22
Size:  113.2 KB


Last edited by MadWhip; Feb 24, 2015 at 07:06 PM.
Old Feb 25, 2015 | 10:52 PM
  #2
Slider's Avatar
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
I can't tell from the picture, but there is a very small hole on the water pump. It is there to tell you when the inside of the pump is toast. The "warning Light" for this failure is a small puddle on the floor. It is very possible - that is your problem. If it is the pump, it's not a big deal. Easy DIY. (See my thread)

Old Feb 26, 2015 | 12:24 PM
  #3
joetwint's Avatar
Registered User
Joined: Dec 2005
Posts: 2,566
From: new york
Rep Power: 604
joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !
in that location i would check the oil cooler/manifold or the small coolant hose coming to of oil cooler first then also the heater core lines above the head right next to the injectors.Take a long mirror and flash light and snoop around above where trans meets engine

Old Feb 26, 2015 | 01:17 PM
  #4
SamboTT@ByDesign's Avatar
Former Vendor
Joined: Sep 2003
Posts: 4,901
From: L.A.
Rep Power: 0
SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !SamboTT@ByDesign Is a GOD !
^ +1 and also clean it from the top down and see what happens. Could even be from a sloppy oil service (I hope so)

Old Feb 26, 2015 | 02:07 PM
  #5
MadWhip's Avatar
Thread Starter
|
Registered User
Joined: Apr 2014
Posts: 1,229
From: In My Trunk, IL
Rep Power: 89
MadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond repute
^ yeah I can't tell until I slap the car on the lift (too tired after getting home) I'm going to inspect it this SAT to see where its leaking from and also replace clutch slave cylinder - since its just sitting in my garage and that needs attention as well. lol. I just hope i dont have to drop the damn engine!

Old Feb 26, 2015 | 06:12 PM
  #6
joetwint's Avatar
Registered User
Joined: Dec 2005
Posts: 2,566
From: new york
Rep Power: 604
joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !joetwint Is a GOD !
Originally Posted by MadWhip
^ yeah I can't tell until I slap the car on the lift (too tired after getting home) I'm going to inspect it this SAT to see where its leaking from and also replace clutch slave cylinder - since its just sitting in my garage and that needs attention as well. lol. I just hope i dont have to drop the damn engine!
look closely and try to find where it is coming from cause if it is the small coolant hose coming out of the back of the oil cooler it can be replaced by dropping trans only and since you are doing the slave anyway you would be almost there. just a thought

Old Feb 26, 2015 | 06:50 PM
  #7
'02996ttx50's Avatar
Registered User
15 Year Member
Joined: May 2009
Posts: 7,984
From: la
Rep Power: 608
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
the mere fact you see orange/yellow when the coolant should be pink is enough of a reason to go thru a coolant flush and while there find any leak. we're not even gonna get into the *old* expansion tank saga lol. just change that sh*t.

Old Feb 26, 2015 | 07:38 PM
  #8
MadWhip's Avatar
Thread Starter
|
Registered User
Joined: Apr 2014
Posts: 1,229
From: In My Trunk, IL
Rep Power: 89
MadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond repute
Originally Posted by '02996ttx50
the mere fact you see orange/yellow when the coolant should be pink is enough of a reason to go thru a coolant flush and while there find any leak. we're not even gonna get into the *old* expansion tank saga lol. just change that sh*t.
I think it is pink. just lost some color lol after being same coolant for 12 years, yeah gonna flush that crap.

and yeah good point by not dropping the motor but trans

Wish they did hatch in rear as well -inside of the car, lol where you can just open and inspect it better and maybe replace stuff like plenum etc.lol.


Last edited by MadWhip; Feb 26, 2015 at 07:40 PM.
Old Feb 26, 2015 | 07:51 PM
  #9
'02996ttx50's Avatar
Registered User
15 Year Member
Joined: May 2009
Posts: 7,984
From: la
Rep Power: 608
'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !'02996ttx50 Is a GOD !
Originally Posted by MadWhip
I think it is pink. just lost some color lol after being same coolant for 12 years, yeah gonna flush that crap.

and yeah good point by not dropping the motor but trans

Wish they did hatch in rear as well -inside of the car, lol where you can just open and inspect it better and maybe replace stuff like plenum etc.lol.
you're probably better at all this sh*t than i am,.. while I've just had all the issues you're facing already.. or will

Old Feb 26, 2015 | 09:04 PM
  #10
BLKMGK's Avatar
Registered User
Joined: Apr 2009
Posts: 2,949
From: Virginia
Rep Power: 575
BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !BLKMGK Is a GOD !
Hrm, a hatch is an interesting idea. You can pull up the carpet in back to find a very nice sized nearly flat piece that is likely just over top of the engine... I don't think it's a great idea but I wouldn't be surprised at all if someone hasn't cut that at some point for access!

Old Feb 27, 2015 | 06:28 PM
  #11
MadWhip's Avatar
Thread Starter
|
Registered User
Joined: Apr 2014
Posts: 1,229
From: In My Trunk, IL
Rep Power: 89
MadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond repute
Originally Posted by BLKMGK
Hrm, a hatch is an interesting idea. You can pull up the carpet in back to find a very nice sized nearly flat piece that is likely just over top of the engine... I don't think it's a great idea but I wouldn't be surprised at all if someone hasn't cut that at some point for access!
hahah such a hack job!

Old Feb 27, 2015 | 06:31 PM
  #12
MadWhip's Avatar
Thread Starter
|
Registered User
Joined: Apr 2014
Posts: 1,229
From: In My Trunk, IL
Rep Power: 89
MadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond repute
Originally Posted by '02996ttx50
you're probably better at all this sh*t than i am,.. while I've just had all the issues you're facing already.. or will
I think this is just the begging lol - i dont beat the crap out of the car, i just take it out ones a week, pretty much hway.

I love the car, but i think it hates me - maybe i should just put it in storage for another 10 years and not drive it. lol


Last edited by MadWhip; Feb 27, 2015 at 06:54 PM.
Old Mar 1, 2015 | 11:32 AM
  #13
MadWhip's Avatar
Thread Starter
|
Registered User
Joined: Apr 2014
Posts: 1,229
From: In My Trunk, IL
Rep Power: 89
MadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond repute
update: of course, i left the car overnight, put the car on the lift. i see no leak but i see some residue- its Sunday, who cares - only day i can have quality time with my car. but I prefer to drink few beers and watch sports channel - LOL I need to purchase adapter to pressurise the system. keep you guys updated

Old Mar 1, 2015 | 01:16 PM
  #14
markski@markskituning's Avatar
Basic Sponsor
20 Year Member
Joined: Oct 2004
Posts: 9,730
From: CHICAGO
Rep Power: 604
markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !markski@markskituning Is a GOD !
oil spill when changing oil filter and it works its way down.. or rear main seal

__________________

2001 996TT 3.6L and stock ECU
9.66
seconds @ 147.76 mph 1/4 mile
click to view
160 mph @ 9.77 seconds in 1/4 mile click to view
50% OFF ON PORSCHE ECU TUNING BLACK FRIDAY SPECIAL




Old Mar 3, 2015 | 06:24 PM
  #15
MadWhip's Avatar
Thread Starter
|
Registered User
Joined: Apr 2014
Posts: 1,229
From: In My Trunk, IL
Rep Power: 89
MadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond reputeMadWhip has a reputation beyond repute
Originally Posted by MARKSKI@911tuning
oil spill when changing oil filter and it works its way down.. or rear main seal
nah mark, I do oil changes my self and I'm super carefull about any spill anywhere my car is just a ghost.
