Intercooler Install Instructions/Time?
Hey Guys,
Going to be doing intercoolers this weekend. Any detailed instructions? Can't really seem to locate anything that still has valid pictures in a thread (most pictures are dead).
How long should I anticipate? Read report of 1 hour up to 4.
Going to be doing intercoolers this weekend. Any detailed instructions? Can't really seem to locate anything that still has valid pictures in a thread (most pictures are dead).
How long should I anticipate? Read report of 1 hour up to 4.
#2
07-01-2016, 10:08 AM
Try this one:
http://www.pelicanparts.com/techarti...le_Removal.htm
Its a pretty straight forward job but may take time depending on your resources space and how fast you work. My first time removing the stock bumper probably took me 15-20 minutes, now I can do it in like 5.
What took longer than I expected was trimming the stock ducts. depending on what intercoolers you have you may have to trim a little or a lot.
http://www.pelicanparts.com/techarti...le_Removal.htm
Its a pretty straight forward job but may take time depending on your resources space and how fast you work. My first time removing the stock bumper probably took me 15-20 minutes, now I can do it in like 5.
What took longer than I expected was trimming the stock ducts. depending on what intercoolers you have you may have to trim a little or a lot.
#3
07-01-2016, 10:39 AM
Join Date: Jul 2003
Location: Walnut Creek, CA
Age: 42
Posts: 12,874
Rep Power: 578
Cool, right on. I generally (unfortunately) get insomnia on the weekends (which is weird since I only sleep 4-5 hours a night anyways). Figure I'll start this one morning about 3 am. See how it goes.
#4
07-01-2016, 10:50 AM
You are a nut!
I'll text you some pics. It's about 4 hours with the trimming if you take the time. You are essentially taking the lip off the upper and lower ducts so that they sit flush onto the IC core and a little around the inlet/outlet if they are in the way. They should clip using the outer factory outer clips.
I'll text you some pics. It's about 4 hours with the trimming if you take the time. You are essentially taking the lip off the upper and lower ducts so that they sit flush onto the IC core and a little around the inlet/outlet if they are in the way. They should clip using the outer factory outer clips.
#5
07-01-2016, 11:02 AM
Join Date: Jul 2003
Location: Walnut Creek, CA
Age: 42
Posts: 12,874
Rep Power: 578 You are a nut!
I'll text you some pics. It's about 4 hours with the trimming if you take the time. You are essentially taking the lip off the upper and lower ducts so that they sit flush onto the IC core and a little around the inlet/outlet if they are in the way. They should clip using the outer factory outer clips.
I'll text you some pics. It's about 4 hours with the trimming if you take the time. You are essentially taking the lip off the upper and lower ducts so that they sit flush onto the IC core and a little around the inlet/outlet if they are in the way. They should clip using the outer factory outer clips.
i just found wagners instructions...they say 2X units and each unit is 5 minutes...so an hour....vs your 4
#6
07-01-2016, 11:07 AM
Please update us on the intercooler install especially fitment in the ducts and cages..
#7
07-01-2016, 11:07 AM
I think I missed where you mentioned what size and brand intercooler you went with.
Trending Topics
#8
07-01-2016, 11:10 AM
Or is the car already apart?
* Wagner 3.5's
#9
07-01-2016, 11:13 AM
Join Date: Jul 2003
Location: Walnut Creek, CA
Age: 42
Posts: 12,874
Rep Power: 578 gonna start pulling apart tonight....so the 1 hour is once i'm in there
#11
07-01-2016, 03:16 PM
Join Date: Jul 2003
Location: Walnut Creek, CA
Age: 42
Posts: 12,874
Rep Power: 578
Sam, UPS man isn't here yet. But I'm ready.

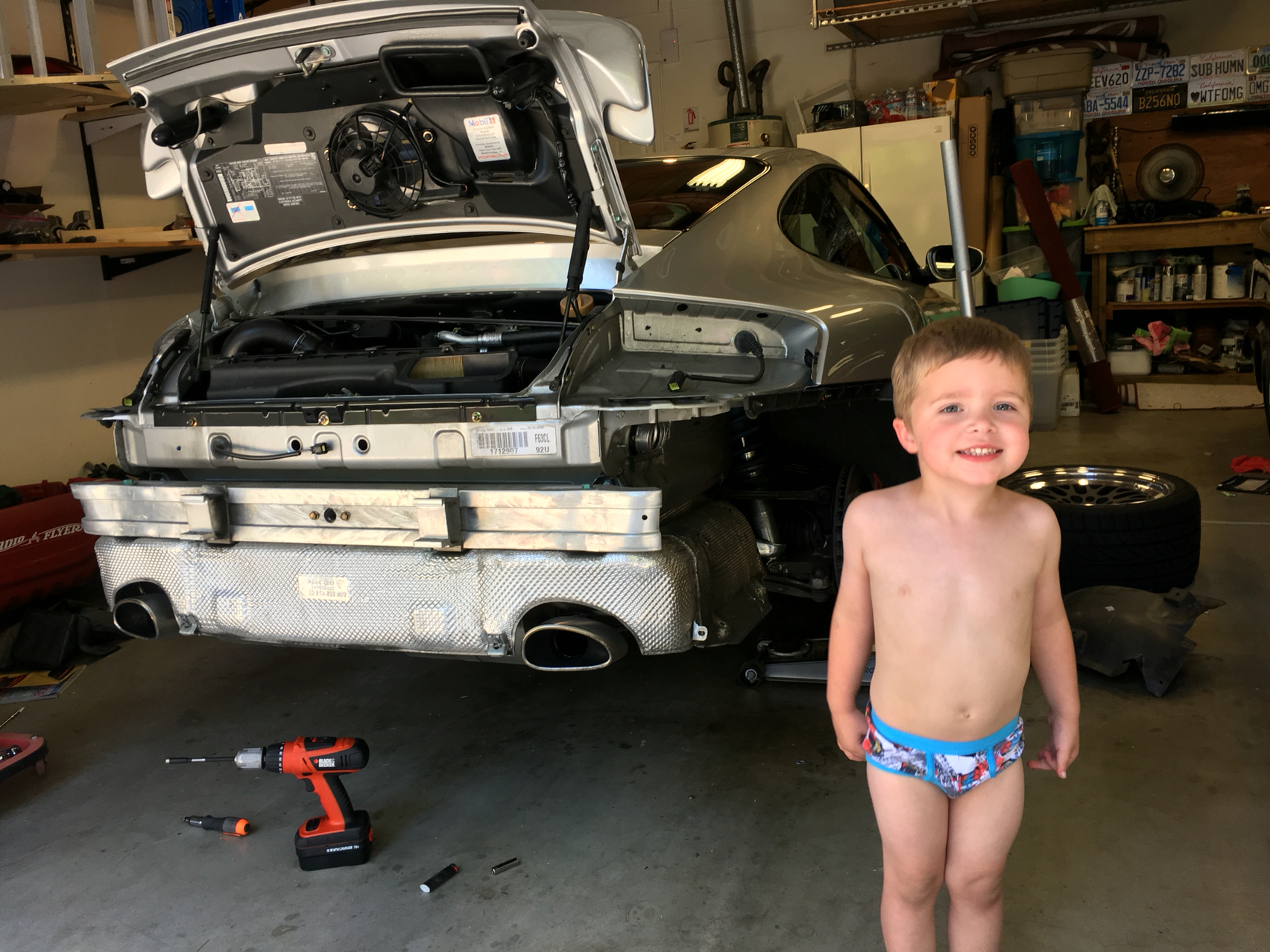

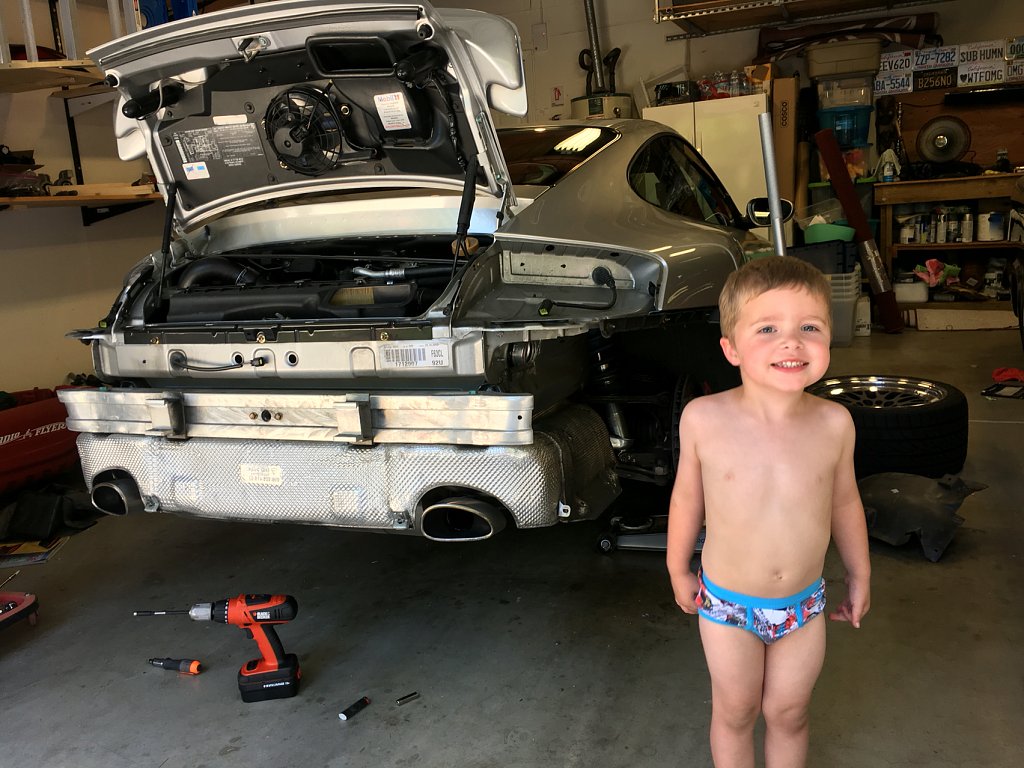

Ironically the hardest part has been getting the hex bolt for the bumperettes off. Hercules must have put them on. I had to cut a Allen wrench and put it on a socket attached to a breaker bar to get loose
Ironically the hardest part has been getting the hex bolt for the bumperettes off. Hercules must have put them on. I had to cut a Allen wrench and put it on a socket attached to a breaker bar to get loose
#12
07-01-2016, 03:31 PM
Get those rubber hoses off too. And clean the turbo outlet with brake cleaner for a nice grab when you clam on the new silicone. Dude you are looking younger each day
#14
07-01-2016, 04:31 PM
while you have the bumper off reroute the access cable down to were the bumper outlets are at. when you reinstall the bumper tiewrap it to one of the vent slats from the inside. now all you have to do is reach in and grab it when the battery dies and you need to open the lid
