Help on removing AC Compressor

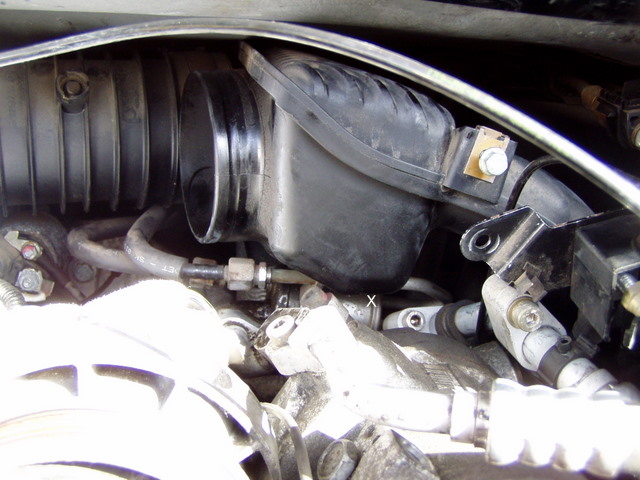

I finally had some success in trying to remove the AC Compressor on my 996, which the manual make sound so simple. The big challenge was getting at the rear mounting bolt, which is way back in there. I found that by removing the temperature sensor and grommet that fits between intakes 4 & 5 you get an almost straight shot at the bolt. Putting it back together may be just as challenging.
However I now need two more answers from those who have done this before.
First, the manual says to disconnect the electrical plug connection. Is this on the single wire that connects behind the pulley? And do you disconnect is at the plastic piece behind the pulley, or is there another connector I haven’t found yet?

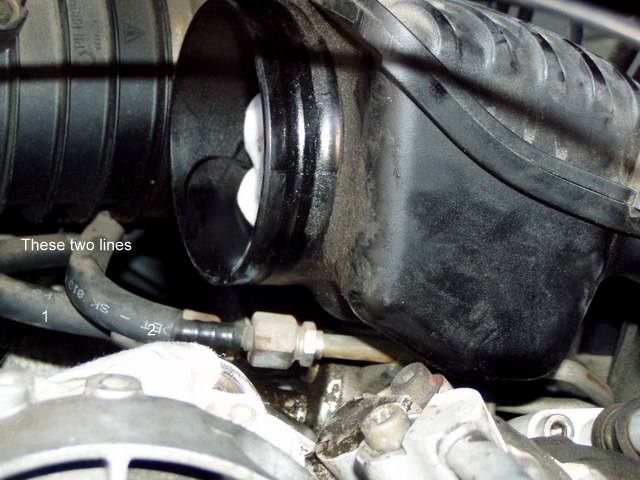

Finally, there are two lines connected to a device mounted to the top rear of the compressor that at first looked like a receiver/dryer. The lines are too short to pull the compressor out of position. In looking at PET this device may be the “fuel cooler” which shows two lines connected to it, but the manual does not mention this device or the fines to it. If they are fuel lines I should be able to disconnect them with loosing the charge on the compressor (which is the whole point in removing the compressor after all). Anyone with any advice on this?
However I now need two more answers from those who have done this before.
First, the manual says to disconnect the electrical plug connection. Is this on the single wire that connects behind the pulley? And do you disconnect is at the plastic piece behind the pulley, or is there another connector I haven’t found yet?
Finally, there are two lines connected to a device mounted to the top rear of the compressor that at first looked like a receiver/dryer. The lines are too short to pull the compressor out of position. In looking at PET this device may be the “fuel cooler” which shows two lines connected to it, but the manual does not mention this device or the fines to it. If they are fuel lines I should be able to disconnect them with loosing the charge on the compressor (which is the whole point in removing the compressor after all). Anyone with any advice on this?
