Engine repair/threaded camshaft plugs
#16

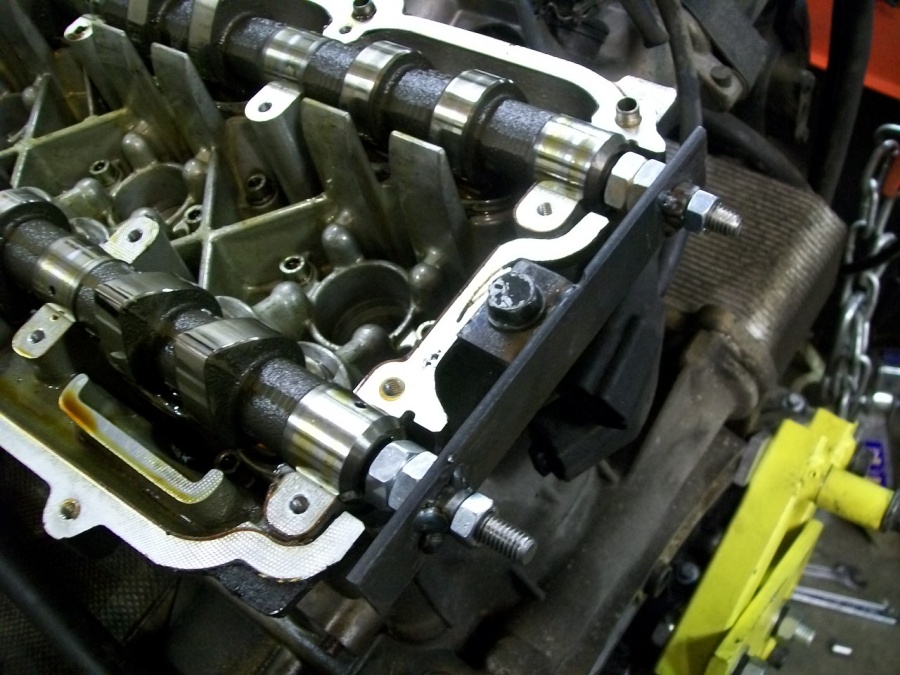

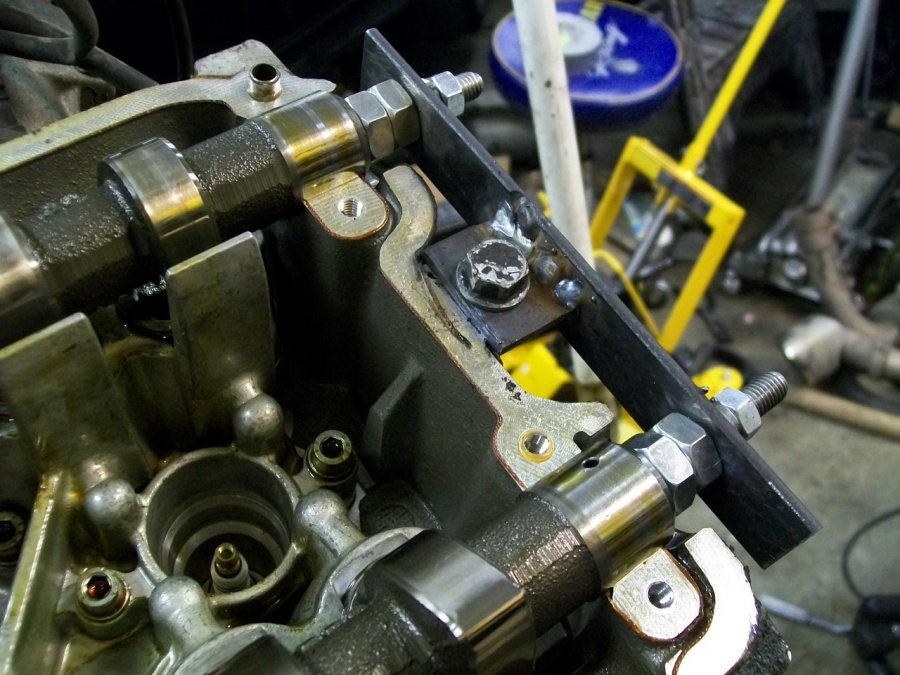

The hex plugs were made of brass. The shop that threaded the cams provided them. As for the tool, mine was pretty crude as I made it on a vice with a drill. A drill press would have been much better. Also, setting the depth of the bolts that fit into the head of the cams would have saved a lot of trouble. I would have to look up the proper depths, they are in the manual.
#18
Just be careful with the allen head bolts. That is what I used and they went into the expansion plugs and deformed them. You want to keep them in the head of the cam and not press on the expansion plugs.
#19
Based on your experience, I screwed them figer tight into the cams. I got a couple different sizes, and this one held the cam nicely, without a chance of deforming the plugs. After seeing you experience, I treaded lightly.
