Coolant leak from cap???


  #16
Old 07-22-2018, 05:22 PM
b3freak's Avatar
Registered User
Join Date: Apr 2018
Location: Athens GA Area
Age: 48
Posts: 151
Rep Power: 7
b3freak is on a distinguished road
Originally Posted by Jglowien View Post
Thanks for your thoughts. Why else would it seem like the cooling system is not up to the task of keeping the engine cool, even at idle?
responses are below...
When you start the car with AC on full blast, do the front fans come on?
Yes, now they do. Before I washed out the AC and coolant radiators, the left hand side fan did not come on when the AC was on. Now they both run.
The is one indication that you may need to replace your resistors. I would start and replace the driver side first. It's a common problem that these go bad. More than likely, when the radiators were clogged up it produced too much resistance and the fan wouldn't work at low speeds. I've had this problem. If it's not the resistor, then it may be the Stage 1 relay. But again, I would recommend replacing the resistors.

Here's a video...



2. Do you know if the water pump has been changed out in the last few years?I have the most sketchy historical service records, only what the Carfax listed, when I bought the car this past Feb. Not even the most recent owner, who traded it in, provided any documentation ... no owners manual, maintenance records, parts replacement, etc.

One easy test is to remove the serpentine belt and test the water pump for faulty bearings. Once the belt is removed, try spinning the hub and see if it moves smoothly with no resistance or noise. If you know that it hasn't been changed out in a long time, then you should plan to replace it. Of course, you can remove it and see if the impellers are damaged.
The worst scenario is the impellers have broken off and blocked the coolant passages on the motor. Let's hope not! Unfortunately, it's another common problem with these motors. That's why Porsche recommends replacing it regularly as preventive maintenance. Avoiding it can permanently damage the motor from over heating such as cracked heads or even cracked blocks. IMHO.

Here's a good video on the process...



3. Was the thermostat tested? Have you thought about changing out the thermostat with a low temp version?Per #2 above, I have not tested it. If it is the original 17 year old factory thermostat, it has lived a long life but needs to be shot. I was also considering the low temp thermostat when I was considering the pump change-out.

It's a good idea to change it out with a low temp thermostat from LN engineering. Here's the link...

https://lnengineering.com/products/1...e-install.html




Good luck and don't ignore this problem. It will only get worse.

Cheers!

  #17
Old 07-23-2018, 07:18 AM
Registered User
Join Date: Mar 2018
Age: 69
Posts: 43
Rep Power: 0
Jglowien is an unknown quantity at this point
Thanks. All very sound advice, and I'm compiling my parts list now, including the drive belt. I'm curious about one thing left. This coolant problem was first detected during my first test drive, and the temp gauge did NOT register a problem on those test drives (granted it was a 45degree day in February). I could definitely smell the antifreeze after every drive, noticing it when I stepped out of the car. The selling dealer (BMW) and the one who did the PPI (Porsche) both stated it was just probably from the car not being driven a lot. Seemed plausible at the time, but now it is clearly bad advice from them. Also, maybe my nose is now highly attuned to sniff it out, having had coolant leak issues on some of my prior cars, e.g., Austin Healey, Jetta, MGC, BMW 635. The smell of glycol is something I pick up quickly.
Also very puzzling is there is no obvious evidence of WHERE it was coming out on the Porsche. The only time I saw anything was this past weekend with the overheating and the blue cap was bypassing coolant, which then went down its overflow tube to the ground.
So with no initial evidence of overheating, but clearly there was coolant being lost, where else could the loss be occurring? Should I at this also just replace the cap? Am I possibly dealing with something more than a bad cap on the coolant expansion tank? The cooling system with the existing blue cap seems to hold pressure for several days of no driving. I can hear air escaping under pressure when I remove the cap. Is it relevant that the tank fluid level usually then rises, even overflowing? Also, I hear gurgling as I do this. Is this because air is in the system and needs to be purged? Can't believe this is so mysterious. Probably a simple root cause that I'm missing.

  #18
Old 07-23-2018, 08:14 AM
wyovino's Avatar
Registered User
Join Date: Jun 2010
Location: L.I., NY
Posts: 544
Rep Power: 32
wyovino is a jewel in the roughwyovino is a jewel in the roughwyovino is a jewel in the rough
If the part number on the cap does not end in "04" you have the old style cap which was prone to leaking. One caveat - I read one account where someone added the new cap and the increased pressure caused his old coolant expansion tank to crack. It was likely ready to go and the new cap pushed it over the edge. If your tank has yellowed, it's probably wise to swap that out as well.


With a MY 2001 with little or no maintenance history I would replace the following:

Water pump (OEM with composite impeller and OEM metal gasket)
Thermostat (Low temp 160f)
Serpentine belt
Coolant tank and cap (OEM from Germany, Cap part number ending in "04")


Even if none of these items are the cause of the leakage, they are things that should be done anyway.


2 gallons in 500 miles is a lot of leakage.


Last edited by wyovino; 07-23-2018 at 08:34 AM.
  #19
Old 07-23-2018, 08:54 AM
Registered User
Join Date: Mar 2018
Age: 69
Posts: 43
Rep Power: 0
Jglowien is an unknown quantity at this point

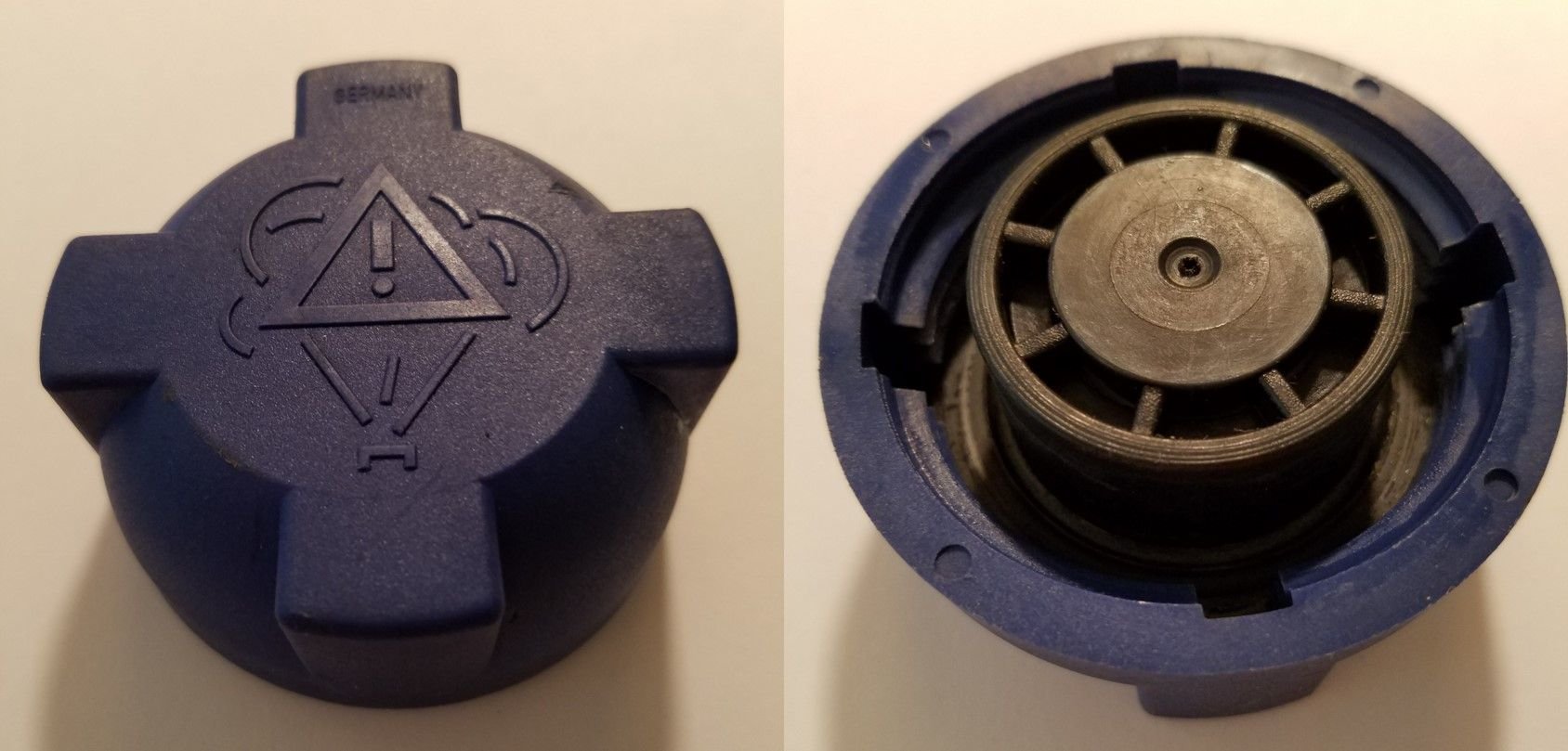

Pump, thermostat (low temp) and belt are definitely on the to-do list. The expansion tank looks brand new (bright white) and the cap is the new blue one. See attached photos. No part number on it however. Says 'Germany' on it. A clone perhaps?

  #20
Old 07-23-2018, 09:00 AM
wyovino's Avatar
Registered User
Join Date: Jun 2010
Location: L.I., NY
Posts: 544
Rep Power: 32
wyovino is a jewel in the roughwyovino is a jewel in the roughwyovino is a jewel in the rough
I would go with the genuine Porsche cap (blue, ending in 04). Someone on another forum had a problem with an aftermarket cap.


Last edited by wyovino; 07-23-2018 at 09:04 AM.
  #21
Old 07-23-2018, 09:03 AM
Registered User
Join Date: Mar 2018
Age: 69
Posts: 43
Rep Power: 0
Jglowien is an unknown quantity at this point
So a real Porsche part would have the part number on it? This one, although bright blue, has no part number on it.

  #22
Old 07-23-2018, 09:17 AM
wyovino's Avatar
Registered User
Join Date: Jun 2010
Location: L.I., NY
Posts: 544
Rep Power: 32
wyovino is a jewel in the roughwyovino is a jewel in the roughwyovino is a jewel in the rough
Here is the latest Porsche cap.

Attached Images
  #23
Old 07-23-2018, 09:22 AM
wyovino's Avatar
Registered User
Join Date: Jun 2010
Location: L.I., NY
Posts: 544
Rep Power: 32
wyovino is a jewel in the roughwyovino is a jewel in the roughwyovino is a jewel in the rough
At this point we can't tell if the cap is the problem, but you can eliminate one variable by putting on the proper cap.

  #24
Old 07-23-2018, 11:18 AM
Registered User
Join Date: Mar 2018
Age: 69
Posts: 43
Rep Power: 0
Jglowien is an unknown quantity at this point
New Porsche Expansion Installed

Made the drive of 20 miles to local Porsche dealer and bought a proper cap, with part number molded in. Wasn't sure I was going to make it all the way to the dealer because the low coolant light went on just before I got there. The expansion tank was on the Max lone when I started. Interesting that the temp fell from over the right edge of the '0' in stop-and-go traffic to between the '8' and '0' on the temp gauge while driving at 60+ mph on the expressway. Drove all the way back with light still on. Will now let it cool down so that I can top it up and put on the new cap. I am eager to see how it behaves ... hopefully some improvement and proof it was only the cap leaking.

  #25
Old 07-23-2018, 11:35 AM
b3freak's Avatar
Registered User
Join Date: Apr 2018
Location: Athens GA Area
Age: 48
Posts: 151
Rep Power: 7
b3freak is on a distinguished road
Originally Posted by Jglowien View Post
Made the drive of 20 miles to local Porsche dealer and bought a proper cap, with part number molded in. Wasn't sure I was going to make it all the way to the dealer because the low coolant light went on just before I got there. The expansion tank was on the Max lone when I started. Interesting that the temp fell from over the right edge of the '0' in stop-and-go traffic to between the '8' and '0' on the temp gauge while driving at 60+ mph on the expressway. Drove all the way back with light still on. Will now let it cool down so that I can top it up and put on the new cap. I am eager to see how it behaves ... hopefully some improvement and proof it was only the cap leaking.
Sounds like you may have a faulty coolant level sensor. This may be the source of the leak that you smell. Good news... Those sensors are pretty cheap - $40. Bad news - You'll have to remove the coolant reservoir. (see pic)





  #26
Old 07-23-2018, 11:48 AM
Registered User
Join Date: Mar 2018
Age: 69
Posts: 43
Rep Power: 0
Jglowien is an unknown quantity at this point
Temp sensor was also on my suspect list

I was hoping, given the apparent newness of the tank that I could avoid the gymnastics required to get it out. Your assessment does make sense though. If the sensor was leaking from its location at the bottom of the tak, shouldn't I be seeing evidence of the leak?

  #27
Old 07-23-2018, 11:55 AM
b3freak's Avatar
Registered User
Join Date: Apr 2018
Location: Athens GA Area
Age: 48
Posts: 151
Rep Power: 7
b3freak is on a distinguished road
Originally Posted by Jglowien View Post
I was hoping, given the apparent newness of the tank that I could avoid the gymnastics required to get it out. Your assessment does make sense though. If the sensor was leaking from its location at the bottom of the tak, shouldn't I be seeing evidence of the leak?
My theory is based on the fact that you're getting a "low coolant" MIL while you've confirmed the reservoir tank is completely full. You could have a extremely small leak that is dripping onto the hot exhaust which would give you the glycol cooked smell. But the leak is not large enough to create a puddle under the car while parked. Remember, the coolant will more likely to leak while running since it's under an enormous amount of pressure. While the car is parked, the pressure subsides and thus, doesn't produce a puddle. Just my theory. Seems like you're making the right steps. I'm still hoping your water pump impellers are still intact. Keep us updated!

Also, the coolant expansion tanks are also prone to leaking. If you choose to replace the level sensor, I'd recommend installing an OEM coolant expansion tank to be safe. They're a PITA to install and so it's smart to save the trouble in the long run just in case the sensor wasn't where the leak was occurring.


Last edited by b3freak; 07-23-2018 at 11:59 AM.
  #28
Old 07-23-2018, 12:45 PM
Registered User
Join Date: Mar 2018
Age: 69
Posts: 43
Rep Power: 0
Jglowien is an unknown quantity at this point
Tank replacement strategy.

Actually the low coolant light is not on when the tank is at or above MIN. Today, when I took off for the drive to the dwalee, the tank was at MAX and the light was not on. It was after maybe 15 miles on the highway that the light came on. However, if the seal around the sensor is leaking, that would explain the loss of so much coolant.
I am wanting to keep the coolant temp from rising so much in stop-and-go traffic. That points to the pump and belt replacemnet task.

  #29
Old 07-23-2018, 01:06 PM
Registered User
Join Date: Mar 2018
Age: 69
Posts: 43
Rep Power: 0
Jglowien is an unknown quantity at this point
Seal around low coolant sensor?

In the image of the replacement sensor, I don't see any grommet or sealing ring. Is there one that would come with the sensor?

  #30
Old 07-23-2018, 02:45 PM
b3freak's Avatar
Registered User
Join Date: Apr 2018
Location: Athens GA Area
Age: 48
Posts: 151
Rep Power: 7
b3freak is on a distinguished road
Originally Posted by Jglowien View Post
In the image of the replacement sensor, I don't see any grommet or sealing ring. Is there one that would come with the sensor?
I don't believe there is any type of rubber seal for the coolant level sensor. Now, you got me wondering how it provides a non-leaking seal under pressure. ha!
