Microphone replacement -- please help --

Thread Tools

Rate Thread

Old Jul 2, 2009 | 11:52 AM
  #1
996TTer's Avatar
Thread Starter
|
Registered User
Joined: Mar 2005
Posts: 279
From: Florida
Rep Power: 59
996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute
Microphone replacement -- please help --

I would like to replace the factory microphone against a new one, but I have no clue how to get the housing of the steering weal of. There are two Torx screws from underneath but what else? Could someone please point me in the right direction and explain what is needed to take the upper part of...

Thanks in advance....

Old Jul 2, 2009 | 12:13 PM
  #2
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
Originally Posted by 996TTer
I would like to replace the factory microphone against a new one, but I have no clue how to get the housing of the steering weal of. There are two Torx screws from underneath but what else? Could someone please point me in the right direction and explain what is needed to take the upper part of...

Thanks in advance....
You do not need to remove the steering wheel to get the column off..for that matter, you don't even need to remove the bottom cover.

There are several torx screws below the column which is a two piece unit. After unbolting, the top half should come off...you need to wiggle the plastic tabs go pull the cover off...the microphone is below...there are several plastic hubs and adapters for the wiring.

https://www.6speedonline.com/forums/...r-leather.html


Last edited by bbywu; Jul 2, 2009 at 12:32 PM.
Old Jul 2, 2009 | 03:50 PM
  #3
996TTer's Avatar
Thread Starter
|
Registered User
Joined: Mar 2005
Posts: 279
From: Florida
Rep Power: 59
996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute
Originally Posted by bbywu
You do not need to remove the steering wheel to get the column off..for that matter, you don't even need to remove the bottom cover.

There are several torx screws below the column which is a two piece unit. After unbolting, the top half should come off...you need to wiggle the plastic tabs go pull the cover off...the microphone is below...there are several plastic hubs and adapters for the wiring.

https://www.6speedonline.com/forums/...r-leather.html
Thanks for the answer, I have tried to get the upper part off, but after unscrewing the two torx it did not come off, but I will try again, just frightened to break something.. Is it clipped to the bottom part or is it just laying on it??

Old Jul 2, 2009 | 04:20 PM
  #4
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
I can do better. I always find it easier to figure out how things are assembled if you can look at the parts ahead of time...here are some pics:

Picture 1 shows you the entire column together...they are not snapped together...they are hinged together. If you are sitting in front of the steering wheel, the hinge is closer to the dash...further away from the steering wheel.

Picture 2 shows you the hinge mechanism

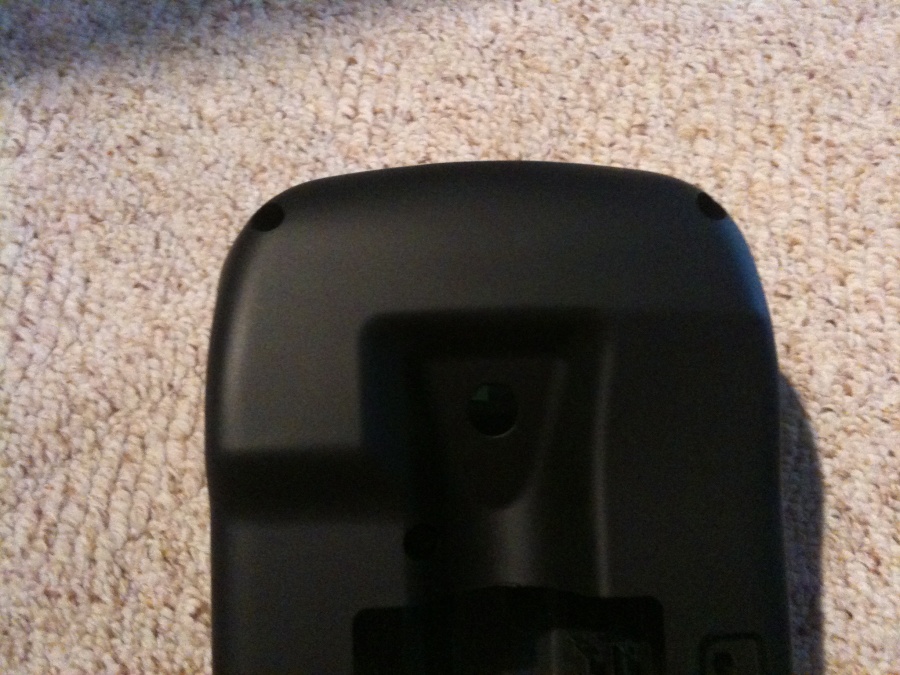

Picture 3 shows you two torx screws on the bottom piece. They are located closer to the steering wheel.

Attached Images

Last edited by bbywu; Jul 2, 2009 at 04:27 PM.
Old Jul 2, 2009 | 04:24 PM
  #5
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
If you unbolt the two torx screws closer to the steering wheel on the bottom piece, the part should open like a clam shell. You may have to wiggle the tabs off the leather/rubber piece that connects the top cover to the dash.

Old Jul 2, 2009 | 07:04 PM
  #6
996TTer's Avatar
Thread Starter
|
Registered User
Joined: Mar 2005
Posts: 279
From: Florida
Rep Power: 59
996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute996TTer has a reputation beyond repute
Thanks so much!! The pictures were a great idea.. that helped a lot. Got it now.
Thanks again bbywu!

Old Jul 2, 2009 | 08:23 PM
  #7
bbywu's Avatar
Registered User
Joined: Jan 2007
Posts: 10,774
From: OR Room 5
Rep Power: 1007
bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !bbywu Is a GOD !
Originally Posted by 996TTer
Thanks so much!! The pictures were a great idea.. that helped a lot. Got it now.
Thanks again bbywu!
No problem...good luck.
