Champion Motorsport 997.2TT "War Admiral" TESTED WITH RESULTS
Introducing the Champion Motorsport “War Admiral” 997.2TT
We have been talking about this project for quite some time now, and many of you have read our postings of dyno results complete with lists of upgrades. Well here it is, the complete package, tested and proven. Fully exercised for a day around Palm Beach International Raceway, complete with full performance testing, experiencing ZERO mechanical glitches. In fact, the only tools taken from the tool box were the tire pressure gauge, and the tire pyrometer.
In this write up I will not go into detail about the meaning of “War Admiral” which by the way is the specific name of this car, not necessarily the name of our performance kit, but if you wish to understand the meaning have a look at this link:
http://en.wikipedia.org/wiki/War_Admiral
This car is equipped and tested with the following list of features:
Engine
- CMS Billet Compressor turbochargers with 68mm 7 blade wheels
- CMS (new for 2010) intercooler upgrade, including silicon hoses and hardware

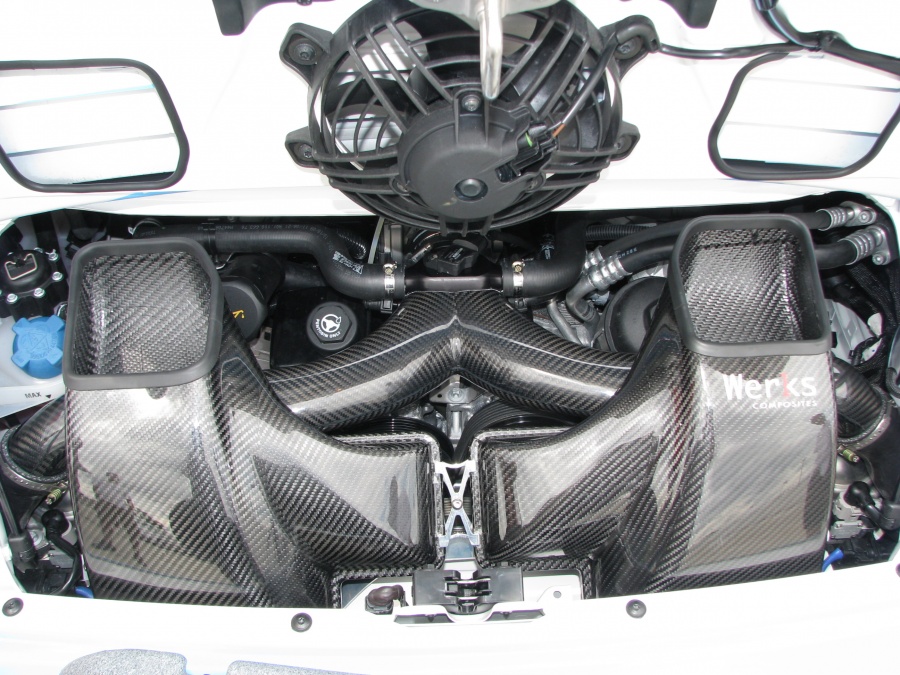

- Werks1 carbon Y-pipe for 2010 cars
- CMS compressor inlet adapters (increased flow)
- Werks1 carbon air box for 2010 cars
- CMS exhaust manifolds, 3 into 1 equal length headers
- Tubi Style Race exhaust system
- GIAC high performance software proprietary to CMS
Aero and Body and Misc.
- CMS Forged Magnesium Center Loc Wheels 9X19 front, 12X19 Rear
- Michelin Pilot Cup tires
- CMS Werks1 Carbon Fiber rear wing and endplates
- CMS Werks1 997.2 Turbo rear diffuser
- CMS Werks1 Front Splitter
- Ice Blue Full body Vinyl Wrap
- Trim and mirrors in satin black
- Clear marker lenses
Interior
- Generally equipped as standard in black leather
- Porsche Sport Buckets carbon fiber race seats with folding backs
- Rear seats deleted
- Willans race harnesses with custom CMS mounting tabs for quick removal
- RSS (Road Sport Supply) rear rollover bar
Suspension
- PASM dampers left completely as standard
- CMS H&R lowering spring kit
- Forged Porsche Motorsport “997Cup” arms with camber shim adjustment
- RSS Spherical bearings in lower arms
- RSS Adjustable Spherical bearing rear upper arms
- RSS front and rear adjustable anti roll bars with adjustable drop links
- RSS Rear Bump steer adjustable toe linkage
- (Prototype) RSS front adjustable bump steer toe linkage
- 1.9 deg. front and 2.8 deg. Rear camber
- .5 mm total toe in front 4 mm toe in rear
- Corner balanced with 180lb driver ballast
All testing was conducted by International Journalist Ian Kuah, and the car was tested in “Step 1” power mode with “Sport Plus” mode active, utilizing the PDK launch control. As you may recall from our 4wd Mustang dyno testing, Step 1 CMS power is recorded at 542 whp and 527 ft-lbs torque, following a baseline of 431 peak WHP, and 425 ft-lbs of torque. Ambient temperature was 81F with a relative humidity of 73% during this part of our day. The alignment was not adjusted between on track testing and performance testing, and the Porsche Standard of ľ tank of 93 octane premium pump fuel was added.
We conducted 3 tests using a RACELOGIC Performance Box (V-BOX) and they were all consistent.
0 – 60 2.6 sec.
0 – 100 6.1 sec.
Standing Ľ mile - 10.6 sec. @ 133.2
All runs experienced some level of wheel spin, and results on a proper drag strip may be improved. All runs were also conducted using the full Werks 1 aero package which although improves down force and stability at speed, down force certainly adds drag at the speeds achieved during Ľ mile testing.
For those of you familiar with Palm Beach International Raceway (PBIR), the car was able to achieve lap after lap top speeds of 156.6 mph, and complete closed course lap times as driven by Ian Kuah at 1:28.5 in a rather conservative driving style.
If you have any questions or comments, please feel free to post them here, send a PM, or contact either me or our sales department for more information.
Louism@championmotorsport.com
Sales@championmotorsport.com
Louis A. Milone
Technical Director
Champion Motorsport
We have been talking about this project for quite some time now, and many of you have read our postings of dyno results complete with lists of upgrades. Well here it is, the complete package, tested and proven. Fully exercised for a day around Palm Beach International Raceway, complete with full performance testing, experiencing ZERO mechanical glitches. In fact, the only tools taken from the tool box were the tire pressure gauge, and the tire pyrometer.
In this write up I will not go into detail about the meaning of “War Admiral” which by the way is the specific name of this car, not necessarily the name of our performance kit, but if you wish to understand the meaning have a look at this link:
http://en.wikipedia.org/wiki/War_Admiral
This car is equipped and tested with the following list of features:
Engine
- CMS Billet Compressor turbochargers with 68mm 7 blade wheels
- CMS (new for 2010) intercooler upgrade, including silicon hoses and hardware
- Werks1 carbon Y-pipe for 2010 cars
- CMS compressor inlet adapters (increased flow)
- Werks1 carbon air box for 2010 cars
- CMS exhaust manifolds, 3 into 1 equal length headers
- Tubi Style Race exhaust system
- GIAC high performance software proprietary to CMS
Aero and Body and Misc.
- CMS Forged Magnesium Center Loc Wheels 9X19 front, 12X19 Rear
- Michelin Pilot Cup tires
- CMS Werks1 Carbon Fiber rear wing and endplates
- CMS Werks1 997.2 Turbo rear diffuser
- CMS Werks1 Front Splitter
- Ice Blue Full body Vinyl Wrap
- Trim and mirrors in satin black
- Clear marker lenses
Interior
- Generally equipped as standard in black leather
- Porsche Sport Buckets carbon fiber race seats with folding backs
- Rear seats deleted
- Willans race harnesses with custom CMS mounting tabs for quick removal
- RSS (Road Sport Supply) rear rollover bar
Suspension
- PASM dampers left completely as standard
- CMS H&R lowering spring kit
- Forged Porsche Motorsport “997Cup” arms with camber shim adjustment
- RSS Spherical bearings in lower arms
- RSS Adjustable Spherical bearing rear upper arms
- RSS front and rear adjustable anti roll bars with adjustable drop links
- RSS Rear Bump steer adjustable toe linkage
- (Prototype) RSS front adjustable bump steer toe linkage
- 1.9 deg. front and 2.8 deg. Rear camber
- .5 mm total toe in front 4 mm toe in rear
- Corner balanced with 180lb driver ballast
All testing was conducted by International Journalist Ian Kuah, and the car was tested in “Step 1” power mode with “Sport Plus” mode active, utilizing the PDK launch control. As you may recall from our 4wd Mustang dyno testing, Step 1 CMS power is recorded at 542 whp and 527 ft-lbs torque, following a baseline of 431 peak WHP, and 425 ft-lbs of torque. Ambient temperature was 81F with a relative humidity of 73% during this part of our day. The alignment was not adjusted between on track testing and performance testing, and the Porsche Standard of ľ tank of 93 octane premium pump fuel was added.
We conducted 3 tests using a RACELOGIC Performance Box (V-BOX) and they were all consistent.
0 – 60 2.6 sec.
0 – 100 6.1 sec.
Standing Ľ mile - 10.6 sec. @ 133.2
All runs experienced some level of wheel spin, and results on a proper drag strip may be improved. All runs were also conducted using the full Werks 1 aero package which although improves down force and stability at speed, down force certainly adds drag at the speeds achieved during Ľ mile testing.
For those of you familiar with Palm Beach International Raceway (PBIR), the car was able to achieve lap after lap top speeds of 156.6 mph, and complete closed course lap times as driven by Ian Kuah at 1:28.5 in a rather conservative driving style.
If you have any questions or comments, please feel free to post them here, send a PM, or contact either me or our sales department for more information.
Louism@championmotorsport.com
Sales@championmotorsport.com
Louis A. Milone
Technical Director
Champion Motorsport
#2
04-16-2010, 02:19 PM
Join Date: Mar 2010
Location: Pompano Beach, FL
Age: 52
Posts: 67
Rep Power: 0

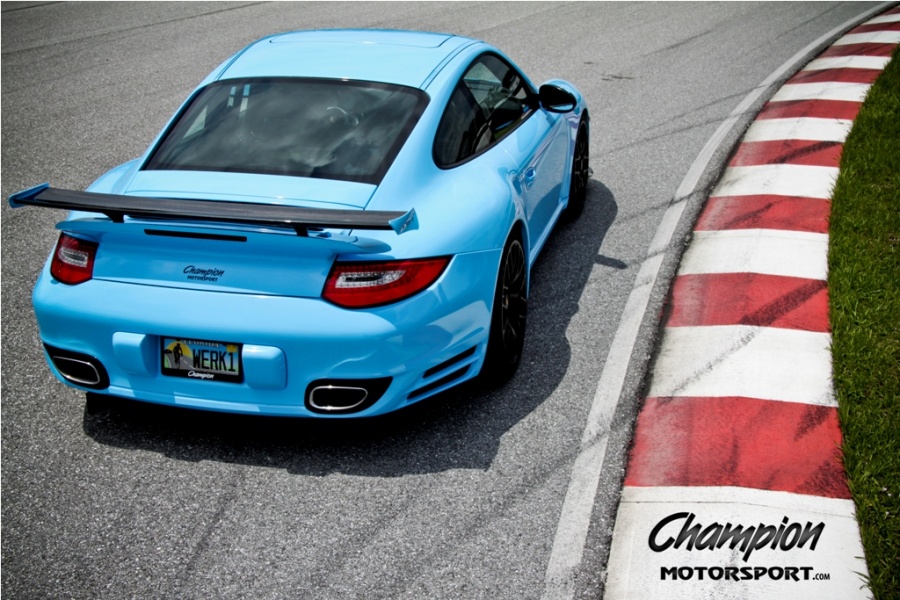

Here are a few photos taken from my camera of some of the behind the scenes activities.
Stay tuned, I am uploading video clips to YouTube right now of the test runs as well as on track testing, and our friends at RennSport are producing a video as well.
Stay tuned, I am uploading video clips to YouTube right now of the test runs as well as on track testing, and our friends at RennSport are producing a video as well.
#3
04-16-2010, 02:22 PM
Introducing the Champion Motorsport “War Admiral” 997.2TT
We have been talking about this project for quite some time now, and many of you have read our postings of dyno results complete with lists of upgrades. Well here it is, the complete package, tested and proven. Fully exercised for a day around Palm Beach International Raceway, complete with full performance testing, experiencing ZERO mechanical glitches. In fact, the only tools taken from the tool box were the tire pressure gauge, and the tire pyrometer.
In this write up I will not go into detail about the meaning of “War Admiral” which by the way is the specific name of this car, not necessarily the name of our performance kit, but if you wish to understand the meaning have a look at this link:
http://en.wikipedia.org/wiki/War_Admiral
This car is equipped and tested with the following list of features:
Engine
- CMS Billet Compressor turbochargers with 68mm 7 blade wheels
- CMS (new for 2010) intercooler upgrade, including silicon hoses and hardware
- Werks1 carbon Y-pipe for 2010 cars
- CMS compressor inlet adapters (increased flow)
- Werks1 carbon air box for 2010 cars
- CMS exhaust manifolds, 3 into 1 equal length headers
- Tubi Style Race exhaust system
- GIAC high performance software proprietary to CMS
Aero and Body and Misc.
- CMS Forged Magnesium Center Loc Wheels 9X19 front, 12X19 Rear
- Michelin Pilot Cup tires
- CMS Werks1 Carbon Fiber rear wing and endplates
- CMS Werks1 997.2 Turbo rear diffuser
- CMS Werks1 Front Splitter
- Ice Blue Full body Vinyl Wrap
- Trim and mirrors in satin black
- Clear marker lenses
Interior
- Generally equipped as standard in black leather
- Porsche Sport Buckets carbon fiber race seats with folding backs
- Rear seats deleted
- Willans race harnesses with custom CMS mounting tabs for quick removal
- RSS (Road Sport Supply) rear rollover bar
Suspension
- PASM dampers left completely as standard
- CMS H&R lowering spring kit
- Forged Porsche Motorsport “997Cup” arms with camber shim adjustment
- RSS Spherical bearings in lower arms
- RSS Adjustable Spherical bearing rear upper arms
- RSS front and rear adjustable anti roll bars with adjustable drop links
- RSS Rear Bump steer adjustable toe linkage
- (Prototype) RSS front adjustable bump steer toe linkage
- 1.9 deg. front and 2.8 deg. Rear camber
- .5 mm total toe in front 4 mm toe in rear
- Corner balanced with 180lb driver ballast
All testing was conducted by International Journalist Ian Kuah, and the car was tested in “Step 1” power mode with “Sport Plus” mode active, utilizing the PDK launch control. As you may recall from our 4wd Mustang dyno testing, Step 1 CMS power is recorded at 542 whp and 527 ft-lbs torque, following a baseline of 431 peak WHP, and 425 ft-lbs of torque. Ambient temperature was 81F with a relative humidity of 73% during this part of our day. The alignment was not adjusted between on track testing and performance testing, and the Porsche Standard of ľ tank of 93 octane premium pump fuel was added.
We conducted 3 tests using a RACELOGIC Performance Box (V-BOX) and they were all consistent.
0 – 60 2.6 sec.
0 – 100 6.1 sec.
Standing Ľ mile - 10.6 sec. @ 133.2
All runs experienced some level of wheel spin, and results on a proper drag strip may be improved. All runs were also conducted using the full Werks 1 aero package which although improves down force and stability at speed, down force certainly adds drag at the speeds achieved during Ľ mile testing.
For those of you familiar with Palm Beach International Raceway (PBIR), the car was able to achieve lap after lap top speeds of 156.6 mph, and complete closed course lap times as driven by Ian Kuah at 1:28.5 in a rather conservative driving style.
If you have any questions or comments, please feel free to post them here, send a PM, or contact either me or our sales department for more information.
Louism@championmotorsport.com
Sales@championmotorsport.com
Louis A. Milone
Technical Director
Champion Motorsport
We have been talking about this project for quite some time now, and many of you have read our postings of dyno results complete with lists of upgrades. Well here it is, the complete package, tested and proven. Fully exercised for a day around Palm Beach International Raceway, complete with full performance testing, experiencing ZERO mechanical glitches. In fact, the only tools taken from the tool box were the tire pressure gauge, and the tire pyrometer.
In this write up I will not go into detail about the meaning of “War Admiral” which by the way is the specific name of this car, not necessarily the name of our performance kit, but if you wish to understand the meaning have a look at this link:
http://en.wikipedia.org/wiki/War_Admiral
This car is equipped and tested with the following list of features:
Engine
- CMS Billet Compressor turbochargers with 68mm 7 blade wheels
- CMS (new for 2010) intercooler upgrade, including silicon hoses and hardware
- Werks1 carbon Y-pipe for 2010 cars
- CMS compressor inlet adapters (increased flow)
- Werks1 carbon air box for 2010 cars
- CMS exhaust manifolds, 3 into 1 equal length headers
- Tubi Style Race exhaust system
- GIAC high performance software proprietary to CMS
Aero and Body and Misc.
- CMS Forged Magnesium Center Loc Wheels 9X19 front, 12X19 Rear
- Michelin Pilot Cup tires
- CMS Werks1 Carbon Fiber rear wing and endplates
- CMS Werks1 997.2 Turbo rear diffuser
- CMS Werks1 Front Splitter
- Ice Blue Full body Vinyl Wrap
- Trim and mirrors in satin black
- Clear marker lenses
Interior
- Generally equipped as standard in black leather
- Porsche Sport Buckets carbon fiber race seats with folding backs
- Rear seats deleted
- Willans race harnesses with custom CMS mounting tabs for quick removal
- RSS (Road Sport Supply) rear rollover bar
Suspension
- PASM dampers left completely as standard
- CMS H&R lowering spring kit
- Forged Porsche Motorsport “997Cup” arms with camber shim adjustment
- RSS Spherical bearings in lower arms
- RSS Adjustable Spherical bearing rear upper arms
- RSS front and rear adjustable anti roll bars with adjustable drop links
- RSS Rear Bump steer adjustable toe linkage
- (Prototype) RSS front adjustable bump steer toe linkage
- 1.9 deg. front and 2.8 deg. Rear camber
- .5 mm total toe in front 4 mm toe in rear
- Corner balanced with 180lb driver ballast
All testing was conducted by International Journalist Ian Kuah, and the car was tested in “Step 1” power mode with “Sport Plus” mode active, utilizing the PDK launch control. As you may recall from our 4wd Mustang dyno testing, Step 1 CMS power is recorded at 542 whp and 527 ft-lbs torque, following a baseline of 431 peak WHP, and 425 ft-lbs of torque. Ambient temperature was 81F with a relative humidity of 73% during this part of our day. The alignment was not adjusted between on track testing and performance testing, and the Porsche Standard of ľ tank of 93 octane premium pump fuel was added.
We conducted 3 tests using a RACELOGIC Performance Box (V-BOX) and they were all consistent.
0 – 60 2.6 sec.
0 – 100 6.1 sec.
Standing Ľ mile - 10.6 sec. @ 133.2
All runs experienced some level of wheel spin, and results on a proper drag strip may be improved. All runs were also conducted using the full Werks 1 aero package which although improves down force and stability at speed, down force certainly adds drag at the speeds achieved during Ľ mile testing.
For those of you familiar with Palm Beach International Raceway (PBIR), the car was able to achieve lap after lap top speeds of 156.6 mph, and complete closed course lap times as driven by Ian Kuah at 1:28.5 in a rather conservative driving style.
If you have any questions or comments, please feel free to post them here, send a PM, or contact either me or our sales department for more information.
Louism@championmotorsport.com
Sales@championmotorsport.com
Louis A. Milone
Technical Director
Champion Motorsport
those are bugatti numbers did pdk hold up to the power increase? any issues?
#6
04-16-2010, 02:29 PM
Join Date: Mar 2010
Location: Pompano Beach, FL
Age: 52
Posts: 67
Rep Power: 0
We have fully tested the PDK under all circumstances, at various power levels. At the power levels we listed, the PDK did not experience a single glitch. We left a margin of over 20WHP and 35Ftlbs torque.
As I wrote in another posting, Our Step 2 600WHP did slip the PDK clutches, so that kit will only be released for Manual transmission cars until we suitably sort a clutch upgrade for the PDK.. which will happen soon. The other interesting note here is that the 600WHP PDK kit will be software only, the development on the kit is already complete and tested.
Yes, the numbers are quite good, and even we were surprised. Realize that these tests were done independantly. We added 3/4 tank of pump fuel to the car, and handed off the keys for testing. All of this after running lap after lap on the race track all day long by several different drivers. The package is solid !!
As I wrote in another posting, Our Step 2 600WHP did slip the PDK clutches, so that kit will only be released for Manual transmission cars until we suitably sort a clutch upgrade for the PDK.. which will happen soon. The other interesting note here is that the 600WHP PDK kit will be software only, the development on the kit is already complete and tested.
Yes, the numbers are quite good, and even we were surprised. Realize that these tests were done independantly. We added 3/4 tank of pump fuel to the car, and handed off the keys for testing. All of this after running lap after lap on the race track all day long by several different drivers. The package is solid !!
Trending Topics
#8
04-16-2010, 03:20 PM
Join Date: Mar 2010
Location: Pompano Beach, FL
Age: 52
Posts: 67
Rep Power: 0
#9
04-16-2010, 03:36 PM
Former Vendor
Join Date: Apr 2005
Location: Pompano Beach, FL
Posts: 161
Rep Power: 0
Here are some more images of the NEW MM20 Magnesium Center Lock Wheels and another shot of the entire car.
#13
04-16-2010, 05:47 PM
Join Date: Mar 2010
Location: Pompano Beach, FL
Age: 52
Posts: 67
Rep Power: 0 Thank you for the comment on the wheels. Our engineer Chris did all of the work on this one, and I think it may be his most amazing work to date. The MM20 will be available in Forged aluminum very soon.
Another interesting thing about the day of testing... The "boss" and I had a bet on the performance numbers that it would put up...... I won, and as a result I got to drive her home from the track and enjoy driving her for the evening.. It is quite a thrill knowing you are driving a 2.6 second 0-60 car that I actually dropped my kids off for school in the morning with.. (I did have to drop them off 1 at a time though)
Last edited by Louis@Champion; 04-16-2010 at 06:06 PM.
#15
04-16-2010, 06:17 PM
Registered User
Join Date: Oct 2006
Location: Incline Village, NV
Posts: 1,423
Rep Power: 197 Unless you really crank the load, Mustangs still don't apply street load, so I would expect them to slip on the street at even less hp. I love the PDK's by the way for point and shoot type cars. Very impressive performance.
