997 2005-2012 911 C2, C2S, C4, C4S, GTS, Targa and Cabriolet Model Discussion.

Mysterious Tail light issue I can't figure out

Thread Tools

Search this Thread

Rate Thread

  #1
Old 11-18-2019, 02:51 PM
first.last's Avatar
Registered User
Thread Starter
Join Date: Sep 2016
Location: NYC
Posts: 46
Rep Power: 0
first.last is an unknown quantity at this point
Mysterious Tail light issue I can't figure out

Hi all, I tried searching but couldn't actually find anyone who had a solution to this problem. Here's the symptoms:

1) Rear driver tail light doesn't light up, warning on in dashboard
2) Passenger side works fine
3) Reverse, blinker, and fog light all work
4) When I unlock the car or turn the lights on, driver side tail light comes on for 1 second then turns off

Here's what I've already tried:
1) Swapped left and right tail lights, verified that it works on the other side
2) swapped all bulbs in both taillights, made no difference
3) Cleaned electrical contacts
4) Checked fuses. They're fine and like I said the light does come on briefly and all other lights work
5) Replaced headlight switch, made no difference

Has anyone else seen this before or have a solution? Since it comes on for a second and then turns off and all the other lights work, it doesn't appear to be an intermittent issue or a wiring issue in between the switch and the light but rather some other electrical problem.

  #2
Old 11-19-2019, 07:28 AM
Petza914's Avatar
Registered User
Join Date: Apr 2012
Location: Clemson, SC
Posts: 2,057
Rep Power: 132
Petza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond reputePetza914 has a reputation beyond repute
Disconnect the battery for 10 minutes, then reconnect it. DON'T LATCH THE FRUNK WHILE THE BATTERY IS DISCONNECTED.

This will reset the bulb control module and function may magically return.

  #3
Old 11-19-2019, 08:59 AM
first.last's Avatar
Registered User
Thread Starter
Join Date: Sep 2016
Location: NYC
Posts: 46
Rep Power: 0
first.last is an unknown quantity at this point
Thanks for the reply, gave that a shot and no luck unfortunately.

I did notice today that the spoiler is stuck up and the engine compartment light doesn't work...although I'm not sure if these are separate issues and my spoiler hydraulics and engine bulb happened to go out now.

Is the rear control module in the passenger side suspension area? Is it possible the module went bad or there is some coding issue?

  #4
Old 11-24-2019, 10:45 AM
964hans's Avatar
Registered User
Join Date: Apr 2017
Location: Boekelo, Netherlands
Age: 70
Posts: 64
Rep Power: 10
964hans will become famous soon enough

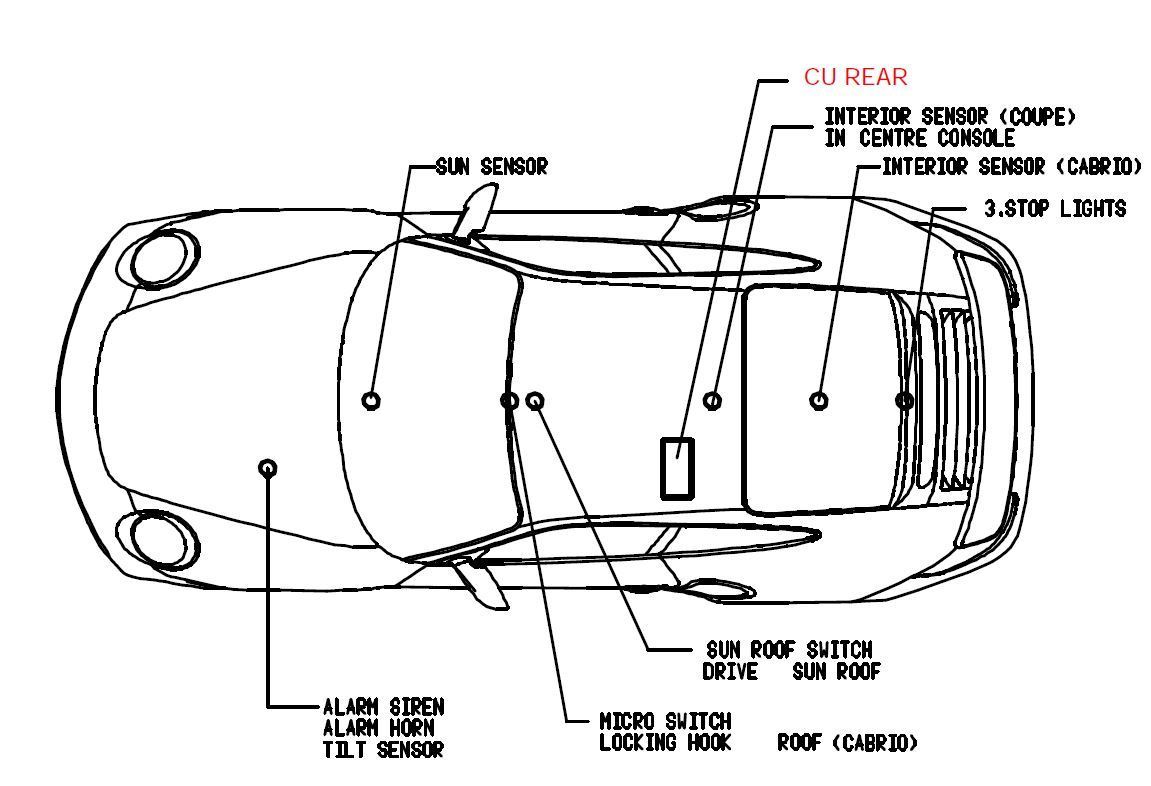

Probably it is indeed the CU REAR

Regards Hans




  #5
Old 12-08-2019, 01:39 PM
first.last's Avatar
Registered User
Thread Starter
Join Date: Sep 2016
Location: NYC
Posts: 46
Rep Power: 0
first.last is an unknown quantity at this point
Just to update this in case anyone else comes looking for a solution. I replaced the rear module under the front driver seat and rear lights seem to be working again.

  #6
Old 12-08-2019, 11:41 PM
Hella-Buggin''s Avatar
Registered User
Join Date: Aug 2009
Location: SF Bay Area
Posts: 860
Rep Power: 62
Hella-Buggin' has much to be proud ofHella-Buggin' has much to be proud ofHella-Buggin' has much to be proud ofHella-Buggin' has much to be proud ofHella-Buggin' has much to be proud ofHella-Buggin' has much to be proud ofHella-Buggin' has much to be proud ofHella-Buggin' has much to be proud ofHella-Buggin' has much to be proud ofHella-Buggin' has much to be proud of
Have you checked for rodent damage. The love to eat wiring.

  #7
Old 12-15-2019, 08:46 PM
first.last's Avatar
Registered User
Thread Starter
Join Date: Sep 2016
Location: NYC
Posts: 46
Rep Power: 0
first.last is an unknown quantity at this point
Originally Posted by Hella-Buggin'
Have you checked for rodent damage. The love to eat wiring.
Nothing wrong with the wiring...looks like the rear module just went bad. All good now!

  #8
Old 05-02-2024, 09:20 PM
997CarreraCab's Avatar
Registered User
Join Date: Jun 2013
Location: Englewood, NJ
Posts: 4
Rep Power: 0
997CarreraCab is on a distinguished road
I have a similar issues excep mine don’t turn on for a second. The reverse blinker and fog light work.

  #9
Old 05-03-2024, 07:15 AM
997CarreraCab's Avatar
Registered User
Join Date: Jun 2013
Location: Englewood, NJ
Posts: 4
Rep Power: 0
997CarreraCab is on a distinguished road
Originally Posted by first.last
Nothing wrong with the wiring...looks like the rear module just went bad. All good now!
Can I have the part number please?
